Geberit MAPRESS Manual

Product description

System components

Geberit Mapress Copper, (Gas)	Material designation	Material number EN	Material number AISI	Temperature range during operation
System pipes	Copper	CW024A	C12200	-20 – +70°C1)

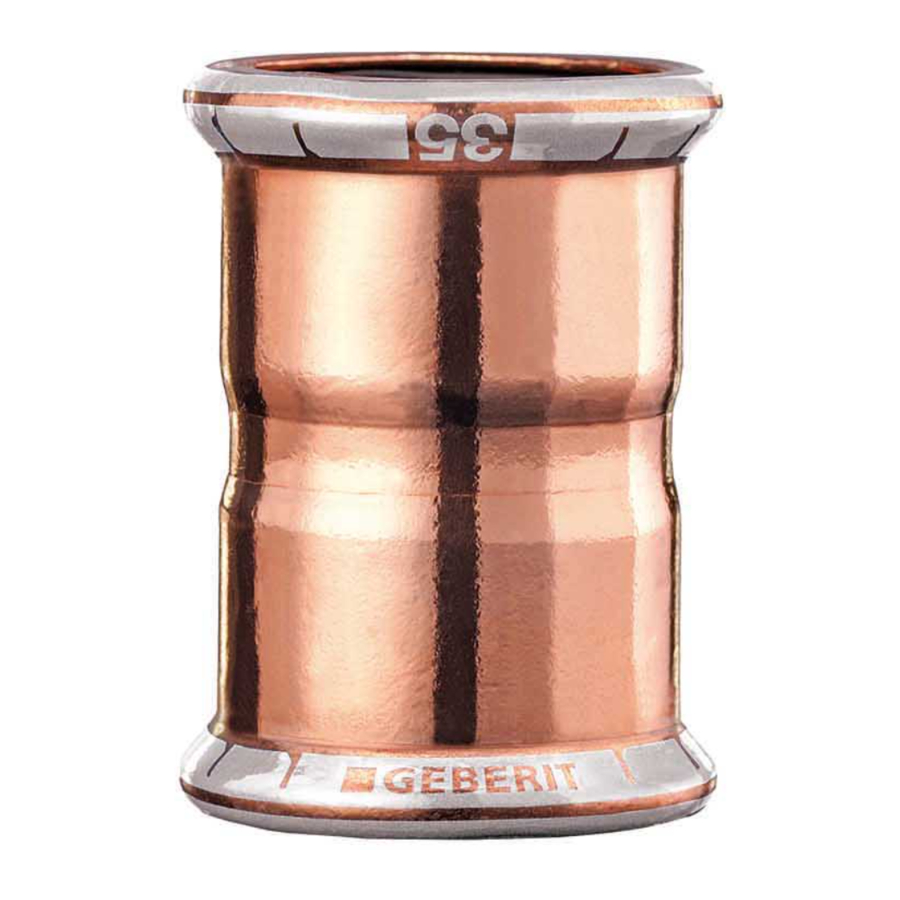

Pressfittings	Copper	CW024A	C12200
	DR brass	CW602N	C35330
	Gunmetal	CC499K	UNS C83600
Seal rings	HNBR, yellow

¹⁾ Observe restrictions arising from country-specific certifications.

Material pairing

Standard gas fittings made from gunmetal, brass, copper or galvanized steel can be connected.
Comply with the regulations of the regional gas supply company regarding mixed installations involving Geberit Mapress Copper (Gas) and Geberit Mapress Stainless Steel (Gas).

Properties

• Leaky if unpressed
• With pressing indicator

The copper pipe is authorised for the following dimensions and hardness values:

Outer pipe diameter	Pipe wall thickness	Pipe hardness value
d [mm]	s [mm]	R 290 (hard)	R 250 (semi-hard)	R 220 (soft)
15	1.0
18	1.0
22	1.0
28	1.21)/1.5
35	1.21)/1.5
42	1.21)/1.5
54	1.51)/2.0

¹⁾ Country-specific approvals must be observed.

Pressing tools

Geberit Mapress pressing tools may be used as follows:

Compatibility class	Geberit Mapress pressing tools2)
	Pressing jaws	Pressing collars	Adapters for pressing collar	Pressing rings, swivelling	Adapter jaws for swivelling pressing rings
[1]	d15–35	–	–	d15–35	ZB 103S
[2]	d15–35	d35–54	ZB 203A ZB 203	d15–35	ZB 203S
[3]1)	d15–35	d35–54	ZB 303	–	–

1) Phasing out
2) For information regarding the compatibility of pressing tools, see the Technical Information "Compatible pressing tools for the pressing systems Geberit FlowFit Geberit Mepla and Geberit Mapress".

Installation Instructions

Safety

Target group and their qualifications
Geberit piping systems for gas must only be mounted by skilled persons (in accordance with DIN EN IEC/IEEE 82079-1:2021-09).

Safety notes
The following safety notes must be observed during mounting:

• Only insert fittings with a yellow mark and a yellow seal ring.
• After mounting, perform a pressure test according to country-specific regulations.

Professional corrosion protection is required for Geberit Mapress Copper (Gas) in the following construction situations:

• Concealed installation and underfloor installation.
• Exposed installation if the influence of corrosion promoters cannot be reliably excluded.

Intended use
Geberit Mapress Stainless Steel (Gas) is only allowed to be used as follows:

• For setting up gas installations in accordance with the country-specific standards and guidelines.
• For gas installations using natural gas (NG), liquefied petroleum gas (LPG) and hydrogen (H₂) in accordance with country-specific standards and guidelines.
