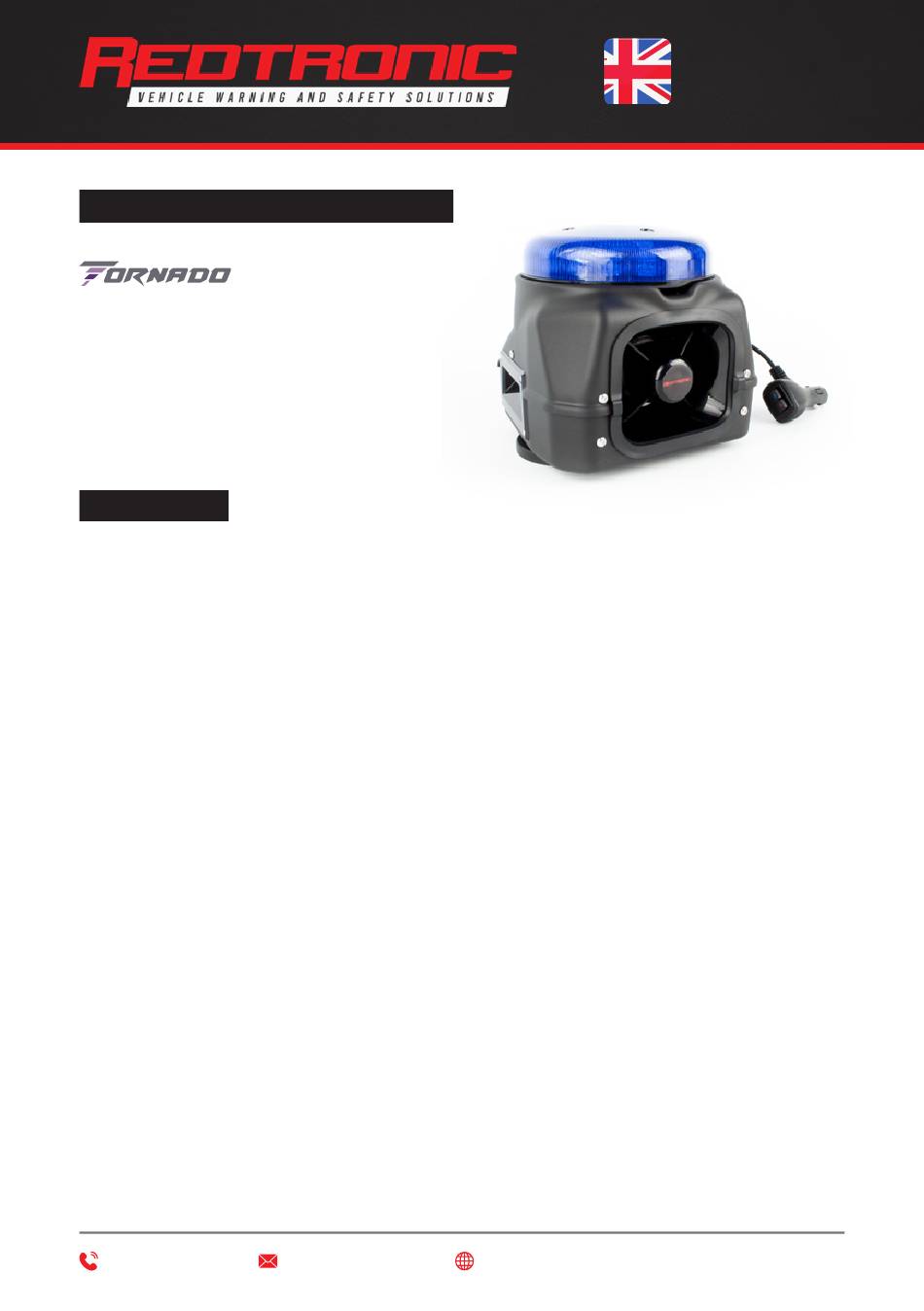

INSTALLATION AND OPERATION INSTRUCTIONS
xs
TornadoXS
XT1M-047-BBLL
Installation Guide
Beacon and Speaker/Siren Combination
Product Introduction
Redtronic's TornadoXS (TXS) is a combination beacon, siren & speaker system designed for temporary mount
applications (primarily magnetic). Any vehicle can instantly become an emergency response vehicle whilst
meeting all regulatory standards required for public road use. The TXS is also perfect for users not wanting to
make permanent installations to their vehicle.
The TornadoXS incorporates the immensely popular low-profile Tornado B47 beacon (with a blue lens as
standard) with a S20IS digital siren & speaker within a compact and robust enclosure.
As standard the TXS is supplied with a multifunctional cigarette plug. For users requiring enhanced functionality
there is also a model which includes a inline LINX4 universal controller.
The user can programme the desired siren tone from 10 countries and 27 tone variants by following a
programming sequence using the inbuilt programming port.
The TXS is designed for the toughest environments and is approved to EMC UNECE R10, UNECE R65, UTAC and
comes with 7 standard flash patterns including ICAO/CAP168 airport pattern. The TornadoXS is manufactured in
the UK and is endorsed with a 3 year warranty.
+44 (0)1422 310999
INFO@REDTRONIC.CO.UK
WWW.REDTRONIC.CO.UK
MANUFACTURED IN THE
UNITED KINGDOM
PAGE 1
V1.1 (M151)
Advertisement
Related Manuals for Redtronic TornadoXS
Summary of Contents for Redtronic TornadoXS
- Page 1 Beacon and Speaker/Siren Combination Product Introduction Redtronic’s TornadoXS (TXS) is a combination beacon, siren & speaker system designed for temporary mount applications (primarily magnetic). Any vehicle can instantly become an emergency response vehicle whilst meeting all regulatory standards required for public road use. The TXS is also perfect for users not wanting to make permanent installations to their vehicle.
- Page 2 10-30v 3 Years Please Note: The TornadoXS (TXS) is currently only available with the Tornado B47 beacon blue LED and blue lens. As standard the mounting option is magnetic. For customers requiring alternative led, lens colours, and mounting options it is possible to order spare parts to modify the standard models to your requirements. Single colour models only available.
- Page 3 Cruise GATSO Synchronisation Weight (approx.) 2.2kg Operating Temperature -40º to 105º Lens Material 3mm UV Stable PMMA (main unit), PC (beacon), Nylon (Siren) Mounting Magnetic Registered Community Design Warranty 3 Years PAGE 3 +44 (0)1422 310999 INFO@REDTRONIC.CO.UK WWW.REDTRONIC.CO.UK V1.1 (M151)
- Page 4 The TornadoXS has been designed with an inbuilt microphone connection which enables the user to either connect a Redtronic microphone to the unit to output PA (public address) from the system, or with a dedicated connector (included in kit of parts) the user can reprogramme the country tone on the sirens so that it can provide a total of 27 tone variants.
- Page 5 Apply to +ve for 2-3 seconds to revert to quad flash (pattern 1) Microphone Plug in Redtronic microphone to activate PA function or use connector as a programming port for tone selection Autodim Activate night mode via AUTODIM as standard...
-
Page 6: Installation
UNITED KINGDOM Installation The TornadoXS requires the use of a cigarette plug and providing a minimum of 4amps to the device to function properly. Plug the cigarette plug into the socket/power supply and use the appropriate switches to activate the light and/or siren. - Page 7 MANUFACTURED IN THE UNITED KINGDOM STEP 3 To properly install the TornadoXS, you should position it above the B-pillar and make sure that the speaker is facing the direction of travel. It’s important that you attach it as close to the centre of the roof as possible and avoid any grooves.
- Page 8 ‣ The TornadoXS is only suitable for flat roofs with a smooth surface (without grooves) and a curvature radius no greater than 3000mm. ‣ Do not place the TornadoXS on any strongly curved areas of the vehicle roof, cracks, grooves, seams, or on the edge of a sunroof.
-
Page 9: Product Drawings
THIS DRAWING IS CONFIDENTIAL PROJECTION 1:2.5 Description SCALE UNLESS STATED MATERIAL AND IS THE EXCLUSIVE AS PARTS PROPERTY OF REDTRONIC LTD. DIMENSIONS TORNADOX-S, CIG PLUG, MAG DrawnBy TOL. LINEAR NO UNAUTHORISED USE, COPY 07/11/2023 OR DISCLOSURE OF THE FINISH IF IN DOUBT ASK DATE TOL. - Page 10 MANUFACTURED IN THE UNITED KINGDOM TORNADOXS SETUP GUIDE STEP 1 Connect the white PA wire to power (+ve). This will stop the siren from triggering. STEP 2 Plug in cig plug an turn on red switch. Beacon will flash and siren will beep 4 times. Siren will now enter standby mode.
- Page 11 Turn on the second switch on the cig plug. Siren will beep 1 time. STEP 4 Press button on rear of unit for country select (for more detail refer to m013: s20is siren user manual) BUTTON ON REAR PAGE 11 +44 (0)1422 310999 INFO@REDTRONIC.CO.UK WWW.REDTRONIC.CO.UK V1.1 (M151)
- Page 12 Remove white wire from power . The button on rear may have changed the beacon pattern. Press button until correct pattern is selected. The unit is to leave the factory with double flash pattern. PAGE 12 +44 (0)1422 310999 INFO@REDTRONIC.CO.UK WWW.REDTRONIC.CO.UK V1.1 M151)
- Page 13 UNITED KINGDOM Warranty and Liability Redtronic warrants that on the date of purchase, this product will conform to Redtronic specifications for this product (which are available from Redtronic upon request). This product benefits from a 3 year warranty from the date of purchase. Please refer to our standard terms & conditions and limited warranty for any further information.
- Page 14 SPARE - DOUBLE SWITCH CIG PLUG [L/L] - 4.2M STRAIGHT LINX4-BC LINX4 UNIVERSAL CONTROLLER (WITH CIG PLUG) SP_EM60WD-N4 EM60WD MICROPHONE WITH CURLY CORD & 4 PIN CONNECTOR SP_EM60WD-5MN4 5 METRE EXTENSION LEAD FOR MICROPHONE - 4 PIN XLR CONNECTOR PAGE 14 +44 (0)1422 310999 INFO@REDTRONIC.CO.UK WWW.REDTRONIC.CO.UK V1.1 M151)
- Page 15 If you’re unsure whether your cleaning agent is suitable, the water flow rate should not exceed 15 litres per minute, and the you should contact Redtronic with details of the product for more advice. pressure no more than 100 bar.
- Page 16 MANUFACTURED IN THE UNITED KINGDOM PAGE 16 +44 (0)1422 310999 INFO@REDTRONIC.CO.UK WWW.REDTRONIC.CO.UK V1.1 M151)
