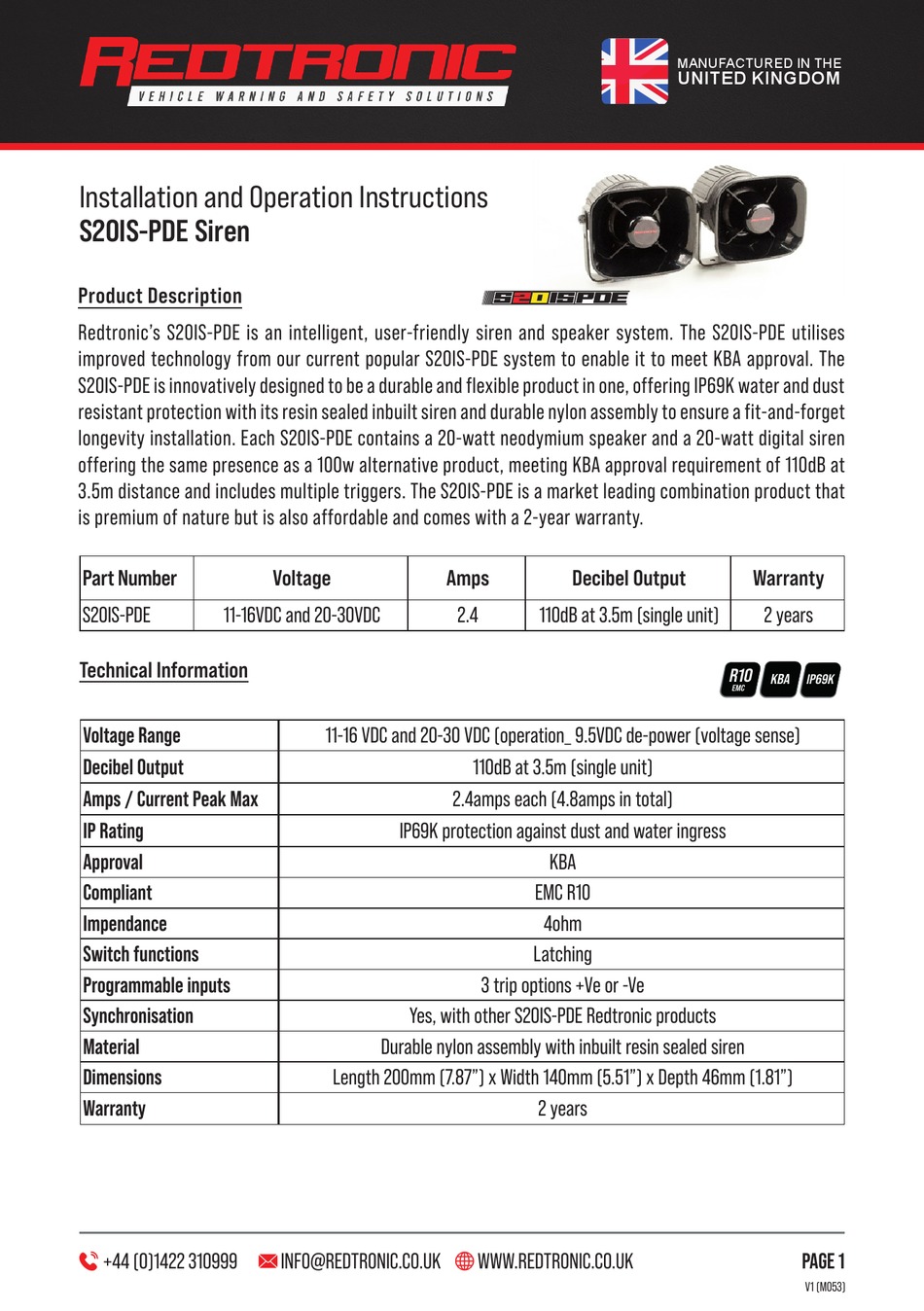

Installation and Operation Instructions
S20IS-PDE Siren
Product Description

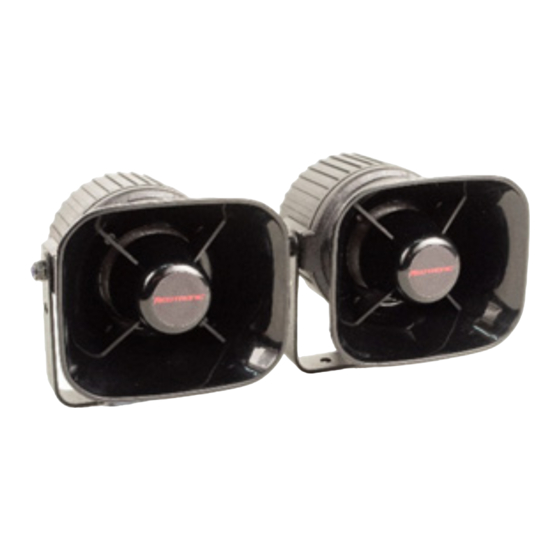

Redtronic's S20IS-PDE is an intelligent, user-friendly siren and speaker system. The S20IS-PDE utilises
improved technology from our current popular S20IS-PDE system to enable it to meet KBA approval. The
S20IS-PDE is innovatively designed to be a durable and flexible product in one, offering IP69K water and dust
resistant protection with its resin sealed inbuilt siren and durable nylon assembly to ensure a fit-and-forget
longevity installation. Each S20IS-PDE contains a 20-watt neodymium speaker and a 20-watt digital siren
offering the same presence as a 100w alternative product, meeting KBA approval requirement of 110dB at
3.5m distance and includes multiple triggers. The S20IS-PDE is a market leading combination product that
is premium of nature but is also affordable and comes with a 2-year warranty.
Part Number
S20IS-PDE
11-16VDC and 20-30VDC
Technical Information
Voltage Range
Decibel Output
Amps / Current Peak Max
IP Rating
Approval
Compliant
Impendance
Switch functions
Programmable inputs
Material
Dimensions
Warranty
+44 (0)1422 310999
Voltage
Amps
11-16 VDC and 20-30 VDC (operation_ 9.5VDC de-power (voltage sense)
IP69K protection against dust and water ingress
Yes, with other S20IS-PDE Redtronic products
Durable nylon assembly with inbuilt resin sealed siren
Length 200mm (7.87") x Width 140mm (5.51") x Depth 46mm (1.81")
INFO@REDTRONIC.CO.UK
{S20IS)PDE
Decibel Output
2.4
110dB at 3.5m (single unit)
110dB at 3.5m (single unit)
2.4amps each (4.8amps in total)
KBA
EMC R10
4ohm
Latching
3 trip options +Ve or -Ve
2 years
WWW.REDTRONIC.CO.UK
MANUFACTURED IN THE
UNITED KINGDOM
Warranty
2 years
R10
KBA
IP69K
EMC
PAGE 1
V1 (M053)
Advertisement
Table of Contents
Related Manuals for Redtronic S20IS-PDE
Summary of Contents for Redtronic S20IS-PDE
- Page 1 S20IS-PDE system to enable it to meet KBA approval. The S20IS-PDE is innovatively designed to be a durable and flexible product in one, offering IP69K water and dust resistant protection with its resin sealed inbuilt siren and durable nylon assembly to ensure a fit-and-forget longevity installation.
- Page 2 White Wire 50mA at nominal supply voltage. Power Specification S20IS-PDE sirens are manufactured to operate within the voltage range of 11-16VDC & 20-30VDC. Please note no operation outside these limits – do not power between 16-20VDC. Supply Current Supply voltage Up to 2.4A (per unit) when operational...
- Page 3 Trigger Polarity (Trigger 1-3 +Ve or –Ve setting) The S20IS-PDE siren has ‘3’ trigger wires which can be set to 2 options for polarity depending on your switch requirement. This may be a +Ve or –Ve trip. As default the unit is set to a +Ve trip. Note: Each Trigger can be set to a different polarity if required.
- Page 4 Warranty and Liability Redtronic warrants that on the date of purchase, this product will conform to Redtronic specifications for this product (which are available from Redtronic upon request). This product benefits from a 2-year warranty from the date of purchase.
