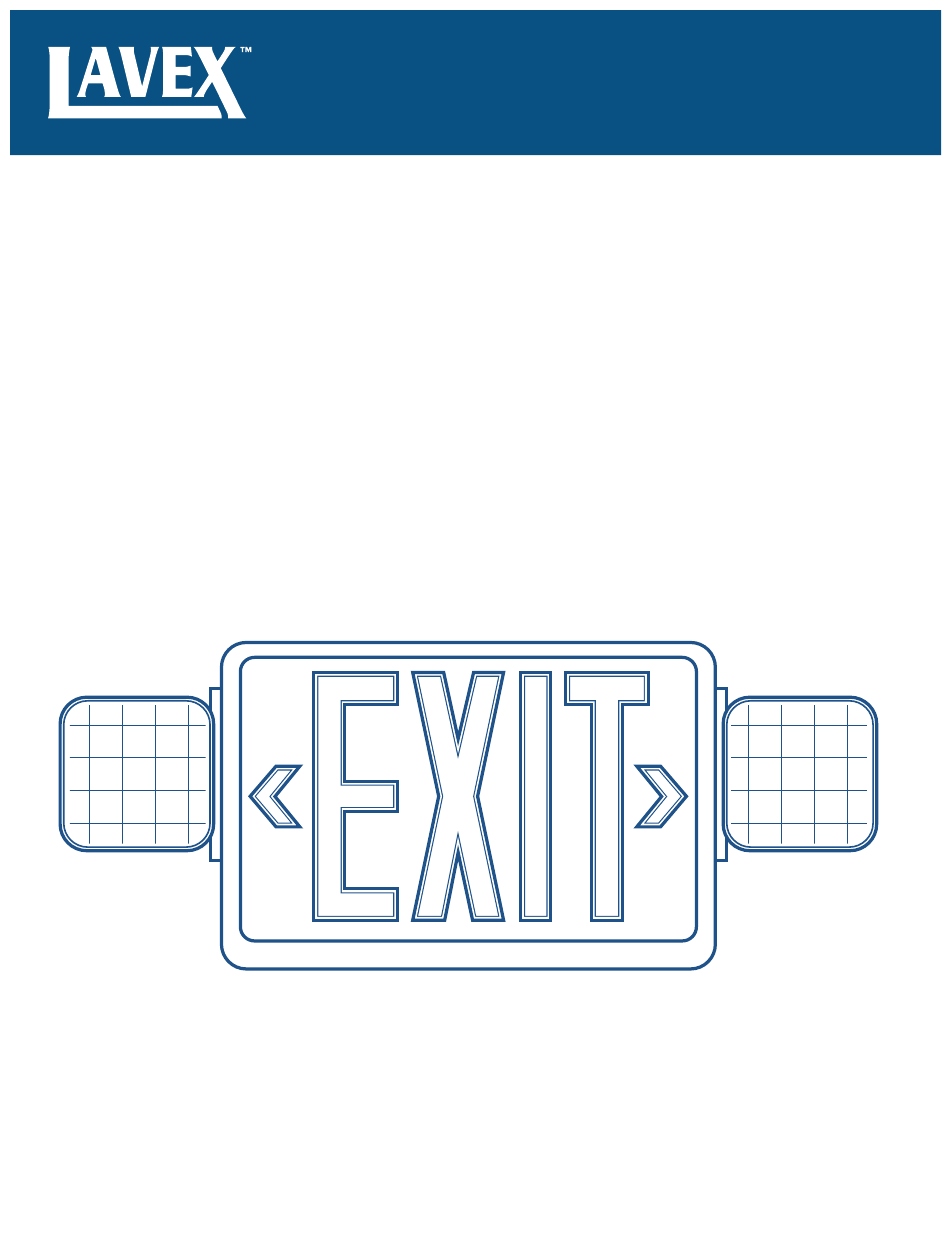

- Page 1 User Manual #6952SGCBO / 6952SRCBO / 6952RCBORC / 6952RGCBO Slim LED Exit Sign/ Emergency Light Combo with Battery Backup PLEASE READ ENTIRE MANUAL BEFORE USE 08/2024...
-
Page 2: Safety Instructions
The battery in this unit may not be fully charged. After connecting the unit to electricity, the battery will take up to 24 hours to be fully charged. Replacement Lights • Only use lights specified in the exit sign. Using other light types may result in transformer damage or unsafe conditions. WWW.LAVEX.COM... -
Page 3: Installation Instructions
If your building has 277VAC, it is recommended to use that (red wire). If it does not, use the 120VAC (black wire). Both require using the neutral (white wire). 277VAC 120VAC POWER UNIT POWER UNIT SOURCE SOURCE Electrical Diagrams 120VAC 6952SRCBO / 6952SGCBO YELLOW (+) YELLOW (+) POWER UNIT SOURCE BLUE (-) BLUE (-) PCB/LED BOARD READY TEST LIGHT... - Page 4 6. Connect the Battery: Insert the battery terminal wire into the two-pin male connector on the circuit board (Fig. 2). Note: Only connect the battery once AC power is available. Secure the Faceplate: Secure the faceplate to the housing and remove the proper arrow as required. WWW.LAVEX.COM...
-
Page 5: Operation
Automatic Operation: During an electrical power failure, the LED lights will automatically turn on for a minimum of 90 minutes. • Testing: To test, press the "TEST" switch. The emergency LED lights will illuminate. When the switch is released, the lights will turn off. WWW.LAVEX.COM...
