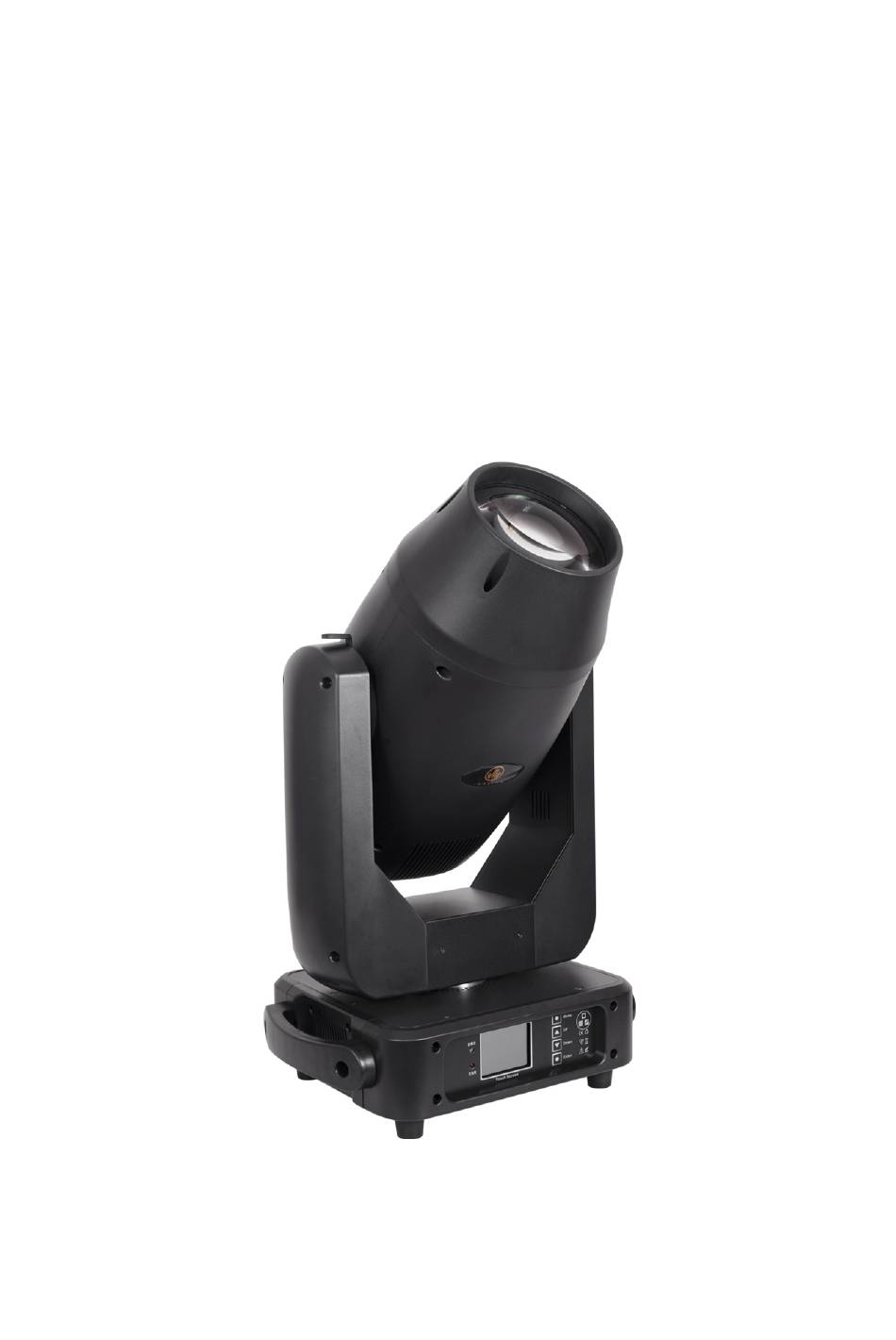

- Page 1 IMRELAX 400W LED Beam Spot Wash MOVING HEAD LIGHT with ZOOM CTO and CMY (IM-LED400) USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS Chapter 1 Installation and attention .................. 1 1.1 Maintenance ......................1 1.2 Statement ......................1 1.3 Safety Precaution ....................1 1.4 Product Instruction ....................1 1.5 Cable connection（DMX） .................. 1 1.6 Rigging (Optional) ....................2 Chapter 2 Panel operation ....................3 2.1 Brief ........................ -
Page 3: Chapter 1 Installation And Attention
IMRELAX 400w LED Moving Head Light Chapter 1 Installation and attention 1.1 Maintenance To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. Intermittently using will extend this item’s service life. Please clear the fan ,fan net , and optical lens in order to keep good work state. -
Page 4: Cable Connection（Dmx
IMRELAX 400w LED Moving Head Light CMY Color glass: available, individual DMX control Static Gobo Wheel: 12 gobos + open Rotation Glasses Gobo Wheel: 7 gobos + open Zoom angle: 15-60 degree Two Prism wheels: 4 facet Linear prism + 4 facet circle prism Display: Touch Screen, can adjust 180 degree to fit different installation position 1.5 Cable connection（DMX）... - Page 5 IMRELAX 400w LED Moving Head Light Make sure pan/tilt lock unlocked or not. Keep the distance more than 1M from equipment to flammable material or lighting source. Figure 2 Installation Page 3...
-
Page 6: Chapter 2 Panel Operation
IMRELAX 400w LED Moving Head Light Chapter 2 Panel operation 2.1 Brief The light panel diagram show as Figure 3, Left area is TFT Displayer, support touch, and right area is KEY, both of touch and KEY can operate light and setting. -
Page 7: Boolean Parameter Setting
IMRELAX 400w LED Moving Head Light click the button of ‘up’ or ‘down’ whit finger on the right side to set the exact desired value, another way is roll encoder on the right hand side of panel. Apply value：When Value had been modified, Then press the bottom of ‘apply’ in the left corner to apply to the light, but hav’t saved；... -
Page 8: Operation And Parameter Instruction
IMRELAX 400w LED Moving Head Light 2.3 Operation and parameter instruction Via following operation, enter sub menu(parameter menu) shown in Figure 6 In main menu, Click 1/6 function button into corresponding parameter menu. In sub menu(page), Click main item on the left side of displayer, can shift to corresponding sub menu(page) quickly. -
Page 9: Disp-->Display: Set Display
IMRELAX 400w LED Moving Head Light ◆ Light Switch: ON--> Turn on the light, OFF--> Turn off the light. ◆ Light support 2 DMX Channel mode: sample or extend。 Channel Qty: Simple --> 16CH.(Default) Expand--> 20CH(or null). 2.3.3 DISP-->DISPLAY: Set display Light support 2 language, rotation display，Enter page as shown in Figure9 to set... -
Page 10: Adva-->Advanced: Set Light Run Parameter
IMRELAX 400w LED Moving Head Light Figure 10 page of Test ◆ PAN: range for 0 to 255; ◆ TILT: range for 0 to 255; ◆ FOCUS: range for 0 to 255; ◆ COLOR: range for 0 to 255; ◆... -
Page 11: Stat-->Status: View Status
IMRELAX 400w LED Moving Head Light PowerON--> Turn on the lamp when power on. (Default) RstDone--> Turn on the lamp after reset. Manual--> Manually turn on the lamp. ◆ Data hold: OFF--> When no DMX signal,return to middle position. (Default) ON-->... -
Page 12: Chapter 3 Channel Description
IMRELAX 400w LED Moving Head Light Chapter 3 Channel description 3.1 Channel List 0-255 0-540° PAN 16bit 0-255 TILT 0-255 0-270° TILT 16bit 0-255 SpeedXY 0-255 Fast to slow Speed Dimmer 0-255 0-100% Dark 4-103 Slow strobe to fast strobe... - Page 13 IMRELAX 400w LED Moving Head Light 10-14 GOBO2 15-19 GOBO3 20-24 GOBO4 25-29 GOBO5 30-34 GOBO6 35-39 GOBO7 40-44 GOBO8 45-49 GOBO9 50-54 GOBO10 55-59 GOBO11 60-64 GOBO12 65-69 Shake slow to fast GOBO2 70-74 Shake slow to fast GOBO3...
-
Page 14: Chapter 4 Common Faults And Use Attention
IMRELAX 400w LED Moving Head Light 191-192 Stop 193-255 Rotate reverse (slow to fast) 0-127 0-400 degrees 128-187 Rotate forward (fast to slow) CH11 Gobo Rotation 188-195 Stop 196-255 Rotate reverse (slow to fast) 0-63 None CH12 Prism1 64-127 Prism1... -
Page 15: Precautions For Use
IMRELAX 400w LED Moving Head Light Check whether the bulb has reached the end of its life, and replace it with a new one； Check whether the bulb and the lighter circuit are leaking, falling off, or having poor contact；... -
Page 16: Precautions For Using Rdm
IMRELAX 400w LED Moving Head Light blocked by the accumulation of dust, resulting in poor heat dissipation and abnormalities in the lamp. When installing the lamp, the fixing screws must be fastened, with safety cables, and regular inspections； When installing and positioning the luminaire, keep a minimum distance of 10 meters between any point on the surface of the luminaire and any flammable and explosive object, and the distance from the irradiated object is 2.5 meters. - Page 17 IMRELAX 400w LED Moving Head Light Please note: All Information is subject to change without prior notice. Page 15...
