Summary of Contents for IMRELAX IM-MH132

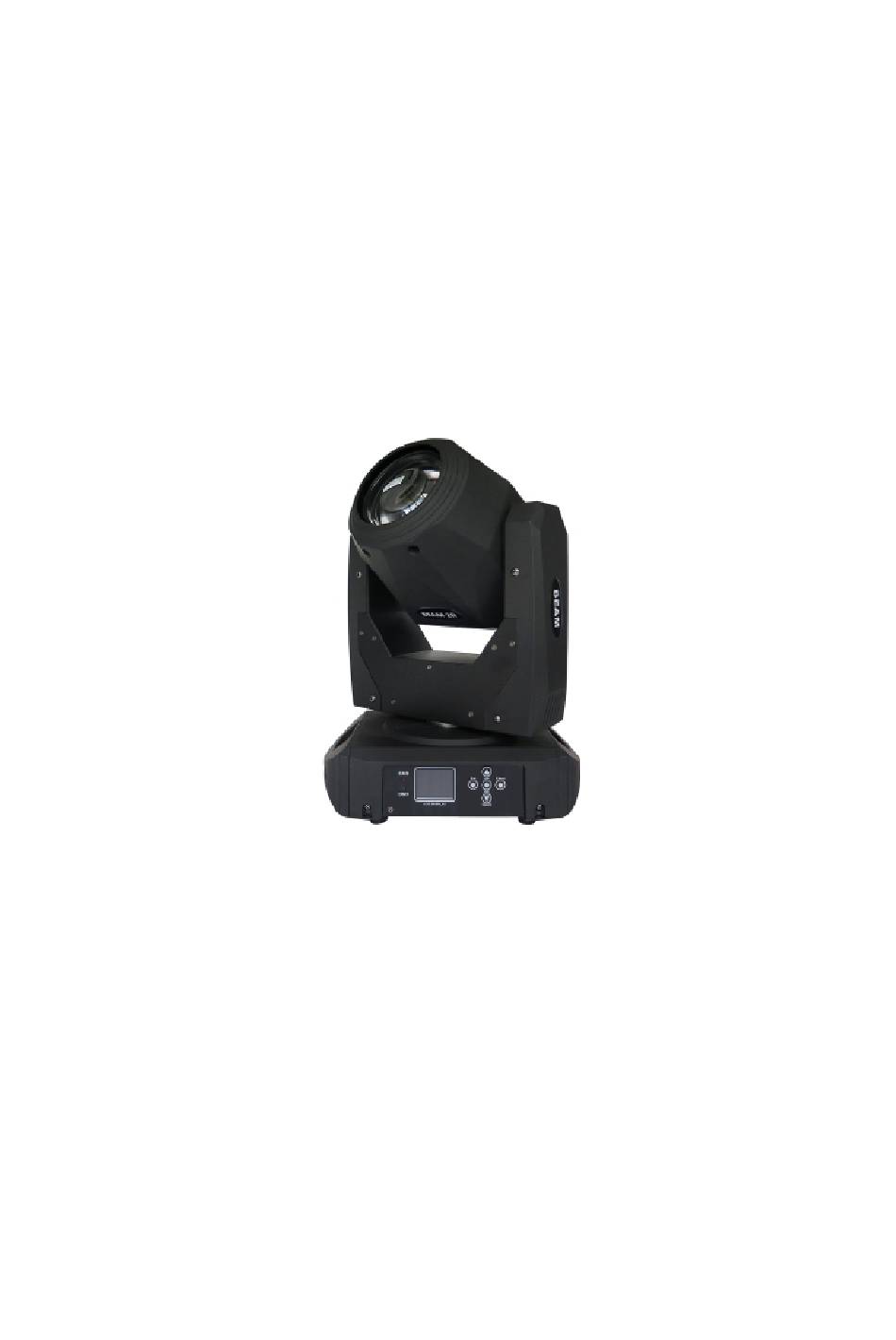

- Page 1 2R SHARPY BEAM MOVING HEAD (IM-MH132) USER MANUAL Ver1.0...
-
Page 2: Table Of Contents
Table of contents 1. Preface ················································· 1.1 Packing list ········································ 2 1.2 Unpacking instructions ····················· 2 1.3 AC Power········································· 2 1.4 Safety instructions ········································ 2 2. Introduction ············································ 2.1 Features ·········································· 3 2.2 DMX channel ·································· 3 3. Setup ····················································· 3.1 Fuse replacement ································... -
Page 3: Preface
1. Preface 1.1 Packing list Product name quantity moving head light 1 pcs Power -line 1 base User manual 1pcs 1.2 Unpacking instructions On receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are presented, and have been received in a good condition. -
Page 4: Introduction
Before the first time to use it, Please check whether the damage in transit, if happen damages in transit, please do not use this lamp, and please asap contact distributors or manufacturers. Please don't install the lamp in the ordinary combustible material on the surface. -
Page 5: Setup
RESERVER RESERVER RESET RESET LAMP CONTROL LAMP CONTROL PAN-TILT SPEED COLOUR SPEED DIMMER-PRISM-FROST SPEED GOBO SPEED 3. Setup Disconnect the power cord before replacing a fuse and always replace with the same type fuse. 3.1 Fuse replacement With a flat head screwdriver wedge the fuse hold out of its housing. Remove the damaged fuse from its holder and replace with exact same type fuse. -
Page 6: Master/Slave Fixture Linking
3.5 Master/Slave fixture linking 1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3pin connector of the first fixture. 2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin connector to the input connector of the next fixture consisting of a (male) 3 pin connector. - Page 7 Pan invert ON/OFF Tilt invert ON/OFF Pan tilt swap ON/OFF Code wheel ON/OFF Signal timeout Blackout /keep Screen save ON/OFF Light up ON/OFF Color linear ON/OFF Factory Reset Confirm Color 0-255 Strobe 0-255 Dimmer 0-255 Gobo 0-255 Prism 0-255 Prism rotate 0-255 Reserve 0-255...
-
Page 8: Dmx Channel Values
Pan sensor Tilt sensor Color wheel sensor Gobo wheel sensor Focus sensor Sensor4 Pan route xxxxx Tilt route xxxxx Version 160917081001 Use time of fixture xxxxx System information Turn on time xxxxx Use time of blub xxxxx Error information 4.3DMX channels value description Function... -
Page 9: Reset
0-25 No valid 26-76 Effect motor reset Reset 77-127 Pan /tilt reset 128-255 All reset No valid Blub control 10-100 Turn Off blub 101-255 Turn On blub (channel20)pan/tilt speed 0-255 Pan /tilt speed reduced (channel20)color wheel speed 0-255 Color wheel speed reduced (channel20)dimmer prism speed 0-255 Dimmer prism speed reduced... - Page 10 150-255 Color wheel rotate speed up Gobo wheel sheet White 10-14 gobo2 15-19 gobo3 20-24 gobo4 25-29 gobo5 30-34 gobo6 35-39 gobo7 40-44 gobo8 45-49 gobo9 50-54 gobo10 55-59 gobo11 60-64 gobo12 65-69 gobo13 70-74 gobo14 75-79 gobo15 80-129 CW speed cut 130-134 135-180 CCW rotate speed up...
-
Page 11: Technical Specifications
Technical specifications AC100-240v 50/60Hz Voltage Yodn 2 R Bulb Lamp source Color wheel 14colors+open Gobo wheel 15 fixed gobos Max temperature 104°F(40°C) Data input/output 3pin XLR-connection、anode socket Outside size 35CMx32CMx46.1CM 9.5kg...
