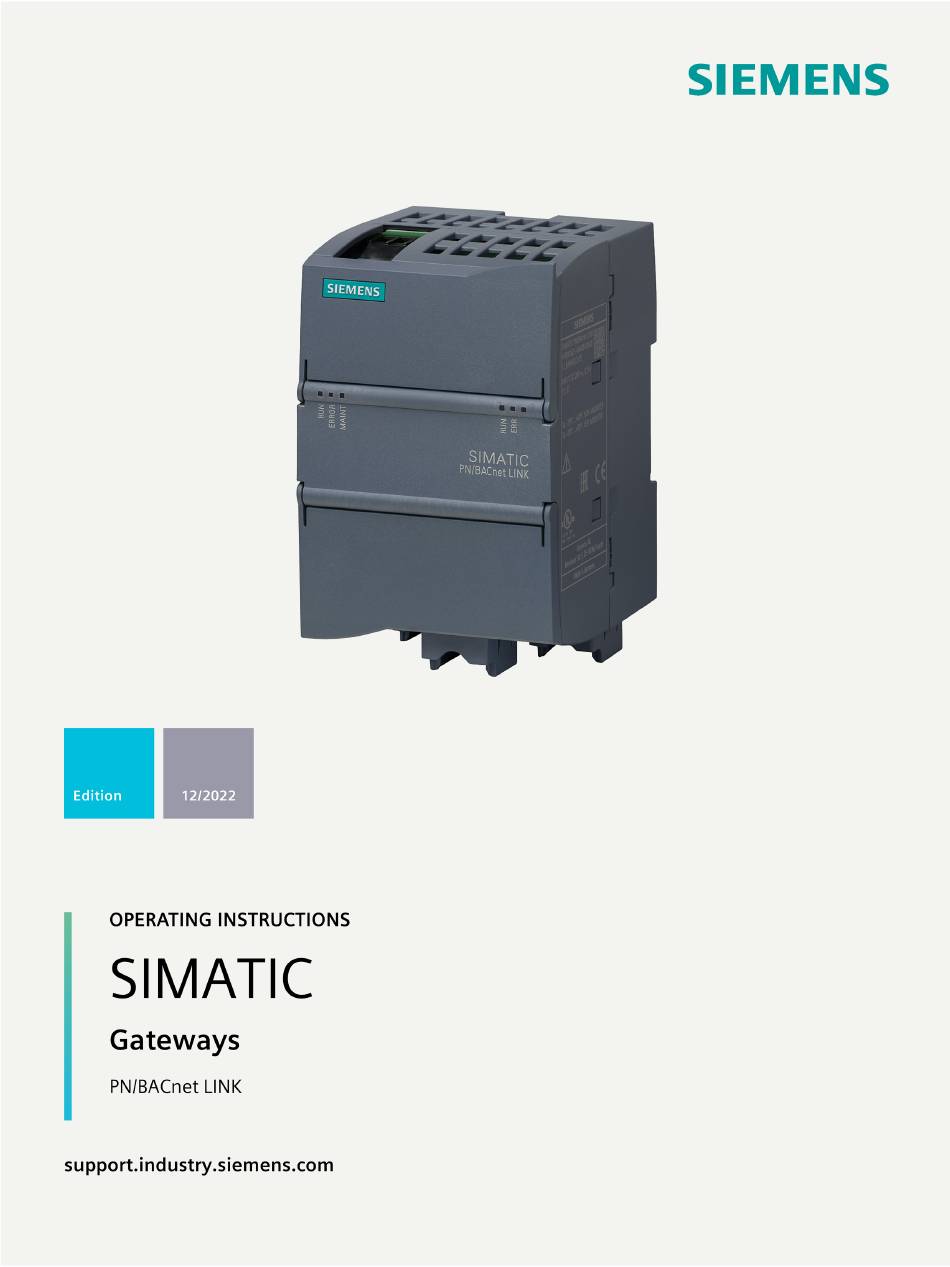

Siemens SIMATIC 6BK16210AA000AA0 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Siemens Manuals
  4. Gateway
  5. SIMATIC 6BK16210AA000AA0
  6. Operating instructions manual
Siemens SIMATIC 6BK16210AA000AA0 Operating Instructions Manual

Siemens SIMATIC 6BK16210AA000AA0 Operating Instructions Manual

Pn/bacnet link
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIMATIC 6BK16210AA000AA0 and is the answer not in the manual?

Questions and answers

Related Manuals for Siemens SIMATIC 6BK16210AA000AA0

Summary of Contents for Siemens SIMATIC 6BK16210AA000AA0

  • Page 2 PN/BACnet LINK Introduction Safety instructions SIMATIC System overview Functions Gateways PN/BACnet LINK Application planning Mounting/Extending Operating Instructions Connecting Commissioning Configuring / Programming Diagnostics Maintenance and service Technical specifications Appendix 12/2022 A5E39895543-AC...

  • Page 3: Legal Information

    Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Table Of Contents

    Table of contents Introduction ............................7 Preface ..........................7 Documentation guide ......................8 Safety instructions ..........................9 Safety instructions ....................... 9 Security information ......................10 IT security .......................... 11 System overview ..........................13 Field of application ......................13 Features ..........................14 System configuration ......................
  • Page 5 Table of contents Application planning ........................... 45 Installation guidelines ......................45 Installation location ......................46 Transportation ........................48 Storage ..........................48 Scope of delivery ....................... 49 Mounting/Extending ..........................51 Installing the device ......................51 Connecting ............................53 Safety instructions and guidelines ..................53 Potential ratios ........................
  • Page 6 Contact address ......................... 94 Licenses ..........................94 Service & Support ......................95 A.4.1 Technical Support ......................95 A.4.2 Siemens Industry Online Support ..................95 A.4.3 Online catalog and ordering system ................... 95 Glossary ............................... 97 Index ..............................99 PN/BACnet LINK...

  • Page 7: Introduction

    • Knowledge of working with the PROFINET fieldbus • Sound knowledge of the BACnet/IP communication protocol • General knowledge in the field of automation technology • General knowledge of communication networks Trademarks SIMATIC is a registered trademark of Siemens AG. ® History Edition Remarks 10/2017...

  • Page 8: Naming Conventions

    • Configuration examples The latest manuals for SIMATIC products are available for download free of charge from the Internet (https://support.industry.siemens.com/cs/ww/de/ps/man). The information system of the TIA Portal also helps you configure and program your automation system and the PN/BACnet LINK.

  • Page 9: Safety Instructions

    If the device is used in a manner other than the one specified by Siemens, the protection offered by the device might be impaired. See also the section "Legal notices" at the beginning of this manual.

  • Page 10: Safety Information

    In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions only form one element of such a concept. Customer is responsible to prevent unauthorized access to its plants, systems, machines and networks.

  • Page 11: Security

    Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends to apply product updates as soon as available and to always use the latest product versions. Use of product versions that are no longer supported, and failure to apply latest updates may increase customer’s exposure to cyber threats.

  • Page 12: System Overview

    System overview Field of application Figure 3-1 SIMATIC PN/BACnet LINK The PN/BACnet LINK is a communication gateway and enables the connection of SIMATIC controllers to the BACnet/IP fieldbus over PROFINET. This connection enables the exchange of information and data between PROFINET and BACnet/IP. PN/BACnet LINK Operating Instructions, 12/2022, A5E39895543-AC...

  • Page 13: Features

    System overview 3.2 Features Features General features • 1 BACnet port (Fast Ethernet, RJ45). The maximum transmission rate is 100 Mbps. • The PN/BACnet LINK supports BACnet/IP according to DIN EN ISO16484-5 and Addendum ANSI/ASHRAE Standard 135-2012. • BACnet/IP profile: B-GW (BACnet gateway) •...
  • Page 14 System overview 3.2 Features Number of BACnet objects configurable in PN/BACnet LINK The number of BACnet objects that can be configured in PN/BACnet LINK is limited by several conditions. Which condition is effective depends on the particular configuration. It is important to consider all boundary conditions during application planning.
  • Page 15 System overview 3.2 Features Example The PN/BACnet LINK has defined server objects and a client device with several objects. The number of objects and the corresponding occupied I/O and memory bytes are listed in the following tables. Table 3- 2 Checking for server objects Objects PII data...

  • Page 16: System Configuration

    System overview 3.3 System configuration System configuration System configuration The following figure shows a basic system configuration with a PN/BACnet LINK as a communication gateway between a PROFINET network and a BACnet/IP network. Figure 3-2 System configuration with PN/BACnet LINK Purpose and function of the system components The PN/BACnet LINK enables the connection of PROFINET to BACnet/IP.

  • Page 17: System Requirements

    System overview 3.4 System requirements System requirements System requirements • PN/BACnet LINK • Controller: Supported are SIMATIC S7-1200, SIMATIC S7-1500, SIMATIC ET 200SP, SIMATIC OpenController • 24 V power supply • BACnet/IP bus • PROFINET bus • Windows PC (for configuring, commissioning and diagnostics) •...

  • Page 18: Design

    System overview 3.5 Design Design PN/BACnet LINK design The figure below shows the arrangement of the connection and display elements on the PN/BACnet LINK. The figure shows the device without a top and bottom enclosure cover. Design ① 24 V DC + functional grounding ②...

  • Page 19: Functions

    Functions BACnet objects 4.1.1 Overview The PN/BACnet LINK can be used both as a BACnet client and as a BACnet server. As a client, PN/BACnet LINK is the active communication partner, that is, it requests data from other communication partners (BACnet servers). As a server, PN/BACnet LINK provides data that is used by other communication users (BACnet clients).
  • Page 20 Functions 4.1 BACnet objects Figure 4-1 Communication paths of BACnet server Communication paths of BACnet client The PN/BACnet LINK reads the values of the corresponding "Present_Value" properties and transfers them to the S7 controller via references to input objects. The PN/BACnet LINK writes values which come from the S7 controller to the associated "Present_Value"...

  • Page 21: Server Objects

    Functions 4.1 BACnet objects Figure 4-2 Communication paths of BACnet client 4.1.2 Server objects Server objects are BACnet objects which the PN/BACnet LINK contains itself. When they are configured, full BACnet objects are written with the required properties. The PN/BACnet LINK supports the following Server objects: •...

  • Page 22: Device Object

    PN/BACnet LINK and from which source the associated values originate. Property Data source Value Access Object_Identifier Configuration Object_Name Configuration Object_Type Fixed System_Status Dynamic Vendor_Name Fixed Siemens AG Vendor_Identifier Fixed Model_Name Fixed PN/BACnet LINK Firmware_Revision Fixed e.g. V1.0.0-xxxx xxxx = 4-digit build number Application_Software_Versi Configuration Protocol_Version Fixed Protocol_Revision...

  • Page 23: Binary Input

    Functions 4.1 BACnet objects All the properties listed in the table can only be read from the BACnet side. Writing of these properties from the BACnet side is not possible. Note The device object must be configured even if only client object references are required, since this object must be present in every BACnet device.

  • Page 24: Binary Output

    Functions 4.1 BACnet objects 4.1.2.3 Binary output The PN/BACnet LINK supports the object type "Binary output" as server. BACnet objects of the type "Binary output" are outputs on the BACnet side. They are read from the S7 side. Binary output properties The following table shows which properties are supported for the object type "Binary output"...

  • Page 25: Analog Input

    Functions 4.1 BACnet objects 4.1.2.4 Analog input The PN/BACnet LINK supports the object type "Analog input" as server. BACnet objects of the type "Analog input" are inputs on the BACnet side. They are written from the S7 side. Analog input properties The following table shows which properties are supported for this object type of the PN/BACnet LINK and from which source the associated values are filled.

  • Page 26: Analog Output

    Functions 4.1 BACnet objects 4.1.2.5 Analog output The PN/BACnet LINK supports the object type "Analog output" as server. BACnet objects of the type "Analog output" are outputs on the BACnet side. They are read from the S7 side. Analog output properties The following table shows which properties are supported for this object type of the PN/BACnet LINK and from which source the associated values are filled.

  • Page 27: Supported Bacnet Services (Bibb)

    Functions 4.1 BACnet objects Supported object references The PN/BACnet LINK supports object references to the following BACnet objects: • Binary input • Binary output • Analog input • Analog output The supported object references are defined on configuration of the PN/BACnet LINK. When configuring, the following should be specified: •...

  • Page 28: State Model

    Functions 4.2 State model State model The configuration made in HSP is transmitted to the PN/BACnet LINK in the startup phase of the S7 controller. This configuration information is stored in the S7 controller and not in the PN/BACnet LINK. Controlling the server and client status Client functionality The data transfer is controlled via a control byte (Page 33) which is transmitted cyclically by...
  • Page 29 Functions 4.2 State model PN/BACnet LINK states The status of the PN/BACnet LINK is influenced by the status of the PROFINET connection and the status of the S7 controller. The following table shows the dependency of the PN/BACnet LINK state from the status of the PROFINET connection and from the state of the S7 controller.
  • Page 30 Functions 4.2 State model S7 controller goes into STOP operating The PN/BACnet LINK state changes to STOP state. (NON_OPERATIONAL). • All BACnet Server objects are set to "Out_Of_Service" = TRUE. • "System_Status" property in the device object is set to NON_OPERATIONAL.

  • Page 31: Cyclic Data Exchange Between Controller And Pn/Bacnet Link

    Functions 4.3 Cyclic data exchange between controller and PN/BACnet LINK Cyclic data exchange between controller and PN/BACnet LINK 4.3.1 Data exchange between controller and PN/BACnet LINK Cyclic data exchange The cyclic data exchange between S7 controller and the PN/BACnet LINK is performed via PROFINET IO.
  • Page 32 Functions 4.3 Cyclic data exchange between controller and PN/BACnet LINK Status and control information of BACnet server The PN/BACnet LINK cyclically transmits the following status information to the S7 controller: Table 4- 1 Current status of the server in the PN/BACnet LINK (1 byte input address) Meaning Value Remarks...
  • Page 33 Functions 4.3 Cyclic data exchange between controller and PN/BACnet LINK Status and control information of BACnet client The PN/BACnet LINK cyclically transmits the following status information to the S7 controller: Table 4- 3 Status of the client functionality (1 byte input address) Meaning Value Remarks...
  • Page 34 Functions 4.3 Cyclic data exchange between controller and PN/BACnet LINK Status information on BACnet objects The status information of the BACnet objects on the PN/BACnet LINK is exchanged with the S7 controller via the process image. Server objects With server objects, the PN/BACnet LINK writes the status information transferred by the S7 controller to the property "Status_Flags"...

  • Page 35: Data Exchange Between Pn/Bacnet Link And Other Bacnet Devices

    Functions 4.4 Data exchange between PN/BACnet LINK and other BACnet devices Effect of the S7 communication state on the status information of server objects For server objects, the S7 controller can only affect the OUT_OF_SERVICE status flag. The other status flags are set completely by the PN/BACnet LINK. The state of the OUT_OF_SERVICE status flag which is specified by the S7 controller can be overwritten by internal states of the PN/BACnet LINK.

  • Page 36: Data Transfer As Server

    Functions 4.5 Acyclic data exchange Reading values For read values, you can determine whether they are read cyclically or if a registration for a message is to take place in case of value change (COV). If "Registration for value change" is activated in the configuration, the following procedure applies: The PN/BACnet LINK checks whether the device supports COV.
  • Page 37 Functions 4.5 Acyclic data exchange The S7 user program can perform 16 property accesses in parallel. A total of 16 data records are available for the two services "ReadProperty“ and "WriteProperty". The data record indices in use are 0x401 to 0x410. Note A data record for a (sub)module in PROFINET is uniquely defined by an "index"...
  • Page 38 Functions 4.5 Acyclic data exchange Table 4- 6 RDREC (record read) - data record structure for "ReadProperty" result Element Type Meaning PNresp UINT8 PROFINET error number (0 == no error) BNresp UINT8 BACnet error number (0 == no error) DNET/ErrorClass UINT32 Network number (BNresp == 0)/BACnet error class (BNresp != 0) Device/ErrorCode...

  • Page 39: Monitoring Functions

    Functions 4.6 Monitoring functions Error messages If an error occurs in the PROFINET connection during an acyclic property access triggered by a data record, then the element "PNresp" of the associated reply data record contains the cause of the error. Table 4- 9 PROFINET error numbers (PNresp) Error ID...
  • Page 40 Functions 4.6 Monitoring functions Note With activated monitoring, the set monitoring time may act as a delay when a failed device starts working again. Diagnostics with deactivated device monitoring When the monitoring of configured BACnet devices is deactivated for the BACnet client, the failure of BACnet devices is still recognized in the following cases and signaled to the S7 controller by means of diagnostics: •...

  • Page 41: Response To Errors

    Functions 4.7 Response to errors Response to errors Diagnostic resource The device provides various tools to isolate the cause. These tools are listed below: Diagnostic Description Examples of possible resource causes of error LED display The PN/BACnet LINK signals its state with the LEDs •...

  • Page 42: Device Fault

    Functions 4.7 Response to errors PROFINET network error If the PN/BACnet LINK loses the PROFINET connection, the PN/BACnet LINK performs the following actions: • The PN/BACnet LINK sets the OUT_OF_SERVICE status bits of all server objects. • The PN/BACnet LINK allocates the system state in the device object with NON_OPERATIONAL.

  • Page 43: Application Planning

    Application planning Installation guidelines General installation guidelines The following guidelines must be observed when installing and connecting the PN/BACnet LINK: • When connecting the PN/BACnet LINK, make sure that you observe all applicable and legally binding standards. Adhere to the relevant national and regional regulations when installing and operating the device.

  • Page 44: Installation Location

    Application planning 5.2 Installation location Installation location Selection of the installation site / installation You can install the PN/BACnet LINK either in a control panel or on a standard mounting rail: Installation in control cabinet / device connection box NOTICE The device is intended for installation in a control cabinet or in a device connection box.

  • Page 45: Minimum Spacing

    Application planning 5.2 Installation location Mounting position Permitted ambient temperature Lying -25 ... +45 °C Hanging -25 ... +45 °C NOTICE Damage due to overheating You must comply with all the instructions regarding the installation site and mounting position. Otherwise, the device may malfunction or incur permanent damage as a result of overheating.

  • Page 46: Transportation

    Application planning 5.3 Transportation Ensure that the atmospheric pressure is between 795 hPa and 1080 hPa. This corresponds to an installation height of -1000 m to +2000 m. Pollution degree The PN/BACnet LINK is designed for pollution degree 2. Pollution degree 2 according to the EN 50178 standard is non-conductive contamination in the normal case which can briefly become conductive as a result of condensation when the device is not in operation.

  • Page 47: Scope Of Delivery

    Application planning 5.5 Scope of delivery Scope of delivery • PN/BACnet LINK • 3 retaining collar for the Ethernet connections (plugged into the device when delivered) • Insert • DVD with license terms Unpacking and checking the delivery 1. Unpack the device. 2.

  • Page 48: Mounting/Extending

    Mounting/Extending Installing the device The PN/BACnet LINK can be mounted to a 35 mm standard mounting rail according to DIN EN 60715 or installed on a control panel. Information on the selection of the location of use as well as reliable mounting positions and minimum clearances is available in the section Installation location (Page 46).
  • Page 49 Mounting/Extending 6.1 Installing the device Mounting to a control panel Preparations • Drill holes (M4). The dimensions for the drill holes are available in the figure below. • Remove the retaining collar on the BACnet connection. This is required so that you can screw in the fixing screw later.

  • Page 50: Connecting

    Connecting Safety instructions and guidelines Safety information WARNING Connection only over safety extra-low voltage / protective extra-low voltage May cause death or serious injury The device is designed for operation using directly connectable safety extra-low voltage (SELV) with safe electrical separation according to IEC 60950-1 / EN 60950-1 / VDE 0805-1 or IEC 61131-2 / EN 61131-2 / DIN EN 61131-2.

  • Page 51: Other Requirements

    Connecting 7.2 Potential ratios Cable routing and grounding Note Electromagnetic interference Ensure that adequate equipotential bonding is implemented for all plants or systems in which the PN/BACnet LINK is installed, for example, using a low-impedance connection to a ground potential. Note Strain relief Ensure that all cables and leads that protrude externally are equipped with adequate strain...

  • Page 52: Dc Power Supply

    Connecting 7.3 24 V DC power supply Shielding The shields of the PROFINET interface are galvanically connected. NOTICE Sufficient interference immunity is only achieved through EMC compliant application of the cable shields of the PROFINET and BACnet cables to a shield rail. Figure 7-1 Block diagram shielding 24 V DC power supply...

  • Page 53: Connector Pin Assignment

    Connecting 7.3 24 V DC power supply Safety information WARNING Connection only over safety extra-low voltage / protective extra-low voltage May cause death or serious injury The device is designed for operation using directly connectable safety extra-low voltage (SELV) with safe electrical separation according to IEC 60950-1 / EN 60950-1 / VDE 0805-1 or IEC 61131-2 / EN 61131-2 / DIN EN 61131-2.

  • Page 54: Connecting The Functional Ground

    To increase the mechanical stability, optimized retaining collars ② for the two Ethernet connectors are installed on the bottom part of the housing of the PN/BACnet LINK in the delivery state. These retaining collars are intended for the Siemens FastConnect connectors. PN/BACnet LINK...

  • Page 55: Connecting Bacnet Bus

    To increase the mechanical stability, a retaining collar ② for the BACnet connector is installed on the bottom part of the housing of the PN/BACnet LINK in the delivery state. This retaining collar is intended for the Siemens FastConnect connectors. PN/BACnet LINK...

  • Page 56: Commissioning

    1. Checking in the TIA Portal whether the "PN/BACnet LINK" module exists in the hardware catalog. If necessary, download and install the HSP "HSP0214 PN/BACnet LINK" from Siemens Service&Support (http://support.automation.siemens.com). 2. Assign a PROFINET device name and an IP address for the PN/BACnet LINK.

  • Page 57: Configuring / Programming

    Configuring / Programming Overview The PN/BACnet LINK is configured in the TIA Portal. Configuration mainly comprises the following steps: 1. Dragging PN/BACnet LINK from the HW catalog to the project 2. S7 controller and PN/BACnet LINK via PROFINET 3. Setting the PROFINET-specific parameters 4.

  • Page 58: Tia Portal Devices & Networks

    Configuring / Programming 9.2 TIA Portal Devices & Networks TIA Portal Devices & Networks TIA Portal: Devices & networks Follow these steps: 1. Select the PN/BACnet LINK with its specific article number from the HW catalog ①. The PN/BACnet LINK appears in the "Devices & networks" window. 2.

  • Page 59: Configuring The Bacnet/Ip Interface

    Configuring / Programming 9.3 Configuring the BACnet/IP interface Configuring the BACnet/IP interface Communication settings for the BACnet/IP interface 1. Enter the communication settings for the BACnet/IP protocol ①. Specify the standard gateway of the BACnet subnet in which the PN/BACnet LINK is located as the default gateway.

  • Page 60: Configuring A Bacnet Server

    Configuring / Programming 9.4 Configuring a BACnet server Note If the foreign device registration fails with the configured BBMD after the specified number of retries, the PN/BACnet LINK cannot exchange data via BACnet. Possible causes of a registry failure may be, for example: Connection interruption, BBMD out of service, BBMD rejects the registration.
  • Page 61 Configuring / Programming 9.4 Configuring a BACnet server Configuring a device object The device object represents the PN/BACnet LINK as a device on the BACnet side. Vendor_Name and Model are fixed and cannot be changed. Figure 9-4 Device object Defining I/O objects In this dialog, you create new I/O objects, namely BACnet objects and can edit or delete existing I/O objects.
  • Page 62 Configuring / Programming 9.4 Configuring a BACnet server Define I/O object - analog input example Figure 9-6 Analog input Note If you specify the value "0" as the change of value increment, the value of "Present_Value" is constantly transmitted to non-existing COV subscribers even when it has not changed. Exporting EDE data You can export the description of the I/O objects defined in PN/BACnet LINK and the device object as an .EDE file in *.csv format.

  • Page 63: Configure Bacnet Client

    Configuring / Programming 9.5 Configure BACnet client Adapting I/O addresses The "I/O addresses" page allows you to set the start and end addresses of the input and output data of the BACnet server. In addition, the address range can be assigned to an organization block and a process image.
  • Page 64 Configuring / Programming 9.5 Configure BACnet client Figure 9-9 Monitoring The monitoring interval set here applies globally for all BACnet devices, for which communication relationships are configured. If a device is not reached in the configured monitoring interval, the PN/BACnet LINK issues a corresponding diagnostic. This diagnostic result is cleared as soon as the device is accessible again (see section Monitoring functions (Page 41)) Setting the priority for write operations...

  • Page 65: Configuring References To Bacnet Devices

    Configuring / Programming 9.5 Configure BACnet client 9.5.2 Configuring references to BACnet devices In the TIA Portal, you have three options for configuring references to objects that are located in other BACnet devices: • Import of an EDE file • Search for BACnet devices and the objects contained in them •...

  • Page 66: Import Ede File

    Configuring / Programming 9.5 Configure BACnet client 9.5.2.1 Import EDE file An EDE file contains the devices available in a BACnet network along with their objects and services. After importing such a file, in the HSP you can specify which of the PN/BACnet LINK I/O objects contained therein should exchange data.
  • Page 67 Configuring / Programming 9.5 Configure BACnet client 3. Use the check boxes ① to specify the device objects to be transferred. The hierarchy arrow ② indicates that I/O objects are contained in the BACnet device. By clicking on the arrow, you can display the assigned I/O objects and select or deselect individual I/O objects.

  • Page 68: Find Bacnet Device

    Configuring / Programming 9.5 Configure BACnet client 9.5.2.2 Find BACnet device 1. By clicking on the "Find BACnet devices..." button, the corresponding dialog opens. Figure 9-13 Find BACnet device 2. You can use a filter ① to limit and refine searches in the BACnet/IP network. You can specify a vendor ID and a value range in which the device instance IDs should lie.

  • Page 69: Creating Object References Manually

    Configuring / Programming 9.5 Configure BACnet client 4. Use the check boxes ③ to specify the BACnet device objects to be transferred. The hierarchy arrow ④ indicates that I/O objects are contained in the BACnet device. By clicking on the arrow, you can display the assigned I/O objects and select or deselect individual I/O objects.
  • Page 70 Configuring / Programming 9.5 Configure BACnet client Defining I/O object references You can now configure references to their I/O objects for each BACnet device that is created. The configured references to I/O objects of the BACnet device are mapped as input and output data in the corresponding process images on the PROFINET side.

  • Page 71: Checking And Compiling The Configuration

    Configuring / Programming 9.6 Checking and compiling the configuration I/O object references for other devices If needed, create references to objects in other BACnet devices. Note You can place a maximum of 126 BACnet device modules from the HW catalog. Adapting I/O addresses You can use the "I/O addresses"...

  • Page 72: Programming

    Configuring / Programming 9.7 Programming Programming 9.7.1 PLC tags PLC tags are automatically created by the HSP when configuring the PN/BACnet LINK in the TIA Portal; you can use these PLC tags in the S7 program for accessing the cyclic I/O image. This means the parts of the I/O image allocated to the PN/BACnet LINK can be accessed from the S7 program using logical names.
  • Page 73 Configuring / Programming 9.7 Programming Module/ IO data Name diagram Data S7 address Submodule type mnemonic <Prefix>.<IOObjectRefName >.IN_ALARM Bool %I<ByteAdr>.4 <Prefix>.<IOObjectRefName >.FAULT Bool %I<ByteAdr>.5 <Prefix>.<IOObjectRefName >.OVERRIDDEN Bool %I<ByteAdr>.6 <Prefix>.<IOObjectRefName >.OUT_OF_SERVICE Bool %I<ByteAdr>.7 I/Q: Input/output bit address IB/QB: Input/output byte address ID/QD: Input/output double word address PN/BACnet LINK Operating Instructions, 12/2022, A5E39895543-AC...

  • Page 74: Diagnostics

    Diagnostics 10.1 Status LEDs 10.1.1 Operating state of the PN/BACnet LINK / PROFINET diagnostics The LEDs for visualizing the operating states of the PN/BACnet LINK and the PROFINET ports are located on the front of the housing. Figure 10-1 Status LEDs – Operating state of the PN/BACnet LINK / PROFINET diagnostics ERROR MAINT Operating...

  • Page 75: Connection Status Bacnet Bus

    Diagnostics 10.1 Status LEDs ERROR MAINT Operating Description state Error state • "IO controller" connection established and configuration Flashes completed, but an error occurred: – Diagnostic message to the S7 controller is pending or – Incorrect configuration by the S7 controller Flashes for at least 3 seconds.
  • Page 76 Diagnostics 10.1 Status LEDs Table 10- 1 Behavior of the RUN LED RUN LED Meaning Note The PN/BACnet LINK is not in • Server: System_Status is not RUN operating state OPERATIONAL • If client references are configured: Status = INACTIVE (0) The PN/BACnet LINK is in RUN •...

  • Page 77: Connection Status Of Ethernet Interfaces

    Diagnostics 10.1 Status LEDs Table 10- 2 Behavior of the ERR LED ERR LED Meaning Note No error on BACnet bus Error on BACnet bus Diagnostics active, see Events that trigger a diagnostic message (Page 83) 10.1.3 Connection status of Ethernet interfaces The LEDs for indicating the connection status of the Ethernet interfaces are located under a housing flap.

  • Page 78: Diagnostic Messages To The S7 Controller

    Diagnostics 10.2 Diagnostic messages to the S7 controller 10.2 Diagnostic messages to the S7 controller 10.2.1 Events that trigger a diagnostic message Diagnostics The PN/BACnet LINK sends diagnostic information to the S7 controller with the usual PROFINET methods. The following table provides an overview of •...
  • Page 79 Diagnostics 10.2 Diagnostic messages to the S7 controller Event text Event for triggering Possible remedy BACnet object not available Defective configuration for the BACnet Checking the – object configuration for the object and whether the Object Identifier {1:x}: Error BACnet object in question while accessing the object exists with the required permissions and whether...
  • Page 80 Diagnostics 10.2 Diagnostic messages to the S7 controller Figure 10-5 Example of object identifier PN/BACnet LINK Operating Instructions, 12/2022, A5E39895543-AC...

  • Page 81: Maintenance And Service

    Maintenance and service 11.1 Firmware update Procedure 1. Set the S7 CPU to STOP mode. 2. Start the update of the PN/BACnet LINK in the TIA Portal. Depending on the configuration in the TIA Portal, the PN/BACnet LINK resumes running on its own after a successful update and waits for configuration information from the S7 controller.

  • Page 82: Replacing The Device

    There is no provision for returning the device to Siemens. For further questions regarding disposal and recycling, please contact your local Siemens contact. You will find the contact details in our database on the Internet at: http://www.automation.siemens.com/partner...

  • Page 83: Technical Specifications

    Technical specifications 12.1 Technical specifications Technical specifications PN/BACnet LINK Article number 6BK1621-0AA00-0AA0 General information Product type designation PN/BACnet Link Firmware version • FW update possible Vendor identification (VendorID) Product function • I&M data Engineering with V14 SP1 • STEP 7 TIA Portal configurable/integrated as of version Installation type/mounting Mounting...
  • Page 84 Technical specifications 12.1 Technical specifications Article number 6BK1621-0AA00-0AA0 PROFINET functions • Assignment of the IP address, supported • Assignment of the device name, supported BACnet B-GW • BACnet device profile ISO 10646 (UTF-8) • Supported character sets • Network Security 1.
  • Page 85 Technical specifications 12.1 Technical specifications Article number 6BK1621-0AA00-0AA0 Standards, approvals, certificates CE mark UL approval cULus PNO certificate BTL certificate RoHS conformity Ambient conditions Ambient temperature during operation -25 °C • horizontal installation, min. 60 °C • horizontal installation, max. -25 °C •...

  • Page 86: Dimension Drawing

    Technical specifications 12.2 Dimension drawing 12.2 Dimension drawing Dimension drawing of PN/BACnet LINK Figure 12-1 Dimension drawing PN/BACnet LINK PN/BACnet LINK Operating Instructions, 12/2022, A5E39895543-AC...

  • Page 87: Appendix

    System Manual for the S7- 1200 Automation System (https://support.industry.siemens.com/cs/ww/en/view/109741593). General approvals The current approvals for the PN/BACnet LINK are listed in the Siemens Mall. Declaration of Conformity The EC Declaration of Conformity is kept available for the responsible authorities in...

  • Page 88: Contact Address

    • IEC 61131-2 / DIN EN 61131-2 Programmable controllers • IEC 61010-1 / EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use. Contact address Contact address SIEMENS AG DF FA SE Breslauer Straße 5 90766 FÜRTH GERMANY...

  • Page 89: Service & Support

    You can contact the Technical Support experts in Germany at the following number: • Phone: + 49 (0) 911 895 7222 • The contact data for Technical Support in other countries can be found in the Siemens contact database (http://w3.siemens.com/aspa_app/).

  • Page 90: Glossary

    Glossary AR (Application Relation) S7 connection for data exchange in PROFINET BBMD (BACnet/IP Broadcast Management Device) The BBMD is used to distribute BACnet broadcast messages across IP routers. BIBB (BACnet Interoperability Building Block) BIBBs are a collection of one or more BACnet services. BACnet services are divided into A and B services.

  • Page 91: Object Types

    Glossary Object types The PN/BACnet LINK supports the following BACnet object types • Device • Binary input (BI) • Binary output (BO) • Analog input (AI) • Analog output (AO) OSS (Open Source Software) Open Source Software (OSS) is software that meets the definition of the Open Source Initiative (OSI), for example, that this software is subject to one of the Open Source Software licenses recognized by OSI.

  • Page 92: Index

    Index Disposal, 88 Documentation Basic knowledge, 7 History, 7 24 V DC connection, 19 Purpose, 7 Target group, 7 Acyclic communication, 17 Approvals, 93, 93 EMC interferences, 57 ERROR LED, 79 Ethernet cable, 57 Ethernet interface, 82 BACnet, 17 BACnet bus Connecting, 58 Basic knowledge FE terminal, 57...
  • Page 93 Index MAINT LED, 79 Target group, 7 Mounting Documentation, 7 Control panel, 51 Technical Support, 95 Standard mounting rail, 51 TIA Portal, 18, 59 Trademark SIMATIC!, 7 Notes Installation, 46 Wiring guidelines, 53 Open-source software, 94 PN/BACnet LINK Design, 19 Power supply, 17, 55 PROFINET, 14 Connecting, 57...
