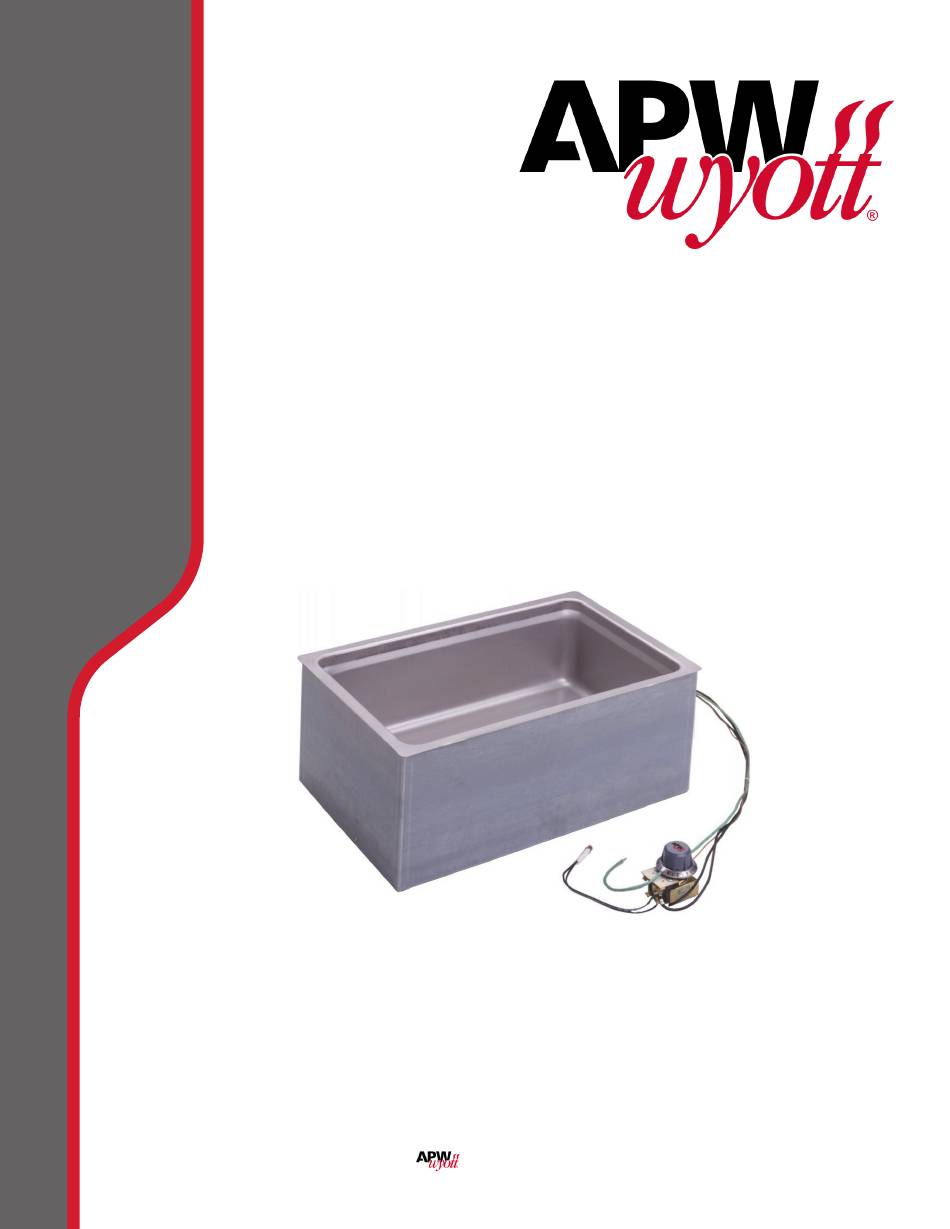

BUILT-IN BOTTOM-MOUNT WARMERS
WITH THERMOSTAT CONTROL
MODELS:
BM-80C, BM-80CD, BM-80CDUL,BM-80CUL,
BM-80D, BM-80DUL, BM-80
OWNERS MANUAL
2M-Z24231 Rev. - 05/21
BM-80D
This manual includes material related to installation, use , cleaning, and care. Exploded view[s], as well as any available
parts list[s] and wiring diagram[s] pertaining to the unit[s] covered by this manual are also included.
This manual must be read and understood by all persons using or installing this appliance. Contact your APW Wyott
dealer if you have any questions concerning installation, use, or maintenance of this equipment.
DO NOT DISCARD THIS MANUAL.
is a registered trademark of APW Wyott®, A Middleby Company. All rights reserved.
