OPERATION MANUAL OF TPMS SENSOR
MODEL: TMSS6C4
Thank you for choosing our TPMS. This guide instructs the technician how to properly
mount and dismount a Baolong Huf TPMS snap-in sensor.
Introduction of TMSS6C4
TMSS6C4 is the transmitting module in TPMS. Its working frequency is 433.92MHz;
Receiver Low frequency：125KHz; -15dBm≥transmitting power@3m. supply: Battery;
Radio frequency uses the FSK modulation and Machester encoding mode; Antenna type:
Monopole antenna, antenna Gain:-3.7dB~-3.4dB; cable loss：3.12dB.The communication
mode between WARDKS and receiving module is RF wireless communication. The module
detects pressure and temperature inner the tire periodically and sends these information
via RF output circuit to the receiving module. One can manually detect data inner tire by LF
wake-up tools. Install it on the rim together with cycle valve.
PART ONE MOUNTING AND DISMOUNTING OF TRANSMITTER
1. Mounting of Transmitter
1.1 Identify Transmitter

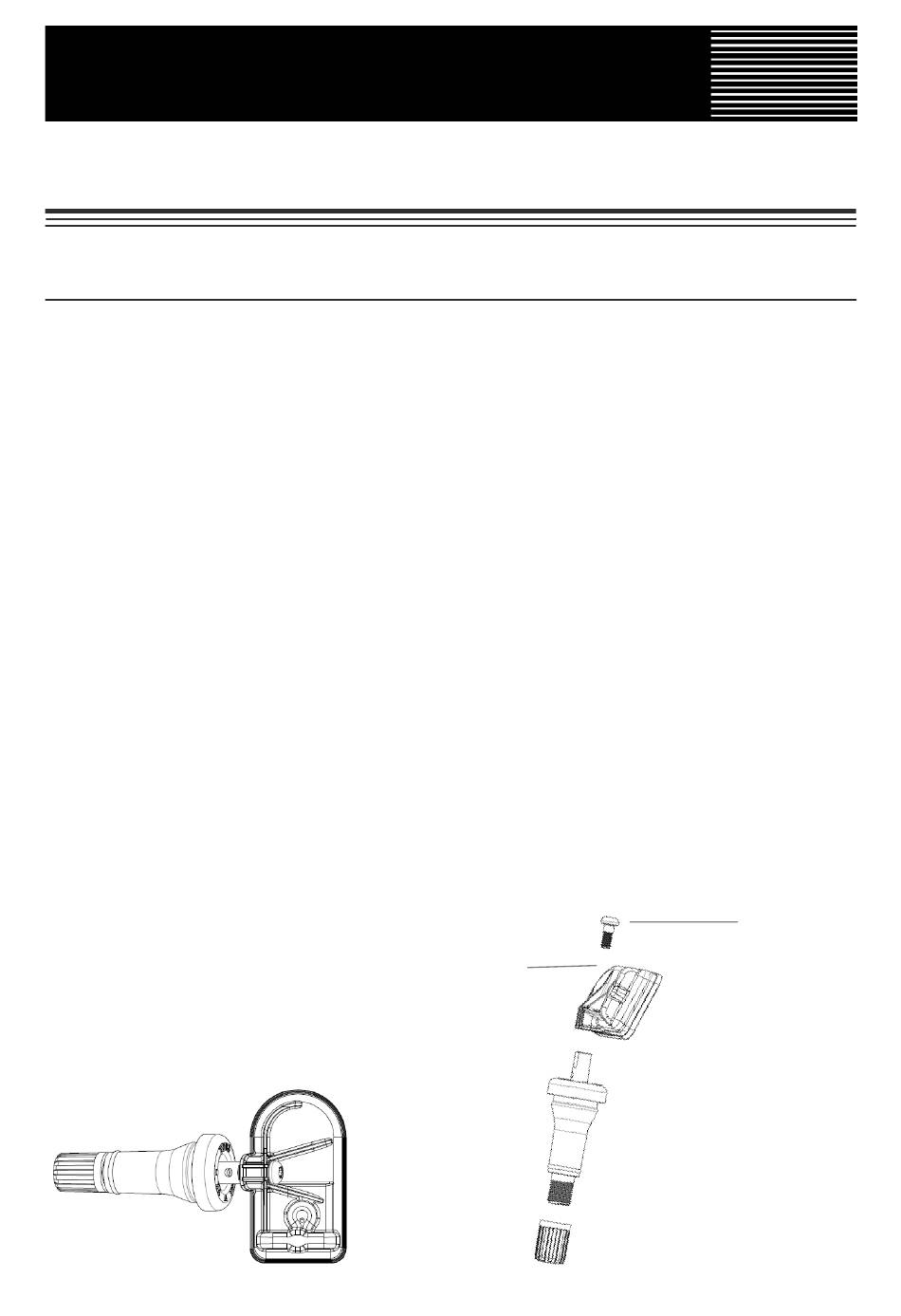

Check whether the prepared sensor is the same with the image below.
Note: Only plastic or aluminum caps, aluminum valves and nickel plated valve cores can be
used when replaced.
①
Self-lock Screw
②
Electronal Module
1
Advertisement
Related Manuals for Baolong TMSS6C4
Summary of Contents for Baolong TMSS6C4
- Page 1 Baolong Huf TPMS snap-in sensor. Introduction of TMSS6C4 TMSS6C4 is the transmitting module in TPMS. Its working frequency is 433.92MHz; Receiver Low frequency：125KHz; -15dBm≥transmitting power@3m. supply: Battery; Radio frequency uses the FSK modulation and Machester encoding mode; Antenna type: Monopole antenna, antenna Gain:-3.7dB~-3.4dB;...
- Page 2 1.2 Before the transmitter is installed, the rim around the hole must be cleaned with a cloth. ① 1.3 Remove the Self-lock Screw , insert the valve stem Inside the tyre Outside the tyre through the rim hole from inside. ①...
- Page 3 1.8 Dynamically balance the wheel before it is placed back on the vehicle. 2. Dismounting of Transmitter 2.1 Deflate the tyre and remove the wheel weights from the rim. Push the tyre bead away from the rim. Make sure to always set the bead breaker at least 90 degrees from the valve stem to avoid damaging the electronic module.
- Page 4 Owner’s Manual. All components are covered for one year following the date of purchase. If the warranty period specified in local law exceeds the period provided by Baolong Huf, the former will supersede the latter.
- Page 5 prepaid. The owner is responsible for any labor and installation charges. The warranty does not include any further obligation whatsoever, including but not limited to actual installation of the replacement unit on the customer’s vehicle. All other Warranties, expressed or implied, are disclaimed. All collateral agreements, which purport to modify this limited warranty, are of no effect.
- Page 6 Gewerbestraße 40 D-75015 Bretten NOTE:Baolong Huf Shanghai Electronics Co.,Ltd. reserves the right to change the contents of this manual at any time without notice. The information contained in this manual is proprietary and must not be reproduced without prior written consent from Baolong Huf Shanghai Electronics Co.,Ltd.
