OPERATION MANUAL OF TPMS SENSOR
MODEL: TMSS6A4
Thank you for choosing our TPMS. This guide instructs the technician how to properly
mount and dismount a Baolong Huf TPMS clamp-in sensor.
Introduction of TMSS6A4
TMSS6A4 is the transmitting module in TPMS. Its working frequency is 433.92MHz;
frequency ： 125KHz;
Receiver
Low
Maximum
Transmit
Power:
<
10
mW.
supply:Battery;Radio frequency uses the FSK modulation and Machester encoding
mode;Antenna type:Monopole antenna,antenna Gain:-25dBi;cable loss ： 3.12dB.The
communication mode between WARDKS and receiving module is RF wireless
communication. The module detects pressure and temperature inner the tire periodically
and sends these information via RF output circuit to the receiving module. One can
manually detect data inner tire by LF wake-up tools. Install it on the rim together with cycle
valve.
PART ONE MOUNTING AND DISMOUNTING OF TRANSMITTER
1. Mounting of Transmitter
1.1 Identify Transmitter

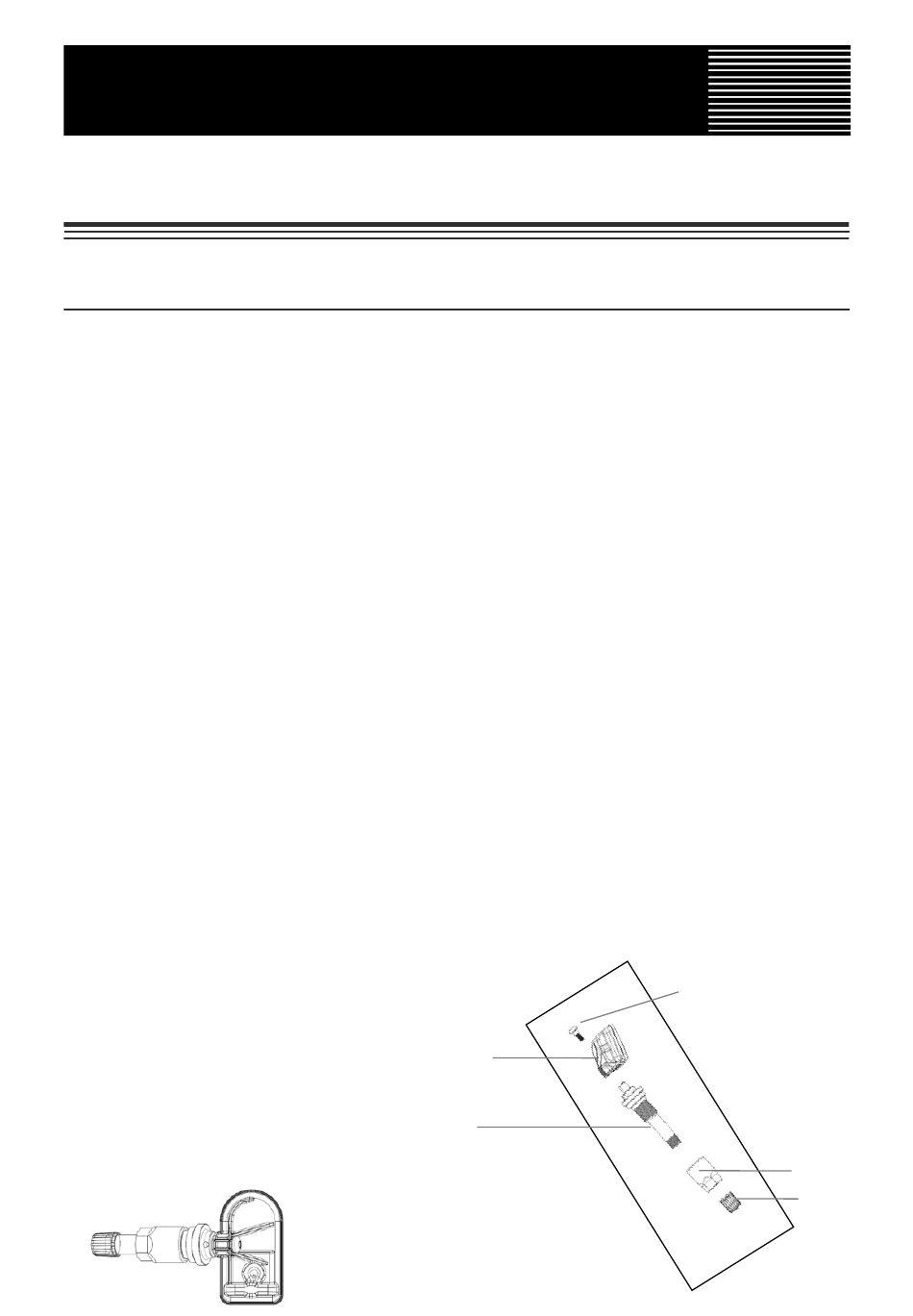

Check whether the prepared sensor is the same with the image below.
Note: Only plastic or aluminum caps, aluminum valves and nickel plated valve cores can be
used when replaced.
①
Self-lock Screw
②
Electronal Module
③
Valve Stem
④
Nut
⑤
Valve Cap
1
Advertisement
Table of Contents
Related Manuals for Baolong TMSS6A4
Summary of Contents for Baolong TMSS6A4
- Page 1 Thank you for choosing our TPMS. This guide instructs the technician how to properly mount and dismount a Baolong Huf TPMS clamp-in sensor. Introduction of TMSS6A4 TMSS6A4 is the transmitting module in TPMS. Its working frequency is 433.92MHz; frequency ： 125KHz; Receiver...
- Page 2 1.2 Before the transmitter is installed, the rim around the hole must be cleaned with a cloth. ④ 1.3 Take off the nut , insert the valve stem through the Inside the tyre Outside the tyre rim hole from inside. ④...
- Page 3 1.7 Apply soapsuds on the valve tip. If no leakage is found, put on the valve cap○ . If unsuccessful, try again. 1.8 Dynamically balance the wheel before it is placed back on the vehicle. 2. Dismounting of Transmitter 2.1 Deflate the tyre and remove the wheel weights from the rim.
- Page 4 Owner’s Manual. All components are covered for one year following the date of purchase. If the warranty period specified in local law exceeds the period provided by Baolong Huf, the former will supersede the latter.
- Page 5 (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Baolong Huf Shanghai Electronics Co.,Ltd. is not liable for any direct, consequential, indirect or punitive damages of any kind. Importer：...
- Page 6 Gewerbestraße 40 D-75015 Bretten Hereby, Baolong Huf Shanghai Electronics Co., Ltd. declares that the radio equipment type TMSS6A4 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.intellisens.com/downloads...
