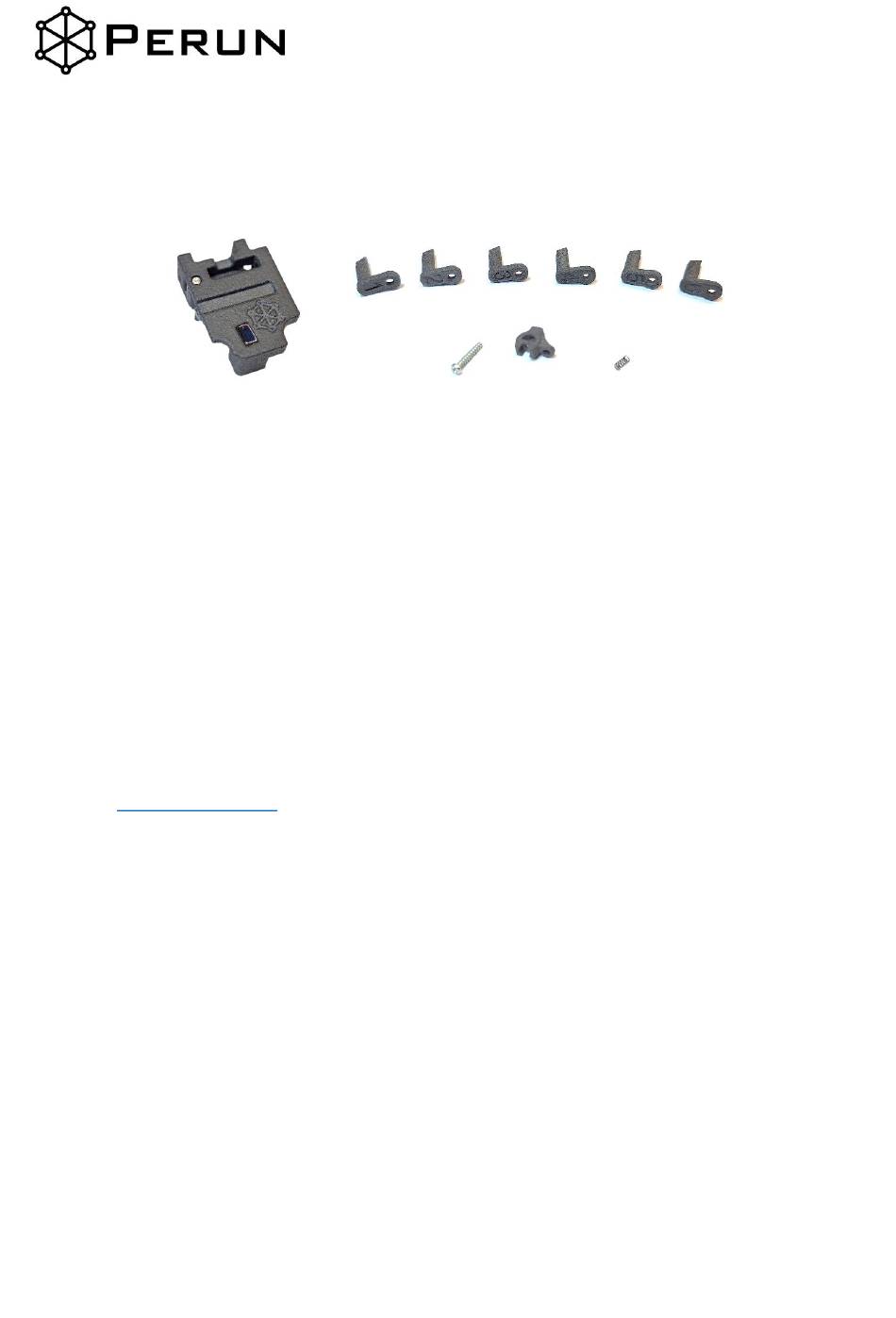

Clicker V2 PRO is an accessory designed for use with Perun drop-in devices for V2 gearboxes like Perun
V2 Hybrid or Perun HPA Trigger Board V2. It introduces up to 3 kg (6 lbs) break to the trigger action,
which needs to be overcome to fire a shot, similar to how the trigger works in a real firearm. Clicker
V2 PRO is meant for realism enthusiasts, and everybody else who wants a tactile feel on the trigger. It
can be adjusted in five different ways, to best replicate a real firearm or simply suit your personal
preference. In new Clicker V2 PRO, mechanical safety is retained.
Reading this manual will help you fully exploit this product's potential and in case of encountering any
problems, you can look for solutions to them here.
Manufacturer:
Perun Tech Sp. z o. o.
Barwicka 8 St.
60-192 Poznań, Poland
e-mail:
info@perunairsoft.pl
Table of contents
1.
Compatibility .............................................................................................................................. 2
2.
Warranty and liability limitations ............................................................................................... 2
3.
How does it work? ...................................................................................................................... 3
4.
Installation and adjustment........................................................................................................ 3
4.1.
Installation ............................................................................................................................. 3
4.2.
Break force ............................................................................................................................. 5
4.3.
4.4.
Pre-travel ............................................................................................................................... 7
4.5.
Overtravel .............................................................................................................................. 8
4.6.
Spring tension ........................................................................................................................ 8
4.7.
Perun drop-in trigger sensitivity setting ................................................................................ 9
4.8.
Testing before final assembly ................................................................................................ 9
Clicker V2 PRO
Installation manual
1
Advertisement
Table of Contents
Related Manuals for Perun Clicker V2 PRO
Summary of Contents for Perun Clicker V2 PRO
-
Page 1: Table Of Contents
Clicker V2 PRO is an accessory designed for use with Perun drop-in devices for V2 gearboxes like Perun V2 Hybrid or Perun HPA Trigger Board V2. It introduces up to 3 kg (6 lbs) break to the trigger action, which needs to be overcome to fire a shot, similar to how the trigger works in a real firearm. Clicker V2 PRO is meant for realism enthusiasts, and everybody else who wants a tactile feel on the trigger. -
Page 2: Compatibility
1. Compatibility Clicker V2 PRO works with all Perun V2 drop-in devices, like Hybrid V2 or HPA Trigger Board V2, and following gearbox shells and triggers: Gearbox shells (Tokyo Marui-standard): A&K, Bolt, Classic Army, CYMA, DE, King Arms, Krytac, G&G, G&P, Mancraft, P&J, Retro Arms, Specna Arms, SRC, VFC. -
Page 3: How Does It Work
Installation To install the main body of Clicker V2 PRO, insert it into the right (upper) half of the shell, as shown on the photo. In most cases Clicker will stay in place thanks to press fit. If that is not the case, you can... - Page 4 Clicker V2 PRO comes with its own mechanical trigger lock. The main part of the lock has to fit well into the shell’s corresponding hole, therefore 6 pieces with varying dimensions are provided, where 1 is the thinnest and 6 is the thickest. Choose the one, which will be the most stable inside the hole, while at the same time allowing the return spring to disengage the lock when the selector is not set to “SAFE”.
-
Page 5: Break Force
Do not turn the screw all the way in, the head should remain around a millimeter away from the hole. Put the gearbox halves together only with the main body of the Clicker and the lock inside, and while looking through the selector window, adjust the screw so, that while on SAFE the tip of the screw will be touching the metal part of the Clicker, yet it will still be able to engage and disengage freely while the selector is being switched on and off the SAFE position. - Page 6 To adjust the trigger break force, use the screw shown on the photo. Turning it to the right decreases the trigger pull, while turning it to the left, increases it.
-
Page 7: Additional Magnets For Increased Trigger Hardness In Replicas With Plastic Receiver
4.3. Additional magnets for increased trigger hardness in replicas with plastic receiver Trigger hardness can be “boosted” by 6 x 1 mm disk magnets attached to the metal part. Magnets hold to the metal part by themselves and are not prone to falling off due to vibration. Gluing them to the metal part will decrease their efficiency. -
Page 8: Overtravel
4.5. Overtravel To limit how far the trigger can travel after the break, use screw shown on picture below. The overtravel screw can be removed completely, if situation requires that. Limiting the overtravel too much will cause the trigger not to reset properly, i. e. further shots will not be fired immediately after the trigger resets with an audible click. -
Page 9: Perun Drop-In Trigger Sensitivity Setting
The “Switch check” mode of the Perun board may not be enough to make sure, that trigger reacts as it should, because Switch check does not provide precise information about the reset of the board. We recommend attaching the pistol grip with motor inside to the gearbox and lower receiver for more comprehensive testing before final assembly.
