austriamicrosystems AS5215 Operation Manual

Programmable 360 magnetic angle encoder with sine & cosine output signals
Hide thumbs Also See for AS5215:

Advertisement

Quick Links

AS5040 8-bit Programmable Magnetic Rotary Encoder
AS5215
Programmable 360° Magnetic Angle Encoder with SINE &
COSINE Output Signals
1 General Description
The AS5215 is a redundant contactless rotary encoder
sensor for accurate angular measurement over a full turn of
360º and over an extended ambient temperature range of -
40ºC...+150ºC.
Based on an integrated Hall element array, the angular
position of a simple two-pole magnet is translated into analog
output voltages. The angle information is provided by means
of buffered sine and cosine voltages. This approach gives
maximum flexibility in system design, as it can be directly
2 The AS5215 Adapter board
2.1
Board description
The AS5115 adapter board is a simple circuit allowing test and evaluation the rotary encoder quickly without building a test fixture or
PCB. The connections of P1 are required for supplying, communicating and measuring. Connector JP2 provides access to PROG,
CM_2 and CM_1 (sine common mode voltage of device 1 and device 2 – pin12, pin14). The common mode voltages at all CM pins
provide the same level. Resistor R1, R2 (both 100k) are used as Pull-up on CS pins and the capacitors C1, C2 (both 2.2uF) are
placed between VDD and GND.
4 x 2.6mm mounting
holes
JP2 connector
(PROG, CM_2, CM_1)
Revision 1.1, September 2009
integrated into existing architectures and optimized for
various applications in terms of speed and accuracy.
An SSI Interface is implemented for signal path
configurations, as well as a one time programmable register
block (OTP), which allows the customer to adjust the signal
path gain for different mechanical constraints and magnetic
fields.

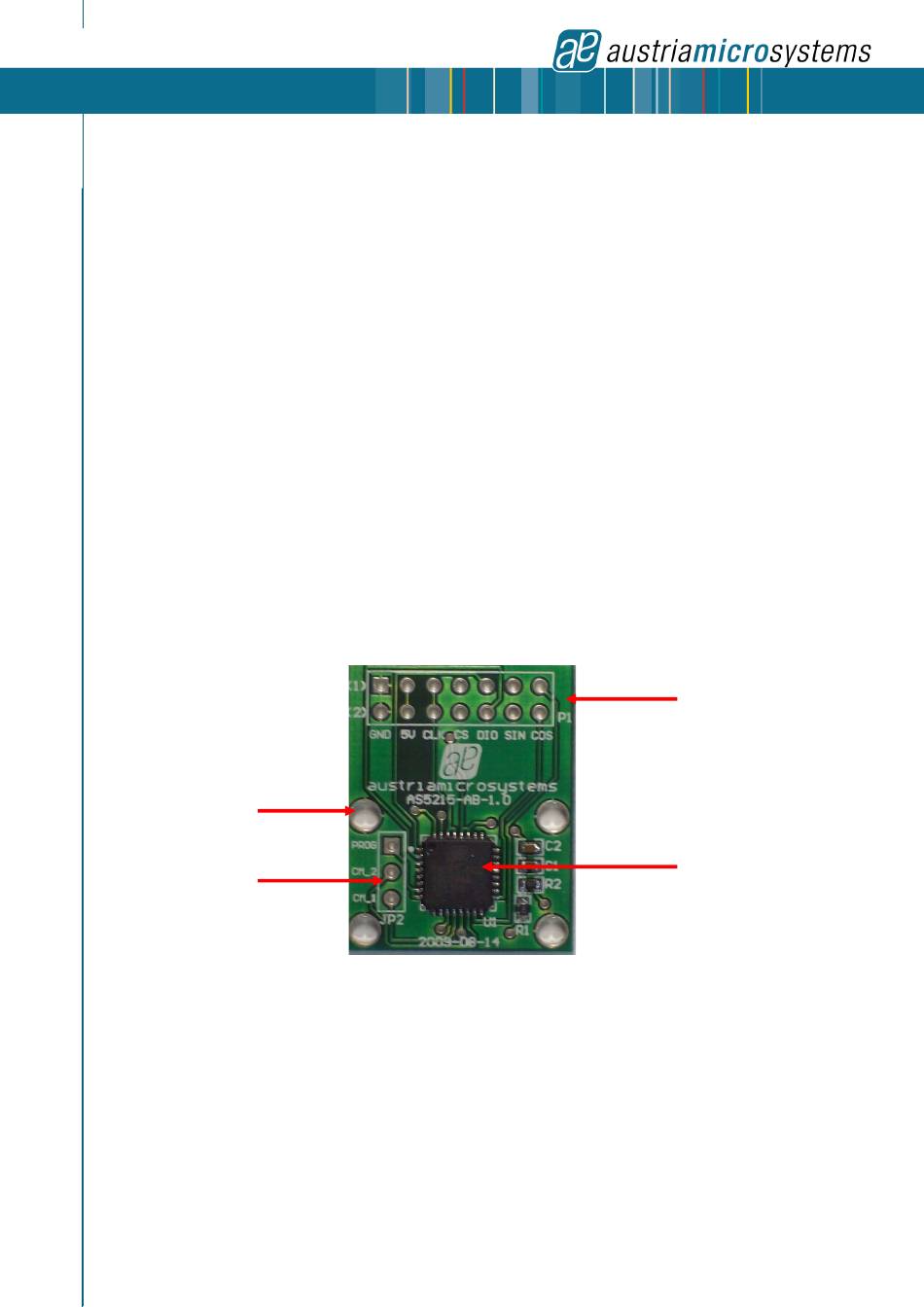

Figure 1: AS5215 Adapterboard
www.austriamicrosystems.com
AS5215-AB-1.0 Adapterboard
OPERATION MANUAL
JP1 connector
(GND, power supply,
Output and interface)
AS5215 encoder
Page 1 of 7

Advertisement

loading
Need help?

Need help?

Do you have a question about the AS5215 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for austriamicrosystems AS5215

  • Page 1 Programmable 360° Magnetic Angle Encoder with SINE & COSINE Output Signals 1 General Description The AS5215 is a redundant contactless rotary encoder integrated into existing architectures and optimized for sensor for accurate angular measurement over a full turn of various applications in terms of speed and accuracy.
  • Page 2 Figure 2: AS5215 adapter board mounting and dimension A 6x2.5mm (standard magnet: AS5000-MD6H-2 from BOMATEC) diametric magnet must be placed over on under the AS5215 encoder, and should be centered on the middle of the package with a tolerance of 0.5mm.
  • Page 3 AS5215 Programmable Magnetic Rotary Encoder Adapterboard Operation Manual 3 AS5215 adapter board and pinout AS5215-AB-1.0 PROG AS5215 CM_2 CM_1 Figure 3: AS5215 adapter board connectors and encoder pinout Pin# Pin# Symbol Type Description Board AS5215 Board JP1 - 1 9, 10...
  • Page 4: Operation Case

    Figure 4: Operation cases with the adapter board The AS5215 provides analog Sine and Cosine outputs (JP1 – 11, 12, 13, 14). These outputs allow the user to perform the angle calculation by an external ADC + µC, e.g. to compute the angle with a high resolution. The signal lines should be kept as short as possible, longer lines should be shielded in order to achieve best noise performance.
  • Page 5 100nF capacitor (ceramic) and a 10µF capacitor. Programming of the AS5215 OTP memory does not require a dedicated programming hardware. The programming can be simply accomplished over the serial 3-wire interface (see Figure 5 – shown for device 1). For permanent programming (command PROG OTP, #25), a constant DC voltage of 8.0 –...
  • Page 6 AS5215 Programmable Magnetic Rotary Encoder Adapterboard Operation Manual 5 AS5215 adapter board hardware AS5215-AB-1.0 schematics Figure 6: AS5215-AB-1.0 adapterboard schematics AS5215-AB-1.0 PCB layout Figure 7: AS5215-AB-1.0 adapter board layout Revision 1.1, September 2009 Page 6 of 7 www.austriamicrosystems.com...
  • Page 7: Revision History

    No obligation or liability to recipient or any third party shall arise or flow out of austriamicrosystems AG rendering of technical or other services.
