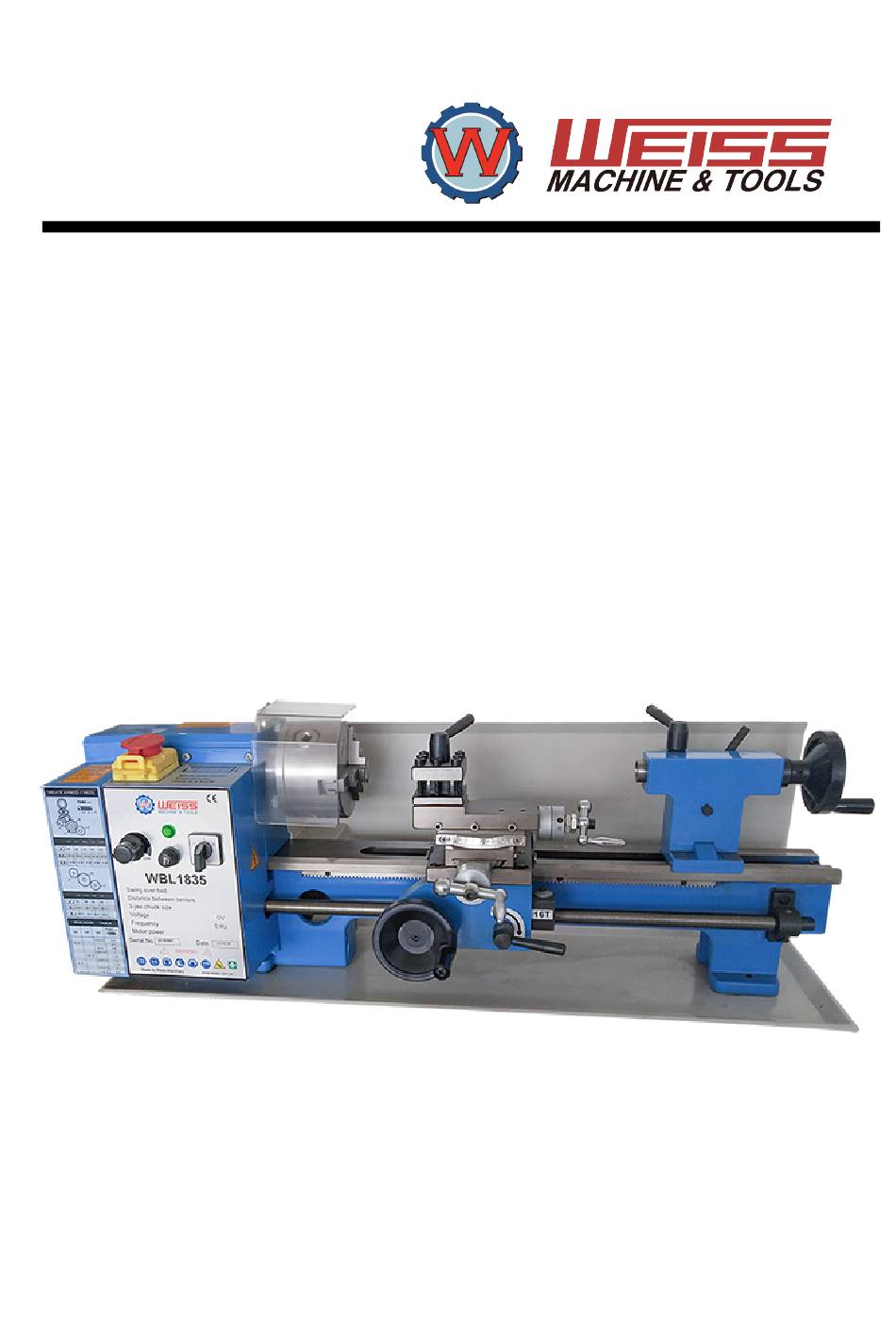

  • Page 1 Instruction Manual VARIABLE SPEED MINI LATHE WBL1835 Before Using Be Sure To Read This Manual. This machine is suitable To Use Only From 12°C~35°C (53.6°F~95°F)

  • Page 3: Table Of Contents

    Content 1. Safety Rules For Lathe ..............2 2. Product Features ................2 3.Specifications ..................3 4. Unpacking And Major Parts ............... 3 5. Grounding And Insulation ..............5 6. Adjustment And Preparation ............... 5 7. Operation And Replacement .............. 7 8.

  • Page 4: Safety Rules For Lathe

    Safety rulers for lathe use any instruments to measure the 1. Before you turn on the motor, be sure machine, nor test the sharpness of the that you have put in suitable lubrication cutter with your hand. according to manual's instruction. Also 6.

  • Page 5: Specifications

    WBL1835 The specifications in this manual are given as general information and are not binding. We reserves the right to effect, at any time and without prior notice, changes or alterations to parts, fitting and accessory equipment deemed necessary for any reason whatsoever.
  • Page 6 The major parts of the lathe are shown is Fig.2 and in Fig.3. Fig.3 Back View Of The Lathe 8 . Lead screw 1. Control box 26 . End cover 9 . Automatic feeding handle 2. Chuck 21. Rear splash guard 3.

  • Page 7: Grounding And Insulation

    Grounding and insulation 1. In the event of a malfunction or equipment-grounding conductor. If break-down, grounding provides a repair or replacement of the electric path of least resistance for electric cord or plug is necessary, do not current to reduce the risk of electric connect the equipment-grounding shock.
  • Page 8 Fig.4 Switches For Control 1. emergency stop switch 2.forward- reverse switch 3. speed control knob 4.fuse 6. Check the compound rest crank and the cross feeding crank and see if they work properly. If they are too tight or too loose, turn the adjusting screws located at both sides.(Fig.5) Fig.5 Adjustment Of Saddle, Cross Slide And Compound Rest...

  • Page 9: Operation And Replacement

    Operation & Replacement Replacement of chuck When replacing the chuck, place a cloth or a piece of wood on the bed way at the bottom of the chuck. This is to avoid damage to the bed way caused by carelessly dropping the chuck. Loosen the 3 set screws as shown in Fig.6 (A) to replace the chuck.
  • Page 10 Tailstock rest adjustment When you are going to change position or replace the tailstock you need to loosen the Handle in (A) of Fig.9. Fig. 9 Tailstock Rest Adjustment Tool post adjustment When you are going to adjust the tool post position, you only need to loosed the lever shown in (B) of Fig.

  • Page 11: Operation

    Operation Fig.13 Workpiece Holding And Drilling Fig. 15 internal cutting By changing the tool post angle and adjusting Use the chuck to hold the workpiece firmly. the compound rest, you can do internal Then, use the centre to fix the other end, if cutting as in Fig.

  • Page 12: Assembly Diagram And Parts List

    Assembly Diagram and Parts List...
  • Page 13 Part No. Description Ref. No. Description Ref. No. Part No. Guide finger Cover label Screw M5x45 Screw M6x25 Screw M3x6 Rubber quoit Chuck guard Label Label Label Power failure switch Screw label Screw M4x30 Label Lead screw guard Caution productlabel Screw M4x6 Screw M5x10 Support Mount...
  • Page 14 Part No. Description Ref. No. Description Ref. No. Part No. Shifting Grip Dial Screw M8x60 Screw M4x14 Shifting Knob Bracket Shifting Arm Feeding Screw Screw M5x8 Screw M4x12 Shifting Fork Antirust board Shifting Fork Pin Rubber Ball bearing 6001-Z Feeding Screw H/L Gear (II) (20Z/12Z) Saddle H/L Gear Shaft...
  • Page 15 Part No. Description Ref. No. Description Ref. No. Part No. Screw M6 x12 Support Plate Nut M5 Nut M8 Screw M5x10 Shaft Tailstock Casting Ring Washer Φ8 Screw M6x20 Screw set Washer Φ10 Washer Φ6 Cover Nut M10 Bracket (left) Tail Plate Key (4x8) Tail soleplate...

  • Page 16: Wiring Diagram

    -FU1 -SA1 -SB1 -HL1 -RP1 -KA1 -KA1 -KA2 WEISS -Meter -KA2 -Sensor -SA1 -KA1 -KA2 -RP1 Spindle 1AC220V...
