Summary of Contents for WEISS WM180V
- Page 4 13. Keep children and visitors away. All visitors should be kept a safe distance from the work WARNING! area. Read and understand the entire instruction manual before attempting set-up or operation 14. Make the workshop child proof. Use padlocks, master switches, and remove of this machine! starter keys.
- Page 6 TABLE OF CONTENTS LIMITED WARRANTY………………… …...…………..……………………………………. 1 SAFETY WARNINGS ………………………………………………………………………… 2 SPECIFICATIONS ……………………………………………………………………………. 3 TABLE OF CONTENTS …………….………………………………………………….…….. 4 CONTENTS OF SHIPPING CONTAINER ……………………………………..…………... 5 UNCRATING AND CLEAN-UP ……………………………………………………………… 6 FOUNDATION DRAWING ……………………………………………………………………. 6 GENERAL DESCRIPTION..…………………………………………………………………... 7 CONTROLS..…………………………….…………………………………………………….. 8 OPERATION …………………………………………………………………………………….10 LATHE ACCESSORIES………………………………………………………...

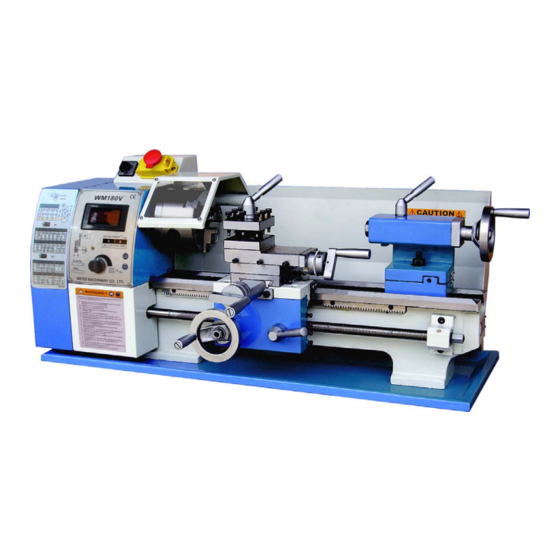

- Page 7 Read and understand the entire contents of this Manual before attempting set-up or operation! Failure to comply may cause serious injure! CONTENTS OF SHIPPING CONTAINER WM180V Lathe 100mm Three Jaw Chuck 100mm Four Jaw Chuck (with backplate) Steady Rest Follow Rest Face Plate Operator’s Manual...
- Page 11 4. Carriage Lock Turn hex socket cap screw (A, Fig.10) clockwise and tighten to lock. Turn counter-clockwise and loosen to unlock. Caution: carriage lock screw must be unlocked before engaging automatic feeds or damage to lathe may occur. 5. Longitudinal Traverse Handwheel (B, Fig. 11) Rotate hand wheel clockwise to move the apron assembly toward the tailstock (right).
- Page 17 Lathe Accessories Three Jaw Universal Lathe Chuck Using this universal chuck, round, triangular, square, hexagonal octagonal, and twelve-cornered stock may be clamped. (Fig.26) Note: new lathes have very tight fitting jaws. This is necessary to ensure accurate clamping and long service life.
- Page 18 Steady Rest The steady rest serves as a support for shafts on the free tailstock end. For many operations the tailstock can not be used as it obstructs the turning tool or drilling tool, and therefore, must be removed from the machine.
- Page 22 MAINTENANCE Keep the maintenance of the machine tool during the operation to guarantee the accuracy and service life of the machine tool. 1. In order to retain the machine’s precision and functionality, it is essential to treat it with care, keep it clean and grease and lubricate it regularly.
- Page 24 EC directives, as does the version marketed by us. Any modification carried out on the machine without our consent shall cause this declaration to be null and void. Distributor: WEISS MACHINERY CO. LTD. Name of machine: WM180V Type of machine:...
