FI-501 WIND ANGLE
FI-502 CH WIND ANGLE
FI-505 COURSE PILOT
FI-506 RUDDER
Instrument
www.furuno.co.jp

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FI-502 CH WIND ANGLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Furuno FI-502 CH WIND ANGLE

Summary of Contents for Furuno FI-502 CH WIND ANGLE

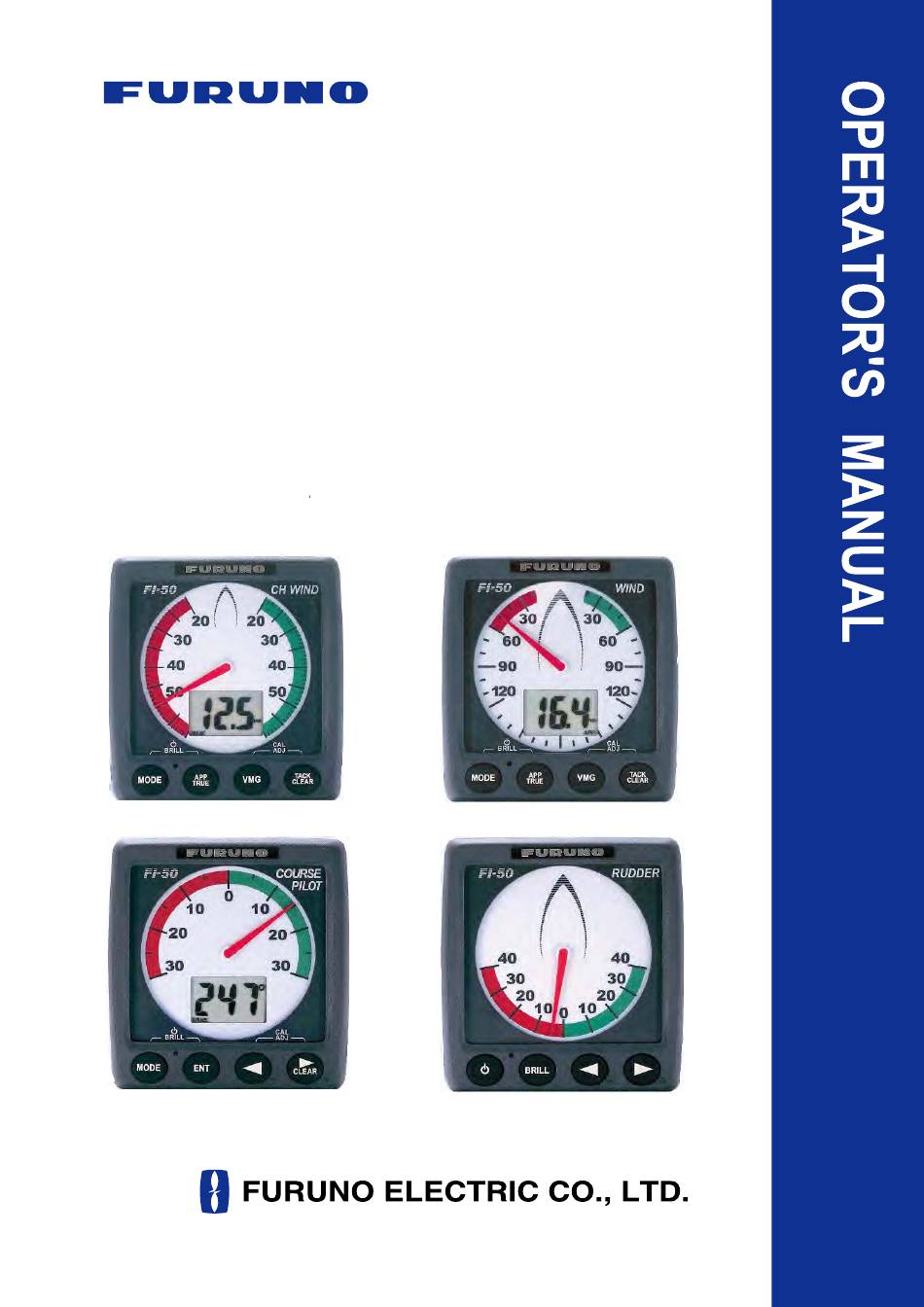

  • Page 1 FI-501 WIND ANGLE FI-502 CH WIND ANGLE FI-505 COURSE PILOT FI-506 RUDDER Instrument www.furuno.co.jp...
  • Page 2 *00016698210* *00016698210* *00016698210* *00016698210*...

  • Page 3: Important Notices

    • Store this manual in a convenient place for future reference. • FURUNO will assume no responsibility for the damage caused by improper use or modification of the equipment (including software) by an unauthorized agent or a third party.

  • Page 4: Safety Instructions

    Continued use of the equipment can cause fire or electrical shock. Warning Label A warning label is attached to the equipment. Do not remove the label. If the label is missing or damaged, contact a FURUNO agent or dealer about replacement.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS FOREWORD ....................iv SYSTEM CONFIGURATION ..............vi 1. FI-501 WIND ANGLE, FI-502 CLOSE HAULED WIND ANGLE..... 1 1.1 Operating Controls ....................1 1.2 Turning the Power On/Off ..................2 1.3 Adjusting Brilliance and Contrast ................. 2 1.4 Display Layout...................... 3 1.5 Selecting a Display....................

  • Page 6: Foreword

    502 Close Hauled Wind Angle, FI-505 Course Pilot and the FI-506 Rud- der, members of the FI-50 series of marine instruments. We are confi- dent you will see why the FURUNO name has become synonymous with quality and reliability. For over 50 years FURUNO Electric Company has enjoyed an enviable reputation for quality marine electronics equipment.
  • Page 7 FOREWORD FI-505 The FI-505 Course Pilot displays heading and course information, and its main features are • Heading and average heading • Locked heading • Course made good • Adjustments for • Heading response • Pointer response • Course made good response •...

  • Page 8: System Configuration

    SYSTEM CONFIGURATION Standalone configuration FI-5001 WIND TRANSDUCER TERMINAL BOX (where necessary) FI-502 FI-501 : Standard Supply : Optional Supply : Local Supply 12 VDC FI-501/FI-502 HEADING AUTOPILOT SENSOR 12 VDC 12 VDC FI-505 FI-506 NOTICE: Turn on the terminal resistor in the instrument when connecting an NMEA 2000 sensor.

  • Page 9: Nmea 2000 Network

    SYSTEM CONFIGURATION NMEA 2000 network FI-5001 WIND TRANSDUCER TERMINAL BOX FI-503 FI-504 (where necessary) DIGITAL MULTI FI-501 Wind Angle/ FI-502 Close Hauled Wind Angle FI-505 FI-506 COURSE PILOT RUDDER NMEA 2000 NMEA 2000 NMEA 2000 NMEA 2000 NMEA 2000 SENSOR* SENSOR* SENSOR* SENSOR*...
  • Page 10 SYSTEM CONFIGURATION This page is intentionally left blank. viii...

  • Page 11: 501 Wind Angle, Fi-502 Close Hauled Wind Angle

    FI-501 WIND ANGLE FI-502 CLOSE HAULED WIND ANGLE The FI-501 Wind Angle and FI-502 Close Hauled Wind Angle instru- ments provide precise analog wind angle together with digital speed in- dication, in true or apparent direction. Wind speed is displayed in knots, meters/second or as a Beaufort scale number.

  • Page 12: Turning The Power On/Off

    1. FI-501 WIND ANGLE, FI-502 CLOSE HAULED WIND ANGLE Turning the Power On/Off To power the instrument, press the MODE key. All LCD segments go on and off and then the last-used display appears. To power off the instrument, press the MODE and APP/TRUE keys to- gether.

  • Page 13: Display Layout

    1. FI-501 WIND ANGLE, FI-502 CLOSE HAULED WIND ANGLE Display Layout The FI-501 Wind Angle and FI-502 Close Hauled Wind Angle instru- ments provide analog dial and digital wind information. The display shows that information in true or apparent, depending on mode selected. The pointer shows the true or apparent wind direction.

  • Page 14: Selecting A Display

    1. FI-501 WIND ANGLE, FI-502 CLOSE HAULED WIND ANGLE Selecting a Display Press the MODE key to select a display. Each press of the key changes the display in the sequence shown below. Wind speed 12.5 Beaufort wind 13.5 speed TRUE Maximum true wind speed...

  • Page 15: Selecting Apparent Or True Wind Angle, Wind Speed

    1. FI-501 WIND ANGLE, FI-502 CLOSE HAULED WIND ANGLE Beaufort no. and wind speed Wind speed Wind speed Beaufort Beaufort 0-0.2 28-33 14.4-17.4 0.5-2.0 34-40 17.5-21.0 2.1-3.5 41-47 21.1-24.6 7-10 3.6-5.6 48-55 24.7-28.8 11-16 5.7-8.6 56-63 28.9-32.6 17-21 8.7-11.2 32.7-32.9 22-27 11.3-14.3 Selecting Apparent or True Wind Angle,...

  • Page 16: Displaying Velocity Made Good (Vmg) Information

    1. FI-501 WIND ANGLE, FI-502 CLOSE HAULED WIND ANGLE Displaying Velocity Made Good (VMG) Information VMG is the actual vessel speed after adjusting for such factors as current and wind. Use the VMG key to display and erase VMG information and current dis- play alternately.

  • Page 17: Alarms

    1. FI-501 WIND ANGLE, FI-502 CLOSE HAULED WIND ANGLE Alarms There are four conditions which trigger audio and visual alarms: Maxi- mum true wind speed, Low true wind speed, High apparent wind angle, and Low apparent wind angle. 1. Press the MODE key to select desired alarm page, referring to the illustration below.
  • Page 18 1. FI-501 WIND ANGLE, FI-502 CLOSE HAULED WIND ANGLE This page is intentionally left blank.

  • Page 19: 505 Course Pilot

    FI-505 COURSE PILOT The FI-505 Course Pilot provides compass heading, in digital format. In the locked mode, steering error to ±30° deviation of locked course head- ing is shown, with the analog pointer. In the unlocked mode the pointer is set to zero. In the locked mode, the pointer shows course error;...

  • Page 20: Turning The Power On/Off

    2. FI-505 COURSE PILOT Turning the Power On/Off To power the instrument, press the MODE key. All LCD segments go on and off and then the last-used display appears. To power off the instrument, press the MODE and ENT keys together. The timer appears and counts down from three seconds to one second, and then the power goes off.

  • Page 21: Selecting A Display

    2. FI-505 COURSE PILOT Selecting a Display Press the MODE key to select a display, and the selection changes in the sequence shown below. If no heading data is not available three dashes appear on the digital display. Current heading (or locked heading) 135 °...

  • Page 22: Unlocked And Locked Heading Modes

    2. FI-505 COURSE PILOT Unlocked and Locked Heading Modes In the unlocked mode, the digital display Unlocked heading shows the current heading, true or magnetic, 135 ° and the pointer is at zero. The unit always starts up in the unlocked mode. In the locked mode, the operator sets a fixed (locked) heading, with the arrow keys.

  • Page 23: 506 Rudder

    FI-506 RUDDER The FI-506 Rudder displays rudder angle, in analog indication. The pointer shows the rudder position in real time. The instrument’s scale range is -40° to +40° about zero. The FI-506 operates in real time, thus almost no action is required of the operator other than confirming the rudder angle and adjustment of the brilliance.

  • Page 24: Turning The Power On/Off

    3. FI-506 RUDDER Turning the Power On/Off To power the instrument, press the [ ] key. After the pointer moves to current rudder angle, release the key. To power off the instrument, press and hold down the [ ] key until the backlight goes off.

  • Page 25: Maintenance,Troubleshooting

    MAINTENANCE, TROUBLESHOOTING This chapter provides the information necessary for keeping your equip- ment in good working order. WARNING Do not open the equipment. Only qualified personnel should work inside the equipment. Preventive Maintenance Following the recommended procedures below will help maintain perfor- mance.

  • Page 26: Maintenance & Troubleshooting

    4. MAINTENANCE, TROUBLESHOOTING Troubleshooting If you feel the equipment is not functioning properly, follow the proce- dures in the table below to try to restore normal operation. If normal op- eration cannot be restored, do not attempt to check inside the cabinet. There are no user-serviceable parts inside.

  • Page 27: Installation

    CP26-00300 000-010-511 Select 30 m cable, one. terminal box CP26-00400 000-010-618 50 m cable, terminal box Standard supply for FI-502 CH WIND ANGLE Name Type Code No. Remarks Display Unit FI-502 Installation CP26-00500 000-011-742 1 set See packing list at end of Materials manual for details.

  • Page 28: Optional Supply

    5. INSTALLATION Standard supply for FI-506 RUDDER Name Type Code No. Remarks Display Unit FI-506 Installation CP26-00500 000-011-742 1 set See packing list at end of Materials manual for details. Optional supply Name Type Code No. Remarks Wind Transducer FI-5001 1 set For FI-502 Terminal Box...

  • Page 29: Mounting

    5. INSTALLATION Mounting 5.2.1 Wind Transducer FI-5001 (for FI-501, FI-502) Installation site Fix the transducer to the mounting mast so that its mounting base is par- allel with the water line. Also, position the transducer so its leading edge faces the bow. Mounting procedure 1.
  • Page 30 5. INSTALLATION 3. Mate the connector at the rear of the transducer to cable assy. FI-50-SENSOR-30/50 (30 m or 50 m, supplied). Wind Transducer Mounting Cable Assy. Base FI-50-SENSOR-30/50 4. As shown in the figure below, make a loop in the cable assy. Fix the cable to the mounting base with two cable ties (local supply).

  • Page 31: Display Unit

    5. INSTALLATION 5.2.2 Display unit The display unit can be installed two ways: surface mount (two ways) or flush mount (optional kit required). This section covers surface mounting. For flush mounting, see the flush mounting instructions, issued separate- Surface mount 1: Fix instrument from front panel 1.
  • Page 32 5. INSTALLATION Surface mount 2: Fix instrument from rear panel 1. Using the template at the back of this manual, open a mounting hole in the installation site. 2. Insert studs (M3x40, 2 pcs., supplied) in the holes shown below. (Use only the studs supplied.).

  • Page 33: Wiring

    5. INSTALLATION Wiring 5.3.1 Standalone configuration For standalone configuration the junction box is not necessary; connect the instrument directly to the power supply. Wind Transducer FI-5001* Cable Assy. FI-50-SENSOR-30/50 (30 m or 50 m) – Black Display Unit FI-501/502/505/506 12 VDC FI-50-DROP * Omit for FI-505/506.
  • Page 34 5. INSTALLATION 3. Unfasten two self-tapping screws to remove the cover of the terminal box. 4. Connect the cables to the terminal inside the terminal box, referring to the interconnection diagram. Bind wires with cable ties at the loca- tions shown below. Terminal Cable Tie Cable Tie...
  • Page 35 5. INSTALLATION 5.3.2 NMEA 2000 network configuration Wind Transducer FI-5001 FI-50-CHAIN (0.3 m: Std, 1/5/10/20 m: Option) Cable Assy. FI-50-SENSOR-30/50 (30 m or 50 m) DISP. UNIT FI-503/FI-504/FI-505/FI-506 DISP. UNIT (Instruments can be connected FI-501/FI-502 in any order.) Instruments chained FI-50-DROP Cable as above (6 m, standard supply)
  • Page 36 5. INSTALLATION Junction box (option) The junction box is required when connecting NMEA 2000 network. This section covers wiring of the junction box. For how to mount the junction box, see its installation instructions, issued separately. 12VDC BACKBONE DROP DROP DROP 12 VDC NMEA2000...

  • Page 37: Terminal Resistor

    5. INSTALLATION Terminal resistor The illustration below show various system configurations and what units to activate the terminal resistor. Smart sensor+FI-50x Smart FI-50x Sensor Multiple FI-50 series instruments, FI-5002, drop cabling FI-50x FI-50x FI-50x FI-50x Drop cable FI-5002 Multiple FI-50 series instruments, FI-5002 FI-50x FI-50x FI-50x FI-50x FI-5002...
  • Page 38 5. INSTALLATION Turn on the terminal resistor in the junction box when the NMEA 2000 sensor(s) connected to it do not have a terminal resistor. Terminal Resistor OFF: For how to turn on the terminal resistor in a FI-50 series instrument, see page 33 (FI-501//FI-502/FI-505) or page 35 (FI-506).

  • Page 39: Setting Up

    5. INSTALLATION Setting Up Your instrument is pre-programmed with factory default settings, which may or may not be suited to your vessel. Therefore, it is necessary to ini- tialize the instrument for use with your vessel. This should be done im- mediately after completion of the installation.
  • Page 40 Select source of wind data. Select F: For FI-5001, “r” for second unit. r: repeater Select source of wind input. td: Transducer, Fr: FURUNO repeater Select wind speed unit. kt, m/s Set wind speed adjustment. 0.3 - 2.5 0 ° - 359 °...
  • Page 41 5. INSTALLATION Setup1 menu items for FI-505 Menu item Setting range Default (in sequential Function or options setting order) Select bearing reference. MAG: Magnetic, TRUE: True Align pointer to zero. Operate the key or /CLEAR key until the pointer is at zero. Enables/disables use of locked heading.
  • Page 42 5. INSTALLATION Setup2 menu The setup2 menu contains items which once preset do not require fre- quent adjustment. This menu is mostly operated the same as the setup1 menu. The only difference is how long the 3rd and 4th keys are pressed to activate the menu.
  • Page 43 5. INSTALLATION Setup2 menu items Default Display Function Options setting Software version of CPU1. XX=program no. and x=program version no. Software version of CPU2. XX=program no. and x=program version no Key beep on/off. 1: ON, 0: OFF 1(ON Adjust brilliance automatically 1: ON, 0: OFF 1(ON) with environment.
  • Page 44 5. INSTALLATION 5.4.2 Setting up FI-506 Rudder calibration You can apply an offset to the rudder indication to remove any deviation from actual and displayed rudder angles. 1. With the rudder centered, press the keys together until the instrument starts beeping continuously. The beeping indicates you have correctly enabled the calibration mode.

  • Page 45: Specifications

    FI-501 WIND ANGLE/FI-502 CLOSE HAULED WIND ANGLE SPECIFICATIONS OF FI-501 WIND ANGLE FI-502 CLOSE HAULED WIND ANGLE GENERAL 1.1 Display Analog and segment LCD 1.2 Display Content Wind angle, wind speed, VMG, tack heading 1.3 Analog Meter Range ±180° (FI-501), ±60° (FI-502) 1.4 Analog Meter Accuracy ±10°...

  • Page 46: Junction Box (Option)

    FI-505 COURSE PILOT SPECIFICATIONS OF FI-505 COURSE PILOT GENERAL 1.1 Display Analog and digital LCD 1.2 Display Content Heading 1.3 Analog Meter Display Range ±30° 1.4 Analog Meter Display Accuracy ±3° 1.5 I/O Port NMEA 2000, 2 ports JUNCTION BOX (OPTION) 2.1 No.
  • Page 47 FI-506 RUDDER SPECIFICATIONS OF FI-506 RUDDER GENERAL 1.1 Display Analog 1.2 Analog Meter Display Range ±40° 1.3 Analog Meter Display Accuracy ±5° 1.4 I/O Port NMEA 2000, 2 ports JUNCTION BOX (OPTION) 2.1 No. of I/O ports NMEA 2000 Device 6 ports NMEA 2000 Backbone 2 ports...

  • Page 49: Packing List

    26AA‑X‑9853 ‑0  ＰＡＣＫＩＮＧ ＬＩＳＴ FI‑5001 N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット UNIT 風向風速ｾﾝｻｰ FI‑5001 WIND TRANSDUCER 000‑011‑740‑00 工事材料 INSTALLATION MATERIALS CP26‑00201 +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ 1ｼｭ 4X20 SUS304 SELF‑TAPPING SCREW 000‑158‑850‑10 図書 DOCUMENT 装備要領書 IMC‑72661‑* ﾜ/ｴｲ INSTALLATION MANUAL 000‑167‑285‑1* 型式/ｺｰ ﾄﾞ 番号が２ 段の場合、 下段より 上段に代わる過渡期品であり 、 どちら かが入っています。   なお、 品質は変わり ません。 TW O  TYP ES  A N D  ...
  • Page 50 26AA‑X‑9857 ‑0  ＰＡＣＫＩＮＧ ＬＩＳＴ FI‑5002 N A M E DESCRIPTION/CODE № O U T L I N E Q'TY ユニット UNIT ｼﾞｬﾝｸｼｮﾝﾎﾞｯｸｽ FI‑5002 JUNCTION BOX 000‑011‑748‑00 工事材料 INSTALLATION MATERIALS +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ 1ｼｭ 4X20 SUS304 SELF‑TAPPING SCREW 000‑158‑850‑10 結束ﾊﾞﾝﾄﾞ T18R WIRING BAND 000‑167‑891‑10 電源ｹｰﾌﾞﾙ FI‑5002‑POWERCABLE CABLE ASSY. 000‑166‑954‑10 図書 DOCUMENT 取付要領書 C72‑00702‑* ﾜ/ｴｲ INSTALLATION PROCEDURE 000‑167‑315‑1* ｺ‑ﾄﾞ 番号末尾の[**]は、 選択品の代表ｺｰ ﾄﾞ を表し ます。 C O D E N U M B ER  EN D I N G  ...
  • Page 51 26AA‑X‑9854 ‑0  ＰＡＣＫＩＮＧ ＬＩＳＴ CP26‑00300/CP26‑00400 N A M E DESCRIPTION/CODE № O U T L I N E Q'TY 工事材料 INSTALLATION MATERIALS +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ 1ｼｭ 3X12 SUS304 SELF‑TAPPING SCREW 000‑167‑824‑10 ｹｰﾌﾞﾙ組品 FI‑50‑SENSOR‑30/50 CABLE ASSY. (*1) 000‑166‑946‑10 ｺﾝﾍﾞｯｸｽ CV‑100N CONVEX 000‑162‑167‑10 ﾀｰﾐﾅﾙ 4E/6 TERMINAL 000‑168‑024‑10 中継箱ｶﾊﾞｰ M03‑9372 COVER 000‑167‑985‑10 中継箱ﾎﾞﾃﾞｲ M03‑9373 BODY 000‑167‑986‑10 図書 DOCUMENT 装備要領書 IMC‑72661‑* ﾜ/ｴｲ INSTALLATION MANUAL 000‑167‑285‑1* ｺ‑ﾄﾞ...
  • Page 55 FI‑50 数量 番 号 名  称  型名／規格 略  図 用途／備考 Q'TY OUTLINE  NO.  NAME DESCRIPTIONS REMARKS ※1 前面ﾊﾟﾈﾙF TZ7580002A0 FRONT PANEL CODE NO. 000‑167‑885‑10 ※1に貼付済み    FURUNOﾛｺﾞH3 PRE‑ATTACHED TO ※1. 19‑028‑1502‑0 FURUNO STICKER H3 CODE NO. 100‑339‑580‑10 ﾊｰﾄﾞｶﾊﾞｰF TZ7580007AO COVER CODE NO. 000‑167‑887‑10 ﾌﾗｯｼｭﾏｳﾝﾄﾂｰﾙ TZ7580008AO FRAME CODE NO. 000‑167‑886‑10 +ﾅﾍﾞﾀｯﾋﾟﾝﾈｼﾞ 1ｼｭ 3X20 SUS304 SELF‑TAPPING SCREW CODE NO.
