Aegis SV-4K34IP User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SV-4K34IP
User Manual
For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV-4K34IP and is the answer not in the manual?

Questions and answers

Related Manuals for Aegis SV-4K34IP

Summary of Contents for Aegis SV-4K34IP

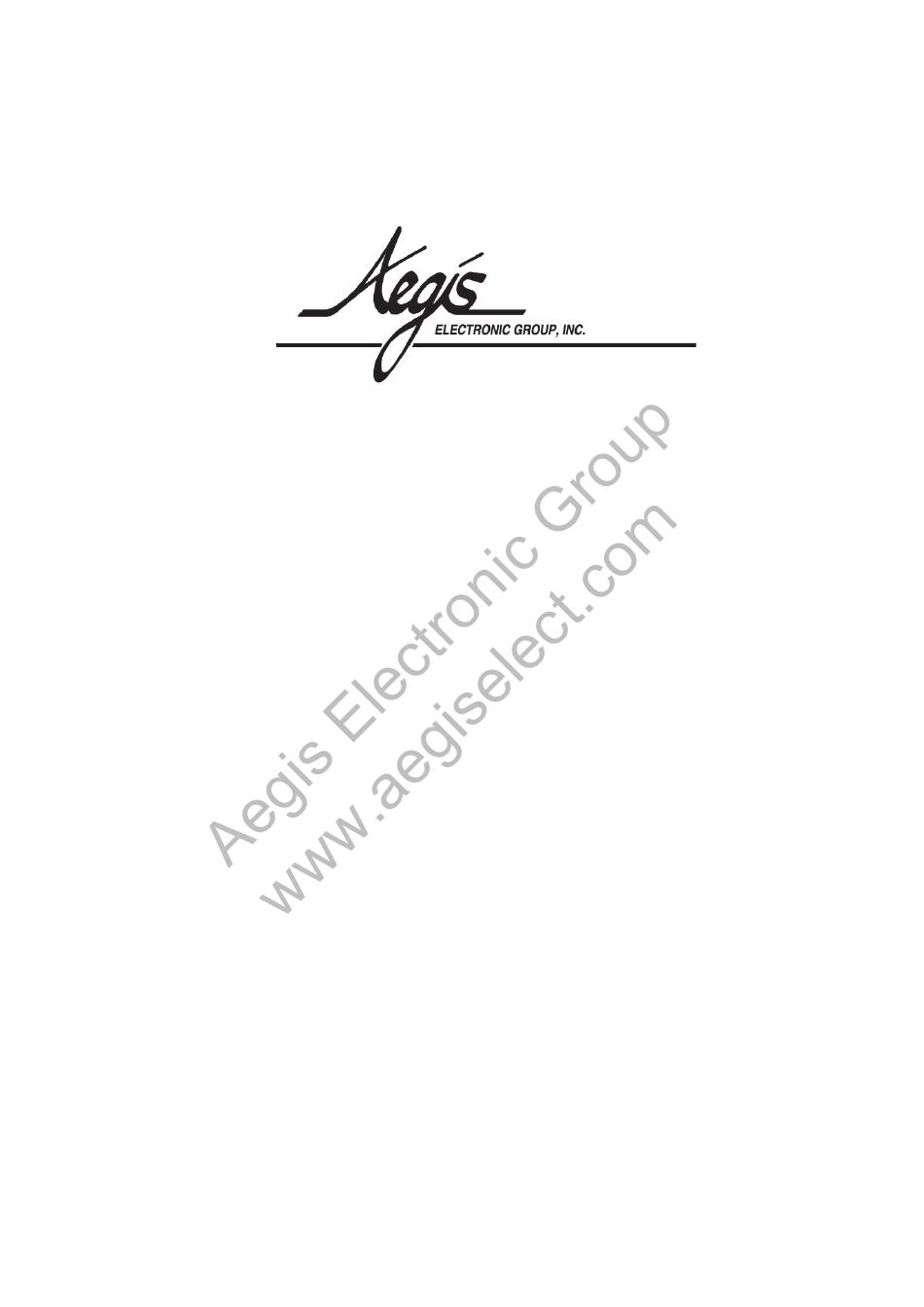

  • Page 1 SV-4K34IP User Manual For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 2: Revision History

    Modify the description of relevant proper nouns Nov-2023 1.23 Add"Visable Fire&Smoke"Detection Dec-2023 1.24 Add"Laser holder adjustment" Jan-2024 1.25 Add a related description for "Hear Haze" For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 3: Table Of Contents

    3.2.3.1 ONVIF ................................43 3.2.3.2 iVMS .................................. 44 3.3 PTZ S ..............................45 ETTINGS 3.3.1 PTZ Protocol ............................45 3.3.1.1 PTZ Settings ..............................45 For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 4 TORAGE ANAGEMENT 3.6.1 Schedule ..............................95 3.6.1.1 Record Schedule ............................... 95 3.6.1.2 Snapshot Schedule ............................97 3.6.1.3 Holiday Schedule ............................... 98 For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 5 4.1.5 Video date selection field ........................116 4.1.6 Progress Bar Time Format ........................117 5 VIEW REPORT ..............................118 6 LOGOUT ................................119 For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 6: Network Configuration

    Step1 Open Internet Explorer, enter the default IP address of Camera in the address bar and click 【Enter】button, as show in Figure 1.2-1. Figure 1.2-1 Web Login For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 7 After the login is successful, the web will display the interface as shown in Figure 1.2-3. Figure 1.2-3 Web Video Browsing Interface Diagram For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 8 ● The interface and settings are for reference only, the specific interface is based on the actual situation. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 9: Preview

    Description Window aspect ratio; used to control the aspect ratio of the display window, there are three parameters can be selected. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 10: Ptz Configuration Bar

    The PTZ control interface is shown in Figure 2.3-1, please refer to Table 2.3-1 for function descriptions. Figure 2.3-1 PTZ Control Menu For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 11 The PTZ setup interface is shown in Figure 2.3-2. Please refer to Table 2.3-2 for descriptions of PTZ support functions and setup methods. Figure 2.3-2 PTZ Setting For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 12 "Position" button to precisely locate to a certain position. Positioning ● Each unit of horizontal and vertical angle parameter represents 0.1 degree. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 13: System Setup

    (Range: 0 to 100) Sharpness CNT Adjusts the camera sharpness rejection level, the higher the value, the stronger the For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 14 The system displays “Exposure” interface, which is shown from Figure 3.1.1.1-2 to Figure 3.1.1.1-6. Figure 3.1.1.1-2 Exposure – Auto Figure 3.1.1.1-3 Exposure-Aperture Priority For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 15 Figure 3.1.1.1-3 Exposure-Shutter Priority Figure 3.1.1.1-5 Exposure-Gain Priority For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 16 Figure 3.1.1.1-6 Exposure-Manual Step2 Configure parameter info according to actual needs, see Table 3.1.1.1-2: Table 3.1.1.1-2: Exposure Setting Parameter Description Parameter Description For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 17 Step1 Select “Setup > Camera > Condition > Backlight” and the system will display the interface of “Backlight”, which is shown in Figure 3.1.1.1-7: Figure 3.1.1.1-7 Blacklight Setting For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 18 Step1 Select “Setup > Camera > Conditions > WB”, which is shown in Figure 3.1.1.1-8: Figure 3.1.1.1-8 White Balance For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 19 Step1 Select “Setup > Camera > Conditions > Day & Night”. The system displays the interface of “Day & Night” mode, which is shown in Figure 3.1.1.1-9: Figure 3.1.1.1-9 Day & Night For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 20 Set whether to enable the digital zoom function. It is turned off by default. Zoom Speed Set camera zoom speed, the bigger the value is, the faster the zoom speed becomes. It For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 21 Defog The image quality may become weak if the camera is in the environment with fog or haze, the image can For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 22 ⚫ Mode: Used to set the camera's fog transmission mode, selectable automatic, manual and off, the default is off. ⚫ Intensity: Configure the intensity when the fog transmission mode is manual, low, medium or high, the For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 23 Figure 3.1.1.1-14 or Figure 3.1.1.1-15: Figure 3.1-14 Heat haze Setting (automatic) Figure 3.1-15 Heat haze Setting (manual) For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 24: Thermal

    Step2 Select channel "2", and the system will display the "Zoom Focus" interface, as shown in Figure 3.1.1.2-1. Figure 3.1.1.2-1 Thermal imaging zoom focus settings For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 25 Step2 Select channel "2", the system will display "Zoom Focus" interface, select "Fusion" as shown in Figure 3.1.1.2-3. Figure 3.1.1.2-3 Fusion Thermal Imaging Dual Optical For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 26: Configuration File Management

    ⚫ When you select "Full-time", you can select "Day" or "Night", corresponding to the visible camera attribute profile for day or night, as shown in Figure 3.1.1.3-2. Figure 3.1.1.3-2 Profile Management - Full-time For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 27: Encode Setting

    Note: Channel 1 is a visible light setting, channel 2 is a thermal image setting, and the following are all illustrated with channel 1 settings. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 28: Video Steam

    Watermark character can only be number, letter, _, - within 128 characters. Check the box to Enable/Disable the Sub stream, default is Enable. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 29: Snapshot Stream

    Step2 Configure the video overlay information according to actual needs. The configuration interface is shown from Figure.3.1.2.3-1to Figure 3.1.2.3-7. Refer to Table 3.1.2.3-1 for more details. Figure 3.1.2.3-1 Video Overlay - Channel Title For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 30 Figure 3.1.1.2.3-2 Video Overlay - Time Title Figure 3.1.2.3-3 Video Overlay - OSD Information For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 31 Figure 3.1.2.3-4 Video Overlay –Geographic Location Figure 3.1.2.3-5 Overlay – Font Size For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 32 Figure 3.1.2.3-6 Overlay – Image Overlay Figure 3.1.2.3-7 Video Overlay – OSD Warning For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 33 OSD information on the monitor screen by dragging the "OSD Information" box; the alignment mode includes left alignment and For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 34: Roi

    • Click “Delete” or press right mouse button to delete corresponding area. • Click “Remove all” to remove all the areas. Step4 Set the image quality of the corresponding ROI. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 35: Picture-In-Picture

    Step1 Select “Setup > Camera > Encode > Audio”. The system will display the interface of “Audio”, which is shown in Figure 3.1.2.6-1: Figure 3.1.2.6-1 Audio Config For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 36: Network Setting

    Step1 Select "Setup > Network > General > TCP/IP". The system displays the interface of “TCP/IP”, which is shown in Figure 3.2.1.1-1: Figure 3.2.1.1-1 TCP/IP Config For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 37: Ddns

    DNS server and IP address dynamically in the situation where the device IP address changes frequently, which is to guarantee the users to visit device via domain name. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 38: Pppoe Setting

    ISP (Internet service provider). Step1 Select “Setup > Network > General > PPPoE”. The system will display the interface of “PPPoE”, For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 39: Connection

    Step1 Select “Setup > Network > General > Connection”. The system will display the interface of “Connection”, which is shown in Figure 3.2.1.4-1: Figure 3.2.1.4-1 Connection For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 40: Rtsp

    Step1 Select "Settings > Network Settings > General Settings > RTSP", the system will display the "RTSP" interface, as shown in Figure 3.2.1.5-1. Figure 3.2.1.5-1 RTSP For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 41: Upnp

    If you access the device through the network to preview the video screen, and if the access limit of the device For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 42: Ip Filter

    MAC verification can be valid only when the device IP and PC’s IP are in the same LAN. Step1 Select “Setup > Network > General > IP Filter”. The system will display the interface of “IP Filter”, For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 43: Advanced

    Step1 Select “Setup > Network > Advance > UPnP”. The system will display the interface of “SNMP”, which is shown in Figure 3.2.2.1-1 and Figure 3.2.2.1-2: Figure3.2.2.1-1 SNMP (1) For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 44 The listening port of the proxy program of the device. It is a UDP port not a TCP SNMP Port port. The value ranges from 1 to 65535. The default value is 161 For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 45: Smtp (Email)

    Step1 Select “Setup > Network > Advance > SMPT”. The system will display the interface of “SMPT”, which is shown in Figure 3.2.2.2-1. Figure 3.2.2.2-1 SMTP (Email) For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 46: Qos

    Step1 Select “Setup > Network > Advance > QoS”. The system will display the interface of “QoS”, which is shown in Figure 3.2.2.3-1: Figure 3.2.2.3-1 QoS For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 47 Step2 Check “Enable” to enable 802.1x. Step3 Select authentication mode, set username and password. Please refer to Table 3.2.2.4-1 for detailed information. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 48: Bonjour

    Step1 Select “Setup > Network > Platform > ONVIF”. The system will display the interface of “ONVIF”, which is shown in Figure 3.2.3.1-1: Figure 3.2.3.1-1 ONVIF For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 49: Ivms

    Step1 Select “Setup > Network > Platform >iVMS-4200”. The system will display the interface of “iVMS- 4200”, which is shown in Figure 3.2.3.2-1: Figure 3.2.3.2-1 iVMS For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 50: Ptz Settings

    Step1 Select “Setup > PTZ Settings > Function > Preset”. The system will display the interface of “Preset”, which is shown in Figure 3.3.2.1-1: Figure 3.3.2.1-1 Preset Settings For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 51: Tour

    Step1 Select “Setup > PTZ Settings > Function > Tour”. The system will display the interface of “Tour”, which is shown in Figure 3.3.2.2-1: Figure3.3.2.2-1 Tour Settings For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 52: Scan Tour

    Step1 Select “Setup > PTZ Settings > Function >Scan Tour”. The system will display the interface of “Scan Tour”, which is shown in Figure 3.3.2.3-1: Figure 3.3.2.3-1 Scan Tour For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 53: Auto Scan

    Step1 Select “Setup > PTZ Settings > Function > Auto Scan”. The system will display the interface of “Auto Scan”, which is shown in Figure 3.3.2.4-1: Figure 3.3.2.4-1 Auto Scan For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 54: Pattern

    Step1 Select “Setup > PTZ Settings > Function > Patrol", the system displays the "Patrol" interface, as shown in Figure 3.3.2.5-1. Figure 3.3.2.5-1 Pattern For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 55: Auto Pan

    Step1 Select “Setup > PTZ Settings > Function > Pan”. The system will display the interface of “Pan”, which is shown in Figure 3.3.2.6-1: Figure 3.3.2.6-1 Auto Pan Step2 Drag speed bar and set “Pan Speed”. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 56: Ldle Action

    Step1 Select “Setup > PTZ > Function >Startup Action”. The system will display the interface of “Startup Action”, which is shown in Figure 3.3.2.8-1: Figure 3.3.2.8-1 Startup Action For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 57: Ptz Limit

    Step2 Adjust the direction of the camera to a suitable position.. Step3 Click the setting on the right side of "Upper and Lower Boundary, Left and Right Boundary" to set For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 58: Scheduled Task

    Step1 Select “Setup > PTZ > Function > PTZ Restart”.The system will display the interface of “PTZ Restart”, which is shown in Figure 3.3.2.11-1: Figure 3.3.2.11-1 PTZ Restart For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 59: Default

    3.3.2.12 Laser holder adjustment This function enables spot position adjustment of the laser with motorized adjustment bracket; the configuration steps are as follows: For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 60: Event Settings

    Step1 Select “Setup > Event > General Event > Motion Detection”. The system will display the interface of “Motion Detect”, which is shown in Figure 3.4.1.1-1: Figure 3.4.1.1-1 Motion Detection For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 61 Set Working Period: Click “Setup”, and it will display the interface of working period in Figure 3.4.1.1-2. Figure 3.4.1.1-2 Working Period Setting. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 62 Click “Setup” and user can set area in the interface shown in Figure 3.4.1.1-3. Check detail in Table 3.4.1.1- Figure 3.4.1.1-3 Area Setting Table 3.4.1.1-2 Area Setting Description Parameter Description For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 63: Tamper Detection

    Step1 Select “Setup > Event > General Event > Scene Changing”. The system will display the interface of “Scene Changing”, which is shown in Figure 3.4.1.3-1: Figure 3.4.1.3-1 Scene Changing For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 64: Audio Detection

    Step2 Configure info of each parameter according to the actual needs; please refer to the following Table 3.4.1.4-1 for more details. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 65: Sd Card Event

    Card”, The system displays the "SD Card Exception" screen, which is shown from Figure 3.4.1.5-1: Figure 3.4.1.5-1 SD Card Event Figure 3.4.1.5-2 SD Card Error For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 66 Note: Please refer to “3.4.1.1 Motion Detection” for description of other parameters. Step3 Click “Save” to complete the configuration. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 67: Network Anomaly

    Step2 Configure info of each parameter according to the actual needs; refer to Table 3.4.1.6-1 for more details. Table 3.4.1.6-1 Network Abnormal Description For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 68: Illegal Access

    Step1 Select “Setup > Event > Smart Plan”. The system will display the interface of “Smart Plan”, which is shown in Figure 3.4.2-1 For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 69: Ivs

    Step1 Select “Setup > Event > IVS”. The system will display the interface of “Rule Config”, which is shown in Figure 3.4.3.1-1: Figure 3.4.3.1-1 IVS Rule For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 70 Step1 Select rule type as “Calling Detection” and the config interface is shown in Figure 3.4.3.1.1-1： Figure 3.4.3.1.1-1 Calling Detection For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 71 When the alarm is triggered, the PTZ can be linked to carry out the corresponding action, PTZ configuration can refer to "3.3.2 PTZ Function". For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 72: Generic Behavioural Analysis

    ⚫ Avoid areas such as glass, ground reflections and water surfaces as much as possible; avoid tree branches, For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 73: Ivs Setting

    Step1 Select the rule type as "Tripwire" and the configuration interface is shown in Figure 3.4.4.1.1-1. Figure 3.4.4.1.1-1 Tripwire For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 74 When the alarm ends, the alarm output will be stopped for an extended period of time. Send Email After selecting the checkbox, an email will be sent to notify the user when an alarm For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 75 "human, car" mark and number. Figure 3.4.4.1.1-2 Human-vehicle trigger recognition interface For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 76: Virtual Fence

    Step1 Select the rule type as "Virtual Fence" and configure the interface as shown in Figure 3.4.4.1.2-1. Figure 3.4.4.1.2-1 Virtual Fence For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 77 The configuration steps are as follows: Step1 Select the rule type as “Intrusion ", and the configuration interface is shown in Figure 3.4.4.1.3-1. Figure 3.4.4.1.3-1 Intrusion For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 78 The config steps are shown as follows: Step1 Select rule type as “Abandoned Object” and the config interface is shown in Figure 3.4.4.1.4-1: Figure 3.4.4.1.4-1 Abandoned Object For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 79 Step1 This is used to select rule type as “Fast-Moving” and the config interface is shown in Figure 3.4.4.1.5-1: Figure 3.4.4.1.5-1 Fast-Moving For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 80: Parking Detection

    The config steps are shown as follows: Step1 Select rule type as “Parking Detection” and the config interface is shown in Figure 3.4.4.1.6-1: Figure 3.4.4.1.6-1 Parking Detection For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 81 Step1 Select rule type as “Crowd Gathering Estimation” and the config interface is shown in Figure 3.4.4.1.7-1: Figure 3.4.4.1.7-1 Crowd Gathering Estimation For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 82: Missing Object

    The config steps are shown as follows: Step1 Select rule type as “Missing Object” and the config interface is shown in Figure 3.4.4.1.8-1: Figure 3.4.4.1.8-1 Missing Object For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 83 The config steps are shown as follows: Step1 Select rule type as “Loitering Detection” and the config interface is shown in Figure 3.4.4.1.9-1: Figure 3.4.4.1.9-1 Loitering Detection For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 84: Global Settings

    Step1 Select “Setup > Event > IVS > Global Setup”. The system will display the interface of “Global Setup”, which is shown in Figure3.4.4.2-1: Figure 3.4.4.2-1 Global Settings For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 85 The range of value from 0 to 100, the default value is 0. Tracking Overlap Rate The higher value is, the lower Leakage rate is, the higher false detection rate is. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 86: Fire Alarm

    Step3 Click " " and set rules: Select "Fire Detection"or "Smoke Detection" to enable the alarm function. Monitor the configuration screen and set the corresponding rules. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 87 Alarm Delay When the alarm ends, the alarm extends for a period of time to stop. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 88: Thermal Fire Alarm

    Step3 Click "Enable" and set rules: Select "Enable" to enable the fire alarm function. Monitor the configuration screen and set the corresponding rules. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 89: Alarm Setting

    Step1 Set " Setup > Event > Alarm > Alarm ", the system displays the "Alarm " interface, as shown in Figure 3.4.6.1-1: For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 90: Burst Flash

    Step1 Set "Setup > Event> Alarm > Burst Light", and the system displays the "Burst Light" interface, as shown in Figure 3.4.6.2-1. Figure 3.4.6.2-1 Burst Light For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 91: Highlight Protection

    Step1 Select “Setup > Event> Highlight Protection”. The system displays the Strong Light Protection interface, as shown in Figure 3.4.7-1. Figure 3.4.7-1 Highlight Protection For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 92: Radiometry

    Step1 Select "Setup > Radiometry > Global Config". The system displays the "Global Configuration" interface, as shown in Figure 3.5-1. Figure 3.5-1 Global Config For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 93: Rule Set

    Step1 Select "Setup > Radiometry > Rule Set > Parameter"; the system displays the "Parameter " interface, as shown in Figure 3.5.2.1-1. Figure 3.5.2.1-1 Parameter For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 94 The system displays the Add Rule screen, as shown in Figure 3.5.2.1-2 Figure 3.5.2.1-2 Add Rule 2. Double-click Add Rule to select a measurement and modify the measurement name. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 95 Step4 Click “Save” to complete the configuration. After the setup is complete, you can see the temperature of the temperature measurement rule on the left preview screen. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 96: Temp Contrast

    Add Temperature Comparison Rule. The system displays the Add Temperature Comparison Rule screen, as shown in Figure 3.5.2.2-2. Figure 3.5.2.2-2 Temp Contrast For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 97: Temp Alarm

    Step1 Select "Setup > Radiometry > Rule Set > Temp Alarm". The system displays the "Temp Alarm" interface, as shown in Figure 3.5.2.3-1. Figure 3.5.2.3-1 Temp Alarm For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 98: Hot Trace

    Step1 Select “Setup”> “Radiometry” >” Hot Trace”. The system displays the "Hot Trace" interface, as shown in Figure 3.5.3-1. Figure 3.5.3-1 Hot Trace For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 99: Heat Map

    Grab the temperature value of each pixel point above the thermal image. Step1 Select “Setup”> “Radiometry” >”Heat Map” interface, as shown in Figure 3.5.4-1. Figure 3.5.4-1 Heat Map For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 100: Storage Management

    Step1 Select “Setup > Storage > Schedule > Record Schedule”. The system will display the interface of “Record Schedule”, which is shown in Figure 3.6.1.1-1. Figure 3.6.1.1-1 Record Schedule For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 101 :Green colour stands for the general record. :Yellow colour stands for the motion detect record. :Red colour stands for the alarm record. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 102: Snapshot Schedule

    Step2 Set the snapshot period according to step 2 and 3 of “3.6.1.1 Record Schedule”. Step3 Click “Save” and the system will prompt “Save Succeeded!’, then snapshot schedule is completed. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 103: Holiday Schedule

    Step1 Select “Setup > Storage > Destination > Path”. The system will display the interface of “Path”, which is shown in Figure 3.6.2.1-1. Figure 3.6.2.1-1 Path For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 104: Local

    Select “Setup > Storage > Destination > Local”, the system will display the interface of “Local” shown in Figure3.6.2.2-1. Figure 3.6.2.2-1 Local For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 105: Ftp

    Step1 Select “Setup > Storage > Destination > FTP”, which is shown in Figure 3.6.2.3-1. Figure 3.6.2.3-1 FTP Step2 Configure info of each parameter according to the actual needs; please refer to Table3.6.2.3-1 for details. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 106: Nas

    Step1 Select “Setup > Storage > Record Control”, the system will display the interface of “Record Control” shown in Figure 3.6.3-1. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 107: System

    Step1 Select “Setup > System > General > General”, the system will display the interface of “General” in Figure 3.7.1-1. Figure 3.7.1-1 Local For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 108: Save Path

    Step1 Select “Setup > System > General > Save Path”. The system will display the interface of “Storage Path”, which is shown in Figure 3.7.1.2-1. Figure 3.7.1.2-1 Save Path For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 109: Date & Time

    Step1 Select “Setup > System > General > Date & Time”, the system will display the interface of “Date & Time” shown in Figure 3.7.1.3-1. Figure 3.7.1.3-1 Date & Time For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 110: Account

    3.7.2.1.1 User Name User can enable anonymity login, add/remove user and modify user name and etc. in “Setup > System > For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 111 Step1 Click “Add User” and the system will pop out the interface of “Add User”, which is shown in Figure 3.7.2.1.1-2. Figure 3.7.2.1.1-2 Add User For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 112: User Group

    User can realize add group, delete group, modify password and other operations in “Setup > System > Account > Account > Group”. User can refer to Figure 3.7.2.1.2-1. Figure 3.7.2.1.2-1 User Group For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 113: Onvif User

    User can check the user info on the current WEB in “Setup > System > Account > Online User”, see Figure 3.7.2.3-1 for more details. Figure 3.7.2.3-1 Online User For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 114: Maintenance

    1. Interval Time: The interval from when the wiper starts to when the next wiper starts. 2. Time Period: The time period during which the wipers work. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 115: Maintenance

    • System operation: It includes application program enable, abnormal logout, logout, application program reboot, close/reboot device, system reboot, and system upgrade. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 116: Default

    Reboot” in Figure 3.6-10. Step2 Configure the info of each parameter according to the actual needs; please refer to Table 3.7.3.2-1 for more details. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 117: Upgrade

    Figure 3.7.3.3-1 Upgrade Click “Browse” and select upgrade file, click “Upgrade” to realize firmware upgrade. The upgrade file is “*.bin” file. For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 118: Playback

    Select file type as “.mp4” and the system will display the interface which is shown in Figure 4.1-1. Refer to table 4.1-1 for more details about parameters. Figure 4.1-1 Video Playback For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 119: Play Function

    Click this button to play fast. 6. Mute When this button displays, it means audio is silent. Click this button to switch back to For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 120: Record Time

    Table 4.1.4.2-1. Figure 4.1.4.2-1 Video Digital zoom Function Button Table 4.1.4.2-1 Parameter description of the Video Digital zoom function button Icon Description For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 121: Synchronize Button

    In calendar, the date with blue shading means the current date having video record or snapshot file. See Figure 4.1.5-1, refer to Table 4.1.5-1 for more details about parameters. Figure 4.1.7-1 Playback File For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 122: Progress Bar Time Format

    2 Hours, 1 Hour, 30 Mins, click “-” will switch back to 24H format. Figure 4.1.5-1 Progress Bar Time Format For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 123: View Report

    Step2 Set the query conditions, click "Search"; the system displays the query temperature data, as shown in Figure 5-2. Figure 5-2 Statement Enquiry Result For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

  • Page 124: Logout

    ” button, the system returns to the login interface. See Figure 6-1. Re-enter the system to log in again. Figure 6-1 Logout For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...
  • Page 125 For More Information Please Call Aegis Electronic Group, Inc. *CA- (760) 729-2026 AZ- (480) 635-8400 * aegis-g2@aegiselect.com * http://www.aegis-elec.com...

Table of Contents
