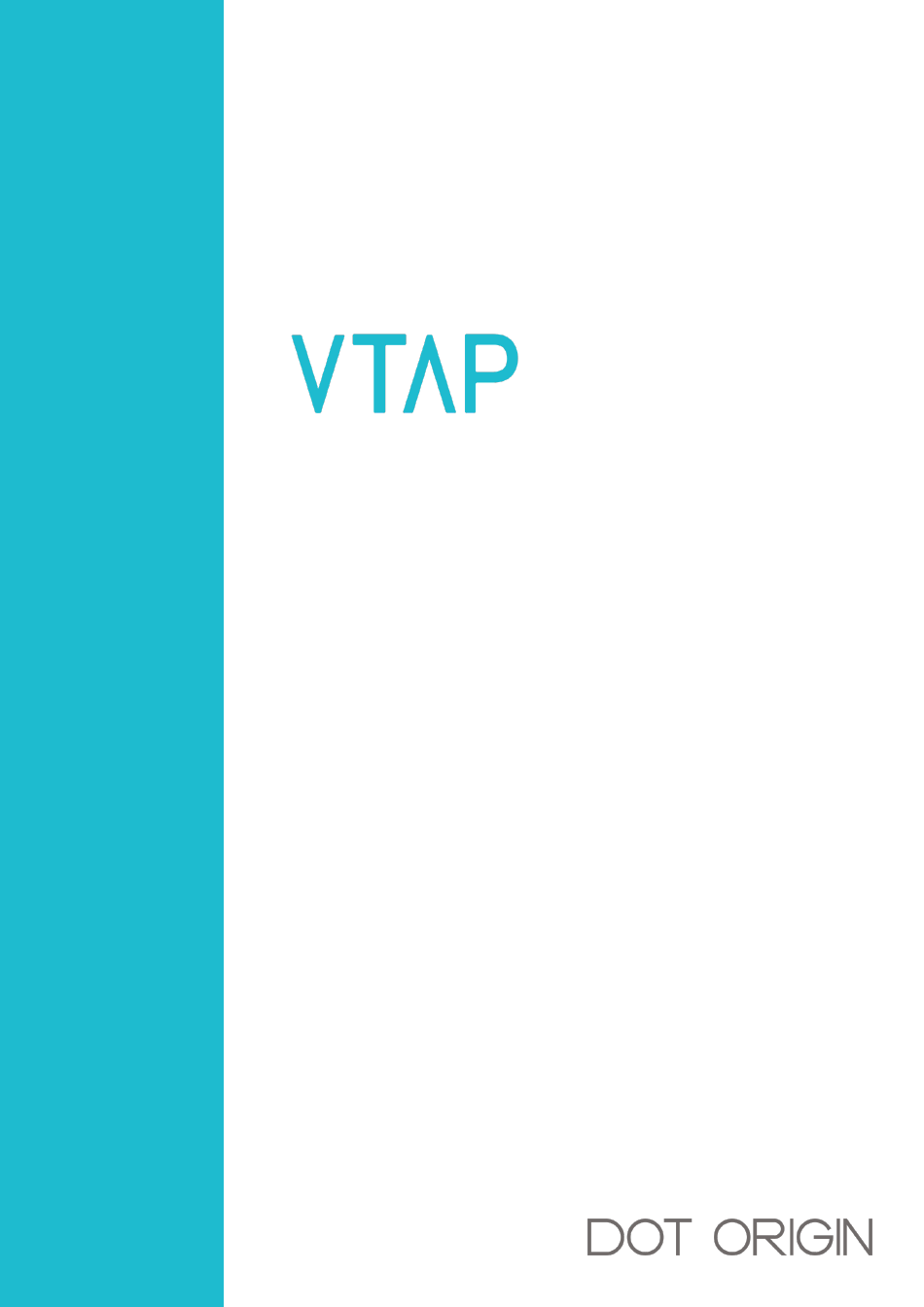

- Page 1 Installation Guide - VTAP200 NFC Reader Part No.: VTAP200ESS Revised April 2023 v0.6...
- Page 2 If you need help to set up or use your VTAP200, beyond what is contained in this Installation Guide, then please contact our support team. Email: vtap-support@dotorigin.com Download the latest documentation and firmware from https://vtapnfc.com Telephone UK and Europe: +44 (0) 1428 685861...
-
Page 3: Table Of Contents
VTAP MOBILE WALLET READERS Contents 1 Using this guide 2 How the VTAP200 works 3 Choose a location for your VTAP200 4 Mount a VTAP200 case 5 Connecting the VTAP200 6 Disposal VTAP200 INSTALLATION GUIDE © DOT ORIGIN PAGE I... -
Page 4: Safety Instructions
The power supply current or fusing rating should not exceed the rating of the wire used to connect to the VTAP200. If the power supply is connected to the mains it must be of class 1 or class 2 construction, providing a safe electrical connection to the VTAP200. Although the product has no accessible conductive parts, it does not provide insulation from hazardous voltages. - Page 5 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and a human body. VTAP200 INSTALLATION GUIDE © DOT ORIGIN PAGE III...
-
Page 6: Using This Guide
This guide is for first-time users of the VTAP200. Figure 1-1 VTAP200 front view It contains the information you need to physically install and connect your VTAP200. Consult the VTAP Configuration Guide for more about custom configuration and maintenance features for any VTAP200, including how to update the firmware on your VTAP200, when a new release is available. -
Page 7: How The Vtap200 Works
With the VTAP200 connected, simply tap your smartphone against the VTAP. Your mobile NFC pass will be read and data sent to the connected equipment. The default for a VTAP200 is to connect to remote equipment transfer data over Wiegand, to interact with a door controller in an access control system, and/or over RS485 for infrastructure equipment. -
Page 8: Choose A Location For Your Vtap200
CAUTION: Never allow a metal surface between the VTAP200 and the user's phone or card. The circular case for a VTAP200 has a maximum 78mm diameter at the front and is 25mm deep. Cabling enters the rear of the VTAP200. The connector and associated wiring requires a depth of at least 25mm. -
Page 9: Mount A Vtap200 Case
4 Mount a VTAP200 case The VTAP200 case uses a mounting plate to fix the device in place. Drilling dimensions for the plate are shown in the diagram below. The VTAP200 clips on to the mounting plate and is secured by a security screw. -
Page 10: Connecting The Vtap200
Note: Screened cable should always be used to connect VTAP200 readers to door controllers, to avoid interference from other equipment. The cable screen must be connected electrically to GND at both the VTAP200 reader and controller ends of the cable, using the bare wire 'drain' conductor. - Page 11 VTAP MOBILE WALLET READERS Figure 5-2 Wiegand connection between VTAP200 and EH400 access controller (for example) EH400 Controller Wire colour VTAP200 Signal Name Signal Name (typical) (v2 rev2 hardware) (for example) POWER+ Black RS485A RS485B Green White Beep Yellow BEEP GRN LED...
-
Page 12: Disposal
6 Disposal For safety and sustainability, it is the responsibility of the integrator to ensure that when equipment containing a VTAP200 reaches the end of its life, it is recycled in accordance with WEEE Regulations within the EU. VTAP200 (PCB and cables) should not be disposed of in general waste. If you wish to discard electrical and electronic equipment (EEE), please contact your supplier for further information.
