Summary of Contents for GREISINGER electronic GMH 3510

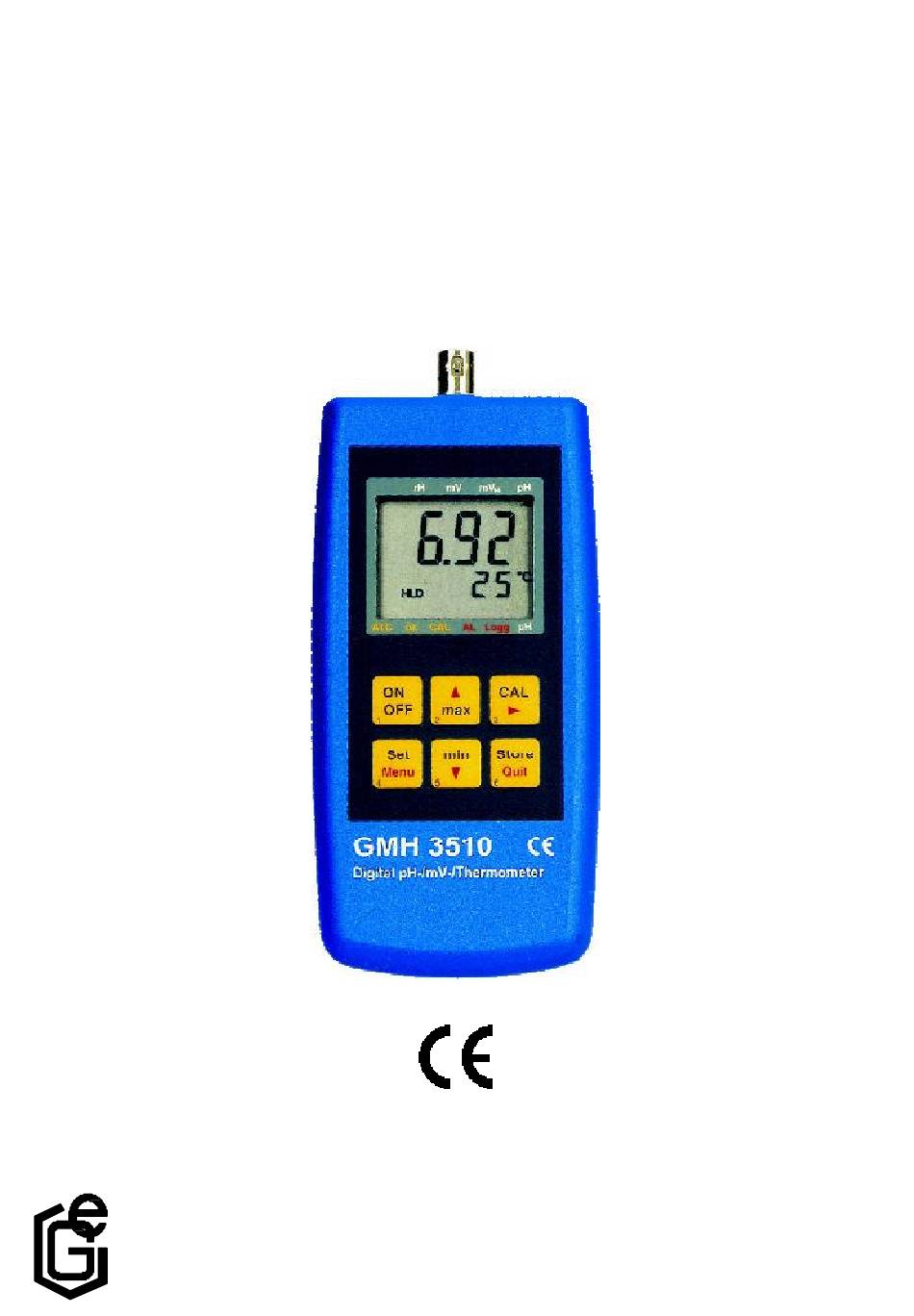

- Page 1 H33.0.01.6C-06 page 1 of 9 Operating Manual pH-/Redox-/Temperature - Meas. Device GMH 3510 Version V2.3 GREISINGER electronic GmbH Phone: 0049-9402 / 9383-0 D - 93128 Regenstauf, Hans-Sachs-Straße 26 Fax: 0049-9402 / 9383-33...
-
Page 2: Operation And Maintainance Advice
H33.0.01.6C-06 page 2 of 9 Operation And Maintainance Advice: a.) When to replace battery: and ´bAt´ are shown in the lower display the battery has been used up and needs to be replaced. The device will, however,, operate correctly for a certain time. If ´bAt´is shown in the upper display the voltage is too low to operate the device;... -
Page 3: Display Elements
H33.0.01.6C-06 page 3 of 9 Display Elements Main display: pH-value, redox-value (mV, mV ) or user prompt Display elements to show minimum/maximum/ memorized measuring value Display of measuring value units Warning signal (low battery or recalibration prompt) ATC-arrow: indicates if temperature sensor has been connected, i.e. - Page 4 H33.0.01.6C-06 page 4 of 9 Configuration For configuration of the device press -key for 2 seconds. Choose over between the individual values that can be set by pressing the -key again. The individual values are changed by pressing the keys to leave configuration and to store settings.
-
Page 5: Calibration Of 'Ph'-Measurement
H33.0.01.6C-06 page 5 of 9 Calibration of 'pH'-Measurement The electrode data of pH-electrodes are subject to a lot of fluctuation due to ageing and manufacturing tolerances. Therefore, prior to taking measurements make it a rule to always check the current calibration with buffer solutions. If deviations are too large, a recalibration will be necessary. -
Page 6: Indication Of Electrode State (For Ph-Measurements Only)
H33.0.01.6C-06 page 6 of 9 Indication of Electrode State (for pH-Measurements only) The electrode state (will be calculated during each calibration) will be displayed for 3secs by pressing the -key or after each calibration. 100%: optimum electrode state 30...90%: satisfactory electrode state <30%: electrode considerably aged or soiled. -
Page 7: The Redox-Electrode
H33.0.01.6C-06 page 7 of 9 The pH-electrode pH-electrodes are wear parts which need to be replaced, depending on the chemical or mechanical stress they are subjected to, if the values required can no longer be kept even after thorough cleaning and recovery. Please take into account that there are several materials which attack glass when in watery solutions;... - Page 8 H33.0.01.6C-06 page 8 of 9 The Serial Interface All measuring and setting data of the device can be read or changed by means of the serial interfacee and a suitable electrically isolated interface adapter (GRS3100 or GRS3105). In order to avoid faulty transmission, we have gone to a lot of trouble to design security measures for this function.
- Page 9 H33.0.01.6C-06 page 9 of 9 Specification : Display ranges: Temperature: -100,0 ... +250,0°C or -148,0 ... +482,0°F 0,00 ... 14,00 pH Redox (ORP): -1999 ... +2000 mV; referring to hydrogen system: -1792 ... +2206 mV (acc. to DIN 38404) Resolutions: 0,1°C or 0.1°F / 0,01 pH / 1 mV Accuracy: (at nominal temperature) device ±1digit Temperature:...
