2. GENERAL
3. Tighten the filter quickly until it contacts the
mounting surface. Tighten filter by hand an
additional 1/2 turn only.
4. After the filter has been replaced, the engine oil
level normally lowers a little. Add engine oil to
proper level. Check for oil leaks around filter gasket.

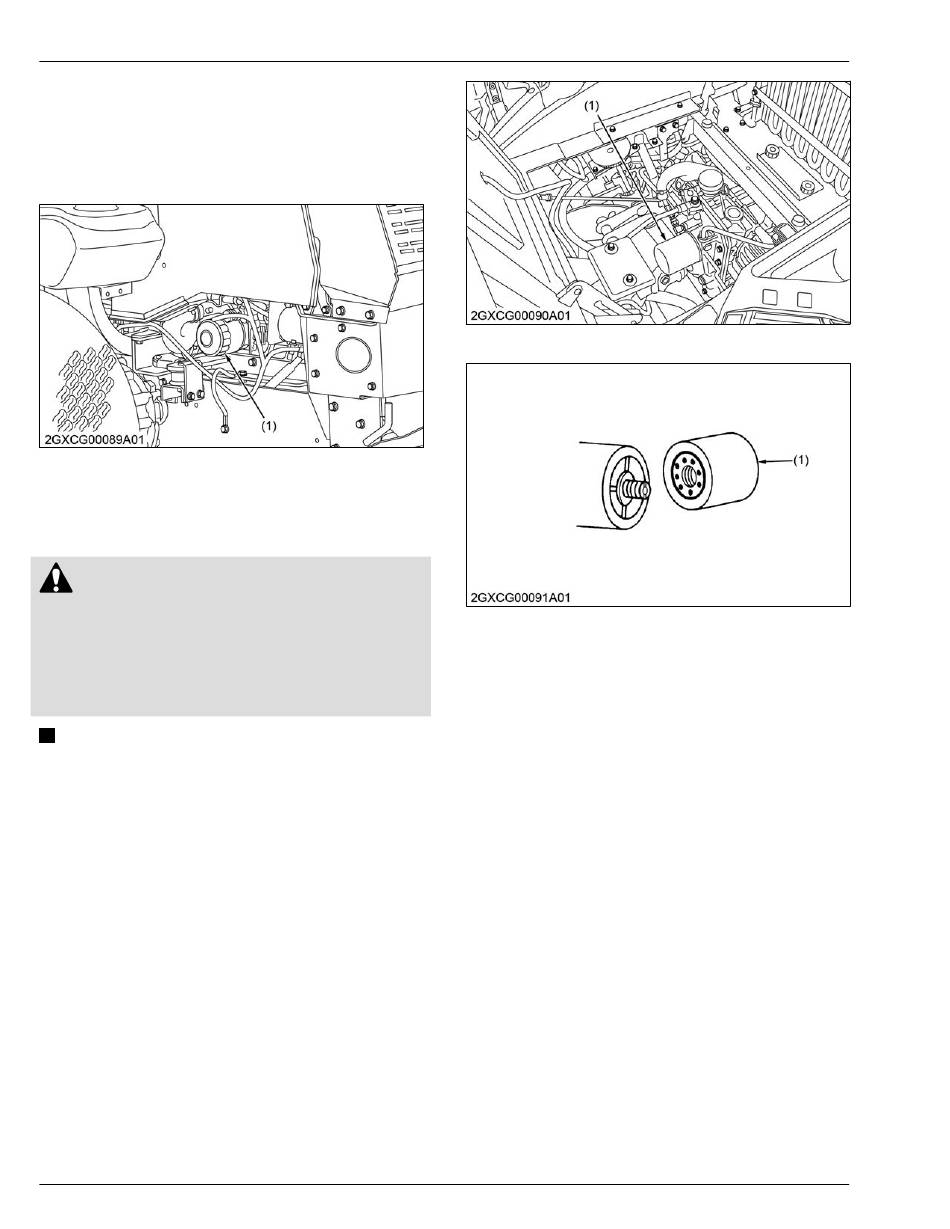

(1) Engine oil filter
2.3 Replacing HST transmission oil
filter
WARNING
To avoid serious injury or death:
• Be sure to stop the engine before changing the
oil filter.
• Allow transmission
sufficiently; oil can be hot and may cause
burns.
IMPORTANT
• To prevent serious damage or premature failure
to the hydraulic system, use only a KUBOTA
genuine filter.
1. Place an oil pan underneath the oil filter cartridge.
(Do not drain oil.)
2. Remove the oil filter cartridge by using the filter
wrench.
3. Apply a slight coat of oil onto the cartridge gasket.
4. Tighten the filter quickly until it contacts the
mounting surface. Tighten filter by hand an
additional 1/2 turn only.
5. After the new cartridge has been replaced, the
transmission fluid level normally lowers a little. Add
fluid to proper level. Check for oil leaks around filter
gasket.
2-24
case to cool down
CHECK AND MAINTENANCE
2.Check points of initial 50 hours
(1) Transmission oil filter [HST]
(1) HST transmission oil filter
cartridge
3. Check point of initial 100
hours

3.1 Adjusting front axle pivot

1. Lift up and securely block the front of the machine.
2. Measure the clearance (L) between the front axle
(4) and front axle support (3).
ZD1511
