Summary of Contents for Indesit IN2FE13DT9S

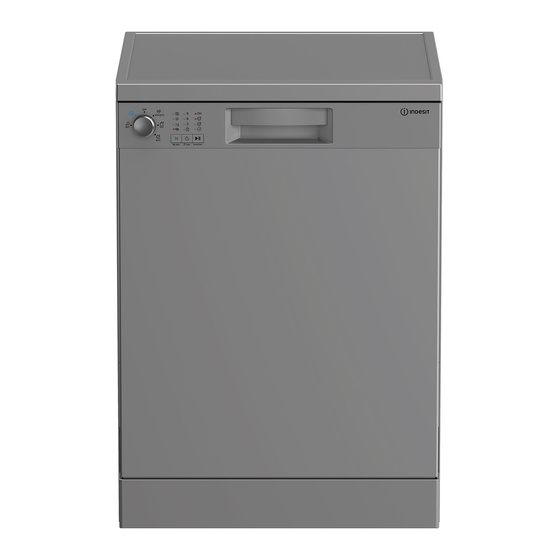

- Page 1 Dishwasher User Manual IN2FE13DT9S, IN2FE13DT9W 15 2785 0100/ EN/ AA/ 16/12/2024 10:16 7634293977, 7634093977...
- Page 2 Please read this manual first! Dear Customer, Indesit thank you for choosing the product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product.
-
Page 3: Table Of Contents
Upper Spray Arm......22 6.10 Placing the dishes in the dish- 1 Safety Instructions......washer ..........Intended Use........6.11 Cutlery basket ........ 24 Child, vulnerable person and pet 6.12 Cutlery basket ........ 24 safety..........6.13 Bottle and Dish Holder on the Electrical safety ...... - Page 4 Troubleshooting ......41 10 DISCLAIMER / WARNING ....45 EN / 4...
-
Page 5: Safety Instructions
1 Safety Instructions This section contains safety in- - The product should only be structions that will help protect used for household dish wash- from risk of personal injury or ing. property damage. • The product is not suitable for commercial or public use. -
Page 6: Electrical Safety
• Electrical products are danger- • Do not pinch the power cord ous for children and pets. Chil- under or behind the product. dren and pets must not play Do not place a heavy object on with, climb on or enter into the the power cord. -
Page 7: Transportation Safety
sary arrangements. These pro- Transportation cesses are at the customer's Safety expense. • Before transporting the • Before installing the product, product, unplug the plug and inspect the product for any disconnect the drain and water damage. Do not install the supply connections. -
Page 8: Operation Safety
• Connect the product to an • Position the power cable and earth-grounded socket protec- hoses so that there is no risk ted by a fuse rated in accord- of tripping. ance with the current ratings Operation Safety indicated on the rating plate. Have the earthing installation Only detergents, rinse agents done by a qualified electrician. -
Page 9: Maintenance And Cleaning Safety
knives, etc. in the cutlery basket household cleaning agents, de- with the pointed end downwards tergents, gas, gasoline, alcohol, or horizontally on the dishwash- wax, etc. ing baskets. Wear gloves worn when clean- If you need to open the door ing the product. -
Page 10: Environmental Instructions
Contact a service when you need to Interior Lighting replace the LED/bulb used for light- ing according to the model of your machine. 2 Environmental Instructions 2.3 Compliance with WEEE Direct- ive and Disposing of the Waste 2.1 Compliance with WEEE Regula- Product tion and Disposal of Waste Products... -
Page 11: Standard Conformity And Test In- Formation / Ec Declaration Of Conformity
product to be tested. The product code, stock number and serial number can be found on the type label attached to the side of the door 2.5 Standard conformity and test in- formation / EC declaration of conformity The development, production and sale of this product are carried out in accordance with the safety regu- lations of all relevant directives of... -
Page 12: Technical Specifications
Policies, standard documentation, ordering of spare parts and additional product information can be found by: • Visiting our website docs.indesit.eu and parts- selfservice.europeanappliances.com • Using QR Code • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). -
Page 13: General View
4 General View 1 Upper Basket 2 Upper Spray Arm 3 Lower Spray Arm 4 Cutlery Basket 5 Door 6 Type Label 7 Control Panel 8 Detergent Compartment 9 Lower Basket 10 Filters 11 Salt Compartment Cover 12 Upper Basket Rail 13 Ceiling Cutlery Basket (depends on 14 Upper Rack (depends on the model) the model) -
Page 14: Installation
5 Installation Read the ‘Safety Instructions’ sec- 5.1 Correct location for installation tion first! • There must not be any lockable, sliding or hinged doors in the place where the The preparation of the electrical, clean wa- product is installed, which would restrict ter and waste water installation of the the full opening of the door. -
Page 15: Connecting To The Water Drain
The dishwasher must not be connected to warm water appliances or running water heaters. NOTICE Do not use an old or used water in- The waste water drain must be connected let hose on a new product. Use the new wa- to the sewer and must not be connected to ter inlet hose supplied with the dishwasher. -
Page 16: Preparation
• The plug of the power cord must be eas- Do not connect with extension ily accessible following the installation. cords or multiple sockets. • Connect the product to a grounded socket protected by a 16 ampere fuse. A damaged power cord must be re- •... -
Page 17: Setting The Water Softening System
9.0-9.5 0.05 8.0-9.0 0.05 7.0-7.9 0.05 For water consumption in the Eco 50 °C 3. For setting a new Water Hardness Level, cycle of your dishwasher, refer to the Cycle bring the Program Selection Knob to the Information and Average Consumption Val- proper position for the hardness level of ues Table given in the Cycle Table. -
Page 18: Filling The Salt
• If the hardness of the water you use is Initially remove the lower basket to below 7°dH, you do not need to use salt load softening salt. in your dishwasher. In this case, the "Low Open the salt compartment lid by turn- Salt Indicator Light"... -
Page 19: Detergent
Adding salt should be performed just before starting the dishwasher. In this way, the overflowing brine is cleaned immediately and the risk of corrosion inside the dishwasher is prevented. If you are not going to wash immediately, run the dish- washer empty and without deter- gent in the shortest cycle. - Page 20 3. Close the lid of the detergent compart- ment by pushing it in the direction of the arrow. A "click" sound is heard when the lid is closed. Since the solubility of tablet deter- gents varies depending on temper- ature and time, always use powder or liquid/gel detergent in short cycles without pre-wash.
-
Page 21: Rinse Aid
salt and/or rinse aid. Some of them also When you change from tablet detergent contain special components such as glass to powder detergent: preservatives and stainless steel preservat- • Make sure the salt and rinse aid compart- ives. These tablets work up to a certain wa- ment is full. -
Page 22: Parts Not Suitable For Washing In The Dishwasher
Wipe off any rinse aid spilled out- side the chamber. Accidental spillage of rinse aid will cause foaming and reduce washing per- formance. 6.7 Parts not suitable for washing in the dishwasher • Do not wash dishes contaminated with cigarette ash, wax residue, varnish, paint, chemicals, etc. - Page 23 • If possible, place thin, narrow-bodied Incorrect Placements items in the centre compartments of the baskets. • Place very dirty and large items in the lower basket and small, delicate and light items in the upper basket. • Place deep containers such as bowls, glasses and pots with their mouths downwards.
-
Page 24: Cutlery Basket
6.12 Cutlery basket (depends on the model) 6.11 Cutlery basket The cutlery basket is specially designed for (depends on the model) cleaner washing of knives, forks, spoons, The cutlery basket is specially designed for etc. cleaner washing of knives, forks, spoons, Thanks to the movable (A, B) feature of the etc. -
Page 25: Lower Basket
And when you bring the foldable wire to vertical position, you may place your dishes without removing the holders. Bringing the wires to horizontal po- sition by holding them from their ends may cause them to be bent. 6.13 Bottle and Dish Holder on the Thus, it is advisable to bring the Lower Basket wires to horizontal or vertical posi-... - Page 26 The bottle wire is designed to make it You may reinstall the upper basket multi- easier for you to wash wide-mouthed and function service rack on the side of your up- high items. When not in use, you can re- per basket easily to use it again.
-
Page 27: Adjusting The Height Of The Upper
To raise the basket, hold the wires of the basket and pull the basket upwards with both hands while the basket is at the lowermost position (A) Release the basket when the basket catches on to the next upper position with a “Click”... -
Page 28: Lower Basket Multi-Purpose
The movement mechanism may You can use the racks as you wish not work properly when the upper by positioning them up or down, or basket is overloaded or when the you can close them to create a load is unbalanced. And it may fall large space in the lower basket. - Page 29 To raise the basket, hold the wires of the basket and pull the basket upwards with both hands while the basket is at the lowermost position (B) Release the basket when it catches on to the next upper position with a “Click” that may be heard from the right and left mechanisms.
-
Page 30: Foldable Upper Basket Wires
6.22 Foldable upper basket wires 6.24 Cutlery basket (depends on the model) (depends on the model) You can use the folding wires when you The ceiling cutlery basket is designed for need more space in the upper basket of the washing your forks, spoons, etc. -
Page 31: Operating The Product
The free area established by moving the side trays allows loading long dishes to the upper basket. When the middle tray is in the lower posi- tion, it is possible to place long dishes such as coffee cups, ladles etc. on the tray. When the side trays are leaned to both sides, it is possible to pull the handle and ensure rising the middle tray and locking... -
Page 32: Program Information And Aver- Age Consumption Values Table
On/Off Key When a program is selected with the On / Off / Program Selection button, the On Warning control light will light up, and it will go off when you turn it to the Off position. Start / Pause / Cancel button Used to start, pause or cancel the selected program. - Page 33 EN / 33...
-
Page 34: Additional Functions
To add additional functionality to the 7.2 Additional functions program: The washing programs of the machine are Select the washing program you want. designed to obtain the best cleaning by When you select an additional function, considering the type of dirt, the amount of the indicator of the additional function dirt and the characteristics of the dishware lights up. - Page 35 Child (Key) Lock Function Tablet Detergent Function (T) (Depending on Model) (model dependent) You can prevent anyone other than you It provides better drying in washing done from affecting or changing the program with multi-purpose detergents called 2in1, flow and delay time while the machine is 3in1, 4in1, 5in1, all in one etc.
-
Page 36: Starting The Program
The machine performs a water Programming the wash time softening process depending on Suspension the hardness of the mains water. You can delay the start time of the program The washing time may change due up to 9 hours using the Delay button. After to the water softening process. -
Page 37: Cancellation Of The Program
If the drying indicator is on, the ma- 7.7 Rinse Aid Deficiency Warning chine will dry silently for approxim- Indicator ately 30-60 minutes. At the end of To understand whether the amount of this period, the Drying indicator will rinse aid in your machine is sufficient, go off and the End indicator will check the rinse aid shortage warning in- light up. -
Page 38: End Of The Programme
Rinse Aid Amount Program Selection Button Level Rinse Aid Adjustment Indicator The Wash indicator on the panel 1 dose of rinse aid is added. lights up The Drying indicator on the panel 2 doses of rinse aid are added. lights up. The Done indicator on the panel lights 3 doses of rinse aid are added. -
Page 39: Cleaning The Hose Filter
Clean the filters at least once a week for ef- Replace the metal/plastic filter. ficient dishwasher operation. Check that no Insert the coarse filter into the microfil- food residue remains on the filters. If any ter. Make sure that it is positioned cor- food residue remains, remove the filters rectly. - Page 40 Lower spray arm Check the lower spray arm (1) holes for blockage. If there is a blockage, remove and clean the spray arm. You can remove the lower spray arm by pulling it upwards (depending on model) Do not try to rotate the spray arm by holding it by its ends.
-
Page 41: Troubleshooting
Troubleshooting Error Codes, Causes and Solutions Error Code Cause Solution 1-Error algorithm is activated. 2-Cycle ends. E01 Warning If you see the error continuously, P1 Blinks Chassis water filling fault 1-Cut off the electricity. Power led flashes 2-Close the valve. 3-Get in touch with the authorized service. - Page 42 amount of rinse aid is available in the Dishes are not cleanly washed dishwasher, increase the setting for rinse • Dishes are placed irregularly. >>> Place aid. the dishes as specified in the user • Detergent compartment cover is not manual.
- Page 43 • It is natural to have concerns about dry- salt particles remaining under the lid will ing for Teflon kitchenware. This condition dissolve in the pre-wash step, and thus is a result of the structure of Teflon. As the lid may loosen. the surface tensions of Teflon and water There is a different smell inside the are different, water particles remain like...
- Page 44 be removed from the surface of the dish Detergent residues are present in the by the pre-washing cycle or the dishes detergent reservoir. shall be washed without waiting. • Detergent was put in a long time before • There is no earth line in the electrical in- the washing procedure.
-
Page 45: Disclaimer / Warning
Indesit product warranty. ing instructions. (See the section "I Want To Repair Myself"). I WANT TO REPAIR MYSELF Therefore, except for the parts specified in the "I Want to Repair Myself"... - Page 46 Indesit address. In such a case, the Indesit product warranty will be invalid.
