Summary of Contents for Carbatec AF-1000P

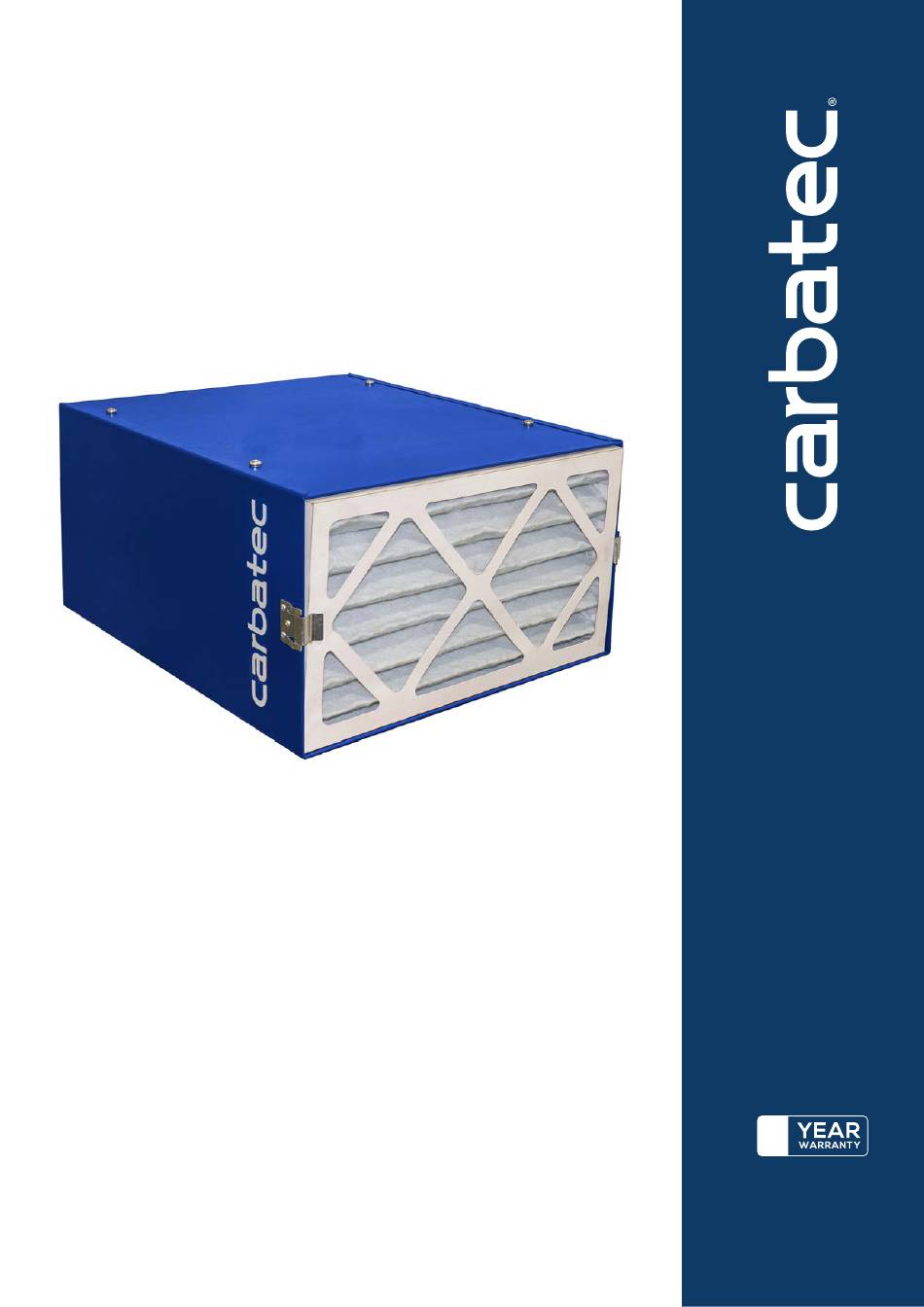

- Page 1 (Inbuilt handles not shown on product photo) AF-1000P CARBATEC ROOM AIR FILTER I N S T R U C T I O N S M A N U A L c ar ba tec.com .au...
-
Page 2: Introduction
Carbatec to keep you woodworking, as promised. We look forward to sharing in your woodworking journey! If you have any questions about our products or service, please call us on 1800 658 111 or email us at info@carbatec.com.au Find us on social media facebook.com/Carbatec instagram.com/Carbatec... -
Page 3: What's In The Box
AF-1000P WELCOME WHAT’S IN THE BOX The following items are provided in one package. (Inbuilt handles not shown on product photo) 1x Main unit with two filters 4x Nuts 4x Hook and loop for ceiling mount 4x Hanger eye bolts... -
Page 4: Key Information
Amp: SERIAL NUMBER: Speed: Lot No.: Serial No.: DATE OF PURCHASE: Date: Made in for: CARBATEC PTY LTD Brisbane - Australia FO R T E CH N ICA L S U PPO RT CAL L 180 0 658 11 1... -
Page 5: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Carbatec to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine. -
Page 6: Safety Instructions - General
Australian/New Zealand Standards to ensure their compliance with all mandatory standards and regulations (applicable at time of original sale). Carbatec Pty Ltd are registered as a responsible supplier with relevant Australian government departments and our products are registered on the EESS &... -
Page 7: General Safety
AF-1000P SAFETY INSTRUCTIONS GENERAL SAFETY Operating a power tool can be dangerous if GROUND ALL TOOLS. If the tool is supplied safety and common sense are ignored. The with a 3-prong plug, it must be plugged into operator must be familiar with the operation of a 3-contact electrical receptacle. - Page 8 AF-1000P GENERAL SAFETY ALWAYS UNPLUG THE TOOL FROM THE MAINTAIN YOUR BALANCE. Do not extend ELECTRICAL RECEPTACLE yourself over the tool. Wear oil resistant when making adjustments, changing parts or rubber soled shoes. Keep floor clear of performing any maintenance.
-
Page 9: Safety Instructions - Air Filter
AF-1000P SAFETY INSTRUCTIONS ALWAYS WEAR A DUST MASK TO USE A PROPER EXTENSION CORD IN GOOD PREVENT INHALING DANGEROUS DUST CONDITION. Use of extension cords should OR AIRBORNE PARTICLES, including wood be avoided where possible. When using an dust, crystalline silica dust and asbestos extension cord, be sure to have a cord heavy dust. - Page 10 AF-1000P AIR FILTER SAFETY EMPTYING DUST REGULAR CLEANING When emptying dust from the air filter, wear a Regularly check/empty the collection filters to respirator and safety glasses. Empty dust away avoid the buildup of fine dust that can increase from ignition sources and into an approved the risk of fire.
-
Page 11: Safety Instructions - Electrical
AF-1000P SAFETY INSTRUCTIONS ELECTRICAL SAFETY CHECK WITH A QUALIFIED ELECTRICIAN or service personnel if you do not completely This tool must be grounded while in use to understand the grounding instructions, or if you protect the operator from electric shock. IN THE are not sure the tool is properly grounded. -
Page 12: Overview
AF-1000P OVERVIEW Main Unit Runtime indicator Remote ON/OFF control Primary filter 1h, 2h, 4h Remote timer control Inner filter ON/OFF and speed switch Inbuilt handle x2, not shown Outlet Speed indicator on product photo Remote receiver High (3), Medium (2), Low (1) -
Page 13: Specifications
AF-1000P SPECIFICATIONS CODE AF-1000P 560 W (3/4 HP) 230 V MOTOR 2.5 A, 50Hz, 1Ph FAN SPEED 1 560 CFM FILTER RATE FAN SPEED 2 750 CFM FAN SPEED 3 1100 CFM FAN SPEED 1 CYCLES PER HOUR FOR AN AVERAGE WORKSHOP FAN SPEED 2 (6×6×2.4 M) -
Page 14: Assembly
• The Carbatec Room Air Filter comes pre-assembled, however before installing the machine or performing a test run, please remove the filters and check for any packing materials that may be inside the unit. -
Page 15: Mounting Tips
AF-1000P ASSEMBLY C. MOUNTING TIPS Mount the unit somewhere where it will be easy to access for any cleaning and maintenance Place the air filter in an area where sanding will likely take place, or close to the source of fine dust. -
Page 16: Air Filter
AF-1000P ASSEMBLY HANGING THE ROOM Fig. E1 AIR FILTER If you are suspending the unit from a ceiling, remove four screws from the top of the cabinet. Thread the four locking nuts onto the four eye bolts. Fig. E1 Screw the eye bolt into the hole and tighten lock nut against the cabinet top. - Page 17 AF-1000P ASSEMBLY MACHINE TESTING Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly. If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again.
-
Page 18: Operation
AF-1000P OPERATION WHY A ROOM AIR FILTER? Your dust collector efficiently extracts dust and wood chips near your woodworking machines but, through a ray of sunlight, you may see remaining dust suspended in the air. This room air filter targets these fine particles and keeps the level of airborne dust to a minimum. -
Page 19: Remote Control Operation
AF-1000P OPERATION REMOTE CONTROL Fig. I1 OPERATION The timer function only works on remote. timer button controls the three different timer settings. TIMER Fig. I1 & I2 SPEED Indicator 1 lights up on the back of the unit by once. -
Page 20: Maintenance
AF-1000P MAINTENANCE MAINTENANCE SCHEDULE For optimum performance from this machine, this maintenance schedule must be strictly followed ongoing. If you ever observe any of the below, shut down the machine immediately and fix the problem before continuing operations: • Loose mounting bolts •... -
Page 21: Replacing The Fuse
AF-1000P MAINTENANCE Place the filter in a bag and shake gently Fig. L3 to remove dust. Visually inspect to see if it needs to be replaced. The inner filter can now be pulled out of the unit. The inner filter can be gently blown out with air until it’s clean, or... -
Page 22: Wiring Diagram
AF-1000P WIRING DIAGRAM MOTOR VOLTAGE: 230 V INPUT: 0.56 kW OUTPUT: 0.375 kW Read Electrical Safety on page 11 FO R T E CH N ICA L S U PPO RT CAL L 180 0 658 11 1... -
Page 23: Parts Diagrams/Parts List
AF-1000P WIRING DIAGRAM / PARTS DIAGRAMS CABINET ASSEMBLY PARTS DIAGRAM Please reference the manufacturer’s part number when calling for replacement parts. For parts under warranty, the serial number of your machine is required. CA RBAT E C.CO M. AU... -
Page 24: Motor & Blower Assembly
AF-1000P MOTOR & BLOWER ASSEMBLY PARTS DIAGRAM MOTOR & BLOWER ASSEMBLY CONTROL PANEL ASSEMBLY Please reference the manufacturer’s part number when calling for replacement parts. For parts under warranty, the serial number of your machine is required. FO R T E CH N ICA L S U PPO RT CAL L 180 0 658 11 1... -
Page 25: Parts List
AF-1000P PARTS DIAGRAMS PARTS LIST PART PART DESCRIPTION DESCRIPTION REF. REF. Cross Recessed Countersunk Rubber Plug Head Screw M6x20 Switch Panel Component Flat Washer Inner Hexagon Screw M6x16 Spring Washer Locking Washer Cross Recessed Countersunk Cross Recessed Pan Head Head Screw M4x10... -
Page 26: Troubleshooting
AF-1000P TROUBLESHOOTING TO PREVENT INJURY TO YOURSELF or damage to the cyclone dust collector, turn the switch to the “OFF” position and unplug the power cord from the electrical receptacle before making any adjustments. PROBLEM LIKELY CAUSE(S) SOLUTION(S) Incorrect power supply voltage or... -
Page 27: Warranty
AF-1000P TROUBLESHOOTING/WARRANTY WARRANTY A. We warrant that this Carbatec product will be free 2. the serial or batch number printed on the machinery manufacturing plate; and from defects caused by faulty workmanship or faulty materials for a period of 1 year from date of sale. - Page 28 (Inbuilt handles not shown on product photo) Car ba tec P t y Ltd E info@carbatec.com.au AU: 1800 658 111 NZ: 0800 444 329 1/364 New Cleveland Rd, Tingalpa QLD 4173, Australia ABN 84 010 706 242 ca rb atec.co m .au...
