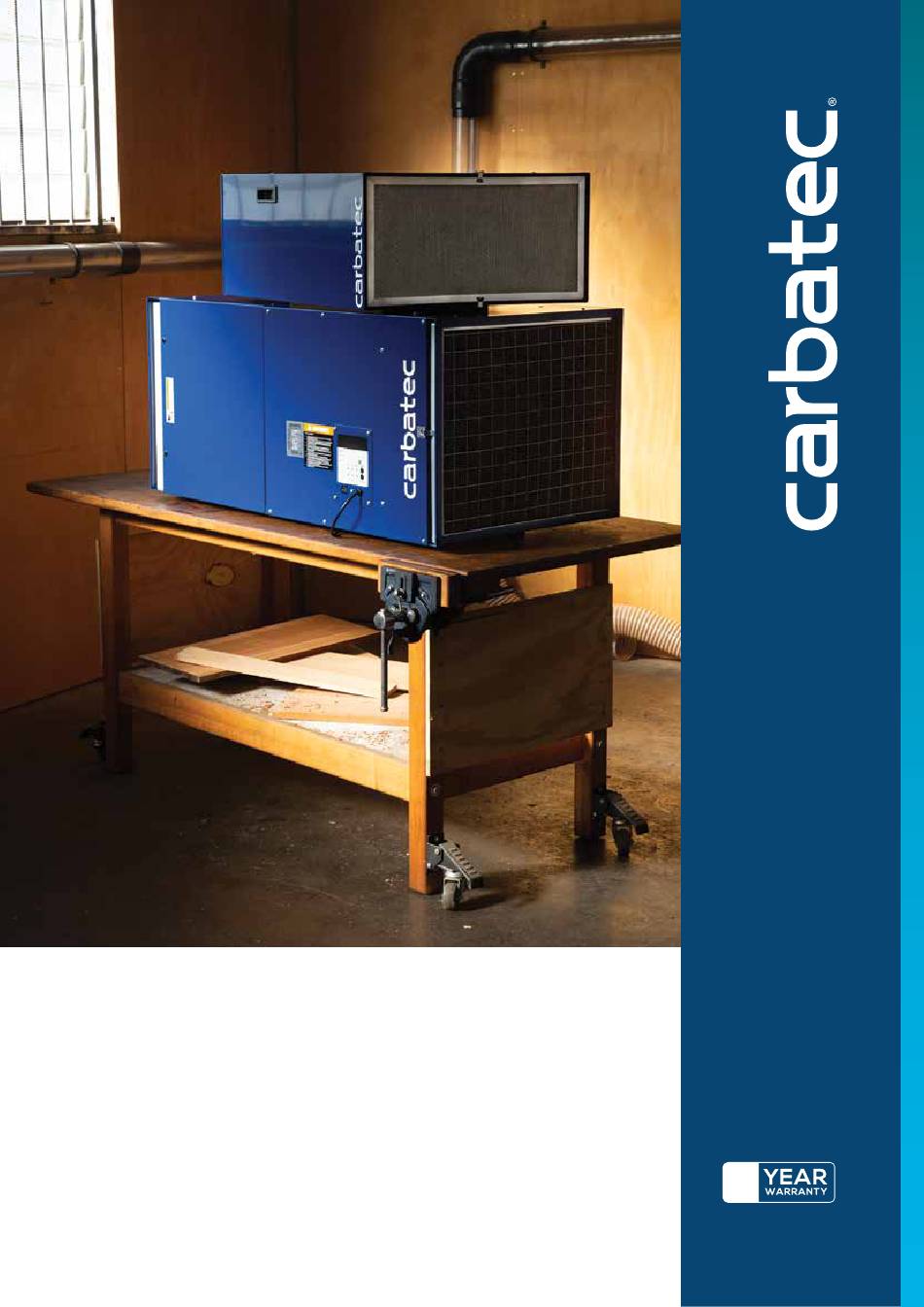

- Page 1 Room Air Filter A F - 1 0 0 0 C / A F - 2 0 0 0 C M A N U A L CA RBAT E C .C OM .AU...
-
Page 2: Introduction
Carbatec to keep you woodworking, as promised. We look forward to sharing in your woodworking journey! If you have any questions about our products or service, please call us on 1800 658 111 or email us at info@carbatec.com.au Find us on social media facebook.com/Carbatec instagram.com/Carbatec... -
Page 3: What's In The Box
AF-1000C/AF-2000C WELCOME WHAT’S IN THE BOX The following items are provided in one package. AF-1000C package contents AF-2000C package contents Main unit with filters Hook and loop for remote control mount Hanger eye bolts Low profile hanger bracket Hardware Adhesive feet... -
Page 4: Key Information
Serial No.: DATE OF PURCHASE: Date: Made in for: CARBATEC PT Y LTD Brisbane - Australia F O R TEC H N I CA L SU P PO R T C A L L 1 80 0 658 1 1 1... -
Page 5: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Carbatec to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine. -
Page 6: Safety Instructions - General
Australian/New Zealand Standards to ensure their compliance with all mandatory standards and regulations (applicable at time of original sale). Carbatec Pty Ltd are registered as a responsible supplier with relevant Australian government departments and our products are registered on the EESS & ACMA database. - Page 7 AF-1000C/AF-2000C SAFETY INSTRUCTIONS GENERAL SAFETY Operating a power tool can be dangerous if GROUND ALL TOOLS. If the tool is supplied safety and common sense are ignored. The with a 3-prong plug, it must be plugged into operator must be familiar with the operation of a 3-contact electrical receptacle.
- Page 8 AF-1000C/AF-2000C GENERAL SAFETY ALWAYS UNPLUG THE TOOL FROM THE MAINTAIN YOUR BALANCE. Do not extend ELECTRICAL RECEPTACLE yourself over the tool. Wear oil resistant when making adjustments, changing parts or rubber soled shoes. Keep floor clear of performing any maintenance.
-
Page 9: Safety Instructions - Air Filter
AF-1000C/AF-2000C SAFETY INSTRUCTIONS ALWAYS WEAR A DUST MASK TO USE A PROPER EXTENSION CORD IN GOOD PREVENT INHALING DANGEROUS DUST CONDITION. Use of extension cords should OR AIRBORNE PARTICLES, including wood be avoided where possible. When using an dust, crystalline silica dust and asbestos extension cord, be sure to have a cord heavy dust. - Page 10 AF-1000C/AF-2000C AIR FILTER SAFETY EMPTYING DUST REGULAR CLEANING When emptying dust from the air filter, wear a Regularly check/empty the collection filters to respirator and safety glasses. Empty dust away avoid the buildup of fine dust that can increase from ignition sources and into an approved the risk of fire.
-
Page 11: Safety Instructions - Electrical
AF-1000C/AF-2000C SAFETY INSTRUCTIONS ELECTRICAL SAFETY CHECK WITH A QUALIFIED ELECTRICIAN or service personnel if you do not completely This tool must be grounded while in use to understand the grounding instructions, or if you protect the operator from electric shock. IN THE are not sure the tool is properly grounded. -
Page 12: Overview
AF-1000C/AF-2000C OVERVIEW AF-1000C ROOM AIR FILTER OVERVIEW Control panel On/off & timer control Remote timer control Exhaust port Speed buttons Eye bolt mounting points Primary filters (not shown) Remote speed control Fuse holder Remote on/off control F O R TEC H N I CA L SU P PO R T C A L L 1 80 0 658 1 1 1... - Page 13 AF-1000C/AF-2000C OVERVIEW OVERVIEW AF-2000C ROOM AIR FILTER OVERVIEW Control panel On/off & timer control Remote timer control Exhaust port Speed buttons Eye bolt mounting points Primary filters (not shown) Remote speed control Fuse holder Remote on/off control C A RBATE C.C OM.AU...
-
Page 14: Specifications
AF-1000C/AF-2000C SPECIFICATIONS CODE AF-1000C AF-2000C MOTOR 123W (1/6HP) 250W (1/3HP) LOW FILTER RATE 450CFM 800CFM MEDIUM FILTER RATE 550CFM 1200CFM HIGH FILTER RATE 600CFM 1600CFM AVERAGE WORKSHOP CYCLES PER HOUR (6M×6M×2.4M) FILTER EFFICIENCY 99.90% 99.90% (@5MICRON) FILTER EFFICIENCY (@1MICRON) WORKSHOP FOOTPRINT 770mm ×... -
Page 15: Assembly
A minimum of two people are required to safely mount this machine. • The Carbatec Room Air Filter comes pre- assembled, however before installing the machine or performing a test run, please remove the filters and check for any packing materials that may be inside the unit. - Page 16 AF-1000C/AF-2000C ASSEMBLY GOOD AIR CIRCULATION Fig. B Place the air filter in a location that will promote circular air motion as shown. Fig. B Try to mount the unit so that it will be running in line with the natural air currents within your workshop.
- Page 17 AF-1000C/AF-2000C ASSEMBLY C. MOUNTING TIPS Mount the unit somewhere where it will be easy to access for any cleaning and maintenance Place the Air Filter in an area where sanding will likely take place, or close to the source of fine dust.
- Page 18 Repeat steps for remaining three eye bolts. (AF-1000C ONLY) The AF-1000C is also supplied with 4 x low profile mount brackets, which can allow the unit to be mounted almost flush with a ceiling. Attach the 4 brackets each with 2 hex bolts, and mount on your desired position through the holes.
- Page 19 AF-1000C/AF-2000C ASSEMBLY MACHINE TESTING Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly. If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again.
-
Page 20: Operation
AF-1000C/AF-2000C OPERATION OPERATION The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation. If you are not experienced with this type of machine, we strongly recommend that you seek additional training outside of this manual. - Page 21 AF-1000C/AF-2000C OPERATION REMOTE CONTROL OPERATION The timer button controls the three different timer settings. 2H will light up on the back of the unit with one press of the time button. The air filtration system will operate for 2 hours then shut off.
-
Page 22: Maintenance
There are two filters that need to be changed. Disconnect machine from power. (AF-1000C) The outer filter can easily be removed by disengaging the two clips. Fig. L1A Now you can simply pull the filter out, or use a screwdriver to pop the filter out. - Page 23 AF-1000C/AF-2000C MAINTENANCE (AF-2000C) Remove allen screws from Fig. L1 side of cabinet to access filters. Slide filters out to remove. Fig. L2A Ensure you wear eye and respiratory protection. See warning on previous page. Place the filter in a bag and shake gently to remove dust.
- Page 24 AF-1000C/AF-2000C MAINTENANCE M. REPLACING THE FUSE Fig. M In the case of a thermal overload, the control panel fuse will blow. To replace the 5 amp 250V fuse: Disconnect machine from power. Remove the fuse holder located on the control panel.
-
Page 25: Parts Diagrams/Parts List
AF-1000C/AF-2000C PARTS DIAGRAM PARTS DIAGRAM AF-1000C AF-2000C Room Air Filters AF-1000C/AF-2000C C A RBATE C.C OM.AU... - Page 26 AF-1000C/AF-2000C PARTS LIST AF-1000C PART PART DESCRIPTION SIZE DESCRIPTION SIZE REF. REF. FILTER SET PAN HEAD BOLT W/FLANGE M4X8L FILTER BAG SET AIR GUIDE PLATE RIVET NSS 4-4 HEX SOCKET BOLT M6X10L DOOR CLIP SET FAN BLADE AIR BOX FAN HOUSING...
- Page 27 AF-1000C/AF-2000C PARTS LIST PARTS LIST AF-2000C PART PART DESCRIPTION SIZE DESCRIPTION SIZE REF. REF. FAN BLADE M5*0.8 FAN HOUSING SWITCH WIRE W/TERMINAL 18AWGX20 AIR GUIDE PLATE M5*0.8 FLANGE STAR WASHER (EXTERNAL) SWITCH PLATE SLEEVE PAN HEAD BOLT M5*0.8*12 BOX PLATE...
-
Page 28: Troubleshooting
AF-1000C/AF-2000C TROUBLESHOOTING TO PREVENT INJURY TO YOURSELF or damage to the cyclone dust collector, turn the switch to the “OFF” position and unplug the power cord from the electrical receptacle before making any adjustments. PROBLEM LIKELY CAUSE(S) SOLUTION(S) Incorrect power supply voltage or... - Page 29 AF-1000C/AF-2000C TROUBLESHOOTING PROBLEM LIKELY CAUSE(S) SOLUTION(S) Air filter blows Duct clamps or filter are not properly Re-secure filter, making sure they sawdust into the air. clamped and secured. are tight. Retighten all mounting and Cylinder or funnel seals are loose sealing points.
-
Page 30: Wiring Diagram
AF-1000C/AF-2000C WIRING DIAGRAM Blue Yellow White Black Output Input PC Board Brown 230V 50Hz Power Cord 3 amp thermal switch Wire Nut Yellow Green Capacitor Blue Yellow Green White Motor Black Body F O R TEC H N I CA L SU P PO R T C A L L 1 80 0 658 1 1 1... -
Page 31: Warranty
1. a copy of the order or receipt for the goods; 2. the serial or batch number printed on the A. We warrant that this Carbatec product will be free machinery manufacturing plate; and from defects caused by faulty workmanship or faulty materials for a period of 3 years from date of sale. - Page 32 C a r b at e c P t y L td E info@carbatec.com.au AU 1800 658 111 NZ 0800 444 329 128 Ingleston Road, Wakerley, Queensland Australia 4154 ABN 84 010 706 242 CA R BATEC .C O M .AU...
