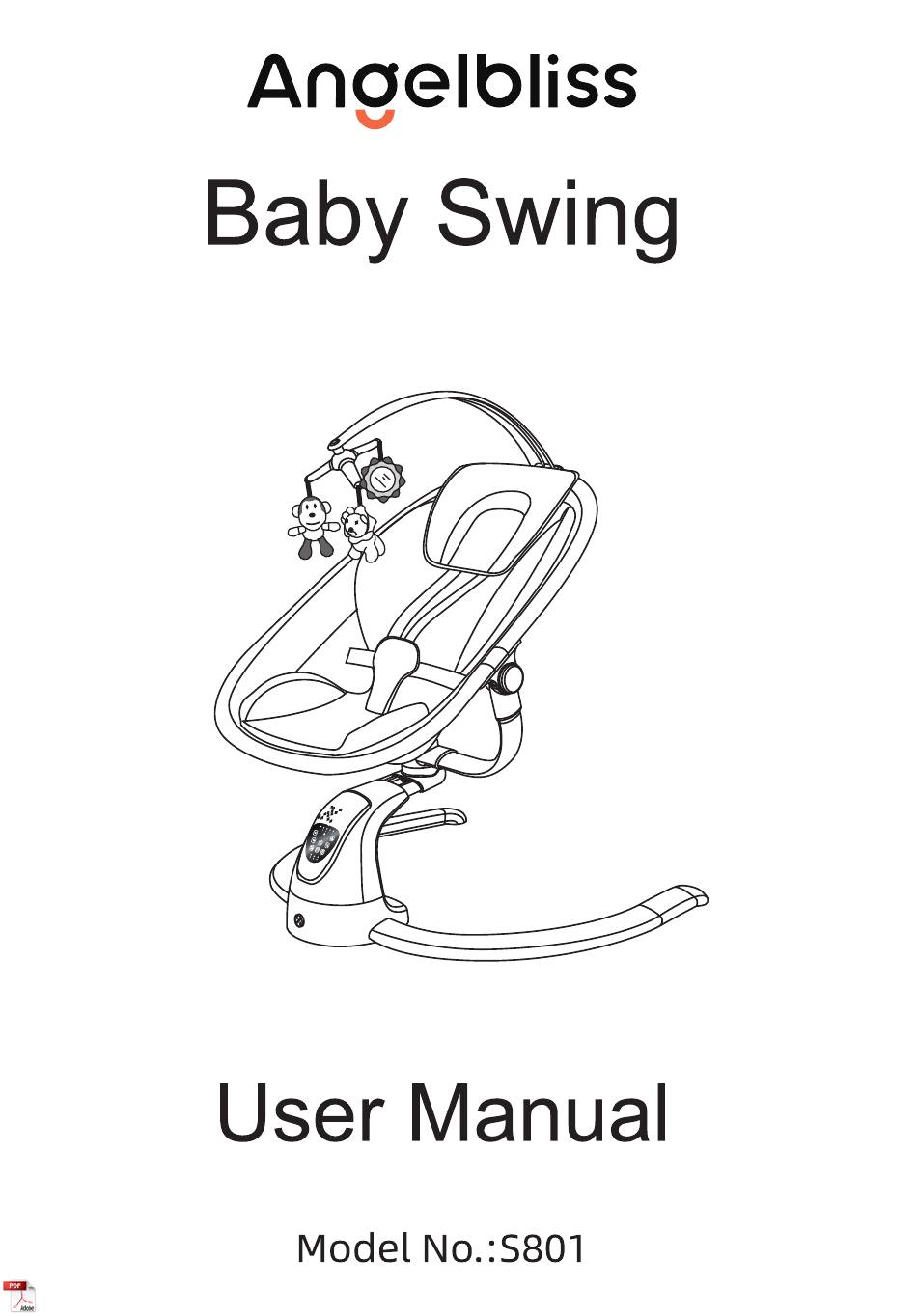

Summary of Contents for ANGELBLISS S801
- Page 2 WARNINGS WARNING IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING FALL and STRANGULATION HAZARDS: Infants have suffered head injuries falling from swings and have strangled in straps. ● ALWAYS use the restraint system. Adjust to fit snugly. ● STOP using product when infant attempts to climb out (approximately 9 months).
- Page 3 Important Safeguards WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 4: Product Specification
Product Specification Product Name：Baby swing Model No.:S801 Standard:ASTM F2088-24 & 16CFR 1223 / F963-17 CA.Prop 65 lead / FCC 0-9 months(maximum loading weight is 9kg) Made In China Shenzhen Hongzhong Technology Co., Ltd. Add: Room 1108, Building 136, Shayuanpu, Minzhi Community,... - Page 5 Parts Please check the product list before use. If any missing, please contact us by Amazon seller service or after-sales email. Take out all the parts from the package carton. Base Fittings Toy Bar Seat Swing Seat Support Frame Base Host Remote Control Power Cord...
-
Page 6: Product Installation
Product Installation Base Installation: Insert the left and right base fittings into the base (Fig. 1). And then align the screw holes and tighten with screws (Fig. 2). Host Installation: Align the host with the base and insert it downwards. The host will be in place only when you hear a "click"... - Page 7 Product Installation Seat Support Frame Installation: Align and insert the support frame with the back of the host. It is in place when you hear a "click" (Fig. 3). Attention: It is necessary to follow the direction indicated by the arrow Swing Seat Installation: Align and insert both sides of the swing seat with the seat support frame.
- Page 8 Product Installation Toy Bar Installation: Insert the toy bar into the swing seat support frame (fig. 6, 7).
- Page 9 How To Use Safety Belt Assembly Locking Stretch/Shorten Release Assembly: Insert the belt plug into the shoulder strap plug. Locking: Insert the assembled plugs on the left and right sides into the buckle and lock it when you hear a "click". Release: Press the button in the middle of the buckle to release the seat belt.
-
Page 10: ProductDisassembly
ProductDisassembly Seat Support Frame Disassembly: Press upward on the removal button in fig. 10 and pull it out (fig. 11). -
Page 11: Seat Angle Adjustment
Seat Angle Adjustment Seat Adjustment: Press and hold the buttons on both sides of the seat frame (fig. 12) at the same time to adjust three gears (fig. 13). - Page 12 Seat Rotation Adjustment Seat Rotation Adjustment: Press and hold the button in the middle of the seat support frame in Fig. 14 to adjust three levels to the left or right (Fig. 15, 16).
-
Page 13: Power Cord
Power Cord Insert the power cord into the power hole on the host and connect it to a household 220V power supply to work normally. - Page 14 Operating Baby Swing Speed Indicator Light Remote Control Reception Swing Speed Previous Music Music/Bluetooth Next Music Crying Detection Volume Adjustment Timer Setting ON/OFF Time Indicator Light 1.Power on the DC power source and insert the plug into the base and the "2" indicator light will shine and then go out, and the product will enter the standby mode.
- Page 15 Check your product regularly for loose screws, worn parts, torn materials or stitching. Replace or repair parts as needed. ● Keep this product in a cool dry place. If this product accidentally gets wet, wipe it with a dry cloth and allow it to air dry completely.
