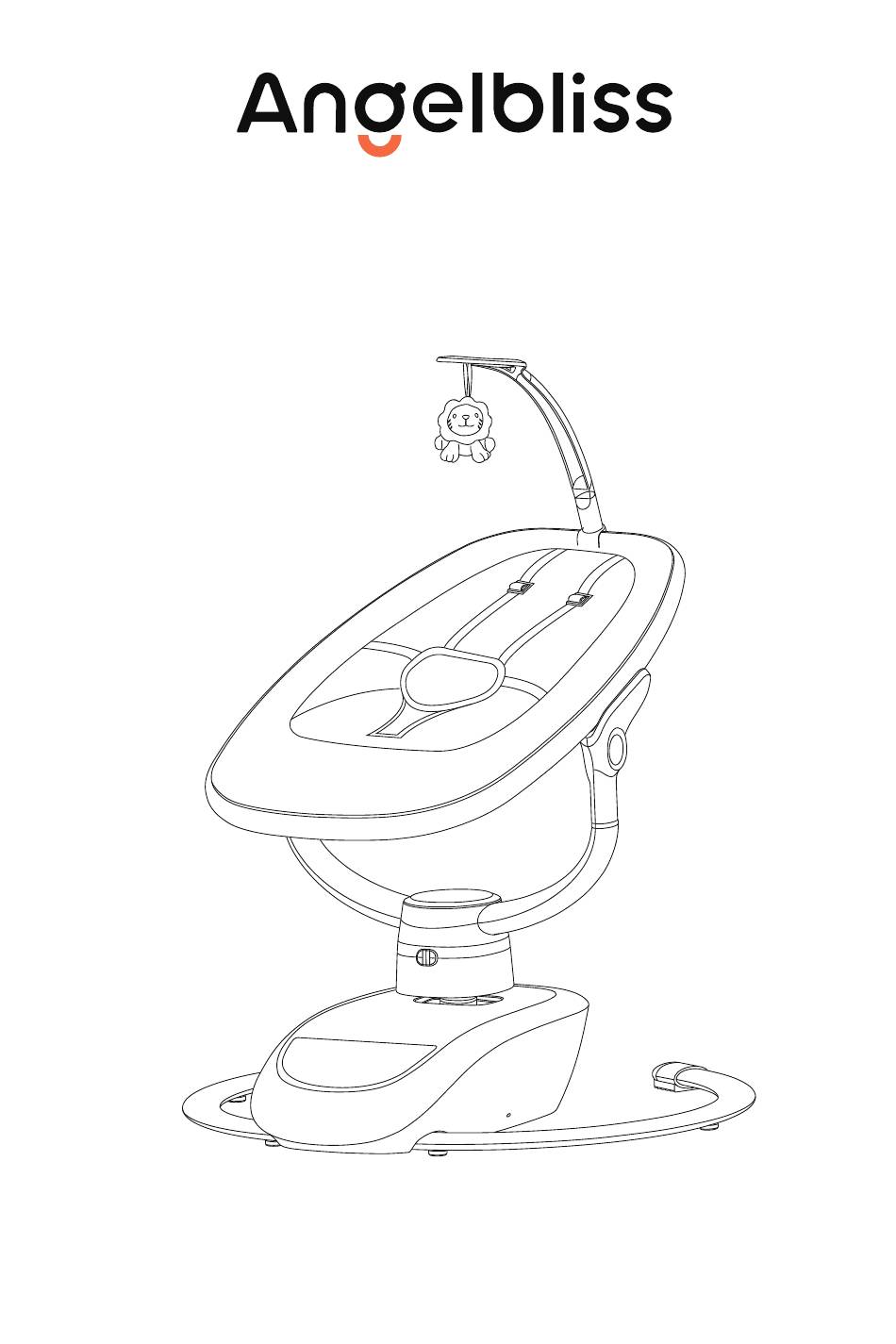

- Page 1 Stationary Swing Model NO.: BY083B THE PICTURE IS FOR REFERENCE ONLY, PLEASE REFER TO THE ACTUAL PRODUCT...
- Page 2 Please read this manual carefully before use and keep it for future reference. Failure to follow this manual may affect the safety of infants. Do not leave the baby unattended when using the product Do not use this product on elevated surfaces (e.g., tables). The restraint system (safety belt) must be used To avoid entanglement and suffocation, keep strings or similar items away from infants.
- Page 3 Read all instructions before use of the infant swing seat. Keep instructions for future use. Do not use this infant swing seat if it is damaged or broken. FALL and STRANGULATION HAZARDS: Infants have suffered head injuries falling from swings and have strangled in straps.
- Page 4 IMPORTANT Adult assembly required. Please read all instructions before assembly and use of the product. Care should be taken in unpacking and assembly. Examine product frequently for damaged, missing, or loose parts. DO NOT use if any parts are missing, damaged, or broken. Contact Bobie for replacement parts and instructions if needed.
-
Page 5: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modification to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate... -
Page 6: Parts List
Parts List: Please check the product list before use. If any missing, please contact us by Amazon seller service or after-sales email. Host Base Fittings Seat Connecting Bracket Set Seat Support Frame Swing Seat Toy Bar Type-C Power Cord Remote Control Parts Kit... -
Page 7: Product Installation
Product Installation Base Installation: Insert the left and right base fittings into the host (Fig. 1-1). And then align the screw holes and tighten them with 4 screws (Fig. 1-2) Please note that the base fittings assembly shouldn't wobble after tightening the screws (Fig. - Page 8 Product Installation Seat Support Frame Installation: Align the support frame with the other end of the seat connecting bracket and insert it (Fig. 3-1). Install it in place when you hear a "click" sound (Fig. 3-2). Swing Seat Installation: Align and insert both sides of the swing seat with the seat support frame (Fig.
- Page 9 Product Installation Toy Bar Installation: IInsert the toy bar into the swing seat support frame (Fig. 5-1). Please note that it cannot be easily removed once the toy bar is inserted and secured (Fig. 5-2)
-
Page 10: Power Selection
Operating Stationary Swing Power Selection: Use a 5V adapter. Plug it into a 110-240V outlet socket and connect the Type-C end to the host’s Type-C port (Fig. 6). Use indoors and avoid moisture. Type-C Touch Panel: Plus Swing Mode ON/OFF DIY Swing Mode Fixed Swing Mode Switch Volume... - Page 11 Operating Stationary Swing Swing Mode Switch: In standby mode, tap this button to switch to the next swing mode. It defaults to 1st speed and uses the +/- button to adjust the swing speed. Wave Mode: Combines up-and-down and side-to-side motions with 4 adjustable speeds. Up-and-down Mode: Up-and-down motion with 4 adjustable speeds.
-
Page 12: Remote Control
Operating Stationary Swing DIY Swing Mode: Touch once to enter the custom side-to-side swing mode. You can adjust the speed using the "+" / "-" buttons. Touch it again, starts flashing. This is the custom up-and-down swing mode. You can adjust the speed by pressing the "+" / "-" button. The custom mode defaults to 0 levels, up to 6 levels. -
Page 13: Mobile Phone Connection
Operating Stationary Swing Speed+: Press “+” to increase the speed by 1 level, up to 4 levels. Speed-: Press “-” to decrease the speed by 1 level, down to level 1. Swing Switch: Press this button to switch swing modes, with 6 modes cycling through. Music: Press once to turn on the music. -
Page 14: Backrest Adjustment
Operating Stationary Swing Backrest Adjustment: The seat has 3-position settings. Press the backrest adjustment button on both sides of the seat to adjust. Do not adjust while a child is in the product to avoid potential injury. Seat Rotation: Grip the swing seat frame at the indicated spot and rotate it left or right by 90 degrees only. - Page 15 Operating Stationary Swing Seat Support Frame Disassembly: Press the removal button in Fig. 9-1 upward and pull it out (Fig. 9-2). Seat Component Disassembly: Press the pops at the indicated spot (Fig. 10-1) and remove the seat component from both sides. Toy Bar Disassembly: Press the button at the indicated spot (Fig.
-
Page 16: Cleaning And Maintenance
Cleaning and Maintenance Check your product regularly for loose screws, worn parts, torn materials or stitching. Replace or repair parts as needed. Keep this product in a cool dry place. If this product accidentally gets wet, wipe it with a dry cloth and air dry completely. Excessive exposure to direct sunlight or high temperatures may cause fabrics to fade or components to deform. - Page 17 Customer Service Email: Model Name: Stationary Swing Model No.: BY083B N.W: 18.7lbs G.W: 21.6lbs Manufacturer: ZHONGSHAN CITY BOBIE BABY PRODUCT CO., LTD ADD: No.3 Heman Street Jidong YiDistrict, XiaolanTown, Zhongshan City, Guangdong, China, 528415 Made in China...
