CABANA SYSTEM ASSEMBLY INSTRUCTIONS
The following instructions refer to the standard model and do not take into account any customizations required by the client.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CABANA and is the answer not in the manual?

Questions and answers

Summary of Contents for SHELTER CABANA

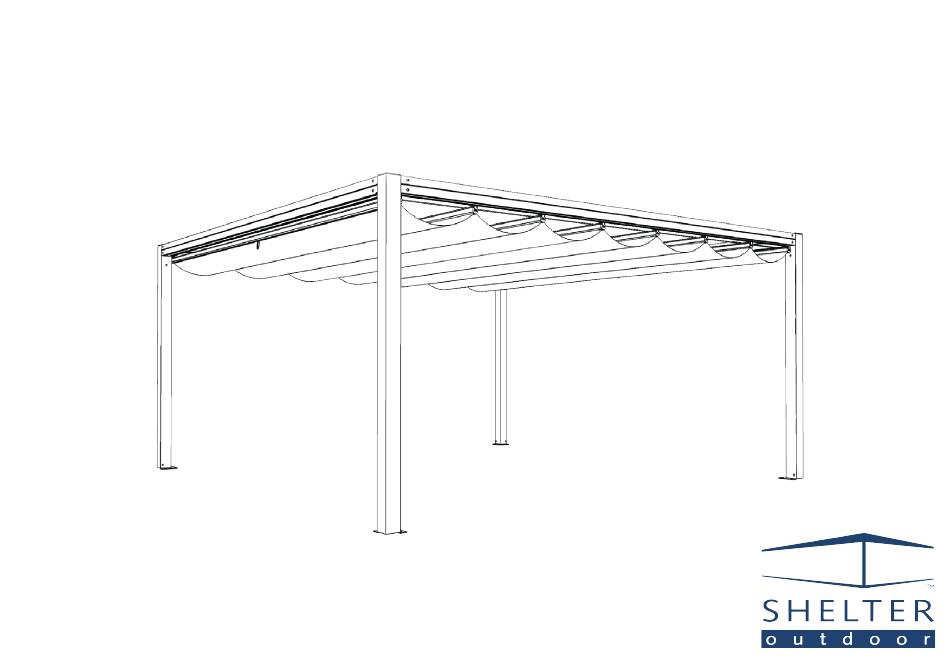

  • Page 1 CABANA SYSTEM ASSEMBLY INSTRUCTIONS The following instructions refer to the standard model and do not take into account any customizations required by the client.
  • Page 2: List Of Parts

    List of parts Maneuvering rod Upright Cover Eave beams On request Upright cap Purlin cap Internal hidden foot External foot Small parts...
  • Page 3 Upright with visible external foot Upright with internal hidden foot Note: Secure the foot to the ground and then connect it to the upright using screws. M10 x 30 mm...
  • Page 4 To install the sheer curtains please ensure that sliding items are fitted into the frame before the structure’s assembly.
  • Page 5 Make sure that the cap on the crossbar’s groove is always facing outward. A = B = C = D M10 x 30 mm M10 x 30 mm...
  • Page 6 Make sure that the cap on the crossbar’s groove is always facing outward. A = B = C = D M10 x 30 mm M10 x 30 mm...
  • Page 8 A = B = C = D...
  • Page 9 Attach the PVC sheet cover to the structure by inserting the runners on the structure into the upper grooves of the purlins (a). Secure the caps with the appropriate screws (b). M5,5 x 25 mm...
  • Page 10 Angle the purlins of the cover and insert the runners on the structure into the upper grooves of the purlins (a). Secure the caps with the appropriate screws (b). M5,5 x 25 mm...
  • Page 11 MOUNTING INSTRUCTIONS FOR THE PURLIN SAFETY LOCK Left lock with pin Right lock with pin...
  • Page 12 A = D Remove the screw, washer, and grub screw from the plate above the head purlin.
  • Page 13 b’ A = D Insert the lock with the pin under the beam (a), making sure to align the plastic block with the groove of the inner beam (b). Move the lock forward until you get it flush with the head purlin. b-b’...
  • Page 14 A = D Hold the lock with the pin in position (a) and attach it to the purlin with two M8 x 16 mm round head screws, making sure to use the PVC spacer strip (b). M8 x 16 mm...
  • Page 15 A = D Lock purlin from sliding by pulling down and turning the lock key by 90° using the maneuvering...
  • Page 16 A = D Unlock the purlin by repeating the operations in item 2.4, making sure that the teeth on the lock key fit into the slot of the screw heads.
  • Page 17 To make it easier to close the cover, insert the maneuvering rod between the beam and the purlin by leveraging the purlin to release it from the magnet socket.
  • Page 18 Close the cover using the maneuvering rod.
  • Page 19 B = C Use the maneuvering rod to lock the purlin, and then the cover, in the closed position.
  • Page 20 Appendix - Locking the purlin Sectional view of the eave beam Sectional view of the eave beam Key in unlocked position Key in locked position...
  • Page 21 Appendix - Replacing the sheet module...
  • Page 22 @shelteroutdoor shelter.outdoor shelter-outdoor...
