Installation Guide
SI-2-D
System Integrator
Mounting & Installation
SI-2-D must be mounted in a suitable enclosure to provide regulatory
protection from electric shock hazard as well as protecting the iCANnet
data network from tampering that could lead to reduced network security.
Ensure selected enclosure provides adequate cooling ventilation.

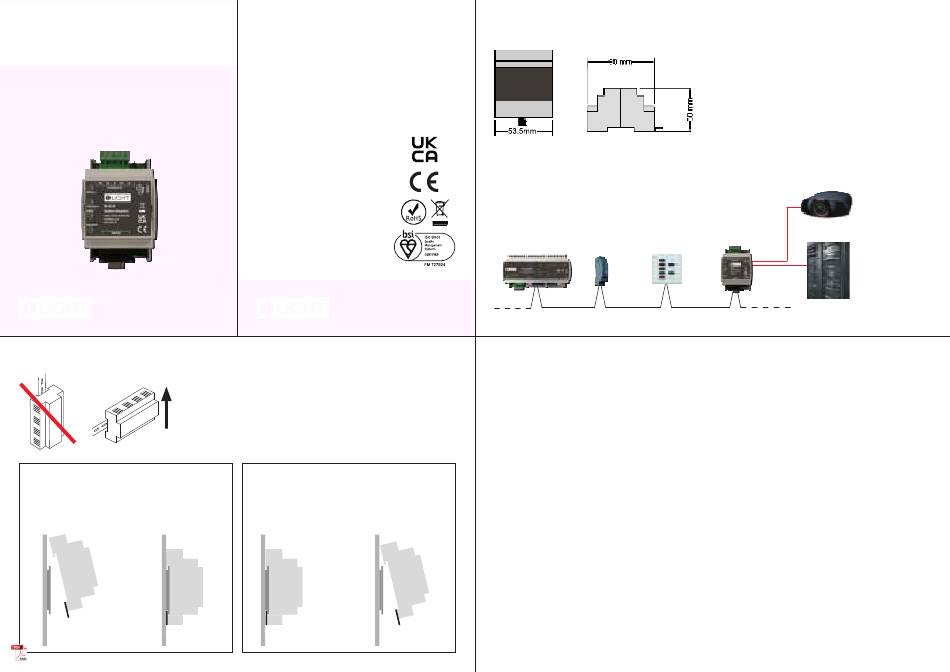

Fixing to DIN rail
1. Fix top clips over DIN rail.
2. Pull down bottom clip using screwdriver.
3. Close module towards DIN rail.
4. Push up bottom clip to fix securely to DIN rail.
1
2
4
iLight
Usk House, Lakeside
Llantarnam Park,
Cwmbran,
NP44 3HD, UK
t: +44 (0)1923 495495
e: enquiries@iLight.co.uk
www.iLight.co.uk
EU Authorised Representative
Cooper Lighting Netherlands B.V.
High Tech Campus
HTC 48
Eindhoven
5656 AE
E&OE. iLight reserve the right to make
changes to the equipment without
prior notice.
© Signify Holding
Doc No: 9850-000928-00
Removing from DIN rail
1. Pull down bottom clip with screwdriver.
2. Lift module away from DIN rail.
3
1
Dimensions
Typical Schematic
Lighting Source
Controller
12 - 15V PSU
Technical Data
Electrical Data
Supply: 15VDC (12-18V) via iCANnet
iCANnet
TM
inputs/output: Screw terminals
Mechanical Data
Weight: 0.1 kg (0.22lb)
Operating temperature: 0ºC to +50ºC
Max storage temperature: +60ºC
Humidity: +5 to 95% non-condensing
Environmental protection: IP20
Installation: Installation must be carried out by a suitably qualified electrician and
installed in a suitable DINrail enclosure rated for the intended environment.
2
SI-2-D
System
Integrator Node
Control Plate
iCANnet
TM
Screens, Projectors,
AV Systems
