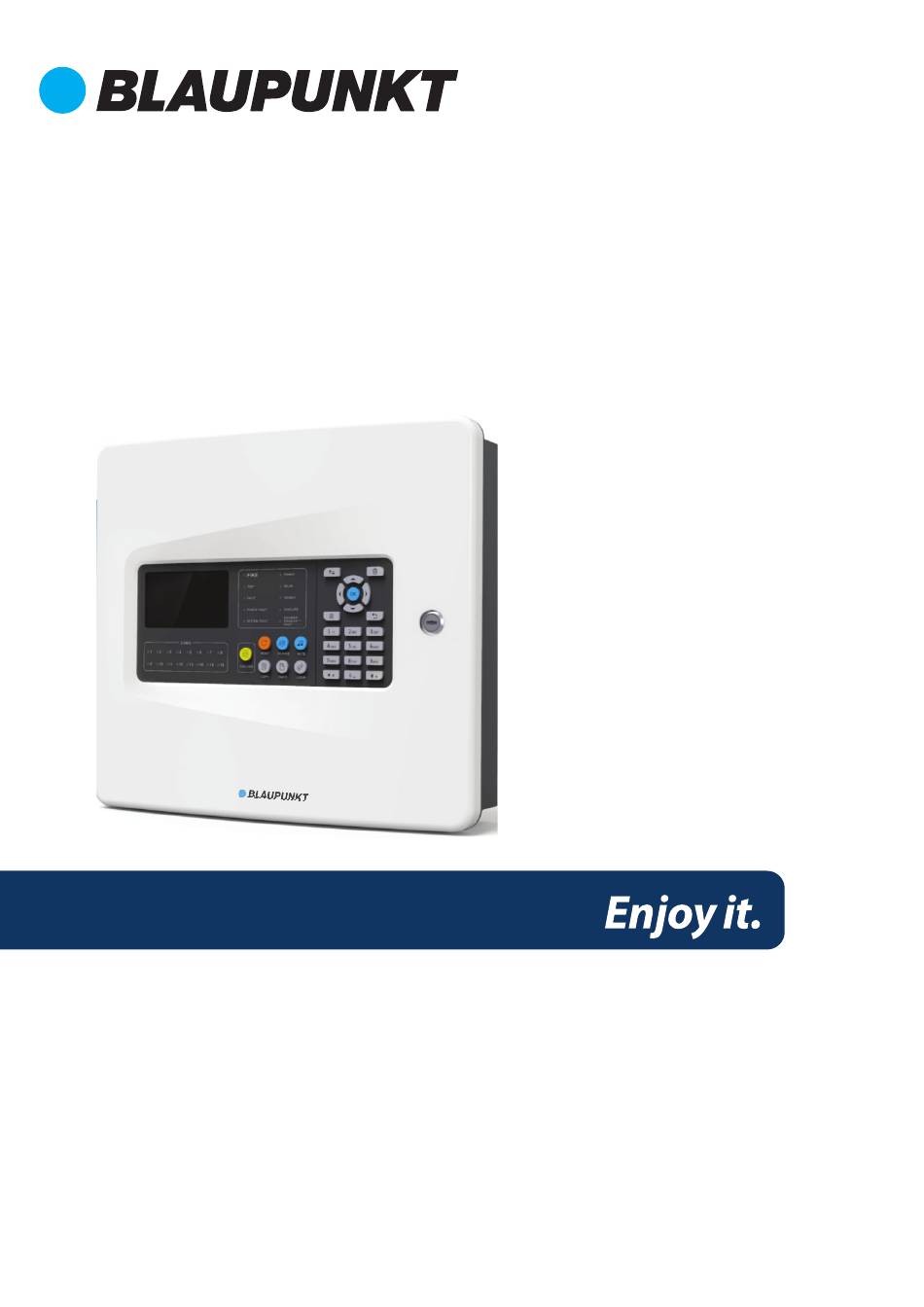

- Page 1 User Manual ADDRESSABLE FIRE ALARM CONTROL PANEL BP-FD-ACP1L-120...
-
Page 2: Table Of Contents
CONTENTS 1 ABOUT THIS MANUAL ..............................3 2 INTRODUCTION ................................. 3 2.1 OVERVIEW ..................................3 2.2 EN 54 INFORMATION ............................... 3 2.3 KEY FEATURES ................................3 2.4 AN OVERVIEW OF PANEL’S ACCESS LEVELS ....................4 3 CONSTRUCTION, INDICATIONS AND CONTROLS ....................5 3.1 PANEL CONSTRUCTION ............................5 3.2 LED INDICATORS ................................ -
Page 3: About This Manual
1 About This Manual This manual contains all the information necessary for the end user to operate the BP-FD-ACP1L-120 Fire Alarm Control Panel (FACP) with detailed functional descriptions for menu options. Other information about installation and commissioning are described in the separate Installation and Commissioning Manual. -
Page 4: An Overview Of Panel's Access Levels
(3) An easy to read, 4.3’’ color screen LCD with a resolution of 480×272 (4) Zone indicators for 16 zones gives a quick indication of the location of an alarm (5) Record capacity of 1000 historical events for each of historical fire, historical fault and historical operation (6) An independently programmable conventional sounder circuit output (7) Integral power supply and battery... -
Page 5: Construction, Indications And Controls
3 Construction, Indications and Controls 3.1 Panel construction unit:(mm) 3.2 LED indicators FIRE Lit red when one or more devices are reporting a fire condition Lit yellow when the panel is under zone test state. This indicator TEST does NOT light for any other test which is not specified by EN 54-2 FAULT Lit yellow when one or more faults on the system are detected... -
Page 6: Button Controls
SOUNDER Steadily lit yellow when yellow when loop sounders are disabled DISABLED/FAULT Flashes when there is loop sounder in fault condition 3.3 Button controls Gives an evacuation warning by activating all sounders of the system at access level 2&3 Returns the panel to its normal condition by clearing all fire and fault status indications at access level 2&3 Silences the system’s sounders at access level 2&3. -
Page 7: Zone Indicators
Provides access to the panel’s user menus at access level 2&3 Used to cancel a navigation step or exit the current menu ◄ ▼ ▲ ► For toggling, scrolling, or moving the input cursor Confirms a text input or a manual operation Used to enter numbers, letters and marks in a text box. -
Page 8: Fault Condition
of the list. Also, the total number of zones in alarm is given, and you can view the suppressed zones in alarm through the rolling bar on the right side. See an example of a typical LCD fire display below; (4) The zonal sounders, S.C. -
Page 9: Disabled Condition
The LCD displays the FAULT status screen shows detailed fault message. For a fault from a specific point, the actual device and its location description will be shown. For other faults, information regarding the fault will be displayed instead. The list below shows the description of some fault types for your information. Missing Open Short... -
Page 10: Test Conditio
Note: : The Icon indicator for disabled condition of S.C.Output, when the S.C.Output is disabled, the icon will have a slash cable. : The Icon indicator for disabled condition of Loop sounder, when Loop sounders are disabled, the icon will have a slash cable. 4.5 Test condition When one or more of the fire alarm system’s zones have been programmed into test mode at access level 2 or 3 the panel enters a test condition. -
Page 11: Functions Available At Access Level 2
Note that any new fire or fault event will restart the buzzer. 5.1.3 Get entry to access level 2 or 3 Press the LOGIN or the “*” button, or Ctrl+Alt+Delete on a USB keypad, the LOGIN dialog box appears. To log out, repeat the operation. Authorized user can choose an access level of 2 or 3 and input the corresponding password. - Page 12 When the correct time and data are set, the time showed at the bottom of the screen will be changed synchronously. When the correct time and data are set, the time showed at the bottom of the screen will be changed synchronously.
- Page 13 An auto-off function of the display is optional which will turn off the display when left unused after 5min at normal state. Click to select or cancel it. 5.2.9 Bus setup Select the ‘Bus setup’ under the BUS menu option to setup the bus type of the Loop, Class A or Class B.
- Page 14 5.2.12 Disable/test functions Pressing ► to select the DISABLE/TEST menu option will show you the sub-menu which allows you to enable or disable zones, points, sounders and other outputs, and to perform some tests. Disable zone/point This function allow zones or points to be disabled/re-enabled from reporting fires, faults, etc. When selected, a window appears as below.
- Page 15 Zone test This function allows you to set one or more of the system’s detection zones into test. When a zone is in testing mode, any detector/manual call point activated on that zone will only trigger the sounders that are mapped to that zone for a brief period (about 2s). And no fire is reported to the FACP or any other output circuit be activated.
- Page 16 Tell: +381 11 318 68 68 o ce@securityshop.rs Imported/Distributed by Security Shop doo BLAUPUNKT and the BLAUPUNKT logo are trademarks of TALISMAN BRANDS (Luxembourg) S.A.R.L. and are used under license from Talisman Brands, Inc. BLAUPUNKT licensees are solely responsible for the BLAUPUNKT branded products manufactured, distributed and sold under license.
