HUEDA LED LT-932-OLED DMX512 Manual

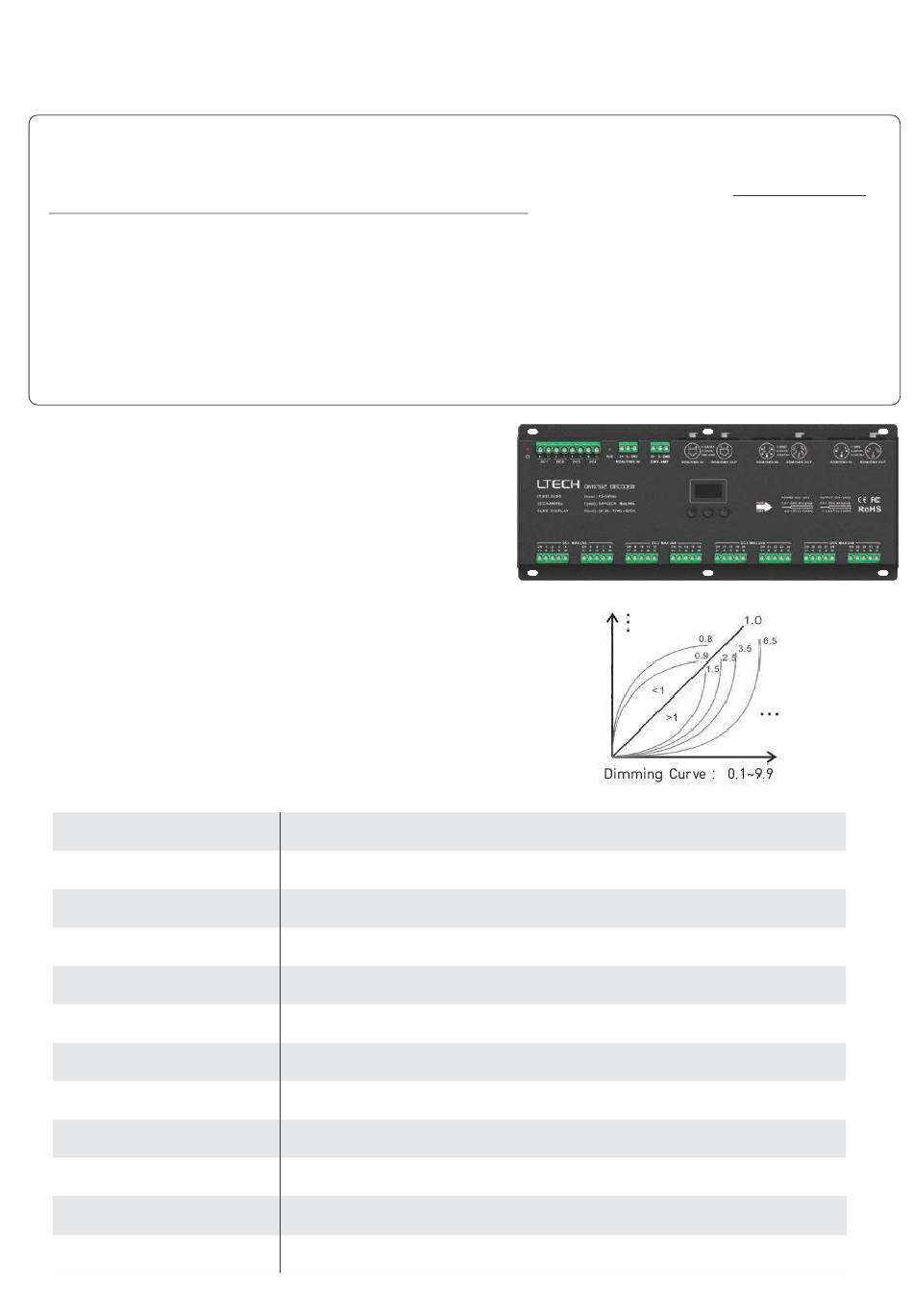

LT-932-OLED DMX512 Decoder Manual
Before you begin, read all warnings and installation instructions and save for future use.
Safety & Warnings
This product is intended to be installed and serviced by a qualied licensed electrician. Install in accordance with the
National Electric Code, and local regulations. Disconnect power before installing or servicing. Only power with a
regulated (listed) constant voltage Class 2 power supply (12-24V DC).
Ensure applicable wire is installed between driver, xture, and any controls in between. When choosing wire, factor in
voltage drop, amperage rating and type (in-wall rated, wet location rated, etc.). Inadequate wire installation could
overheat wires and cause re.
This product is rated for indoor installation and only for dry locations. Avoid direct sun light.
Do not modify this product beyond the instructions in this guide or the warranty will be voided.
Wiring diagrams in this installation guide for basic installations. Please carefully review your installation before
proceeding.
1. Product Features:
Designed for hi-power multiple channels application
Ÿ
32 channels output, Max. 3A current per channel and
Ÿ
up to 2304W output power.
Easy address setting with OLED screen and the button
Ÿ
control.
4 control modes: single color, CCT, RGB and RGBW
Ÿ
Support 4 kinds of DMX ports with signal isolation
Ÿ
function: XLR-3, XLR-5, RJ45 and green terminal (with
signal amplier function).
RDM remote management protocol for parameters
Ÿ
browsing & setting, DMX address setting, equipment
recognition operations.
16bit/8bit resolution and optional multiple dimming
Ÿ
curve
2. Product Parameter:
Input Signal
Input Voltage
Current Load
Output Power
DMX Interface
Control Mode
Dimming Curve
Grey Level
Photoelectric Isolation
Working Temperature
Dimensions
Weight
1/6
Copyright © 2017 HUEDA™ LED, A division of LED World Inc.. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
For Professional commercial use only
DMX/RDM
DC 12V ~ DC24V
3A x 32CH Max 96A
(0~36W~72W) x 32CH Max 2304W
XLR-3, XLR-5, Rj45, Green Terminal
Dimming/CT/RGB/RGBW
0.1~9.9
8bit (256 levels) / 16bit (65536 levels)
Yes
-30°C ~ 55°C (-22°F ~ 131°F)
L 300 x W 122 x H 39 mm (L 11.81" x W 4.80" x H 1.53")
1.05 Kg (2.31)
HUEDA™ LED | CALGARY, AB | CANADA
