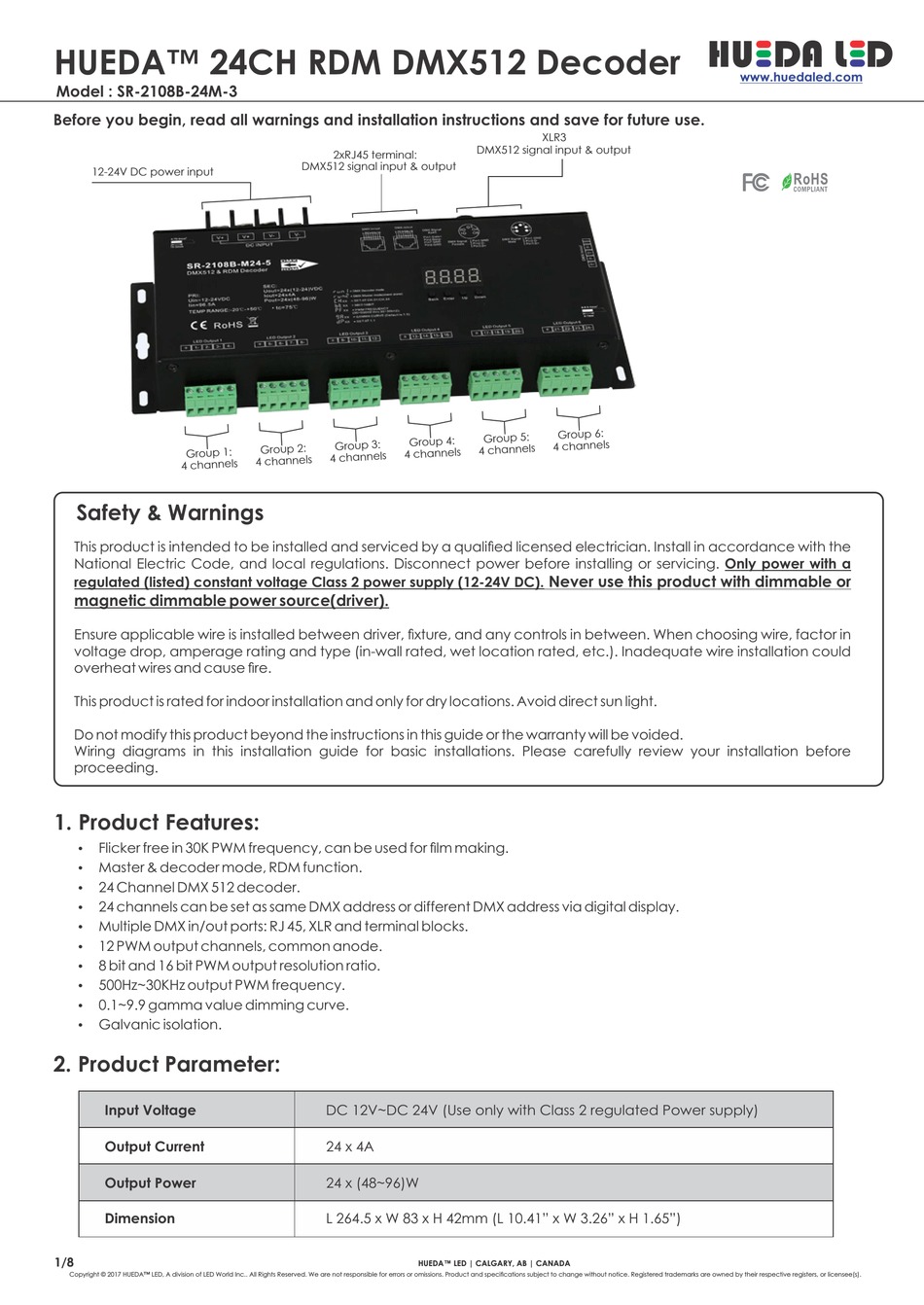

HUEDA™ 24CH RDM DMX512 Decoder

Model : SR-2108B-24M-3

Before you begin, read all warnings and installation instructions and save for future use.

12-24V DC power input

Safety & Warnings

This product is intended to be installed and serviced by a qualied licensed electrician. Install in accordance with the

National Electric Code, and local regulations. Disconnect power before installing or servicing. Only power with a

regulated (listed) constant voltage Class 2 power supply (12-24V DC).

magnetic dimmable power source(driver).

Ensure applicable wire is installed between driver, xture, and any controls in between. When choosing wire, factor in

voltage drop, amperage rating and type (in-wall rated, wet location rated, etc.). Inadequate wire installation could

overheat wires and cause re.

This product is rated for indoor installation and only for dry locations. Avoid direct sun light.

Do not modify this product beyond the instructions in this guide or the warranty will be voided.

Wiring diagrams in this installation guide for basic installations. Please carefully review your installation before

proceeding.

1. Product Features:

Flicker free in 30K PWM frequency, can be used for lm making.

Master & decoder mode, RDM function.

24 Channel DMX 512 decoder.

24 channels can be set as same DMX address or different DMX address via digital display.

Multiple DMX in/out ports: RJ 45, XLR and terminal blocks.

12 PWM output channels, common anode.

8 bit and 16 bit PWM output resolution ratio.

500Hz~30KHz output PWM frequency.

0.1~9.9 gamma value dimming curve.

Galvanic isolation.

2. Product Parameter:

Input Voltage

Output Current

Output Power

Dimension

1/8

Copyright © 2017 HUEDA™ LED, A division of LED World Inc.. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).

2xRJ45 terminal:

DMX512 signal input & output

DC 12V~DC 24V (Use only with Class 2 regulated Power supply)

24 x 4A

24 x (48~96)W

L 264.5 x W 83 x H 42mm (L 10.41" x W 3.26" x H 1.65")

HUEDA™ LED | CALGARY, AB | CANADA

XLR3

DMX512 signal input & output

Never use this product with dimmable or

HUEDA LED

www.huedaled.com

Table of Contents

Need help?

Do you have a question about the SR-2108B-24M-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for HUEDA LED SR-2108B-24M-3

Page 1 HUEDA LED HUEDA™ 24CH RDM DMX512 Decoder www.huedaled.com Model : SR-2108B-24M-3 Before you begin, read all warnings and installation instructions and save for future use. XLR3 DMX512 signal input & output 2xRJ45 terminal: DMX512 signal input & output 12-24V DC power input Safety &...
Page 2 | 1-800-387-4081 SR-2108B-24M-3 DMX512 Decoder 3. Product Dimension: 264.6mm (10.41”) 4. Operation: Digital DMX address panel Back Enter Down Set the device mode to Master or Decoder mode. = DMX Decoder mode , = DMX Master mode(stand alone). Click Down button until run1 or run2 displayed on display, then click Enter. Click Down button to choose run1 or run2, then click Back button.
Page 3 | 1-800-387-4081 SR-2108B-24M-3 DMX512 Decoder 5. RGB LED xture connection diagram: RGB LED Lighting Fixtures DMX/RDM Signal DMX/RDM Signal Output Port Single Color LED xture CCT LED xture RGB LED Fixture RGBW LED Fixture Warning: Input voltage must be identical to output voltage of the LED Fixture! WIRE 6-8 MM (0.25-0.30")
Page 4 | 1-800-387-4081 SR-2108B-24M-3 DMX512 Decoder 6. Wiring with Master controller: Option 1: DMX Master Controller Warning RJ45 Splice Cable wrong correct Wiring Connections White/Orange Data + Orange Data - Brown Ground class2 power input White/Blue VDC + Make sure that...
Page 5 | 1-800-387-4081 SR-2108B-24M-3 DMX512 Decoder 7. DMX/RDM terminal connection options 1. XLR-3 parallel connection XLR-3 RJ45 V- V- V+ V+ V- V- V+ V+ V- V- V+ V+ XLR-3 RJ45 XLR-3 RJ45 2. RJ45 parrallel connection XLR-3 RJ45 V- V- V+ V+...
Page 6 | 1-800-387-4081 SR-2108B-24M-3 DMX512 Decoder 12. Output dimming curve gamma value setting: Select menu and then click button “Enter”, Display will ash, then click or hold button “Up or Down” to choose between 0.1~9.9. Click button “Back” to conrm.
Page 7 | 1-800-387-4081 SR-2108B-24M-3 DMX512 Decoder DMX address is 001, CH24 DMX Console Slider number dp1.1 dp2.1 dp3.2 dp3.4 dp4.3 dp5.3 dp5.4 dp6.4 dp8.6 dp9.6 DMX channel output 1 output 1 output 1&2 output 1&2 output 1&2 output 1&2 output 1&2 output 1&2...
Page 8 | 1-800-387-4081 SR-2108B-24M-3 DMX512 Decoder 14. Compatible Master Color Controllers and Controllers/Receivers RGBW Handheld Remote Master Color HUEDA™ Hub HUEDA™ (H-2819S) Controller (H-2818WIN) (LW-2814DMX) IOS app available IOS app available Controllers/Receivers RF RGBW Receiver (H-R009PD) *Requires HUEDA™ Hub (H-2818WIN)
