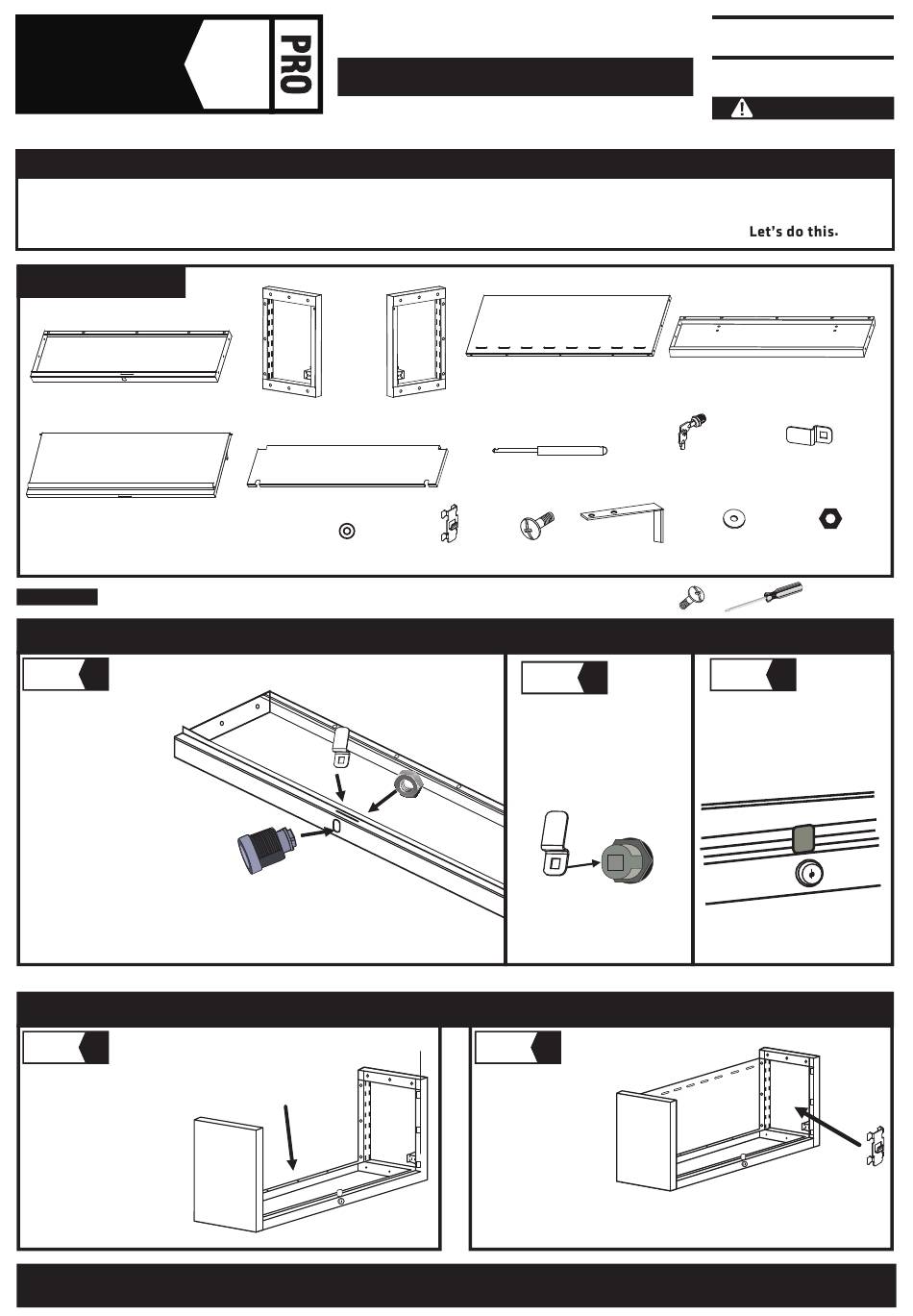

RACK IT PRO 01905 Assembly Instructions

RACK
YOUR HEADACHE-FREE GUIDE TO RACK IT LIKE A BOSS
You've got this. We know because you take pride in your passions. Take care of your stuff. That's why you purchased this Rack It PRO
Overhead Storage Unit. You're particular. And we like that. Because we know you'll take the time to check off all the Parts listed below
and to read through these Assembly Instructions before you start. Cue Farnsey (or Beyoncé – whatever lifts you).
HOUSING PARTS:
OUTER DRAWER HOUSING
PART A - BOTTOM PANEL x 1
PART F - DOOR x 1
PLEASE NOTE: If using an electric screwdriver only loosely tighten screws, finish tightening with hand screwdriver to avoid damage.
STEP 1
Remove the Lock Nut from
the Lock Barrel (I) – the bit
where the keys go – and
slide the Barrel through the
Hole in your Bottom Panel
(A). Ever-so-slightly start
the Lock Nut back onto the
Barrel thread.
Store those keys away from prying eyes, it's time to build this thing!
STEP 1
Place your Bottom panel (A)
on a flat surface, and screw
fix the Right and Left Side
Panels (B & C).
MADE IN CHINA | DISTRIBUTED BY:
Zenexus (AUS) Ph. 1300 734 714 Zenexus (NZ) Ph. 0800 443 058
OVERHEAD STORAGE UNIT
IT
ASSEMBLY INSTRUCTIONS
ITEM CODE: 01905
PART B - RIGHT SIDE PANEL x 1
PART G - SHELF x 1
PART K - DOOR PIN
RUBBER WASHER x 2
Lock Tongue
Lock Barrel
Screw holes at the
back of Bottom Panel
C
A
PART D - BACK PANEL x 1
PART C - LEFT SIDE PANEL x 1
PART H - GAS LIFT STRUTS x 2
PART L PART M
M6 SCREW X 32
SHELF SUPPORT x 4
STAGE 1: LOCK IT
STEP
Insert the Lock Tongue (J)
through the Slot in Bottom Panel
(A) and fit the Square Tongue
Lock Nut
Hole onto the Square Lock
Spindle on the end of the Barrel.
STAGE 2: BOX IT
STEP 2
Screw fix on your Back
panel (D), then fit the 4x
Shelf Supports (L) into the
vertical Tracks located in
B
each corner of the Unit.
Hot tips:
Count the number of Track Slots up from the bottom to ensure each Shelf Support is in line
with its mates. You'll thank us later.
AUSTRALIA: RACK-IT.COM.AU
TOOLS REQUIRED: Phillips Head
Screwdriver
WARNING: HANDLE CUT METAL
EDGES CAREFULLY
SAFETY TIP
When assembling or installing this product
wear protective gloves and eyewear
PART E - TOP PANEL x 1
PART I - ASSEMBLY LOCK x 1
PART O
M6 WASHER x 8
PART N - MOUNTING
BRACKET X 2 (for Mounting Bracket)
+
STEP
2
Finish tightening the Locking
Nut onto the Barrel and, voila!
It's now time to check your
Locking mechanism works (as
shown) with the keys provided.
D
NEW ZEALAND: RACK-IT.CO.NZ
PART J - LOCK TONGUE x 1
PART P
M6 NUT x 4
(for Mounting Bracket)
3
Part L x 4
