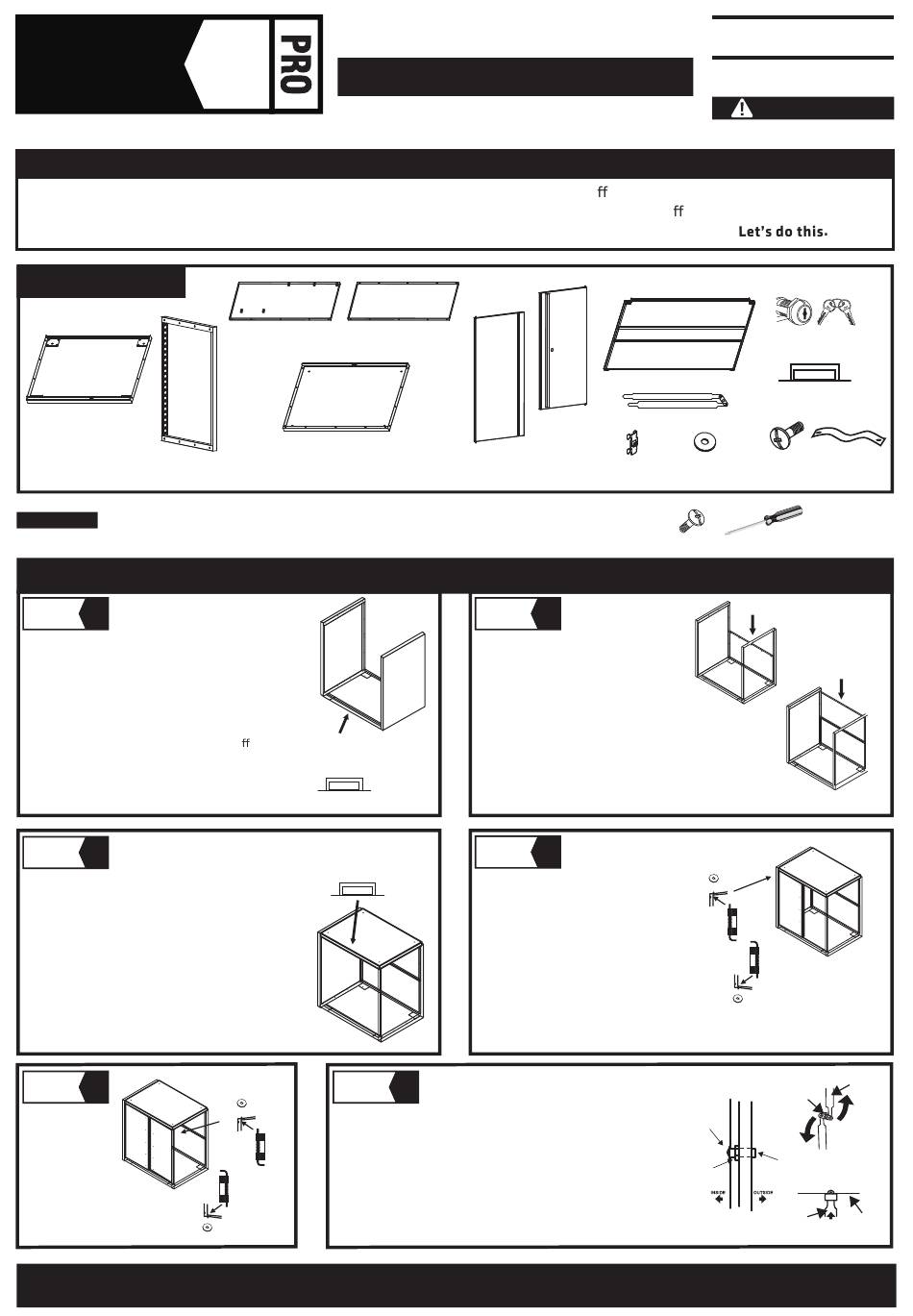

RACK IT PRO 01902 Assembly Instructions

RACK
YOUR HEADACHE-FREE GUIDE TO RACK IT LIKE A BOSS
You've got this. We know because you take pride in your passions. Take care of your stu . That's why you purchased this Rack It Pro
2 Door Cabinet. You're particular. And we like that. Because we know you'll take the time to check o all the Parts listed below and
to read through these Assembly Instructions before you start. Cue Farnsey (or Beyoncé – whatever lifts you).

CABINET PARTS:

A
B
PART A - BOTTOM PANEL x 1
PART B - SIDE PANEL x 2
PLEASE NOTE: If using an electric screwdriver only loosely tighten screws, finish tightening with hand screwdriver to avoid damage.
STEP 1
Your cabinet starts here.
With Bottom Panel (A).
Like the foundations of a house.
So when you're fixing on Side Panels (B),
think: do I want to rush the foundations?
The answer is, of course, no way.
Start on a flat surface. Once you've screwed o
your Side Panels, fit one Magnetic Door Latch (L)
into the pre-punched hole at the front.
Hot tip:
Make sure the Pre-Punched Screw Holes on Bottom Panel (A) are to the back.
STEP 3
You've only just started and it's already time
to attach your roof. As you screw your Top panel (D)
in place be sure to check the hole for your Magnetic
Door Latch is at the FRONT of the cabinet.
Fit the other Magnetic Door Latch (L)
and you're done.
STEP 5
Repeat Step 4
with your Right
F
Hand Door.
Bottom Hinge Pin
MADE IN CHINA | DISTRIBUTED BY:
Zenexus (AUS) Ph. 1300 734 714 Zenexus (NZ) Ph. 0800 443 058
2 DOOR CABINET
IT
ASSEMBLY INSTRUCTIONS
ITEM CODE: 01902
C1
PART C1 - BACK PANEL x 1 PART C2 - BACK PANEL x 1
D
PART D - TOP PANEL x 1
B
A
PART L
MAGNETIC
DOOR LATCH
PART L
MAGNETIC
DOOR LATCH
D
STEP
Top Hinge Pin
J
Grab your Locking Bars (H) and open them out (as shown in image 6A).
Insert the Lock Bolt (K) through the hole in your Right Hand Door, with
the Key Slot facing outwards. Secure the central Locking Bolt of your
Locking Bars to the inside of the Lock Bolt (as shown in image 6B).
Secure the inside of the Lock Bolt with the Lock Nut and you can climb
out of your Cabinet cave. Back in your cave! Insert the top and bottom
of your Locking Bars into the Mounts at the top and bottom of the
inside of your Door (as shown in image 6C).
Hot tip:
J
It can be dark in your Cabinet cave so, if you've got one handy, grab a torch.
C2
E
PART F
RIGHT DOOR x 1
PART E
LEFT DOOR x 1

STAGE 1: BOX IT

STEP 2
Grab your 2x Back Panels (C1 & C2). Fix the
bottom of C1 to your Bottom Panel (A).
B
Once C1's screwed in place, you can fix
its buddy C2 on top.
Hot tip:
It's easy to tell C1's bottom from its top because it has 5x M6 Nuts pre-fitted along its Bottom Lip.
STEP 4
Grab your Left Hand Door (E). Fit the
supplied Washers to the Top and Bottom
Hinge Pins, so they sit between the Hinges
and the Cabinet. The Hinge Pins are spring
loaded. Handy, right? Just retract the pins
far enough to slip them into the pre-drilled
holes and your door is on.
Hot tip:
It's easy to tell the Left Hand Door (E) from the Right Hand Door (F) the Right Hand Door (F)
has a hole to fit the Lock.
6
AUSTRALIA: RACK-IT.COM.AU
TOOLS REQUIRED: WRENCH &
SCREWDRIVER (NOT INCLUDED)
WARNING: HANDLE CUT METAL
EDGES CAREFULLY
When assembling or installing this product
wear protective gloves and eyewear
G
F
PART G - SHELF x 2
PART H - LOCKING BAR x 2
PART J - DOOR
PART I - SHELF
SUPPORT x 8 PIN WASHER x 8
+
2. Screw fix
Back Panel C2
Top Hinge Pin
J
Locking
Arm
Centre
Locking nut
Door Side View
NEW ZEALAND: RACK-IT.CO.NZ
SAFETY TIP
PART K - DOOR LOCK & KEYS
PART L - MAGNETIC
DOOR LATCH X 2
PART M - PART N -
SAFETY STRAP
M6 SCREW x 43
1. Screw fix
Back Panel C1
C
C1
C
C2
E
Bottom Hinge Pin
J
Locking
Arm
Locking
Bolt
6A
Lock with Key Slot
6B
facing outside of
door
Top of Door
Locking
6C (Inside)
Arm
