Table of Contents
Advertisement
Quick Links
TABLE OF CONTENTS
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Location of Controls and Components ------------------- 4
3.1. Parts Identification----------------------------------------- 4
3.2. How to use -------------------------------------------------- 6
3.3. Safety--------------------------------------------------------- 8
3.4. How to Assemble / Disassemble ---------------------- 9
3.5. How to Clean ----------------------------------------------10
4 Troubleshooting Guide ----------------------------------------11
5 Disassembly and Assembly Instructions ---------------13
5.1. Rubber Cap, Connector U (lower)--------------------13
5.2. Bottom Plate -----------------------------------------------13
5.3. Power Cord U / Circuit Breaker -----------------------14
5.4. Switch Complete------------------------------------------15
5.5. Switch Complete B ---------------------------------------15
5.6. Motor Complete / Upper Body-------------------------16
Chutney Jar Complete) ---------------------------------17
Model No.
Model No.
Destination :
PAGE
5.8. Lid C (Lid A) ----------------------------------------------- 20
6 Wiring Connection Diagram--------------------------------- 21
6.1. Schematic diagram -------------------------------------- 21
6.2. Wiring diagram-------------------------------------------- 22
7 Exploded View and Replacement Parts List ----------- 23
7.1. MX-AC300 PARTS LOCATION---------------------- 23
7.2. MX-AC300 REPLACEMENT PARTS LIST ------- 24
7.3. MX-AC300 PACKING INSTRUCTION-------------- 26
7.4. MX-AC210S PARTS LOCATION-------------------- 27
7.6. MX-AC210S PACKING INSTRUCTION------------ 30
© Panasonic Corporation 2010 Unauthorized copy-
ing and distribution is a violation of law.
Order Number PHAI1007601CE

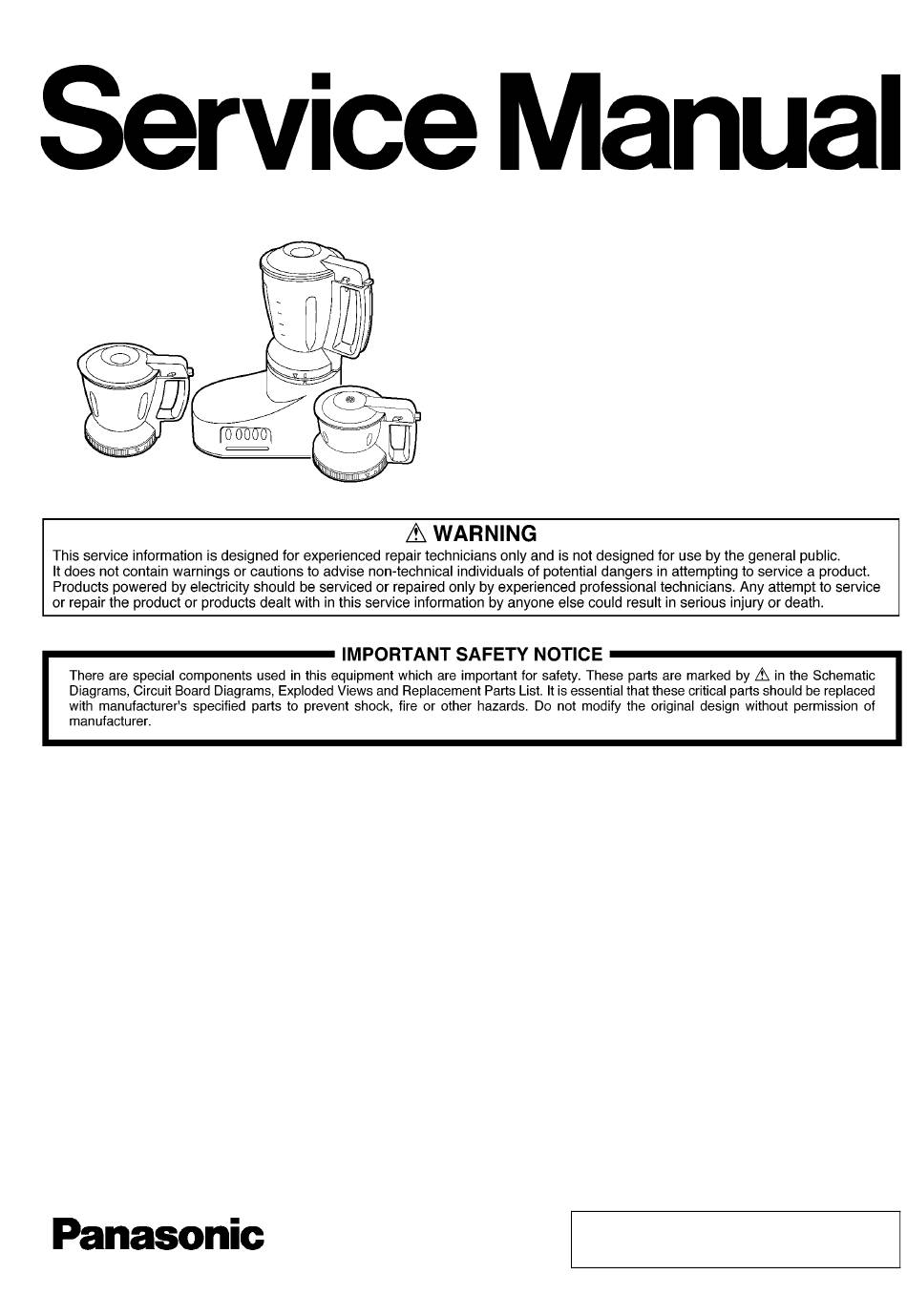

Super Mixer Grinder
MX-AC300WUA
MX-AC210SWUA
PGF , UAE , Sri Lanka , Nepal , Oman ,
Kuwait , Qatar , Fiji
PAGE
Advertisement
Table of Contents
Related Manuals for Panasonic MX-AC300WUA
Summary of Contents for Panasonic MX-AC300WUA
-
Page 1: Table Of Contents
5.4. Switch Complete------------------------------------------15 5.5. Switch Complete B ---------------------------------------15 5.6. Motor Complete / Upper Body-------------------------16 5.7. Blender Jar Complete (Mill Cup Complete / Chutney Jar Complete) ---------------------------------17 © Panasonic Corporation 2010 Unauthorized copy- ing and distribution is a violation of law. -
Page 2: Safety Precautions
1 Safety Precautions... -
Page 3: Specifications
2 Specifications Model No. MX-AC300 MX-AC210S Power Supply 220-240V Power Consumption 340-360W Protection Circuit Breaker Housing Plastic(ABS) Plastic(Polycarbonate) Stainless Steel Mill Jar Stainless Steel Not Available Material Chutney Jar Stainless Steel Plastic(Polycarbonate) Blade Stainless Steel Hard Type Speed Control 3 Speed with 1 Pulse & 1 Off Button(piano Type Buttons) 1.0L(Wet only) Capacity Mill Jar... -
Page 4: Location Of Controls And Components
3 Location of Controls and Components 3.1. Parts Identification... -
Page 6: How To Use
3.2. How to use... -
Page 8: Safety
3.3. Safety... -
Page 9: How To Assemble / Disassemble
3.4. How to Assemble / Disassemble... -
Page 10: How To Clean
3.5. How to Clean... -
Page 11: Troubleshooting Guide
4 Troubleshooting Guide... -
Page 13: Disassembly And Assembly Instructions
5 Disassembly and Assembly Instructions For assembly, refer to the Assembly Instructions, and perform the procedures in the opposite order of disassembly. 5.1. Rubber Cap, Connector U (lower) 1. Remove Rubber Cap 2. Turn the Nut clockwise, and remove it. 3. -
Page 14: Power Cord U / Circuit Breaker
5.3. Power Cord U / Circuit Breaker 1. Remove the Screw (4x10) which fixes the Motor Com- Assembly Instructions Attach the Lead Wire to the Circuit Breaker, and set plete, and remove the Lead Wire (Yellow). Insulation Tubes firmly. 2. Move the 2 Insulation Tubes from the Circuit Breaker, 3. -
Page 15: Switch Complete
5.4. Switch Complete 1. Remove the faston terminal of Lead Wire A (U). 3. Remove the Screw (4x20), and remove the Switch Com- 2. Melt the solder and detach the Lead Wire Yellow, Blue, plete. Red from the Motor Complete. 5.5. -
Page 16: Motor Complete / Upper Body
5.6. Motor Complete / Upper Body 1. Remove the 2 Screws (4x20) 2. Put the body upside-down and remove the Upper Body. 3. Remove the 4 Special Tapping Screws, which fix the Motor Complete, and remove the Motor Complete. Assembly Instructions Add vaseline in 2 hole positions of Seal Cap before assembling into the upper body. -
Page 17: Blender Jar Complete (Mill Cup Complete / Chutney Jar Complete)
5.7. Blender Jar Complete (Mill Cup Complete / Chutney Jar Complete) 1. Set the Spatula to the Cutter assemble, insert the long- nose pliers into the holes of the Connector Insert (upper), turn it as shown in the picture and take out the blade. 2. - Page 18 3. Remove 4 pcs of M4 nuts and the truss tapping screw fixing Handle to Jar(Cup) in order to disassemble Blender Jar Assem- bly, Mill Cup Assembly or Chutney Jar Assembly.
- Page 19 Assembly Instructions a. Apply Silicone Adhesive Sealant(TSE382C) into the screw holes(4 portions) of Cutter Base (U). b. Cutter Base Packing B for Blender Jar is to be set in the correct direction as shown in the figure. the grooves b are to be in alignment with the holes a of Cutter Base Cover.
-
Page 20: Lid C (Lid A)
5.8. Lid C (Lid A) 1. Remove Gasket C (Gasket A) from part "a" of Lid C (Lid Assembly Instructions a. Pay attention to the orientation of Gasket C (Gasket A). Assemble it in the correct orientation. b. Apply cornstarch on Gasket C(Gasket A) after assem- bling it into Lid. -
Page 21: Wiring Connection Diagram
6 Wiring Connection Diagram 6.1. Schematic diagram As shown in the wiring diagram heavy duty motor's yellow wire is connected with low speed switch terminal, blue wire is connected with medium speed switch terminal, red wire is connected with maximum speed switch terminal. Motor black wire is connected to power cord black wire, Power cord green wire is connected to motor body for earth and Red wire is connected to circuit breaker. -
Page 22: Wiring Diagram
6.2. Wiring diagram... -
Page 23: Exploded View And Replacement Parts List
7 Exploded View and Replacement Parts List 7.1. MX-AC300 PARTS LOCATION... -
Page 24: Mx-Ac300 Replacement Parts List
7.2. MX-AC300 REPLACEMENT PARTS LIST Notes:Important safety notice • Components identified by mark have special characteristics important for safety. • " When replacing any of these components use only manufacturer's specified parts." MODEL No.MX-AC300 Pcs/Set Safety Ref. No. Part No. Part Name &... - Page 25 Pcs/Set Safety Ref. No. Part No. Part Name & Description Remarks AC300 AVF94-158 Whipping Plate(U) AVE19-158 Spatula < SMALL STANDARDIZED METAL PARTS > XNG5B M5 Nut(Left) XWG5 5 Washer(Plate Washer) XYN4+C10 Screw XTN4+20B Tapping Screw XST4+8VW Screw XNG4BVW M4 Nut XTT4+12BVW Truss Tapping Screw <...
-
Page 26: Mx-Ac300 Packing Instruction
7.3. MX-AC300 PACKING INSTRUCTION... -
Page 27: Mx-Ac210S Parts Location
7.4. MX-AC210S PARTS LOCATION... -
Page 28: Mx-Ac210S Replacement Parts List
7.5. MX-AC210S REPLACEMENT PARTS LIST Notes:Important safety notice • Components identified by mark have special characteristics important for safety. • " When replacing any of these components use only manufacturer's specified parts." MODEL No.MX-AC210S Pcs/Set Safety Ref. No. Part No. Part Name &... - Page 29 Pcs/Set Safety Ref. No. Part No. Part Name & Description Remarks AC210S XNG4BVW M4 Nut < PACKING SPECIFICATIONS > AVZ01Y225 Inner Carton AVZ03-193 Bottom Pad A AVZ02-193 Top Covering Pad A AVZ04-193 Pad For Mill Cup AVZ50Y193 Oprerating instructions AVZ51-193 Warranty Card AVZ57-193 Branch Address List...
-
Page 30: Mx-Ac210S Packing Instruction
7.6. MX-AC210S PACKING INSTRUCTION...
