NuTone 704301 Installation Instructions Manual

704301 MERIDIAN 15 x 25 Frameless 1/2" Bevel Mirror
704317 MERIDIAN 15 x 25 Frameless 1/2" Polished Edge Mirror
704309 MERIDIAN 15 x 35 Frameless 1/2" Bevel Mirror
704325 MERIDIAN 15 x 35 Frameless 1/2" Polished Edge Mirror
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be followed, including the
following:
Read all instructions before using this powered cabinet.
WARNING -
To reduce the risk of burns, fire, electric shock, or injury to
1. Close supervision is necessary when this furnishing is used by, or near children,
invalids, or disabled persons.
2. Use this furnishing only for its intended use as described in these instructions. Do not
use attachments not recommended by the manufacturer.
3. Do not use outdoors.
4. Never operate this furnishing, if it is not working properly, if it has been dropped or dam-
aged, or dropped into water. Return the cabinet to the place of purchase for examination
and
replacement or repair.
5. Before wiring the receptacle to the power supply, turn off the electricity at the circuit breaker
box and lock / tag to prevent power from being switched on accidentally.
6. Installation work and electrical wiring must be done by qualified person(s) in accordance
with all applicable codes and standards. Connect with copper or copper-clad wire only.
7. The receptacle in this cabinet must be grounded properly.
This cabinet is rated 120 Volt, 16 AMP, 60 Hz and is for Household / Residential Use Only
CABINET INSTALLATION
1. Carefully remove packaging materials. Hardware, shelves,
receptacle, and door are located within the various packing
materials. Place hardware packages, shelves, GFCI receptacle,
and door aside until needed.
2. Determine desired location of cabinet on wall. Mark wall to show
wall opening size (see dimensions above). Generally, the
recommended height to the center of the cabinet Is 64" from the
floor (Fig. 1).
628048
MODELS
persons:
SAVE THESE INSTRUCTIONS
INSTALLATION INSTRUCTIONS
RECESSED MOUNTED CABINET
WITH GFCI RECEPTACLE

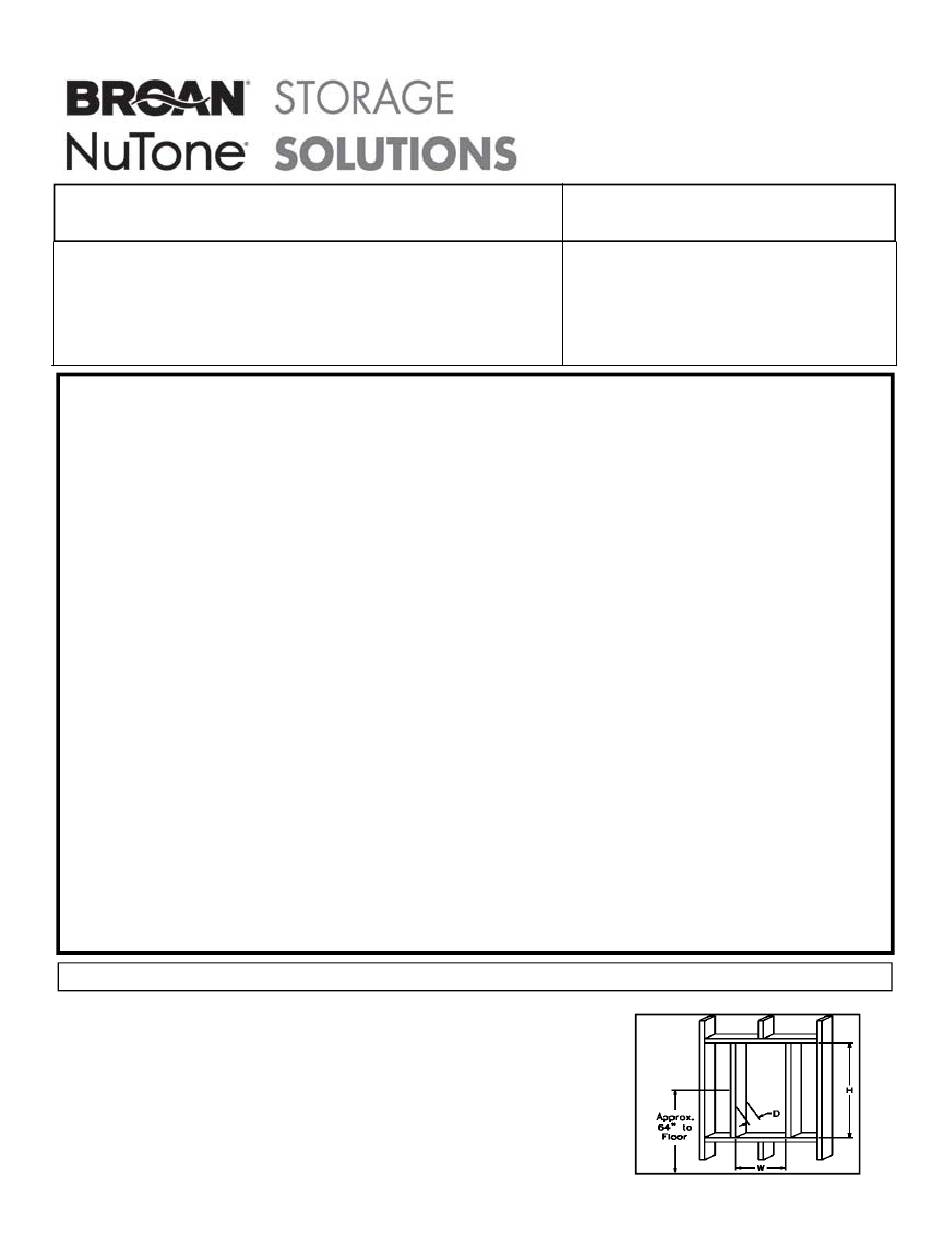

Wall Opening Dimensions
W
14-1/4" 24"
14-1/4" 24"
14-1/4" 34"
14-1/4" 34"
Fig. 1
H D
4"
4"
4"
4"
1
