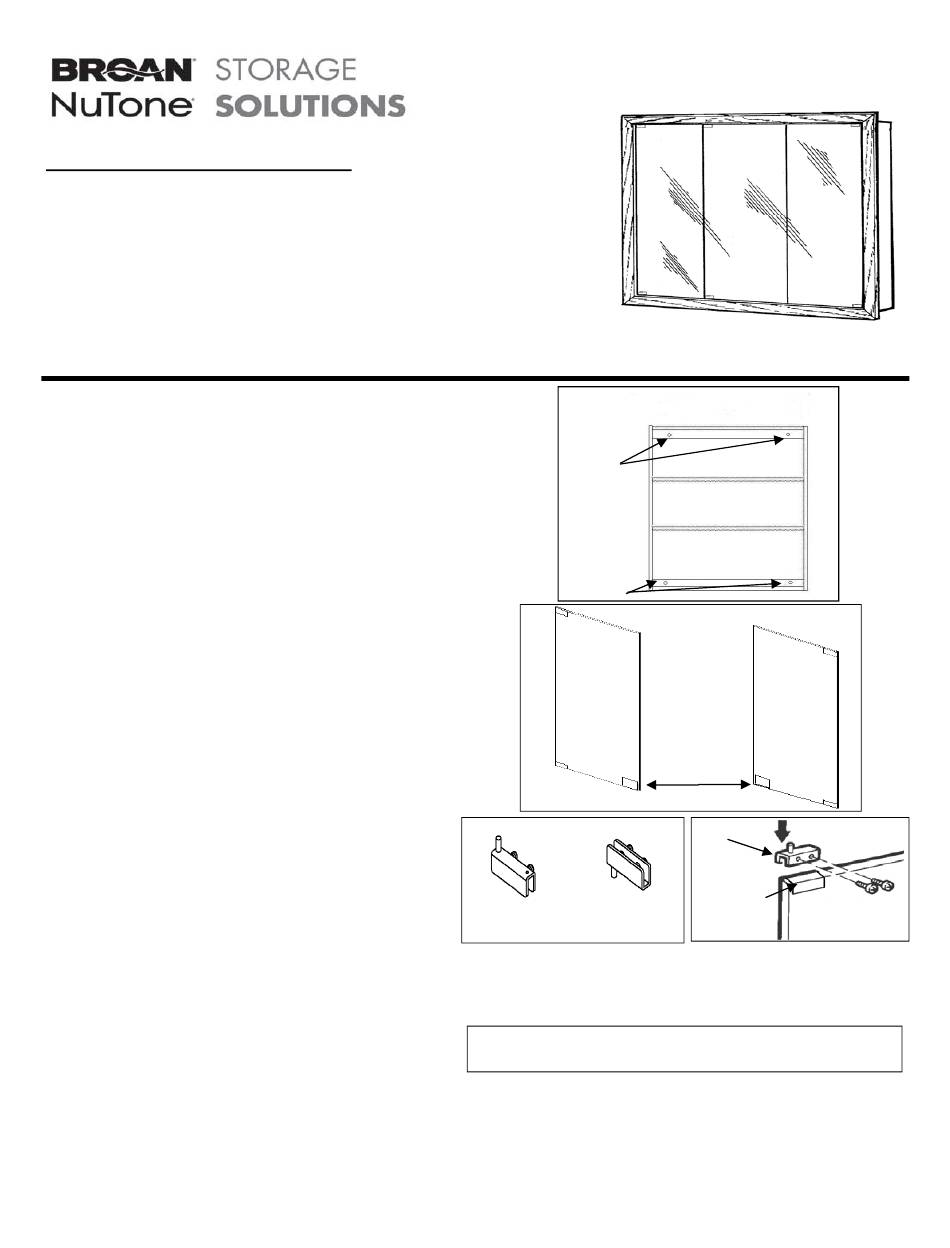

NuTone 740589 Instructions For Wall-Mount Installations

MODEL NO. SIZE
740589 24" x 24"
740957 30" x 26"
740605 36" x 30"
740613 48" x 30"
740621 24" x 24"
740639 30" x 26"
740647 36" x 30"
740655 48" x 30"
INSTRUCTIONS FOR WALL-MOUNT INSTALLATIONS

Prepare cabinet

1. Carefully remove all packing material. Place hardware
package and doors aside until needed.

Determine location

1. The commonly accepted height of bath cabinets is 64"
from the finished floor to the center of the mirror area.
However, height may be adjusted to individual
preference.
2. For maximum security, mount cabinet directly to wall
studs.

Mount cabinet

NOTE: For ease of installation, the assistance of one or two
additional persons is recommended.
1. Measure and mark four (4) mounting holes on the wall
corresponding to the pre-drilled hole locations in the
mounting bars on the inside back panel of the cabinet.
(FIG 1) Draw horizontal lines connecting the two top and
two bottom marked locations. The lines should be level.
Adjust to level if necessary. Repeat this process with
vertical lines connecting the two left and two right
marked hole locations. After insuring the marks are
level, verify the mounting holes in the cabinet back
match the marked wall locations.
2. Drill 9/64" diameter holes at the marked locations on the
wall. If mounting holes are not located at a stud, the hole
diameter, in the wall, must be increased to accommodate
wall anchors. Position wall anchors as required.
3. Hold cabinet in place and make sure it is level.
4. Attach the cabinet to the wall with the four mounting
screws from the hardware pack.
NOTE: Do not use nails to mount the cabinet.
NOTE: Irregularities in wall surface may cause distortion of
cabinet body when mounted. Place shims between
cabinet and wall as necessary.

Attach mirror door

NOTE: For ease of door assembly the assistance of an
additional person is recommended.
1. Identify and separate the doors by type (B or C).
Although the mirror doors appear to be identical, there
are two door configurations. The doors are left or right
side locations by the striker plate on the door backs.
(FIG 2) Position the door with the striker plate at the
bottom.
628033A
FINISH
White
White
White
White
Oak
Oak
Oak
Oak
Register your product online at www.NuTone.com
FIG 1
Top
Mounting
Holes
Bottom
Mounting
Holes
Back View
of Door
"C"
(2 EA)
FIG 3
Pivot Hinge
Pivot Hinge
type "d" (3 EA)
type "c" (3 EA)
2. Remove the six pivot hinges from the hardware bag. There
are two hinge configurations. Separate hinges into two sets
of three based on the pin direction and screw locations.
(FIG 3)
CAUTION: Do not over tighten the set screws. Screws
turned down too tight will break the mirror.
3. Slide a pivot hinge type "d" over pressure pad at the top of
door type "C". Lightly tighten the two screws to keep the
hinge in place. (FIG 4) Repeat this process for the second
door type "C".
4. Place a pivot hinge type "c" over the pressure pad at the top
of door type "B". Lightly tighten the screws to keep hinge in
place.
GRANVILLE CABINET
Cabinet Back
Inside View
(without doors)
FIG 2
Back View
of Door
"B"
(1 EA)
Striker
Plates
Pivot Hinge
Hinge
Pressure
Backside of
Pad
Mirror Door
FIG 4
1
