Delta Electronics RPA-01 Assembling Instructions

DELTA ELECTRONICS, INC
RPA-01 REMOTE PANEL ADAPTER

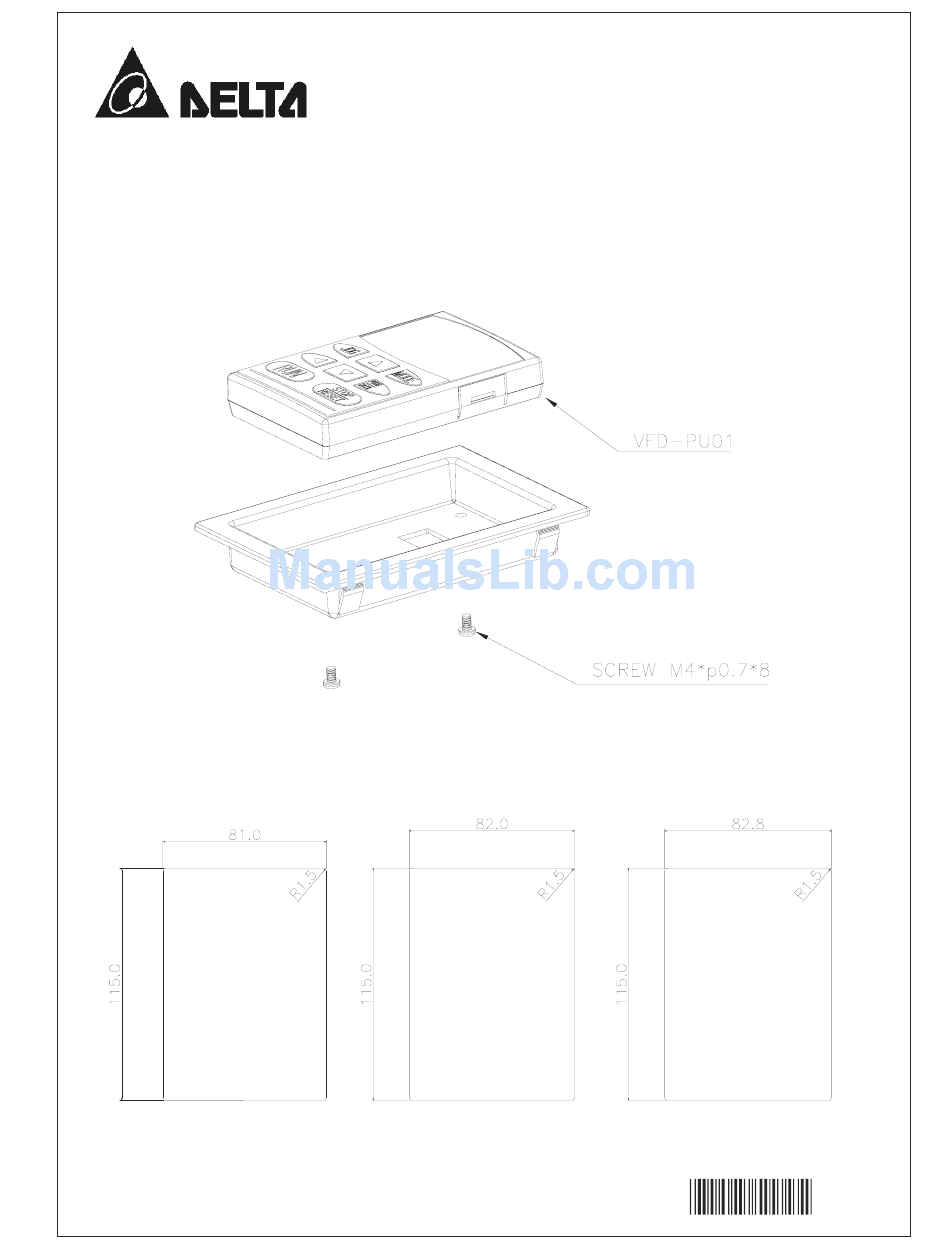

FOR VFD-PU01Assembling Instruction
It is recommended to drill a hole according to the height of the keypad.
t = 1.6 mm to 2.0 mm
t = 2.2 mm to 3.0 mm
t = 1.0 mm to 1.4 mm
5011607600
RP01
