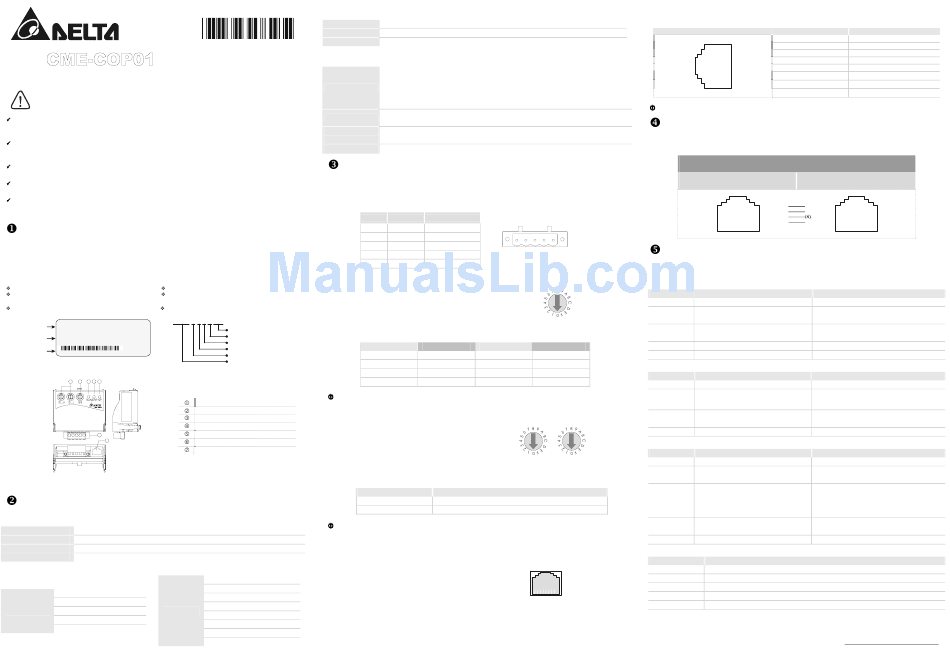

Delta Electronics CME-COP01 Instruction Sheet

http://www.delta.com.tw/industrialautomation/
CANopen Network Adapter
Instruction Sheet
Warning
This instruction sheet only provides descriptions on electricalspecifications, general specifications, installation and
wiring and is only an introductory guide to CME-COP01. For more informaion on CANopen protocol, please refer to
relevant literature.
CME-COP01 is an OPEN TYPE controller and therefore should be installed in an enclosure free of airborn dust,
humidity, electric shock and vibration. The enclosure should protect non-maintenance staff from operating the device
(e.g. key or specific tools are required to open the enclosure) in case danger and damage on the device may occur.
CME-COP01 is for controlling the machine and equipment in operation. In order not to damange it, please allow only
qualified staff who is familiar with the structure and operation of it to intall, operate, wire and maintain it.
Please read this instruction carefully and follow this instruction to operation the device in order to prevent damages on
the device or injuries to staff.
DO NOT connect input AC power supply to any of the input/output terminals; otherwise serious damage may occur.
Check all the wiring again before switching on the power and DO NOT touch any terminal when the power is switched
on.
Introduction
1.1 Model Explanation
Thank you for choosing Delta CME-COP01 CANopen communication module. CME-COP01 is specifically for
connecting to CANopen communication module of Delta VFD-E AC motor drive.
Functions of CME-COP01:
Supports Process Data Objects (PDO) Protocol Supports Special Object Protocols (SOP)
Supports Service Data Object (SDO) Protocol Supports Network Management (NMT) Protocol
Nameplate Explanation Serial No. Explanation
COP01 00 T 6 16 0001
MODEL:CME-COP01
Model name
USED ON:VFD-E SERIES
VERSION:XX.XX
Firmware version
Barcode & series No.
CMECOP01T6160001
MADE IN XXXXXX
1.2 Product Profile
7 6 3 4 5
2
1
Unit: mm

Specifications

CANopen Connection
Interface Pluggable connector (5.08mm)
Transmission method CAN
Transmission cable 2-wire twisted shielded cable
Electrical isolation 500V DC
Communication
Process Data Objects (PDO)
Service Data Object (SDO)
Baud rate
Message type Synchronization (SYNC)
Emergency (EMCY)
Network Management (NMT)
2006-09-21
Product code
Device type
Vendor ID
5011648700-MPE0
Environmental Specifications
Noise Immunity
Environment
Vibration / Shock
Resistance
Certifications
Components
3.1 Pin Definition on CANopen Connection Port
To connect with CANopen, use the connector enclosed with CME-COP01 or any connectors you can buy in the
store for wiring.
Pin
1
2
3
4
5
3.2 Baud Rate Setting
Rotary switch (BR) sets up the communication speed on
CANopen network in hex. Setup range: 0 ~ 7 (8 ~F are
forbidden)
Production series Example: If you need to set up the communication speed of CME-COP01 as 500K, simply switch BR to "5"
Production week
Production year (2006)
BR Value
Production plant (Taoyuan)
Serial number of version
Production Model
The changed communication speed of CANopen is only valid when CME-COP01 is re-powered. When CME-COP01 is
COM port
operating, changing the set value of communication speed is invalid.
CANopen connection port
3.3 MAC ID Setting
RUN indicator
ERROR indicator
SP (Scan Port) indicator
Rotary switches (ID_L and ID_H) set up the Node-ID on
Baud rate switch
CANopen network in hex. Setup range: 00 ~ 7F (80 ~FF
Address switch
are forbidden)
Example: If you need to set up the communication address of CME-COP01 as 26(1AH), simply switch ID_H to
"1" and ID_L to "A".
Switch Setting
The changed values on ID_H and ID_L are only valid when CME-COP01 is re-powered. When CME-COP01 is
operating, changing the address is invalid.
3.4 CME-COP01 Connector
10 Kbps
20 Kbps
50 Kbps
125 Kbps
250 Kbps
500 Kbps
800 Kbps
1 Mbps
Delta VFD-E AC motor drive 22
402
477
ESD(IEC 61131-2, IEC 61000-4-2): 8KV Air Discharge
EFT(IEC 61131-2, IEC 61000-4-4): Power Line: 2KV, Digital I/O: 1KV,
Analog & Communication I/O: 1KV
Damped-Oscillatory Wave: Power Line: 1KV, Digital I/O: 1KV
RS(IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m
Operation: 0°C ~ 55°C (Temperature), 50 ~ 95% (Humidity), Pollution degree 2;
Storage: -40°C ~ 70°C (Temperature), 5 ~ 95% (Humidity)
Standard: IEC1131-2, IEC 68-2-6（TEST Fc/IEC1131-2 & IEC 68-2-27 (TEST Ea)
Standard: IEC 61131-2,UL508
Signal Content
CAN_GND Ground / 0 V / V-
CAN_L Signal-
SHIELD Shield
1 2 3 4 5
CAN_H Signal+
- Reserved
BR
Baud rate BR Value Baud rate
0 10K 4 250K
1 20K 5 500K
2 50K 6 800K
3 125K 7 1M
ID_H
Content
0 ... 7F Valid CANopen MAC ID setting
Other Invalid CANopen MAC ID setting
PORT
The communication port of CME-COP01 is used for
connecting with Delta VFD-E AC motor drive.
3.4.1 COM PORT
Port Pin Definition
PORT Sketch
1
2
3
4
5
6
7
8
The communication port supports RS-485/Modbus communication only.
Connecting CME-COP01 with VFD-E
When CME-COP01 communicates with VFD-E through PORT, the power of CME-COP01 is supplied by VFD-E.
See the figure below for the wiring of connection.
(Using standard cable with RJ-45 connectors at its two ends is suggested)
CME-COP01
RJ-45 (RS-485)
8 7 6 5 4 3 2 1
LED Indicator Explanation & Troubleshooting
There are 3 LED indicators, RUN, ERROR and SP, on CME-COP01 to indicate the communication status of
CME-COP01.
5.1 RUN LED
LED Status State
OFF No power
Single Flash
STOPPED
(Green)
Blinking
PRE-OPERATIONAL
(Green)
Green ON OPERATIONAL
Red ON Configuration error
5.2 ERROR LED
LED Status State
OFF No error
Single Flash
Warning limit reached
(Red)
Double Flash
Error control event
(Red)
Red ON Bus-off
5.3 SP LED
LED Status State
ID_L
OFF No Power
LED Blinking
CRC check error
(Red)
Red ON Connection failure/No connection
LED Blinking
CME-COP01 returns error code
(Green)
Green ON Normal
5.4 LED Descriptions
State
LED ON Constantly on
LED OFF Constantly off
LED blinking Flash, on for 0.2s and off for 0.2s
LED single flash On for 0.2s and off for 1s
LED double flash On for 0.2s off for 0.2s, on for 0.2s and off for 1s
The content of this instruction sheet may be revised without prior notice. Please consult our distributors or
Terminal No. Description
1 N.C.
2 N.C.
3 N.C.
4 DATA+
5 DATA-
6 GND
7 V+
8 N.C.
RS-485 Communication
VFD-E
RJ-45 (RS-485)
V+ (7) (2) V+
GND (6)
(3) GND
DATA- (5) DATA-
DATA+ (4) (5) DATA+
8 7 6 5 4 3 2 1
Indication
No power on CME-COP01 card
CME-COP01 is in STOPPED state
CME-COP01 is in the PRE-OPERATIONAL state
CME-COP01 is in the OPERATIONAL state
Node-ID or Baud rate setting error
Indication
CME-COP01 is working condition
At least one of error counter of the CANopen
controller has reached or exceeded the warning
level (too many error frames)
A guard event or heartbeat event has occurred
The CANopen controller is bus-off
Indication
No power on CME-COP01 card
Check your communication setting in VFD-E
drives (19200,<8,N,2>,RTU)
1. Check the connection between VFD-E drive
and CME-COP01 card is correct
2. Re-wire the VFD-E connection and ensure
that the wire specification is correct
Check the PLC program, ensure the index and
sub-index is correct
Communication is normal
Description
download the most updated version at http://www.delta.com.tw/industrialautomation
