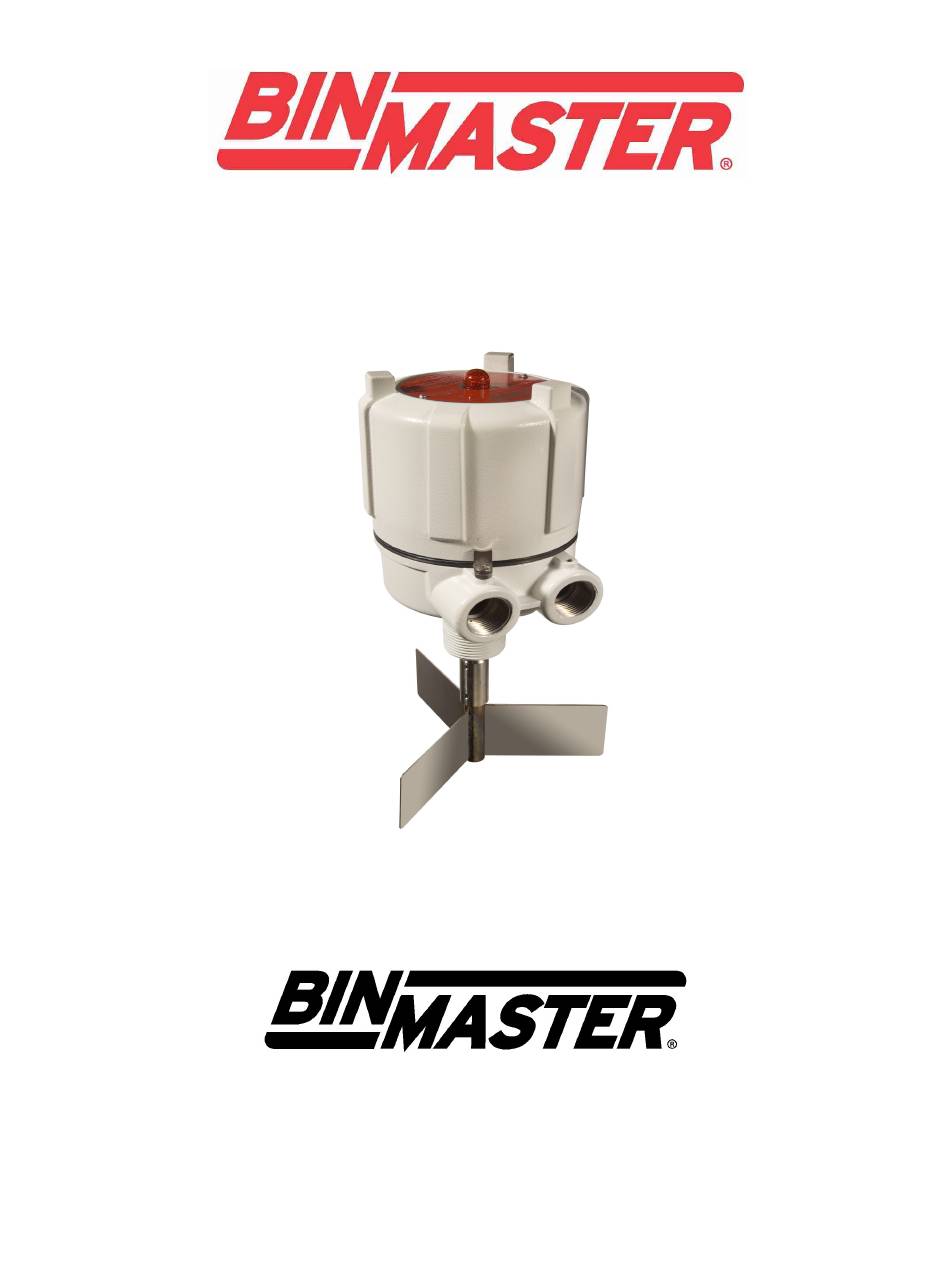

- Page 1 MAXIMA+ Series ROTARY LEVEL CONTROL OPERATING INSTRUCTIONS PLEASE READ CAREFULLY Division of Garner Industries 7201 North 98th Street Lincoln, NE 68507-9741 (402) 434-9102 925-0293 Rev E...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL SPECIFICATIONS ....................3 SAFETY SUMMARY......................4 INTRODUCTION....................... 5 INSTALLATION ......................... 5 2.1 Location and Mounting .................... 5 2.2 Input Power and Field Wiring .................. 6 2.3 Grounding........................ 7 RELAYS ..........................7 3.1 DPDT Relay ......................7 3.2 Fail-Safe High...................... -
Page 3: General Specifications
MAXIMA+ GENERAL SPECIFICATIONS Supply: AC MODEL 24/115/230 VAC 50/60 Hz (selectable) DC MODELS 12 VDC to 24 VDC Supply Tolerance: -15% +10% Load: AC Model = 8 VA; DC Models = 4 VA External Overcurrent Protection: 10A Max Ambient Temperature: (Electronics) -40°... -
Page 4: Safety Summary
SAFETY SUMMARY Review the following safety precautions to avoid injury, prevent damage to the equipment and maintain protection methods for hazardous locations. The product should be installed, commissioned, and maintained by qualified and authorized personnel only. Install according to installation instructions and comply with all national and local electrical codes. If this product is used in a manner not specified by the manufacturer, the safety and hazardous location protection could be compromised. -
Page 5: Introduction
INTRODUCTION The Bin-Master Maxima+ is a rotating paddle style level sensor which provides reliable point level detection for bulk solids, including powder, pellet, and granular materials. The unit's status is continually monitored, and it’s fail- safe circuitry will fall to a "safe" condition in the event of a unit failure or power failure. A visual LED continually indicates the sensor’s status, giving a quick visual monitoring of paddle rotation, covered condition or fault condition. -
Page 6: Input Power And Field Wiring
MOUNTING PLATES Mounting plates are necessary when a completely assembled unit is to be mounted on the bin wall from the out- side. A 5 1/2” hole is cut in the bin. Six bolt holes are drilled around the hole to match the mounting plate. The plate, with the unit attached, is then bolted in place. -
Page 7: Grounding
DC Maxima+ Wiring Figure 7 DC Maxima+ units are available in a 12 to 24 VDC model. 1. Confirm that the DC Maxima+ unit is rated for the DC voltage that is used. 2. Refer the drawing to the right for correct terminal location. -
Page 8: Fail-Safe Low
Fail-Safe Low Fail-Safe Low means that the relay will be de-energized when the paddle is rotating (uncovered) and will energize when the paddle is covered. In this mode, a fault condition or a power failure will cause the relay contacts to indicate that the paddle is uncovered whether it is or not. -
Page 9: Time Delay
In NRM mode, the Status relay will have a connection between the C and the NO terminal. In a Fault condi- tion there will be a connection between the C and NC terminals when using the standard SPDT relay. The Solid State relays are SPST, they do not use the NC terminal. -
Page 10: External Led
The buyer shall have no other remedy. All special, incidental and consequential dam- ages are excluded. The buyer must deliver the product under warranty prepaid to the factory. BinMaster’s obligation is limited to the cost of material and labor to repair or replace, and does not include transportation expenses. -
Page 11: Disposal
reach us via fax at (402) 434-9133. Disposal This product consists of materials that can be recycled by specialized recycling companies. It uses recyclable materials and the electronics is designed to be easily separated. Consult local authorities for proper disposal locations. Repair This product contains no user serviceable parts. -
Page 12: Declaration Of Conformity
Lincoln, NE 68507-9741 Phone: 402-434-9100, Fax: 402-434-9133 BinMaster declares under our sole responsibility that all models of the Maxima+ level control devices listed below comply with the following directives and harmonized standards. This product if installed, operated and main- tained as described in this manual will provide a safe and reliable point level control device for bulk solid materi- als. -
Page 13: Mounting Instructions
Mounting Instructions Always Mount Unit With Conduit opening down Conduit Seal For hazardous locations, an appropriate conduit seal off as per the installation class or zone is required within 18” of the enclosure Division of Garner Industries 7201 No. 98th Street Lincoln, NE 68507 (402) 434-9102...
