Flipper Fidelity FF‐SPK2‐10/3/5‐LE Speaker Installation
Thank you for purchasing the Flipper Fidelity speaker kit for a Stern Pinball machine. This system fill fit Spike 2 Pro and Premium
machines with color LCD displays.

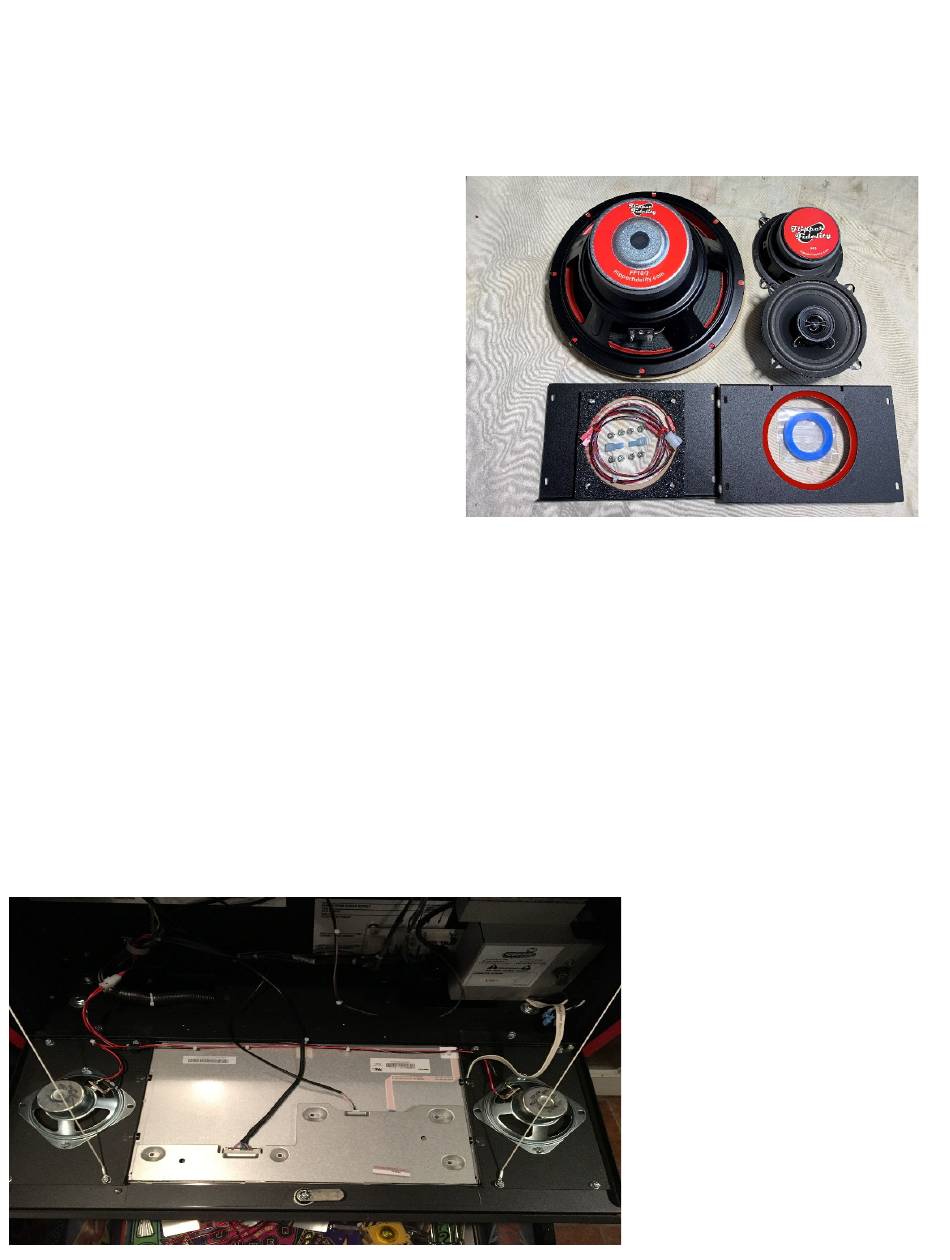

Your kit includes the following:
(1) 10" 3‐way Speaker with Wood Spacer
(2) 5" Speakers with Foam Spacers
(2) Metal Speaker Plates
(2) Red Acrylic Rings
(1) Spike 2 Wiring Harness for use with color display
(4) 1" Hex Head #8 screws for mounting of the woofer
(8) Nylock Nuts
(2) Insulated crimp on spade connectors
(1) Roll of Anti Rattle Tape
Please make sure all parts are present before starting your
installation.
Tools required for kit installation:
1/4" nut driver
5/16" nut driver
Wire terminal crimping tool w/ wire cutter
Note: Use of a drill driver or powered screwdriver is not recommended. Avoid over‐tightening. The fasteners used by Stern, and
those included in this kit, need only be tightened enough to hold the component in place and prevent vibration when in use.
Please allow approximately 30 minutes to install. This kit requires no permanent modification to the machine. You may want to take
photos of your particular machine in the event you wish to accurately restore it to its' original configuration.
Step One – Machine Preparation.
Make sure you have adequate space available to access the front and both sides of the machine. Make sure the machine is turned
off and unplugged from its' power source. To install this kit you will need to remove the translite to access the back box speakers
and their wiring. Woofer installation requires access to the inside of the base cabinet. If you are not familiar with the procedures to
access these areas, i.e. removal of the translite, removal of the playfield glass, and raising the playfield to the service position; please
refer to the Stern owners' manual
Step Two – Remove the back‐box speakers.
First, remove the translite. For safety, I would find a towel to drape across the machine at the top of the glass just in case you drop
something. The speaker/display panel is hinged with stain relief cables. When in the full lowered position is will not hit the glass,
Instructions
(1‐29‐2021
)
even with the key left in the lock.
Remove both lock nuts on each speaker
and place them in a safe place. You will be
reusing this to secure the new speakers.
