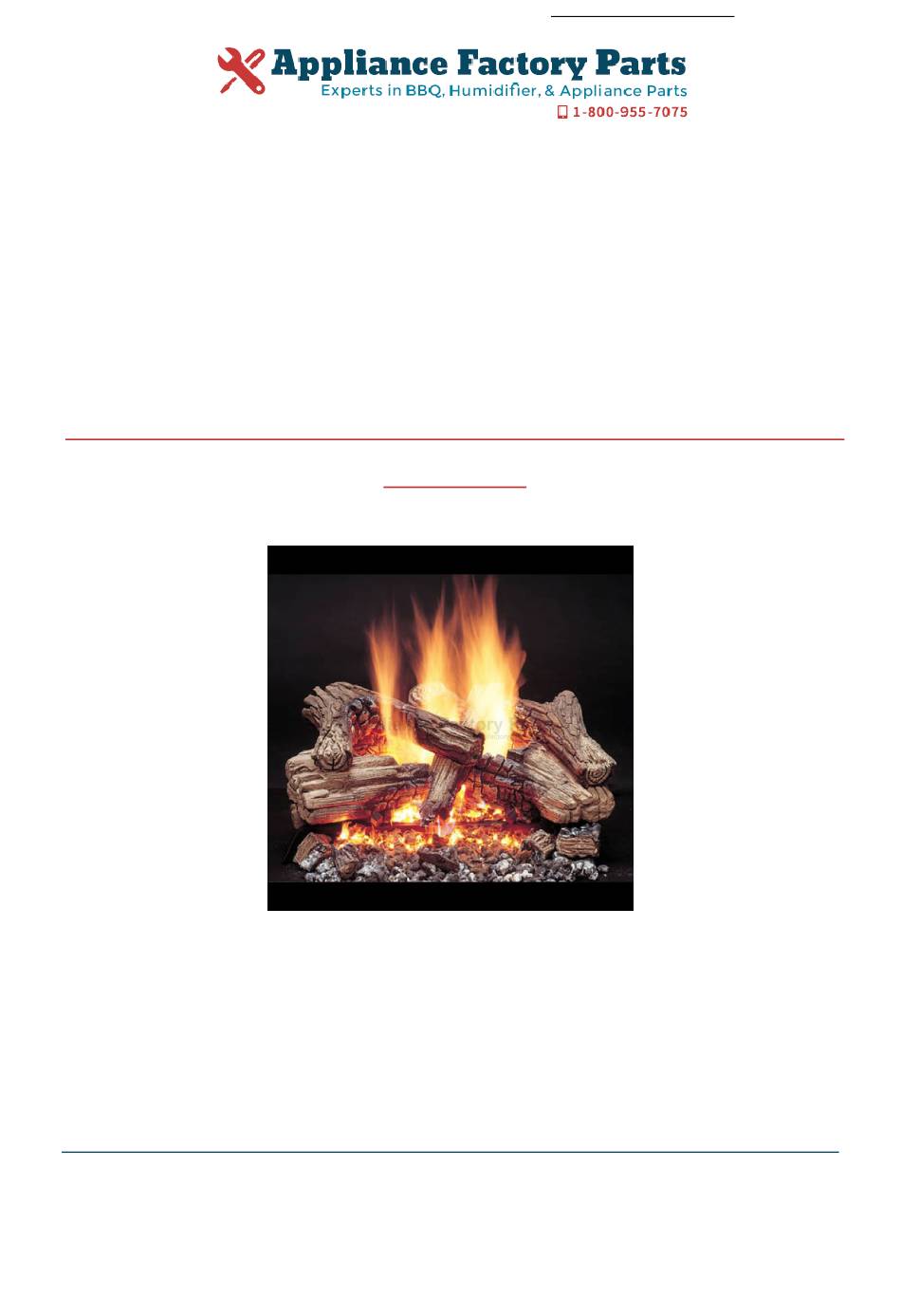

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Monessen Hearth VDY18NM Owner's Manual Shop genuine replacement parts for Monessen Hearth VDY18NM Find Your Monessen Hearth Fireplace Parts - Select From 701 Models -------- Manual continues below part list --------...
- Page 2 Available Replacement Parts for Monessen Hearth VDY18NM 24D0305 REGULATOR-NG 4.0+...
- Page 3 INSTALLATION AND OPERATING INSTRUCTIONS Shown with Log Set VDY30D3R Shown with Shown with Log Set Log Set VDY24/18D2 VDY24/18D4 MODELS: VDY24/18 • VDY30 Natural Gas or Propane/LPG Control Type: Manual or Milli-Volt WARNINGS If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Important Safety Information ......3 Operating Instructions ......... 18 For Your Safety Read Before Lighting ..18 Getting Started ..........4 Manual Control Lighting Instructions ..18 Product Specifications ........5 Milli-Volt Control Lighting Instructions ..19 Safety Instructions for Manual Control without Product/Features Specifications .... -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION INSTALLER OWNER Please leave these instructions with the owner. Please retain these instructions for future reference. IMPORTANT Read these instructions carefully before installing or trying to operate this gas log set. Any modification to this gas log set or its controls can be dangerous. Improper installation or use of the gas log set can cause serious injury or death from fire, burns, explosion or carbon monoxide poisoning. -
Page 6: Getting Started
GETTING STARTED MAKE SURE YOU HAVE RECEIVED ALL PARTS: Check your packing list to verify that all listed parts have been received. You should have the following: BURNER - GRATE ASSEMBLY 24/18, 30 • Burner and Grate Weldment Assembly • Lava Rocks (x2) •... -
Page 7: Natural Gas
PRODUCT SPECIFICATIONS NATURAL GAS Manual Pressure Milli-Volt Pressure Regulator Pressure Setting: 4" w.c. Regulator Pressure Setting: 4.0" w.c. Gas Inlet Pressure: Max. 10 1/2" w.c. Gas Inlet Pressure: Max. 10 1/2" w. c. • Min. 6" w.c. Min. 6" w.c. Model Number Pilot Control Type... -
Page 8: Product/Features Specifications
PRODUCT / FEATURES SPECIFICATIONS MANUAL SERIES (W/ PILOT AND W/O PILOT) Model VDY 24/18 VDY 30 MILLIVOLT SERIES (W/ PILOT) Model VDY 24/18 VDY 30 Figure 1 - Minimum Hearth Dimensions In compliance with IAS U.S. 7-94, ANS Z21.60-1996 • CGA 2.26-M96 and National Fuel Gas Code, Section 6.6 BEFORE INSTALLING THE APPLIANCE: Damper Stop •... -
Page 9: Placement In A Fireplace With A Restrictive Barrier
PLACEMENT IN A FIREPLACE WITH A RESTRICTIVE BARRIER IMPORTANT INFORMATION FOR THE INSTALLATION OF THIS GAS LOG SET The following are guidelines for placing a gas log set in a fireplace that has a restrictive barrier along the bottom front open- ing of the fireplace. -
Page 10: Installation
INSTALLATION PLACING AND SECURING APPLIANCE You must secure the gas log heater to the fireplace floor. Properly securing the grate prevents movement of the entire unit when you adjust the controls. Grate movement could cause a gas leak. ASSEMBLY PROCEDURE 1. -
Page 11: Connecting The Gas
CONNECTING THE GAS NOTICE: A qualified gas appliance installer must connect the appliance to the gas supply. Consult all local codes before installation. Use new black iron pipe, steel pipe, copper tubing, or internally tinned copper tubing. Copper or internally tinned copper tubing can only be used according to the National Fuel Gas Code, section 2.6.3, providing gas meets sulfide limits, and where permitted by local codes. - Page 12 CONNECTING THE GAS The heater gas inlet connection is 3/8" NPT at the regulator, inlet on the right side facing the gas log. If a left side connection is required, the connecting pipe may be led under the rear of the gas logs or behind the grate for connection to the inlet. NOTE: The milli-volt valve has an internal regulator, thus the incoming gas line connects directly to the valve.
-
Page 13: Electrical Wiring (Millivolt)
ELECTRICAL WIRING (MILLIVOLT) Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. THTP Milli-volt Pilot Valve Switch Optional Wall Switch or Remote Reciever Figure 8 - Wiring Diagram The Milli-Volt (thermopile) is a self powered combination gas control that does not require 110VAC to operate. -
Page 14: Log Placement
LOG PLACEMENT LOG PLACEMENT IMPORTANT: Remove logs, handling carefully by holding gently at each end. Gloves are recommended to prevent skin irritation from ceramic fibers. If skin becomes irritated, wash gently with soap and water. DUZY 24 (VDY24/18D) LOG INSTALLATION SEQUENCE: 1. - Page 15 LOG PLACEMENT DUZY II (VDY24/18, 30)D2 LOG INSTALLATION SEQUENCE: 1. Install the rear log (#1) on the two locating pins. Visually check to verify the log is securely placed on the pins and in contact with the grate. See Figure 11. 2.
- Page 16 LOG PLACEMENT DUZY4R LOG INSTALLATION SEQUENCE: Bottom Note: Models VDY24/18D4 has six (6) logs and Model Front Log VDY30D4R has seven (7) logs (#2) 1. Place Bottom Front Log (#2) on front of grate. See Figure 2. Place Back Log (#1) on back of grate lining up two (2) pins on grate with holes in bottom of log.
- Page 17 LOG PLACEMENT DUZY4R LOG INSTALLATION SEQUENCE (continued): 5. Place Left Top Crossover Log (#5) up against Left Left Top Log. See Figure 17. Crossover 6. Rest Right Top Log (#6) on Center Crossover Log Top Log and front of grate. See Figure 18. (#5) FOR VDY30D4R INSTALL ONLY: 7.
-
Page 18: Fireplace Draft Test
It is critical to verify that your chimney is drafting properly because the fireplace and gas logs function as a system. Although Monessen Hearth Systems goes to great lengths to design vented gas log sets that minimize sooting, all vented log sets will soot over time. -
Page 19: Checking Burner Flames
FLAME APPEARANCE CHECKING BURNER FLAMES In normal operation at full rate after appoximately 15 minutes, the following flame appearance should be observed. Rear flame should be yellow and extend vertically. Maximize spacing on top logs. Burner flame should become yellow as they contact embers on the face of the log. -
Page 20: Operating Instructions
OPERATING INSTRUCTIONS SAFTEY INSTRUCTION FOR MANUAL AND MILLI-VOLT CONTROL WITH PILOT FOR YOUR SAFETY READ BEFORE LIGHTING A. This appliance is equipped with an ignition device which automatically lights the pilot. If you do not follow these instruction B. BEFORE OPERATING smell all around the ap- exactly, a fire or explosion may result pliance area for gas. -
Page 21: Milli-Volt Control Lighting Instructions
OPERATING INSTRUCTIONS MILLI-VOLT CONTROL LIGHTING INSTRUCTIONS 1. STOP! Read the safety information label. 2. Make sure the manual shutoff valve is fully open. 3. This gas log set is equipped with an ignition device (piezo) which automatically lights the pilot. If piezo ignitor does not light the pilot, refer to instructions for “Match Lighting.”... - Page 22 OPERATING INSTRUCTIONS SAFTEY INSTRUCTION FOR MANUAL CONTROL WITHOUT PILOT If you do not follow these instruction exactly, a fire or explosion may result causing property damage, personal injury or loss of life. FOR YOUR SAFETY READ BEFORE LIGHTING A. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.
-
Page 23: Remote Receiver Installation
OPTIONAL REMOTE RECEIVER REMOTE RECEIVER INSTALLATION DO NOT PLACE THE REMOTE IN THE FIREPLACE IF ANY OF THE FOLLOWING CONDITIONS APPLY. • The floor of the fireplace is recessed below the fireplace opening. Refer to the "Warnings" on page 7. •... -
Page 24: Cleaning And Servicing
CLEANING AND SERVICING Turn off gas logs and allow to cool before cleaning. Disconnect electrical power if applicable before cleaning or servicing. Remove logs, handling carefully by holding gently at each end. Gloves are recommended to prevent skin irritation from ceramic fibers. -
Page 25: Illustrated Parts List
ILLUSTRATED PARTS LIST 24/18 Model Item Description VDY24/18 VDY24/18 VDY24/18 VDY24/18 VDY24/18 Main Injector 32D0100 32D0100 32D0100 32D0100 32D0100 Manual Control Valve 27D0303 without Pilot Manual Control Valve 27D0304 27D0304 with Pilot Millivolt Control Valve 32D0211 27D3300 with Pilot Regulator 24D0305 24D0306 24D0305... - Page 26 ILLUSTRATED PARTS LIST DUZY (I) LOGS SERIES Item Description Qty. VDY24/18D VDY30D Rear Log 32D0037 32D0049 Right Log 32D0038 32D0050 Left Log 32D0039 32D0051 Top Right Log 32D0040 32D0052 Top Left Log 32D0041 32D0053 Top Center/Right Center Log 32D0054 Top Left Center Log 32D0055 Duzy 24/18 Log Set Duzy 30"...
- Page 27 ILLUSTRATED PARTS LIST DUZY (II) LOGS SERIES Item Description Qty. VDY24/18D2 VDY30D2 Item Description VDY24/18D3R VDY30D3R Rear Log 32D0400 32D0410 Rear Log 32D2118 32D2124 Right Log 32D0401 32D0411 Front Left Log 32D2117 32D2123 Left Log 32D0402 32D0412 Front Right Log 32D2116 32D2122 Top Log...
- Page 28 ILLUSTRATED PARTS LIST Item Description VDY24/18D4 VDY30D4R Back Log 32D3101 32D3111 Bottom Front Log 32D3102 32D3112 Top Left Log 32D3103 32D3113 Center Crossover Log 32D3104 32D3114 Left Top Crossover Log 32D3105 32D3115 Right Top Log 32D3106 32D3116 Small Front Log —...
-
Page 29: Troubleshooting
TROUBLESHOOTING Turn appliance OFF and allow to cool before servicing. Only a qualified service person should service and repair the heater. Note: All troubleshooting items are listed in order of operation. REMEDY OBSERVED PROBLEM POSSIBLE CAUSE 1 Replace ignitor. When ignitor button is pressed, 1. - Page 30 TROUBLESHOOTING OBSERVED PROBLEM POSSIBLE CAUSE REMEDY 4. Thermocouple connection loose 4. Hand tighten until snug, then tighten at control valve. 1/4 turn more. 5. Pilot flame not touching thermocouple, 5. Contact local gas company. which allows thermocouple to cool, caus- ing pilot flame to go out.
- Page 31 NOTES 32D1999...
- Page 32 NOTES 32D1999...
- Page 33 NOTES 32D1999...
-
Page 34: Five Year Warranty
This warranty is expressly in lieu of other warranties, express or implied, including the warranty of mechantability of fitness for purpose and of all other obligations or liabilities. Monessen Hearth Systems, Inc. does not assume for it any other obligations or liability in connection with the sale or use of the appliance. In states that do not allow limitations on how long an implied warranty lasts, or do not allow exclusion of indirect damages, those limitations of exclusions may not apply to you.
