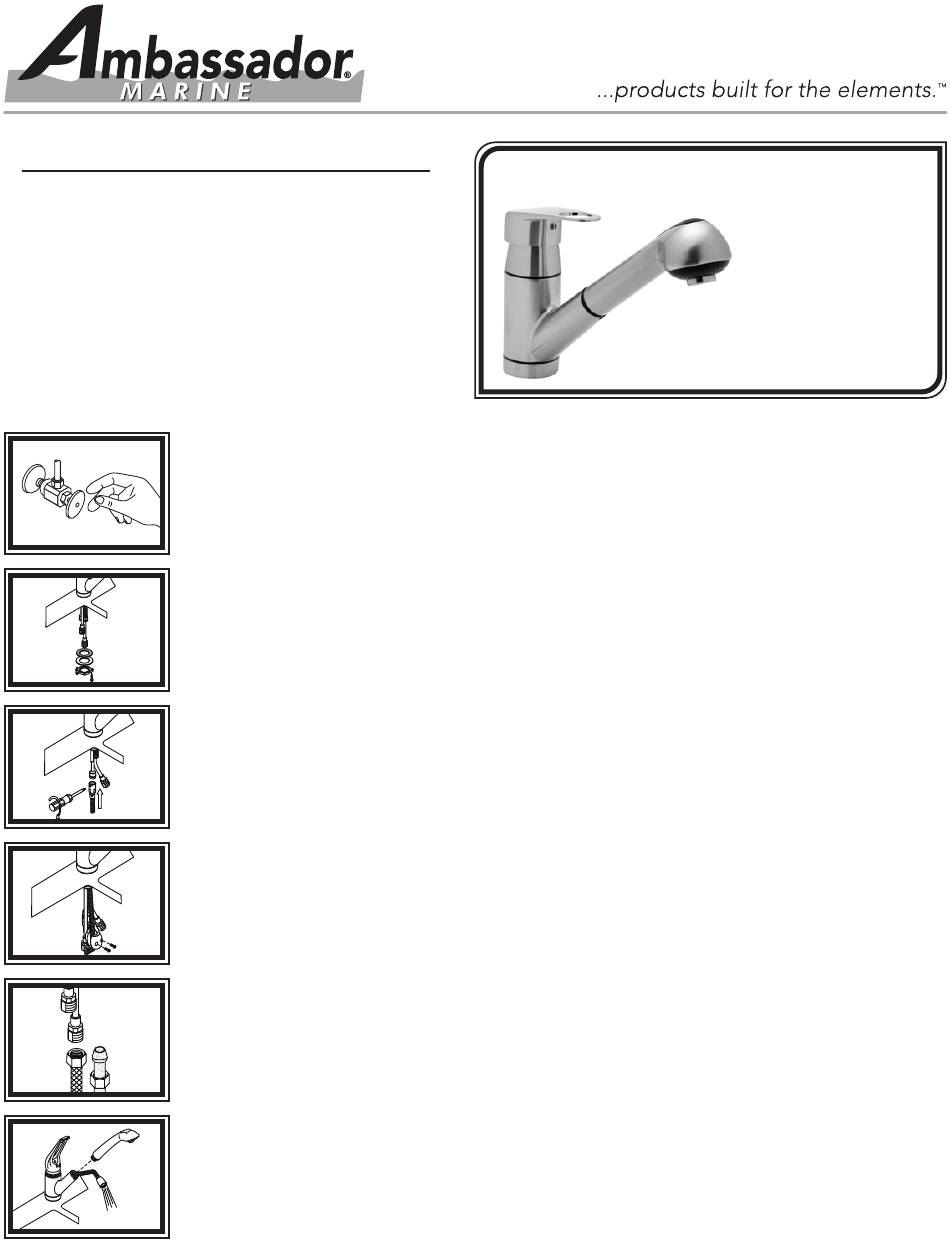

Ambassador MARINE 132-1003-NP Installation Instructions

I
NSTALLATION
Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, sprayer, shower or
accessory will give you years of trouble-free performance.
Please read these instructions carefully before installing your
new item. If you have any additional questions about the
installation of this product, please feel free to contact one of
our friendly customer service representatives at 800.270.4262.
1
2
4
5
6
7
I
NSTRUCTIONS
1) Turn off the water supply to your existing faucet (this procedure will vary depending on the
specific plumbing system installed on your boat). Cover the sink drain to prevent any small parts
or debris from falling in. Remove your existing faucet, taking care not to damage your existing
water lines. Clean sink area in preparation for new faucet.
2) Place the faucet in the center hole (1
flex hose all the way up until the hose stops. Slide the black rubber washer and then the metal
washer onto the mounting shaft. Screw the brass lock nut onto the mounting shaft with the two
screws pointing up, as illustrated. Hand tighten the brass lock nut. Position the faucet on the sink
and tighten the lock nut screws with a screwdriver. CAUTION: DO NOT OVER TIGHTEN THE
SCREWS.
3) Very gently bend the copper water inlet tubes slightly out, to allow for larger hose clearance.
CAUTION: USE CARE WHEN BENDING THE TUBES. Grip at point of bend with one hand and
adjust with the other.
4) Screw the pipe adapter onto the flex hose. Use Teflon (Plumber's) tape on threads. Hold the
hose tightly while turning the adapter. Do not allow hose to twist, as it may kink. Push the pipe
adapter onto the third copper pipe with the male fitting, until you feel it "snap" into place. You
may need to slightly rotate the adapter side to side while pushing it on. Tighten the pipe adapter
screw to secure. The pipe adapter screw should screw completely in. Pipe adapter may rotate
after connection is secure. Ensure water supply lines do not interfere with flex hose.
5) Attach metal weight to hose. Adjust position as desired. Weight must be installed to prevent
hose kinking and for easy hose return.
6) Connect water supply lines (not provided) to the water inlet tubes. Wrap the brass fittings on
the inlet tubes with Teflon (Plumber's) tape. Follow the appropriate steps depending on your
water supply lines. If you have pre-assembled water supply hoses with threaded connectors,
simply screw on supply lines. If you have plastic water lines with formed ends, water lines will seat
partially up into the brass fittings. Connect by tightening the coupling nuts. We do NOT suggest
using sweat fittings as they are prone to blow-outs.
7) Unscrew the spout head from the flex hose. Turn the water supply back on and allow both hot
and cold water to run for at least one full minute without the spout head. While water is running,
check all connections for leaks. Replace the spout head. Connections may need re-tightening.
/ " diamerter hole - standard size) of the sink. Pull the
3
8
132-1003-NP
(OEM)
133-1003-NP
(Retail)
Nautilus
Pull-Out Galley Faucet
Brushed Nickel
