C
COPYRIGHTS 1998
REMACO TECHNOLOGIES PTE LTD
Important Notice: Do not turn on power to the projector lift until it is completely installed on the ceiling.
!
!
Warning: Caution with main supply and live wires. Install with qualified technician or trained personnel.
8.0cm
Back
4.50cm
10 to
50.8cm
30cm
55.2cm

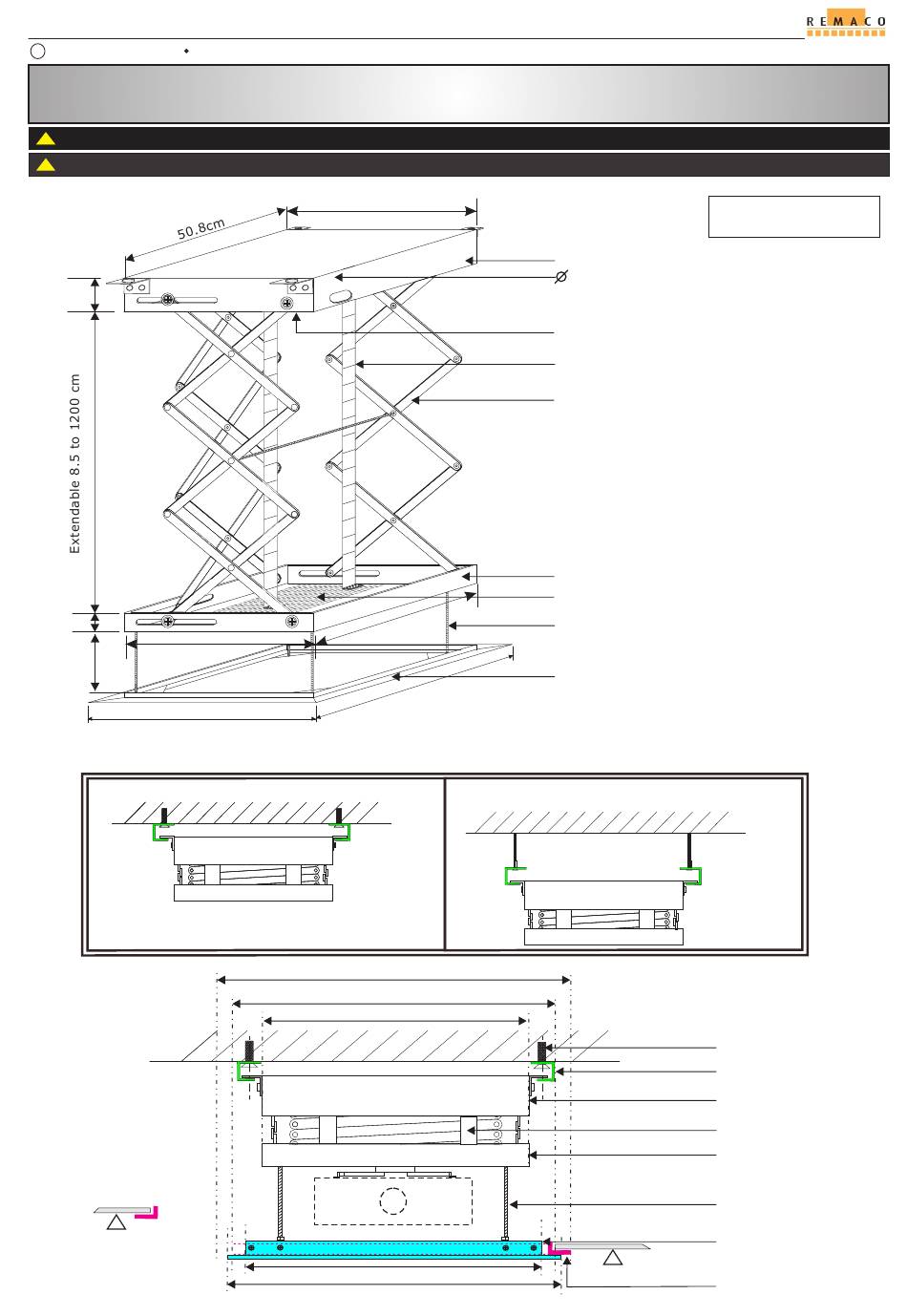

Types of Installation Mounts
Mount Directly To Concrete Ceiling
False Ceiling
(Plaster Ceiling)
Installation Guide (PLT-412)
50.8cm
5 0 .
5 5 .
Concrete
C-Hook
Bracket
Front View
60.2cm (Hollow Ceiling Frame, Outer)
54.5cm (Ceiling Cut Hole Size)
50.8cm
LCD/Laser Projector
52.3cm (Ceiling Enclosure, Inner)
55.2cm (Ceiling Enclosure, Outer)
Front View
Top Frame
12 x 4 Nos
Motor
Belt
Scissor Bar
Front
Bottom Frame
Perforated Hole
8 c m
Threaded Rod
Ceiling Enclosure
2 c m
Suspended From Concret Ceiling
with Threaded Rod
Concrete
Website: www.remacotech.com
Load Capacity: 20kg
Drop Height: 120cm
(for Projector Mounting)
Concrete
Threaded
Rod (Optional)
C-Hook Bracket
Front View
M8 Anchor
C-Hook Bracket
50.9 x 4.5 x 4cm
Top Frame
Belt
Bottom Frame
Threaded Rod
Ceiling Enclosure
False Ceiling
(Plaster Ceiling)
Hollow Ceiling Frame
60.2 x 60.2cm
V: 10.0
PLT

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLT-412 and is the answer not in the manual?

Questions and answers

Summary of Contents for REMACO TECHNOLOGIES PLT-412

  • Page 1 Website: www.remacotech.com COPYRIGHTS 1998 REMACO TECHNOLOGIES PTE LTD V: 10.0 Installation Guide (PLT-412) Important Notice: Do not turn on power to the projector lift until it is completely installed on the ceiling. Warning: Caution with main supply and live wires. Install with qualified technician or trained personnel.
  • Page 2 Step 1 Plaster Ceiling 60cm (False Ceiling) Carton Template 51cm To Cut Out Plaster Ceiling Hole (& insert Ceiling Frame into this hole) Carton Paper Template for Ease of Marking Hole Position. Step 2 10mm Drill Hollow Ceiling Power Drill Frame Screws to hold Hollow Ceiling Frame onto...
  • Page 3 RF Remote Motor / Power Control Model : MPC-851 230V / 110V STOP Configurable DOWN MPC-851 is a product of Remaco Technologies Pte Ltd AVA-200 Wall Switch MPC-851 Motor Power Control Projector Lift Projector Connection of all cables to the MPC-851 (Refer to Installation Guide of MPC-851)
  • Page 4 Step 9 Step 10 Bottom Frame with Perforated Holes M6 x60 Pan Head M4x8 PHScrew Screw M6x16 PHScrew & Spring Washer & Flat Washer LCD/Laser LCD/Laser Projector Projector LCD/Laser Projector Black Knob M6 x 60 PH Screw M6 Washer Spring Step 13 Spacer Leg 40mm...
