C
COPYRIGHTS 1998
Warning

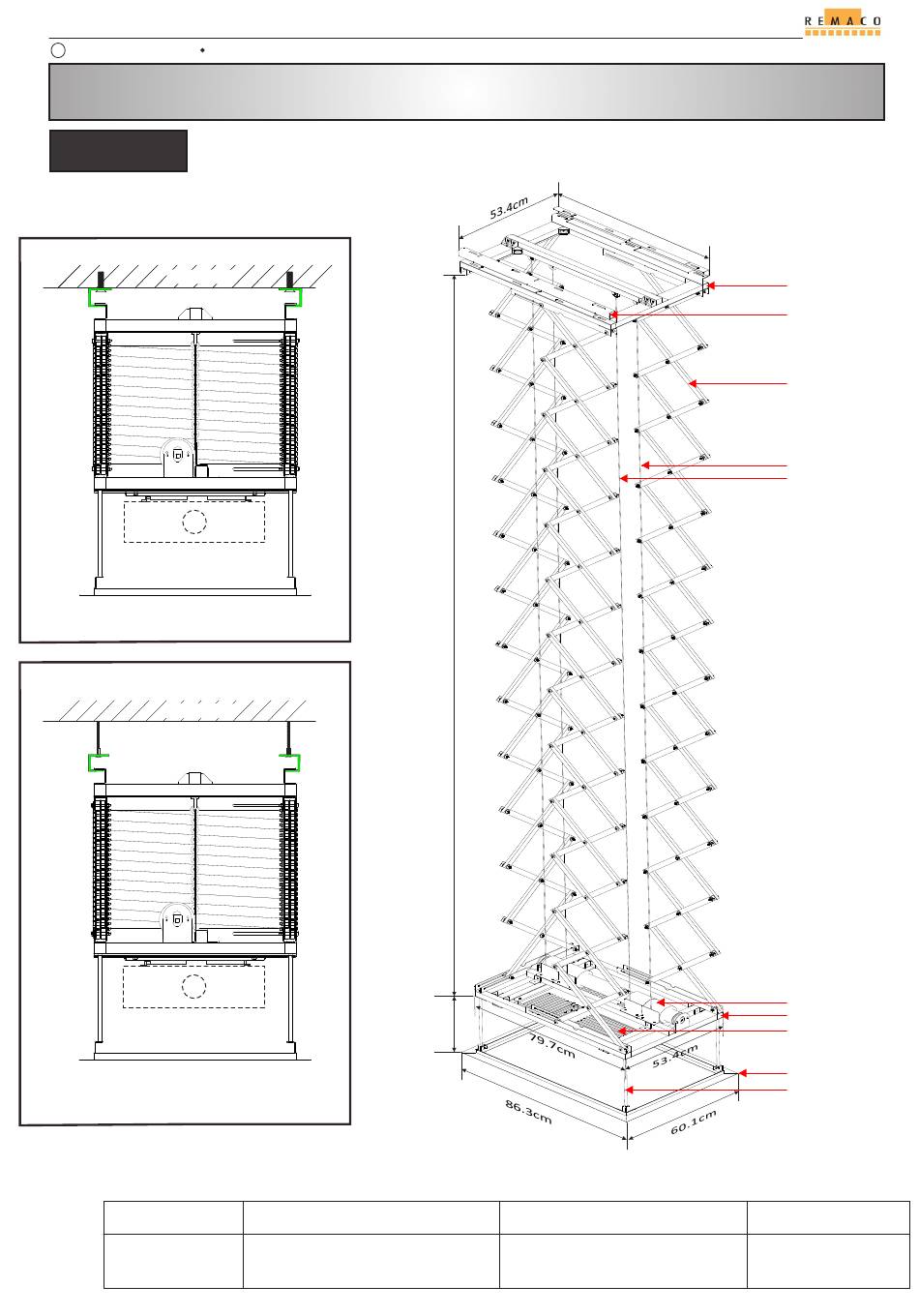

Types of Installation Mounts
Mount Directly To Concrete Ceiling
Concrete
LCD/Laser Projector
Front View
Suspended From Concret Ceiling
with Threaded Rod
Concrete
←Threaded Rod (Optional)→
LCD/Laser Projector
Front View
Model
PLT-418C
REMACO TECHNOLOGIES PTE LTD
Installation Guide (PLT-418C)
Caution with main supply and live wires. Install with qualified technician or trained
personnel.
Kept Position Height
86.3cm
*Depending on the lift drop height
463cm
Back
31.4cm
Maximum Extended Height
Website: www.remacotech.com
7 9 . 7
c m
Front
410cm
V: 2.0
PLT
Top Frame
C-Hook
Bracket
Scissor Bar
Stainless Steel
Wire
(4 nos)
Motor
Bottom Frame
Perforated Hole
Ceiling Closure
Threaded Rod
Load Capacity
70kg
Advertisement
Table of Contents
Related Manuals for REMACO TECHNOLOGIES PLT-418C
Summary of Contents for REMACO TECHNOLOGIES PLT-418C
- Page 1 Website: www.remacotech.com COPYRIGHTS 1998 REMACO TECHNOLOGIES PTE LTD V: 2.0 Installation Guide (PLT-418C) Caution with main supply and live wires. Install with qualified technician or trained Warning personnel. 7 9 . 7 Types of Installation Mounts Mount Directly To Concrete Ceiling...
- Page 2 60.1cm (Hollow Ceiling Frame, Outer) 54.8cm (Ceiling Cut Hole Size) 53.4cm Concrete M8 Anchor C-Hook Bracket 78.7 x 4.1 x 3cm Top Frame Stainless Steel Wire (4nos) Bottom Frame Threaded Rod Hollow Ceiling Hollow Ceiling Frame Frame LCD/Laser Projector 60 x 87cm 60 x 87cm False Ceiling False Ceiling...
- Page 3 60.1 cm Plaster Ceiling (False Ceiling) 49.8 cm To Cut Out Plaster Ceiling Hole (& insert Ceiling Frame into this hole) Hollow Ceiling Frame Screws to hold Hollow Ceiling Frame onto Plaster Ceiling To cut out plaster ceiling hole size and allow hollow ceiling frame can insert nicely.
- Page 4 Step 6: Pairing, Limit Position Settings, and Deleting Pairing RF Remote to Electronic Motor UP x 1 Motor beeps P2 x 1 P2 x 1 OFF x 1 Motor ON x 1 beeps Direction 1 Motor roll up and down press (UP) button one time Motor roll...
- Page 5 Setting of Third Limit (Below Lower Limit for Maintenance) P2 x 1 DOWN x 1 DOWN x 1 Motor beeps Down limit position Motor roll Motor roll Motor roll up and down up and down up and down press setting button (P2) press (DOWN) button press (DOWN) button one time...
- Page 6 Appendix (Setting not required, use when needed) Fine Tuning of Upper/Lower Limit UP x 1 STOP x 1 Motor beeps (UP+DOWN) x 1 Motor move Motor move Successful in steps in steps press (UP) button press STOP button one time until and hold for 3sec.
