DIESEL MELTER
PART MANUAL - 26603
REV. C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRAFCO E-Z 500 II Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ergon CRAFCO E-Z 500 II Series

Summary of Contents for Ergon CRAFCO E-Z 500 II Series

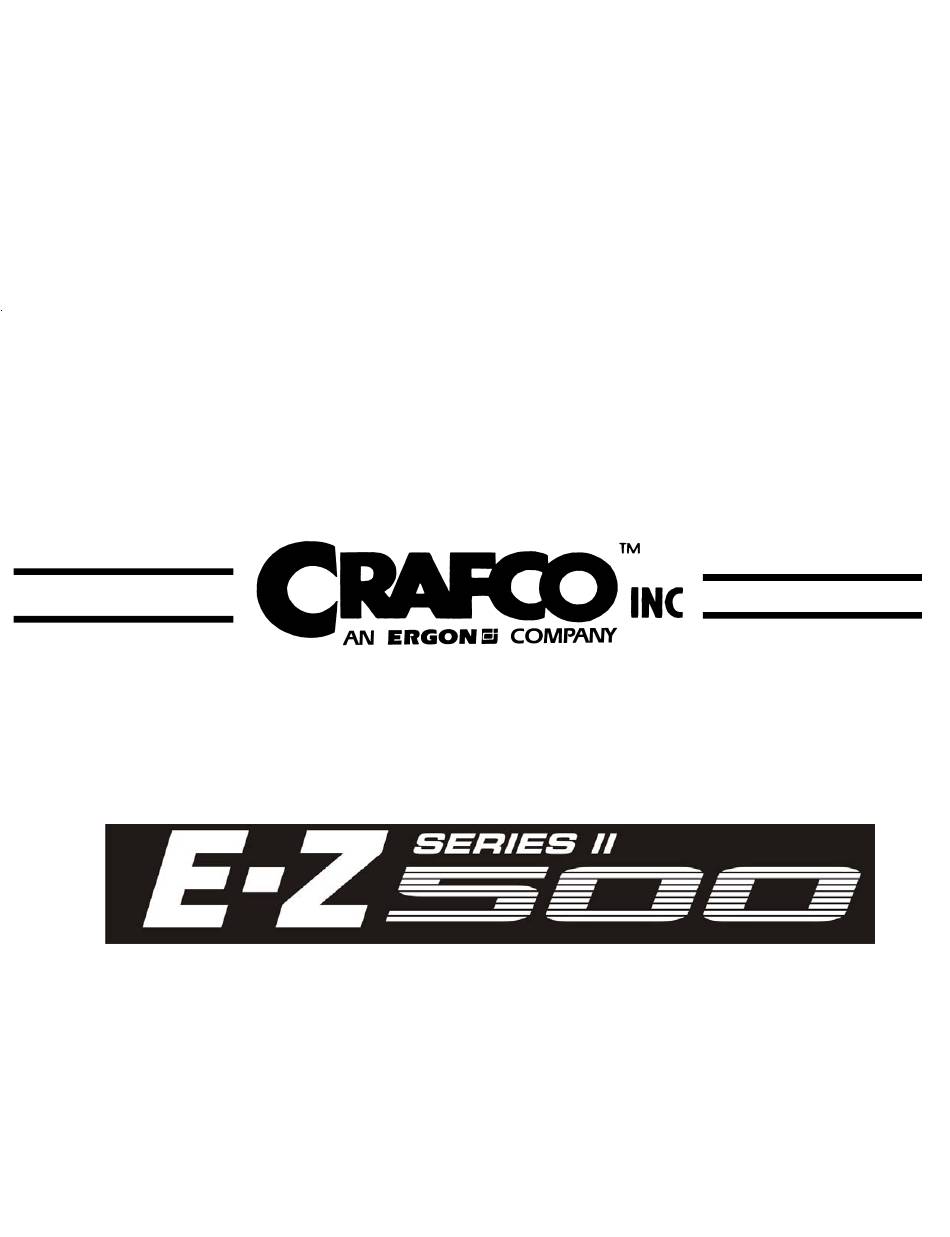

  • Page 1 DIESEL MELTER PART MANUAL - 26603 REV. C...
  • Page 2 Revisions Rev. B 3/2012 Updated manual to reflect full recirculation and all changes associated. Rev. C 4/1/2014 Updated hydraulic schematics and some graphics. Revised: 4/2014...
  • Page 3 E - Z E - Z E - Z500 E - Z E - Z Series II Series II Series II Series II Series II D I E S E L D I E S E L D I E S E L M E L M E L M E LT E R...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS EZ500 Series II Diesel Melter......................Safety Precautions..........................6-7 Limited Warranty..........................7 Warranty Claim Instructions....................... 8 Specifications............................9 Introduction............................10 Operating Instructions Machine Start Up - Electric Hose................11-15 Machine Startup - Standard Hose................16-18 Air Compressor (OPTION)..................19 Storing Machine......................

  • Page 5: Ez500 Series Ii Diesel Melter

    E - Z E - Z Series II Series II E - Z E - Z500 Series II E - Z Series II Series II DIESEL MELTER This manual is furnished with each new CRAFCO E - Z Series II DIESEL E - Z E - Z500 Series II E - Z...

  • Page 6: Safety Precautions

    SAFETY PRECAUTIONS • High operating temperatures of sealant and machine require protective clothing, hard-soled shoes and heat resistant gloves to be worn by operator. • Always wear eye protection. • Observe all CAUTION AND WARNING signs posted on machine. • Avoid the entrance of water into any part of the machine. Water will displace heat transfer oil or sealant, which could be hazardous to personnel surrounding the machine when it reaches operating temperatures.

  • Page 7: Limited Warranty

    SAFETY PRECAUTIONS • Replace any hoses which show signs of wear, fraying, or splitting. Be sure all fittings and joints are tight and leak-proof, each time machine is used. •Precaution is the best insurance against accidents. •The melter should not be left unattended with burner lit. •Tighten all bolts and screws after every 100 hours of operation.

  • Page 8: Warranty Claim Instructions

    WARRANTY CLAIM INSTRUCTIONS Crafco, Inc., warrants parts and machinery purchased through Crafco or one of it’s affiliated distributors for one year from purchased or inservice date **. If a parts fail to function within the first year of purchase, a return authorization number (RA) must be obtained. If the part was purchased through Crafo, Inc., please contact the Crafco returns department at Returns@Crafco.com for a RA number or if purchased through a Crafco distributor please contact your distributor.

  • Page 9: Specifications

    SPECIFICATIONS Vat Capacity................133 Gallons(500 Liters) Melt Capacity................110 Gallons/Hour Heat Transfer Oil Required............. 21.5 Gallons at 70° F Tank Construction..............Double Boiler Type Tank Opening Size..............14” X 18” Maximum Heat Input............. 250,000 BTU’s Burner and Temperature Control..........Diesel-Forced Air Thermostatic Control Engine - Standard..............Isuzu Three Cylinder Model 3CB1 - Diesel...

  • Page 10: Introduction

    S e r i e s I I I I I I I I I I DIESEL MELTER E - Z E - Z E - Z500 S e r i e s S e r i e s S e r i e s E - Z E - Z S e r i e s...

  • Page 11: Machine Start Up - Electric Hose

    MACHINE START UP for ELECTRIC HOSE TO START BURNER Fully open the damper vent. Start engine per Engine Manual. Turn “POWER” toggle switch at control box “ON”. Turn “Hose Selector” switch to “ELECTRIC Hose” . NOTE: Electric hose will only work if hose selector switch is in the electric hose position.

  • Page 12: Electric Hose Care And Cautions

    MACHINE START UP for ELECTRIC HOSE 9.Remove hose and wand from transport position and place wand tip in shoebox. When sealant reaches correct application temperature, open “TANK VALVE”, “RECIRCULATION VALVE”, and close “APPLICATOR VALVE”. Reverse pump for 3-5 minutes by turning the toggle switch on the main control panel to “PUMP REVERSE”. When pump turns freely, return toggle switch to “ON ELECTRIC”.

  • Page 13: Loading The Machine

    HOSE TRANSPORT INSTRUCTIONS 1. Leaving the hose in the boom, swing the boom towards the front of the machine and lock the boom into position with the latch provided. 2. Place the wand in the wand holder and lock the wand into position with the latch provided.

  • Page 14: Dispensing The Material

    DISPENSING THE MATERIAL NOTE: PROTECTIVE CLOTHING, GLOVES, HARD-SOLED SHOES, AND FACE SHIELD OR SAFETY GLASSES SHOULD BE WORN WHEN OPERATING OR FILLING THIS EQUIPMENT. READ ENTIRE MANUAL BEFORE OPERATING. The wand is equipped with a disposable duckbill valve on the end, which shuts off the flow of mate- rial when the pump is turned off and prevents excessive dripping of material.
  • Page 15 SHUTDOWN AND CLEAN-OUT PROCEDURE When shutting down the machine for the day, there are several schools of thought about how much material to leave in the machine. Crafco recommends leaving the melter about half full. This will give a fairly rapid heat up rate in the morning, but will allow enough mate- rial to start dispensing right away when the material becomes molten.

  • Page 16: Machine Startup - Standard Hose

    MACHINE START UP for STANDARD HOSE TO START BURNER 1. Fully open the damper vent. 2. Start engine per Engine Manual. 3. Turn “POWER” toggle switch at control box “ON”. 4. Turn “Hose Selector” switch to “STD. Hose” . 5. Set hot oil temperature at 450 F.
  • Page 17 12. Close “Recirculation Valve”. Important: Adjust the flow control valve to get close to the desired flow from the applicator wand then close “Recirculation Valve” to get to the desired flow. This method of operation will give maximum pump life. If the sealant does not flow from the applicator wand, close hand wand valve and placed hose and hand wand back in the oven to allow the sealant to become more liquid, then repeat procedure.
  • Page 18 SHUTDOWN AND CLEAN-OUT PROCEDURE When shutting down the machine for the day, there are several schools of thought about how much material to leave in the machine. Crafco recommends leaving the melter about half full. This will give a fairly rapid heat up rate in the morning, but will allow enough material to start dispensing right away when the material becomes molten.

  • Page 19: Air Compressor (Option)

    AIR COMPRESSOR (OPTION) The air compressor unit installed on the E-Z Series II is designed to assist in the cleaning of debris from cracks & joints. Always use approved high pressure air hoses with properly installed fittings. Do not use frayed or worn hoses. A cold air lance, or approved hot air lance can be used with this compressor.

  • Page 20: Storing Machine

    STORING MACHINE The melter should be stored in an area where moisture cannot enter the machine heating system such as hot oil, controls, etc. Extended down time can cause moisture build up in heating oil tank. If there is any suspicion that moisture may have collected in heat transfer oil, warm heat transfer fluid to 300°F.

  • Page 21: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS ENGINE See Engine Owner Manual for operating and maintenance instructions. HYDRAULIC SYSTEM Check hydraulic fluid daily. Change hydraulic filter every 250 hours of operation. Change hydraulic fluid every 500 hours of operation. HEAT TRANSFER OIL Check oil level every 8 hours of operation. Change oil every 500 hours of operation. WHEEL BEARINGS Re-pack wheel bearings every 24,000 miles or every two years, using a good grade of bearing grease.

  • Page 22: Replacing Heat Transfer Oil

    MAINTENANCE INSTRUCTIONS TEMPERATURE CONTROL CALIBRATION Check control knob calibration weekly. 1. Calibrate by aligning the line on the control knob with with the calibration line on the scale plate (See Fig. 1). Fig. 1 REPLACING HEAT TRANSFER OIL 1. Drain oil by removing oil drain cap located under machine. 2.

  • Page 23: Maintenance Chart/Service Instructions

    MAINTENANCE CHART L O C AT IO N P R O C E D U R E H O U R S D a ily 1 0 0 5 0 0 E ng ine c he c k o il le ve l. C he c k d a i ly.

  • Page 24: Recommended Fluids And Lubricants/Typical Specifications

    RECOMMENDED FLUIDS AND LUBRICANTS APPLICATION RECOMMENDED FULL POINT Engine oil Refer to Isuzu owners manual. 3 Qts. #1 Cold climate Diesel 30 Gals. #2 Warm climate ISO 68 (40° F (4.4° C) - 180° F (82.2° C)) Hydraulic oil 24 Gals. ISO 46 (30°...

  • Page 25: Trouble Shooting

    TROUBLE SHOOTING GUIDE - ELECTRIC HOSE HOSE DOES NOT HEAT Step 1: Is the “MATERIAL” temperature at 275°F? YES: Go to step 2. NO: Turn “POWER” toggle switch “ON”. Step 2: Is “HEATED HOSE” light illuminated? YES: Go to step 3. NO: Check for tripped circuit breaker in front panel.

  • Page 26: Hose Circuit Diagram

    TROUBLE SHOOTING GUIDE - ELECTRIC HOSE PNK-3 PNK-2 ORN-2 ORN-1 BLK-5 BLK-1 BLK GND BLK-4 PNK-4 PNK-1 BLU-2 BLU-1&BLU-GEN HOSE MAT'L HOT OIL 43391 MOUNT SWITCH BLU-2 NOTCH DOWN BLK-5 RED-3 WHT-2 BLK-10 WHT/BLK WHT/BLK HOSE MATERIAL RED-2 51691 51672 BLK-12 WHT-4 BLK-11...

  • Page 27: Trouble Shooting Guide - Material Does Not Dispense When Pump Is Activated

    TROUBLE SHOOTING GUIDE - ELECTRIC HOSE Step 5: Check for 30 amps (cold) or 22-24 amps (hot) at the 3 blue wires in the junction box. (Always use a clamp-on AMP meter to perform this test) YES: Hose should be operating properly. NO: Go to step 6.
  • Page 28 TROUBLE SHOOTING GUIDE - ELECTRIC HOSE PNK-3 PNK-2 ORN-2 ORN-1 BLK-1 BLK-5 BLK GND BLK-4 PNK-4 PNK-1 BLU-2 BLU-1&BLU-GEN HOSE MAT'L HOT OIL 43391 MOUNT SWITCH BLU-2 NOTCH DOWN BLK-5 RED-3 WHT-2 BLK-10 WHT/BLK WHT/BLK HOSE MATERIAL RED-2 51691 51672 BLK-12 WHT-4 BLK-11...

  • Page 29: Trouble Shooting Guide - Pump Rotates But No Material Is Discharged

    TROUBLE SHOOTING GUIDE - ELECTRIC HOSE PUMP ROTATES BUT NO MATERIAL IS DISCHARGED Step 1: Has the sealant and heated hose had sufficient time to reach temperature? YES: Go to step 2. NO: Allow the sealant and hose to heat longer. Step 2: Check material outlet pipe and connection between hose and wand for obstruction.

  • Page 30: Rtd Sensor - Ohms Vs. Temperature

    RTD SENSOR - OHMS vs. TEMPERATURE The following chart shows what the Ohm reading would be for a given temperature. This is to be used when trouble shooting the burner and the hose. The following are the instructions for use. Measure the resistance (Ohms) of the sensor in question with an Ohm meter.

  • Page 31: Diesel Burner Adjustments/Diesel Burner Settings

    DIESEL BURNER ADJUSTMENTS DIESEL BURNER SETTINGS Air Shutter = 7 Air Band = 0 Fuel Pressure = 140 PSI Adjustment Plate = 3 Use fuel pressure gauge kit part number 29627. IGNITION COIL LOCKING TAB AIR SHUTTER SCREW NOZZLE LINE NUT COPPER FUEL LINE NUT FUEL PRESSURE ADJUSTMENT SCREW...

  • Page 32: Burner Schematic

    BURNER SCHEMATIC GRY-1 GRY-3 PNK-3 PNK-2 WHT/GRN-1 WHT/GRN-4 WHT/GRN-2 WHT/GRN-5 ORN-2 ORN-1 BLK-5 BLK-1 BLK GND BLK-4 WHT/GRN-1 HOSE MAT'L GRN BRNR WHT/GRN-2 GRY-2 HOT OIL 43391 MOUNT SWITCH GRY-2 NOTCH DOWN BLK-5 RED-3 WHT/BLK WHT/BLK HOSE MATERIAL RED-2 51691 51672 44978 51836...

  • Page 33: Burner Trouble Shooting

    BURNER TROUBLE SHOOTING BURNER WILL NOT IGNITE Step 1:Check for 12 volts at “POWER” toggle switch. No: Engine key “OFF” Toggle switch “OFF” Blown fuse Broken wire YES: 12 volts at terminal #4 on “MATERIAL” Pak-Stat NO: Bad Pak-Stat Faulty sensor YES: Check for 12 volts at terminal #7 on “OIL”...

  • Page 34: Pump Section Packing Instructions

    PUMP SECTION PACKING INSTRUCTIONS Operate the pump under normal conditions and, after a short run-in period, examine pack- ing for leakage. If leakage is excessive tighten locknuts evenly until there is only slight leakage from the packing rings. This slight leakage is a necessary and normal condition for packing and allows for expansion and proper seating.
  • Page 35 This page intentionally left blank.

  • Page 36: Hydraulic Schematic

    HYDRAULIC SCHEMATIC Relief Valve (RVA) = 1000 PSI Relief Valve (RVM) = 1500 PSI...

  • Page 37: Trouble Shooting Hydraulic

    TROUBLE SHOOTING HYDRAULICS PROBLEM CAUSE REMEDY Mixer will not rotate. Sealant temperature too low. Continue to heat material. Too many blocks placed at one Mixer will not rotate. Continue to heat material. time. Mixer will not rotate. Inadequate hydraulic flow/pressure. Check hydraulic fluid level. Reset pressure, check flow if Mixer will not rotate.

  • Page 38: Ez500 Diesel Melter Diagrams And Parts

    EZ500 SERIES II MELTER      F G H  ...
  • Page 39 EZ500 SERIES II MELTER P A R T N U M B E R Q T Y. D E S C R IP T IO N N U M B E R 4 4 3 4 2 2 /4 * T IR E A N D W H E E L A S S E M B L Y 4 6 1 1 5 1 /2 *...
  • Page 40 EZ500 SERIES II MELTER      F G H  ...
  • Page 41 EZ500 SERIES II MELTER P A R T N U M B E R Q T Y. D E S C R IP T IO N N U M B E R 3 2 3 6 5 C L E A R E N C E M A R K E R - Y E L L O W 4 6 7 0 7 S U P P O R T A S S E M B L Y, W A N D 2 4 0 0 0...

  • Page 42: Ez500 Series Ii Melter Options

    EZ500 SERIES II MELTER OPTIONS...
  • Page 43 EZ500 SERIES II MELTER OPTIONS PAR T NU MB ER QTY. D ESCR IPTION N U MB ER 51230 C ONVEYOR ASSEMBLY 46280K ARROW BOARD 46279 KIT, GRAVITY FEED 46271 RACK, AIR HOSE 46260 TOOL BOX 46170K STROBE LIGHT KIT (NOT SHOWN) 46160K LIGHT BAR KIT (NOT SHOWN) 46148...

  • Page 44: Tank Detail Diagram And Parts

    TANK DETAIL...
  • Page 45 TANK DETAIL PAR T IT E M D E S C R IP TION N U MB E R 46146 PA D D LE , A GITATOR 22310 MOTOR, HYD RA ULIC - A GITATOR 46050 S HA FT A S S E MB LY, MIX E R 46380 B URNE R, 14 V OLT D IE S E L 46058...

  • Page 46: Plumbing

    PLUMBING...
  • Page 47 PLUMBING P A R T N U M B E R Q T Y. D E S C R IP T IO N N U M B E R 4 6 0 2 0 P U M P A S S E M B L Y 2 2 0 2 7 H Y D R A U L IC M O T O R 2 2 0 3 0...

  • Page 48: Control Box Diagram And Parts - Electric Hose

    CONTROL BOX - ELECTRIC HOSE...
  • Page 49 " ° ° ° ° - ° ° "...
  • Page 50 CONTROL BOX - ELECTRIC HOSE...
  • Page 51 CONTROL BOX - ELECTRIC HOSE " " " "...

  • Page 52: Control Box Diagram And Parts - Standard Hose

    CONTROL BOX - STANDARD HOSE...
  • Page 53 CONTROL BOX - STANDARD HOSE " ° ° ° - ° ° "...
  • Page 54 CONTROL BOX - STANDARD HOSE...
  • Page 55 CONTROL BOX - STANDARD HOSE " " "...

  • Page 56: Engine Assembly Diagram And Parts - 27.5 Hp

    ENGINE ASSEMBLY - 27.5 HP PRESET ENGINE SPEED = 2400 RPM HOSE GENERATOR OUTPUT = 30-35 AMPS COLD 24 VAC 3-PHASE...
  • Page 57 ENGINE ASSEMBLY - 27.5 HP P A R T N U M B E R Q T Y. D E S C R IP T IO N N U M B E R 4 6 7 1 1 2 7 .5 H P E N G IN E W / G E N E R A T O R (E B O N L Y) 4 6 4 8 0 2 7 .5 H P E N G IN E (S B O N L Y) 4 3 8 9 9...

  • Page 58: Engine Assembly Diagram And Parts - 41.6 Hp

    ENGINE ASSEMBLY - 41.6 HP...
  • Page 59 ENGINE ASSEMBLY - 41.6 HP " " " " " THIS ENGINE IS FOR THE FOLLOWING MACHINE MODEL NUMBERS 46100EC63.

  • Page 60: Engine Assembly Diagram And Parts - 35.5 Hp

    ENGINE ASSEMBLY - 35.5 HP...
  • Page 61 ENGINE ASSEMBLY - 35.5 HP PART NUMBER QTY. DESCRIPTION NUMBER 46727 35.5 HP ENGINE 45449 HYDRAULIC OIL PUMP 29885 1 1/4" TUBE X 1 5/8-12" O-RING ADAPTER 29842 5/8" TUBE X 1 1/16-12" O-RING ELBOW 45381 OIL FILTER 41867 FUEL FILTER 45382 AIR FILTER ELEMENT THIS ENGINE IS FOR THE FOLLOWING MACHINE MODEL NUMBERS...

  • Page 62: Hydraulic Control Valve Diagram And Parts

    HYDRAULIC CONTROL VALVE...
  • Page 63 HYDRAULIC CONTROL VALVE...

  • Page 64: Compressor Valve Assembly

    COMPRESSOR VALVE ASSEMBLY...
  • Page 65 COMPRESSOR VALVE ASSEMBLY...

  • Page 66: Diesel Burner Diagram And Parts

    DIESEL BURNER...
  • Page 67 DIESEL BURNER PART ITEM DESCRIPTION NUMBER 41949 IGNITION TRANSFORMER 41890 BLOWER MOTOR 41970 COUPLING - FUEL PUMP 41892 PUMP - FUEL 41888 SOLENOID - FUEL 41993 ELECTRODE 41883 NOZZLE (SS125D, EZ500) 41881 NOZZLE (SS250, EZ1000) 44785 NOZZLE (EZ1500) 41870 CAD EYE (NOT SHOWN) 42335 DC CONTROLLER (NOT SHOWN)

  • Page 68: Material Pump Assembly

    MATERIAL PUMP ASSEMBLY...
  • Page 69 MATERIAL PUMP ASSEMBLY PART ITEM DESCRIPTION NUMBER 22027 HYDRAULIC MOTOR 42071 PUMP ASSEMBLY , NON-JACKETED 29990S PACKING RING (SET OF 7) 43129 MOUNTING PLATE ASSEMBLY , PUMP 22029 STRAIGHT THREAD O-RING ADAPTER...

  • Page 70: Compressor Assembly

    COMPRESSOR ASSEMBLY...
  • Page 71 COMPRESSOR ASSEMBLY P A R T IT E M Q T Y D E S C R IP T IO N N U M B E R 4 5 3 2 0 C O M P R E S S O R , R O TA R Y V A N E 4 5 3 4 7 S H A F T, C O M P R E S S O R D R IV E 4 5 3 4 6...

  • Page 72: Hydraulic Diagram And Parts W/O Compressor

    HYDRAULIC DIAGRAM W/O COMPRESSOR AGITATOR DIRECTION = COUNTERCLOCKWISE MATERIAL PUMP DIRECTION = CLOCKWISE HYDRAULIC FLOW = 10.81 GPM @ 2400 RPM RELIEF VALVE (RVA) = 1000 PSI RELEIF VALVE (RVP) = 1500 PSI...
  • Page 73 HYDRAULIC DIAGRAM W/O COMPRESSOR HYDRAULIC RESERVOIR TO HYDRAULIC PUMP SUCTION 29915 1 5/8-12 O-RING X 1" JIC 90° ELBOW 16G4H 16G-16FJX 16G-16FJX45 24 18.5 HYDRAULIC HOSE ASSEMBLY 1" X 24" LONG 29820 1 5/16-12 O-RING X 1" JIC ADAPTER HYDRAULIC PUMP TO HYDRAULIC VALVE "P" PORT 29842 1 1/16-12 O-RING X 5/8 JIC ELBOW 8M3K 8G-10FJX90S 8G-10FJX 22 18...
  • Page 74 HYDRAULIC DIAGRAM W/O COMPRESSOR...
  • Page 75 HYDRAULIC DIAGRAM W/O COMPRESSOR FLOW CONTROL #2 PORT TO HYDRAULIC VALVE TANK PORT 29896 3/4-16 O-RING X 1/2" TUBE ELBOW 8M3K 8G-8FJX 8G-8FJX90S 30 26.5 HYDRAULIC HOSE ASSEMBLY 1/2 X 30" LONG 29932 3/4-16 O-RING RUN TEE HYDRAULIC VALVE TANK PORT TO HYDRAULIC OIL COOLER 29932 3/4-16 O-RING RUN TEE 8M3K 8G-8FJX 8G-10FJX 21 17.75...

  • Page 76: Hydraulic Diagram And Parts W/ 53 Cfm Compressor

    HYDRAULIC DIAGRAM W/ COMPRESSOR AGITATOR DIRECTION = COUNTERCLOCKWISE MATERIAL PUMP DIRECTION = CLOCKWISE HYDRAULIC FLOW = 16.4 GPM (63 CFM) @ 2800 RPM HYDRAULIC FLOW = 10.6 GPM @ 2800 RPM RELIEF VALVE (RVA) = 1000 PSI RELEIF VALVE (RVM) = 1500 PSI COMPRESSOR RELIEF = 2500 PSI +7439 7*&7...
  • Page 77 HYDRAULIC DIAGRAM W/ COMPRESSOR 1. HYD. RESERVOIR TO TANDEM HYD. PUMP (SUCTION) 29885 1 5/8-12 O-RING X 1 1/4" JIC ADAPTER 20G4H 20G-20FJX45 20G-20FJX 23 16.75 HYD. HOSE 1 1/4 X 23" LG . 29888 1 5/8-12 X O-RING X 1 1/4 JIC 45° ELBOW 2.
  • Page 78 HYDRAULIC DIAGRAM W/ COMPRESSOR +7439 7*&7 5479 5479...
  • Page 79 HYDRAULIC DIAGRAM W/ COMPRESSOR 7. PUMP MOTOR (BOTTOM PORT) TO HYDRAULIC VALVE (TOP PORT) 29913 1/2 JIC X 7/8-14 O-RING 8M3K 8G-8FJX 8G-8FJX90S 28 24.5 HYD. HOSE ASSY . 1/2 X 28" LG . 29919 9/16-18 O-RING X 1/2 TUBE 8.
  • Page 80 HYDRAULIC DIAGRAM W/ COMPRESSOR +7439 7*&7 5479 5479...
  • Page 81 HYDRAULIC DIAGRAM W/ COMPRESSOR 13. COMP. VALVE TO HYDRAULIC OIL COOLER 29900 1 1/16-12 O-RING RUN TEE 16G4H 16G-12FJX 16G-16FJX90S 75 68.5 HYD. HOSE ASSY . 1" X 75" LG . 29951 1 5/16-12 O-RING X 1"JIC RUN TEE 14. HYDRAULIC OIL COOLER TO HYDRAULIC TANK 29824 1 5/16-12 O-RING X 1"...

  • Page 82: Electrical Schematic - Electric Hose

    ELECTRICAL SCHEMATIC - ELECTRIC HOSE...
  • Page 83 ELECTRICAL SCHEMATIC - ELECTRIC HOSE P A R T IT E M Q T Y D E S C R IP T IO N N U M B E R 4 6 6 2 0 C O N T R O L B O X A S S Y. C O M P L E T E 4 4 9 7 8 W IR IN G H A R N E S S , E N G IN E 5 1 8 3 6...

  • Page 84: Electrical Schematic - Standard Hose

    ELECTRICAL SCHEMATIC - STANDARD HOSE...
  • Page 85 ELECTRICAL SCHEMATIC - STANDARD HOSE PAR T ITE M D E S C R IP TION N U MB E R 46715 C ONTROL B OX A S S Y. C OMP LE TE 44978 W IRING HA RNE S S , E NGINE 51836 C A B LE A S S Y., TRIGGE R/S E NS OR 51835...

  • Page 86: Hot Air Lance (Option)

    HOT AIR LANCE (OPTION)
  • Page 87 HOT AIR LANCE (OPTION) P A R T IT E M Q T Y . D E S C R IP T IO N N U M B E R 4 5 6 5 1 M IX IN G B L O C K 5 1 4 0 1 N IP P L E , 1 /4 N P T H E X 2 9 1 9 5...

  • Page 88: Tools And Accessories

    TOOLS AND ACCESSORIES Crafco Sealing Foot / Protruded Crafco Applicator Disk 27159 - 1/4” Protruding 27162 - 3” Disk Assembly 27160 - 3/8” Protuding 27163 - 4” Disk Assembly 27164 - 6” Disk Assembly Crafco Joint Sealing Tip 27146 - 1/4” Sealing Tip 27147 - 3/8”...
  • Page 89 TOOLS AND ACCESSORIES Crafco Pour Pot with Wheels - 40200 Crafco Heavy Duty Squeegee with Aluminum Handle - 27199 27195 - Replacement Blade Crafco Heavy Duty Squeegee with Aluminum Handle - 27245 27241 - Repalcement Blade Crafco Hand Held Pour Pot - 40201 Super Shot Drip Stopper Use with 50270 Duckbill 27114 - Tip Adapter...
  • Page 90 TOOLS AND ACCESSORIES Crafco Heat Lance with Regulator and Attachments - 32259 Crafco Hand Torch w/ 20ft. Hose - 25012...
  • Page 92 ©Copyright 2014 Crafco, Inc.
