WEG WEMOB-EASY Quick Installation Manual

Driving efficiency and sustainability
Electric Vehicle (EV) Charging Station
WEMOB-EASY
Quick Installation Guide
1 SAFETY INSTRUCTIONS
All safety procedures described in this quick installation guide, on the product label and in the
WEMOB-EASY charging station user manual must be followed. The recommended procedures aim
at protecting the user against death, serious injuries and considerable material damages.
1.1 GENERAL INFORMATION
This quick installation guide contains the basic information required for the installation,
configuration and operation of the WEMOB-EASY electric vehicle charging station.
1.2 PRELIMINARY RECOMMENDATIONS
DANGER!
Risk of short circuit, fire, serious injury and potentially fatal electrical shock if
„
improperly used.
Do not plug the power cable into damaged sockets, with worn electrical contacts or
„
that cannot provide the requested charging power.
Do not use extension cords, multiple sockets, adapters or similar devices.
„
Before operating the charging station, visually inspect it for damage. Do not use the
„
charger if there is any damage or defect to the equipment, charging cable, power
cable or electrical socket.
Do not wash the electric vehicle while charging it or with the charger connected to
„
it. Never clean the charger while it is connected to the power socket or charging an
electric vehicle.
ATTENTION!
Do not allow children or people with reduced physical, mental or sensory capabilities
„
to operate the charging station. Do not let children get close when using it.
Avoid direct exposure to sunlight, rain, snow, extreme cold, excessive humidity or
„
sea air, electrical storms or other adverse weather conditions.

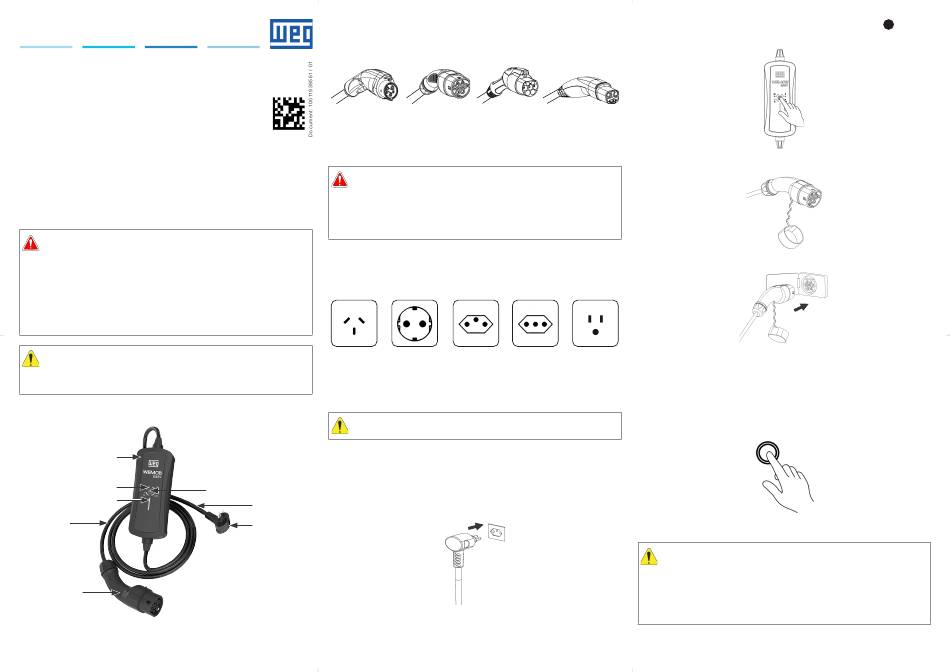

2 OVERVIEW
Front
cover
LED
indicators
Status
LEDs
Charging
cable
Charging
plug
(**)
(*) Power plug according to the model purchased.
(**) Charging plug according to the model purchased.
Figure 2.1: Overview of the WEMOB-EASY
2.1 OPTIONS
The WEMOB-EASY charging station may feature a charging cable with type 1, type 2, GB/T or
NACS plug, depending on the model purchased. According to the purchased model, compatible
English
with your electric vehicle (EV).
3 ELECTRICAL INSTALLATION
17811371
The following information is a guide for the proper installation. Comply with the applicable local
regulations for electrical installations.
DANGER!
To reduce the risk of fire, connect the WEMOB-EASY charging station to a dedicated
„
power circuit in the distribution panel or switchboard.
The supply line voltage must be compatible with the WEMOB-EASY voltage range.
„
Before connecting the WEMOB-EASY charging station to a eletrical outlet, ask a
„
qualified electrician to confirm that the socket and the protection circuit provided
are capable of withstanding the set current for continuous and prolonged charging.
The WEMOB-EASY charging station must be connected to a protective earth (PE).
„
Check that the power supply line complies with local regulations and the power socket (2P+T),
compatible with the station's power plug.
The WEMOB-EASY charging station can be connected to single-phase or two-phase power supply
lines (without neutral), with a rated voltage of 100 to 240 V ±10 % (50/60 Hz).
N L
PE
IRAM 2073
Type I Type E / Type F - Schuko
10 A
Figure 3.1: Standard socket connection available in different versions for each country
4 OPERATION
ATTENTION!
Only charge the vehicle with the motor turned off.
„
To operate the WEMOB-EASY charging station, follow the instructions below:
1. Before operating the charging station, visually inspect it for damage. Do not use the charger
if there is any damage or defect to the equipment.
Maximum
output current
2. Unwind the entire power and charging cable.
adjustment button
Power
cable
3. Insert the power cable plug firmly into the eletrical outlet.
Power plug
(*)
4. When the charging station is powered up, it conducts a self-test, the LEDs will change patterns
several times for internal testing, and you should wait about 10 to 15 seconds before starting
a charge with the station. If no problem is found during startup, the status LED will become
solid GREEN, indicating that the station is available to start charging.
Figure 2.2: Type 1, type 2, GB/T and NACS charging plugs
PE
PE PE
N L
N L N L
CEE 7/7 NBR 5410 CEI 23-50
Type N Type L
16 A
20 A 10 A
5. Select the maximum output current (charging power) by pressing the
adjustment sequence may vary depending on the model purchased. The default sequence
is 6 A → 10 A → 16 A → 20 A.
(*)
(*) 15 A for the model with NEMA-5-15 power cable.
6. Remove the protective rubber cover from the charging plug.
7. Insert the charging plug into the electric vehicle socket.
N L
PE
The WEMOB-EASY charging station will automatically detect the vehicle connection status.
NEMA-5-15
„
After connected to the vehicle, the charging station status LED will turn solid ORANGE.
Type B
15 A
If the connection is successful, the station will start charging the electric vehicle, and the
„
status LED will turn solid BLUE.
8. To end the charging process, two methods can be used:
User intervention: in this case, the charging must be ended through the vehicle. Each vehicle
„
has its own method for ending the charging operation. It is recommend reading the vehicle
manual for the correct interruption method.
Complete charge: after the electric vehicle battery is fully charged, the charging connector
„
will remain locked until the vehicle stops the charging operation.
ATTENTION!
Do not interrupt the charging operation by disconnecting the power cable from the
„
eletrical outlet or the electric vehicle (EV) charging plug. The charging process
must be ended through the vehicle. Each vehicle has its own method for ending
the charging operation. It is recommend reading the vehicle manual for the correct
interruption method.
Do not remove the power cable plug from the eletrical outlet or the charging plug
„
from the vehicle by pulling cable in order to avoid affecting the proper operation of
the charger and prevent accidents.
The station status LED will flash in ORANGE, indicating that the charge is complete and the user
intervention is required.
A button the
