WS123
Deluxe work station with USB Port

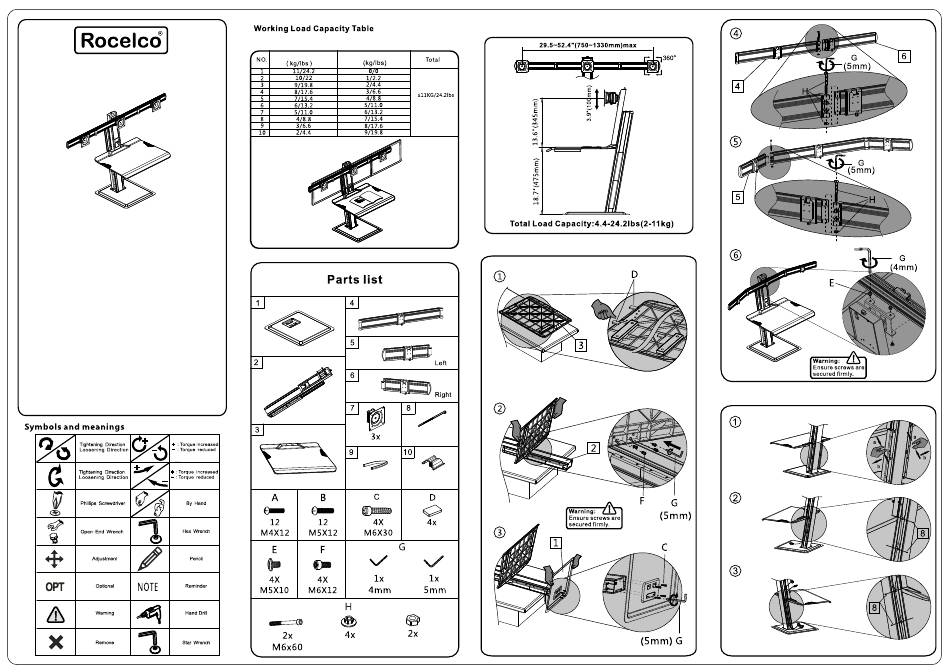

Assembly Manual
Monitor arms included to hold 1x 32", 2x 27" or 3x 24"
Weight Rating: 2-11kg / 4.4 -24.lbs
VESA: 75 x 75, 100 x 100mm
IMPORTANT SAFETY INSTRUCTIONS
When using the WS123, the following precautions should be
followed, Read all instructions before use.
• Close supervision is necessary if / when being used by children
• Do not operate if this product is damaged
• Do not exceed weight rating
• For safe installation, the surface you are placing the unit on must
support minimum 3 times the weight of the total load
• This product contains moving parts, please use caution
• The manufacturer / importer disclaims any liability for the
modification, improper installation, or installation over the specified
weight range. The manufacturer / importer will not be liable for any
damages arising from the use of, or inability to use the product
"WARNING" – Risk of injury please do not exceed weight rating below.
Monitor Weight
Work Surface Weight
8 x Tie Straps
2 x Cable Hose
4 x Cable Clip
Rubber Pads
A. Full adjustment post installation
B. Installation (2 persons required)
Part D
Protective rubber pads
C. Cable Management
Gently
squeeze cable
covers
Feed tie strap
through slot
Repeat
step 2
