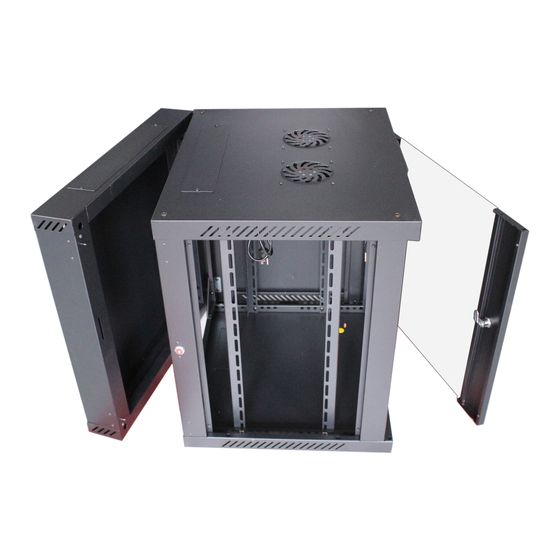

- Page 1 Rocelco Racks 12U Assembly Instructions and Parts List ...
- Page 2 Rocelco Racks 12U Assembly Instructions and Parts List Rocelco Racks Parts List Part A- M4 x 8 Self Tapping Screw QTY: 8Pcs Part B- M5 x 10 Self Tapping Screw QTY: 24Pcs Part C- M6 x 8 Self Tapping Screw QTY: 16Pcs ...
- Page 3 Rocelco Racks 12U Assembly Instructions and Parts List Rocelco Racks Components List Part G – Bottom Cover Part F – Part H – Top Cover Frame QTY: 1Pc QTY: 1Pc QTY: 2Pcs Part I – Part J – Rear Door Part K –...
- Page 4 Rocelco Racks Assemble Instructions Step 1: Take out Top Cover (Part F), Bottom Cover (Part G), Rear Door (Part J) and Entry Panel (Part L). Use M4 x 8 Self-Tapping Screw (Part A) to fix the Entry Panel to Top Cover, Bottom...
- Page 5 Rocelco Racks Assemble Instructions Step 3: Use M6 x 8 Self Tapping Screw (Part C) to Fix the Frames (Part H) with Top Cover (Part F) and bottom Cover (Part G), and Put Turn over the Fixed Frames. Step 4: Use M6 x 12 “+” Type...
- Page 6 Rocelco Racks Assemble Instructions Step 6: Put on the Rear Door (Part J) and Side Door (Part I) Below is Additional small Part assembling instruction in drawing. Back V iew Part O – Part Q – Part N – Triangle Kit...
- Page 7 Rocelco Racks Assemble Instructions Page 6...
