Summary of Contents for Profelmnet 6114

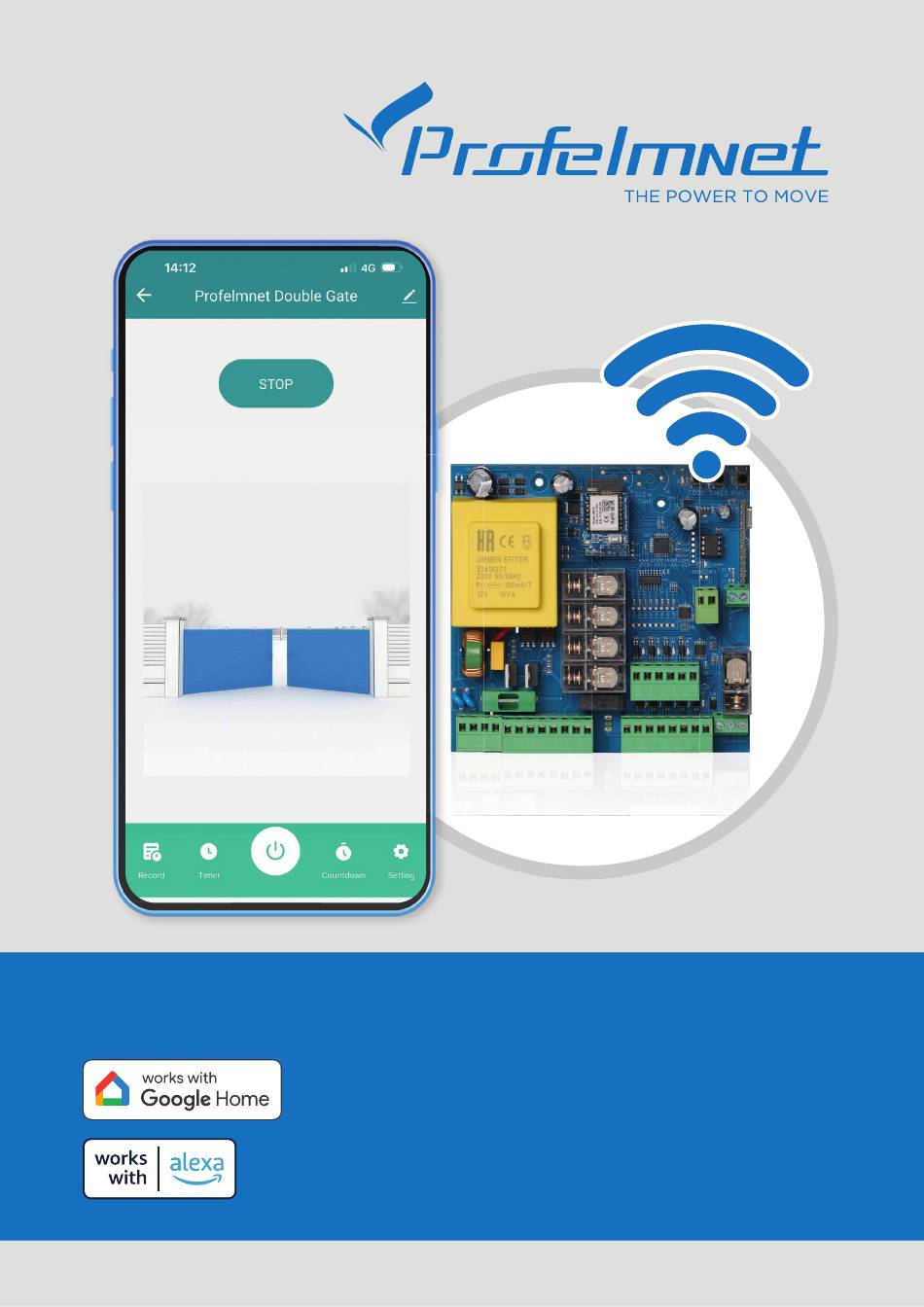

- Page 1 6114 WiFi control board for 2 motors 230VAC INSTALLATION MANUAL...
- Page 2 www.profelmnet.com...
-
Page 3: Security Information
2 motors 230VAC 6114 control board is the ideal connectivity solution for 2 motors that makes access smarter and easier. The user has the possibility to make all the settings of the automation via his mobile phone and also to manage his gates from wherever he is, using the WiFi network. - Page 4 6114 WiFi control board for 2 motors 230VAC 6114 WiFi | Profelmnet...
-
Page 5: Technical Characteristics
External Antenna 433,92MHz Shield Antenna 433,92MHz Temperature C + 60 Compatible with: 6114 WiFi control board for 2 motors 230VAC is certified by: Compatible with: C E R T I F I C A T I O N Powered by:... - Page 6 Connect your smart device to your Wifi network and download the Tuya Application through Google Play or Apple store Mobile Phone Fill your email and press Send Wireless Router verifi cation code Press Sign Up for Send Verifi cation Code new account Set your Password Go to application The account has been successfully created 6114 WiFi | Profelmnet...
- Page 7 Create your HOME in application Select Profi le Select Home Management Create your HOME My Home My Home Give a name to your HOME Your HOME is created Profelmnet | 6114 WiFi...
- Page 8 Pairing with the 6114 control board WiFi COMPATIBILITY 6114 control board is compatible with 2.4GHz and 5GHz. 6114 Power the 6114 control board The blue LED indicator of the board will start flashing rapidly. Otherwise, hold and press firmly on the WiFi button of the...
- Page 9 6114 confi guration Home Page 6114 Command Button Open | Stop | Close Countdown Τimer Settings Record All devices main page Quick Command Green: Is open Grey: Is closed Profelmnet Double Gate | 6114 WiFi Profelmnet...
- Page 10 6114 confi guration menu In home page, select ‘Settings’ for 6114 board confi guration Settings Function Selections / Values Description ON / OFF Notification of the closed position Notifi cation of the closed position ON / OFF Notification of the open position...
- Page 11 STOP M1 STOP M2 End of Procedure Trouble Shooting Status Message For security reasons, this is only for certified Type the 8 digits Add transmitters serial number Profelmnet installers • Open • Stop • Close Test Command Test the configuration...
- Page 12 Procedure number 1: REMOTES SAVE TRANSMITTERS Through 6114 board: Press the CODE button until the red indicative LED turns ON. Release immediately the CODE button and press the transmitter’s button. The red indicative LED blinks once as an indication of successful saving.
-
Page 13: Operating Time
When Motor 1 is fully open, press the remote again. Motor 1 stops and Motor 2 starts opening automatically. Press the remote when Motor 2 is fully open. The operating time of the two Motors have now been set. Profelmnet | 6114 WiFi | 13... - Page 14 Motor 2 stops and after 1 second, Motor 2 starts to close automatically. When Motor 2 completely closed, press the remote once. Motor 2 stops and after 1 second, Motor 1 starts to close automatically. When Motor 1 completely closed, press the remote once. 14 | 6114 WiFi | Profelmnet...
- Page 15 The user who is able to manage the device but not able to make adjustments The home owner can divide the 6114 control board into administrators or users depending on the degree of access they want to have to the control board TIP: The user you will share access with must have a TUYA SMART app account.
- Page 16 You can set rules and schedules for your devices, making your home more effi cient and convenient... Select the + on main page and Set the rules or scenarios you choose CREATE SCENE want based on your needs 16 | 6114 WiFi | Profelmnet...
- Page 17 Ggoogle Play. Create an account Select Devices Choose Add new Device Find the Tuya Smart device Choose and press NEXT Install and press NEXT The device is added in (Tuya Switch) AMAZON ALEXA Profelmnet | 6114 WiFi | 17...
- Page 18 Notes: 18 | 6114 WiFi | Profelmnet...
- Page 19 Profelmnet | 6114 WiFi | 19...
- Page 20 www.profelmnet.com...
