Profelmnet 3414 Quick Start Manual

3414

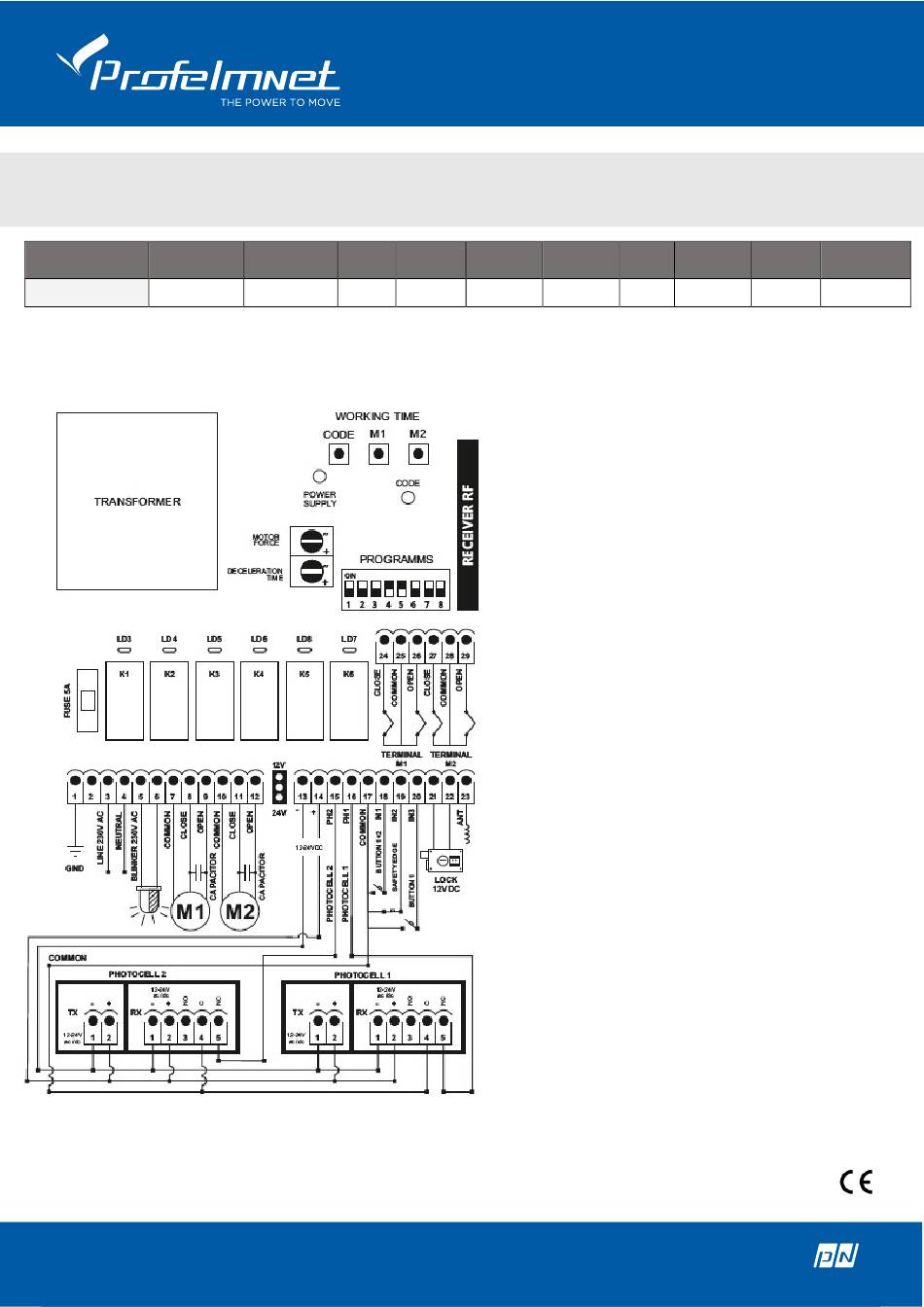

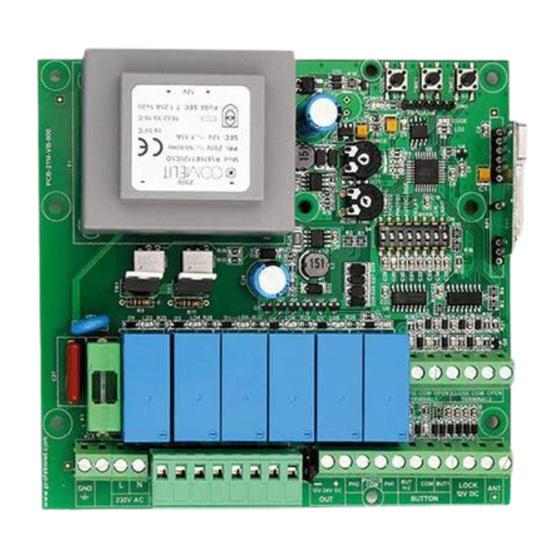

Control board for 2 motors 433,92MHz
Frequency
Product Code
(MHz)
3414 433,92
Terminal
Codification Photocells
Switches
ON ORDER YES YES
Proedrou Drakaki 11 ,173 41Agios Dimitrios
Call Center: 210 9850 244, Fax: 210 9823 264
External
Auto-Close Flash
Button
YES YES YES
Function Description
1 TERMINCAL SWITCHES
OFF: NO terminal switches. In case of single swing gate.
ON: Terminal switches. In case of slidinga gate or barrier. The
indicating RED LED shows the close contact of terminal switches.
When the gate crosses the terminal switches, the indicating LED is
off.
2 PHOTOCELL 2. FREEZE MOVE.
OFF: No photocell 2.
ON: With photocell 2. Internal installation, after the total opening
of the gate.
3 PHOTOCELL 1.
OFF: No photocell 1.
ON: With photocell 1. Link with Auto-Close.
4 AUTO CLOSE
OFF: No automatic close.
ON: Embedded auto close function. Works with the photocell.
When the gate opens and there is no access (no obstacle detection
from the photocell), the A/C time is 120 seconds (the gate will close
after 120 seconds). If there is access and obstacle detection from
the photocell, then the A/C time is 10 seconds (the A/C timer
counts 10 seconds after the photocell is free and then the gate will
automatically close). The second time of A/C can be changed
(follow the below instructions).
5 DELAY BETWEEN MOTOR 1 AND 2
OFF: No delay between 2 motors.
ON: Delay between 2 motors.
6 AUTOMATIC CLOSING
OFF:No automatic closing.
ON: Automatic closing for 1 second after each hour (in case of
ydraulic motor)
7 LOCK
OFF: No LOCK
ON: LOCk is activated.. Up to 5A
8 SAFETY EDGE
OFF: No safety edge connected.
ON: Safety Edge contact is controlled. When safety edge contact is
activated, the gate is stopped and moved backwards for 10 cm.
