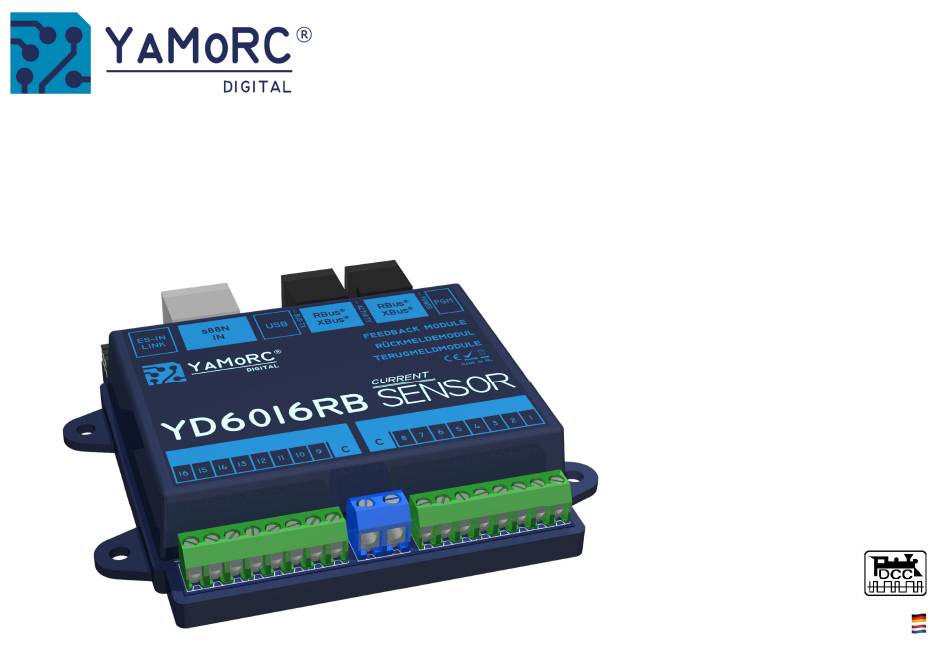

- Page 1 YD6016RB current Sensor 16−fold feedback module Quick star (2023−11−29) Designed by Karst Drenth Made in Germany Assembled in NL...
-
Page 2: Table Of Contents
Connec on example of the YD6016RB-CS feedback unit on 2-wire track, Z21®, z21®, z21® Start via Roco® R-Bus.……………………….. 8 Connec on of the YD6016RB-CS to the control centre via R-Bus® and Extension op ons via "ES-IN Link" and "s88N"………………...………………… 9 Connec on of the YD6016RB-CS to the z21®,Z21®... -
Page 3: Descrip On
The sensi vity of the feedback inputs is 1 mA current consump on. The YD6016RB-CS has a capaci ve input filter at each feedback input. This filter suppresses noise (antenna effect) in the case of long long line distanc- ... -
Page 4: Technical Data
42,5 mm 88 mm 84 mm x 88 mm x 22 mm Housing Dimensions 94,5 mm, 42,5 mm Distance Between Holes Moun ng The YD6016RB-CS is mounted via the four moun ng holes on the side of the housing. www.yamorc.de... -
Page 5: Important Notes (Including Health & Safety)
Connec on work must always be carried out in a de-energised state. Disconnect or switch off power AC/DC and signal input. The YD6016RB-CS must never be installed near sources of intense heat, such as radiators or places exposed to direct sunlight. Therefore, install the ... -
Page 6: Must Read Before Using Y6016Rb Product/Hardware Overview
YD6016RB-CS Hardware overview R-Bus® Connec on 2 X-Bus® Red LED Load indicator of the feedback module. The brighter the LED lights up, the higher the current detected by the feedback module. R-Bus® Connec on 1 X-Bus® Green LED R-Bus® and voltage supply present or Display Configura on mode of the YD61016RB-xx ac ve. -
Page 7: Connec On Example Of The Feedback Unit At The 2-Wire Track And On The R-Bus
Maximum expansion on the R-Bus®: 160 feedback units (ten YD6016RB-xx) for technical reasons on the R-Bus®. A!en on! All connec on work on the YD6016RB-xx must always be carried out in a de-energised state. Disconnect the power supply from the mains and switched off! -
Page 8: Connec On Example Of The Yd6016Rb-Cs Feedback Unit On 2-Wire Track, Z21®, Z21®, Z21® Start Via Roco® R-Bus
Maximum expansion on the R-Bus®: 160 feedback units (ten YD6016RB-xx) for technical reasons on the R-Bus®. A!en on! All connec on work on the YD6016RB-xx must always be carried out in a de-energised state. Disconnect the power supply from the mains and switched off! -
Page 9: Connec On Of The Yd6016Rb-Cs To The Control Centre Via R-Bus® And Extension Op Ons Via "Es-In Link" And "S88N
Attention! A common use of "ES-OUT Link" and "s88N-OUT" or "ES-IN Link" and "s88N-IN" at the same module is not allowed. A!en on! All connec on work on the YD6016RB-xx must always be carried out in a de-energised state. Disconnect the power supply from the mains and switched off! -
Page 10: Connec On Of The Yd6016Rb-Cs To The Z21®,Z21® Via R-Bus® And Extension Op Ons Via "Es-In Link" And "S88N
Attention! A common use of "ES-OUT Link" and "s88N-OUT" or "ES-IN Link" and "s88N-IN" at the same module is not allowed. A!en on! All connec on work on the YD6016RB-xx must always be carried out in a de-energised state. Disconnect the power supply from the mains and switched off! www.yamorc.de... -
Page 11: Basic Informa On On The R-Bus
Configuring the module addresses and the total number of feedback devices of the YD6016RB-CS with a YD7xxx control panel If a YaMoRC central unit is used for the connec on to the YD6016RB-xx, the configura on of the module addresses and the total number of feedbacks of the YD6016RB-xx is done with the more comfortable configura on wizard of the YaMoRC central sta on. -
Page 12: Configuring The Module Address Of The Yd6016Rb-Cs (Z21®, Z21®)
Configuring the module address of the YD6016RB-CS YaMoRC has chosen to make the programming of the YD6016RB-CS as simple as possible. The YD6016RB-CS is preset "out of the box" with the R-Bus® mod- ule addresses 1 (feedback address 1-8) and module address 2 (feedback address 1-8). The module addresses can be adjusted at any me via the Roco®... -
Page 13: Use The Yd6016Ln-Cs To Configure The Switching Decoder Of The Yd8Xxx Series
Use the YD6016RB-CS to configure the switching decoders of the YD8xxx series. The YD6016RB-CS can be used to configure the YD8008, YD8044 and YD8116 switching decoders. The configura on tool of the YD6016RB-CS can be used to adjust the seGngs of the switching decoders. -
Page 14: Firmware Update Of The Switching Decoders Of The Yd8Xxx Series Via "Es-Link" With The Yd6016Rb-Cs
To prevent ground loops via USB, the YD6016RB-CS should always be connected to the PC or laptop via USB alone. The YD6016RB-CS is connected via "ES-IN Link" and the "ES-PGM Link" socket on the YD8xxx. The connec on can be made either via the YD6901ES- ... -
Page 15: Warranty
Content of the guarantee/exclusions: The warranty includes, at YaMoRC's discre on, the free repair or free replacement of the defec ve part, which can be proven to be due to design, manufacturing, material or transport faults. For this purpose, you must send the decoder to us properly stamped. Further claims are excluded.
