Charging the Battery

Service Interval: Before storage—Charge the battery
and disconnect the battery cables.
1. Remove the battery from the chassis; refer to
Removing the Battery (page
2. Charge the battery for a minimum of 1 hour at
6 to 10 A.
Note:
Do not overcharge the battery.
3. When the battery is fully charged, unplug
the charger from the electrical outlet, then
disconnect the charger leads from the battery
posts (Figure 49).

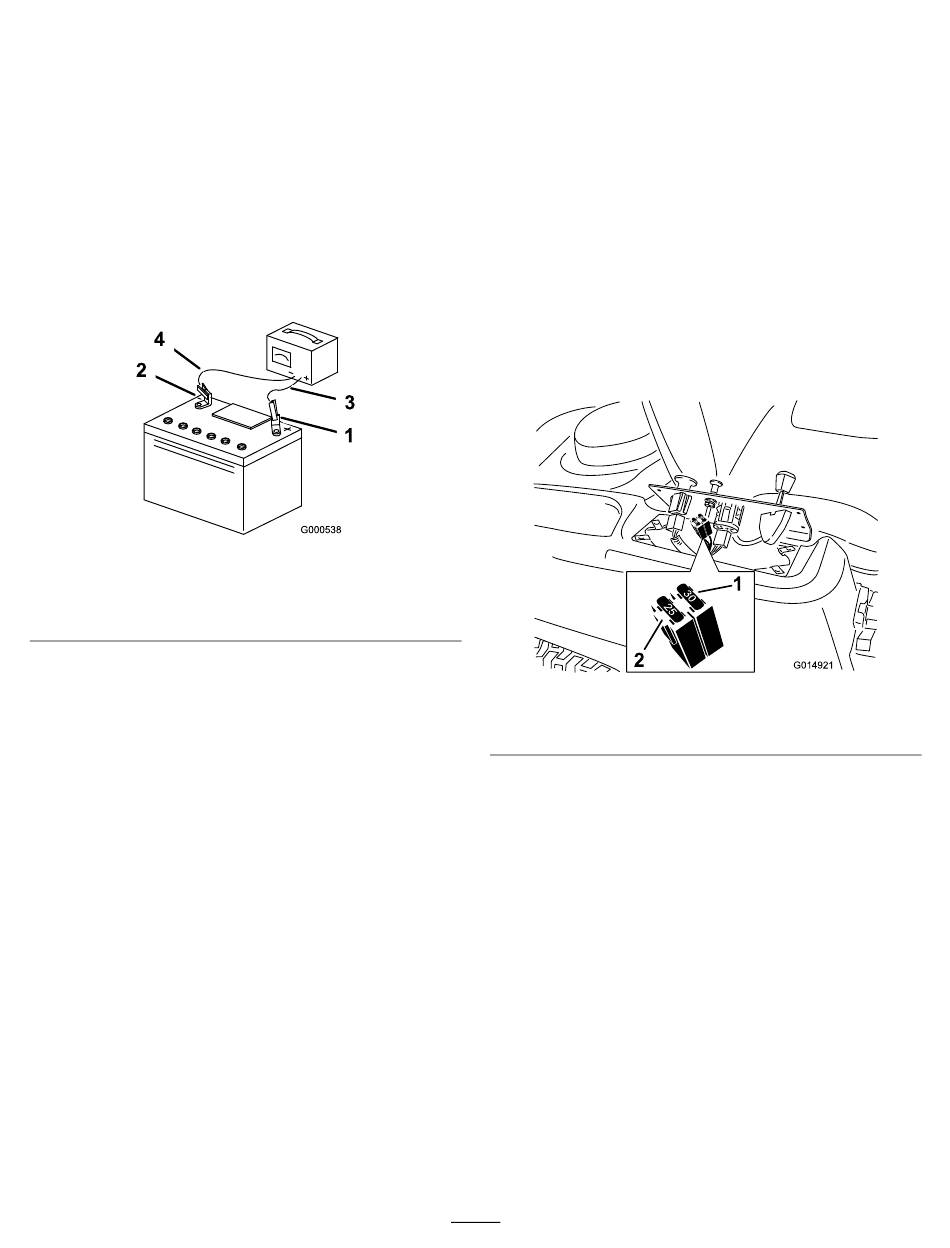

Figure 49
1. Positive (+) battery post
2. Negative (–) battery post

Installing the Battery

1. Position the battery in the tray
2. Using the fasteners previously removed, install
the positive (red) battery cable to the positive
(+) battery terminal.
3. Using the fasteners previously removed, install
the negative battery cable to the negative (-)
battery terminal.
4. Slide the red terminal boot onto the positive
(red) battery post.
5. Secure the battery with the hold-down
48).
6. Lower the seat.
42).
g000538
3. Red (+) charger lead
4. Black (–) charger lead
(Figure 48).
(Figure

Servicing the Fuses

The electrical system is protected by fuses. It requires
no maintenance; however, if a fuse blows, check the
component/circuit for a malfunction or short.
Fuse type:
•
Main—F1 (30 A, blade-type)
•
Charge Circuit—F2 (25 A, blade-type)
1. Remove the screws securing the control panel
to the machine.
Note:
Retain all fasteners.
2. Lift the control pane up to access the main wire
harness and fuse block
3. To replace a fuse, pull out the fuse to remove
it (Figure 50).
1. Main (30 A)
4. Return the control panel to its original position.
Note:
Use the screws removed previously to
secure the panel to the machine.
43
(Figure 50).
Figure 50
2. Charge circuit (25 A)
g014921
